What's in this package
Everything shown here ships as part of this package. Select a piece to see its description, specs and manuals.
Description

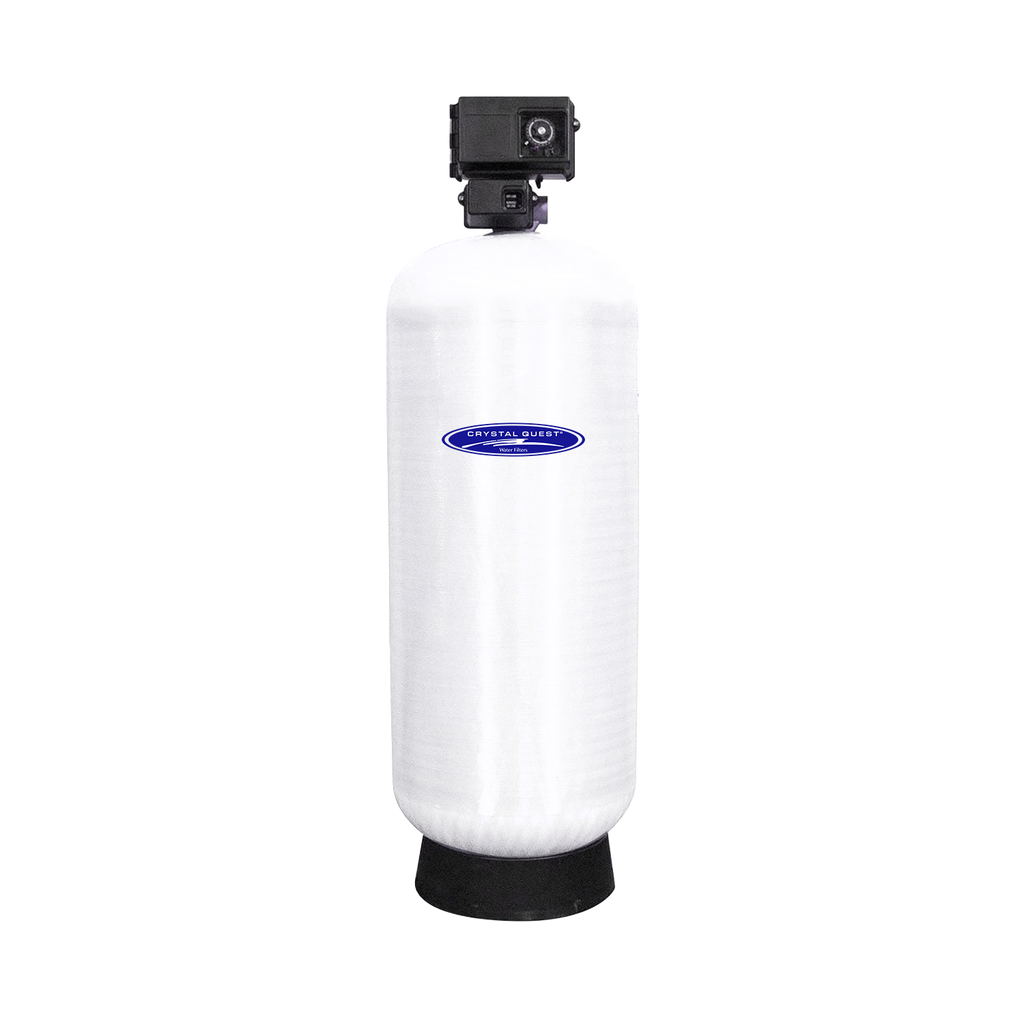

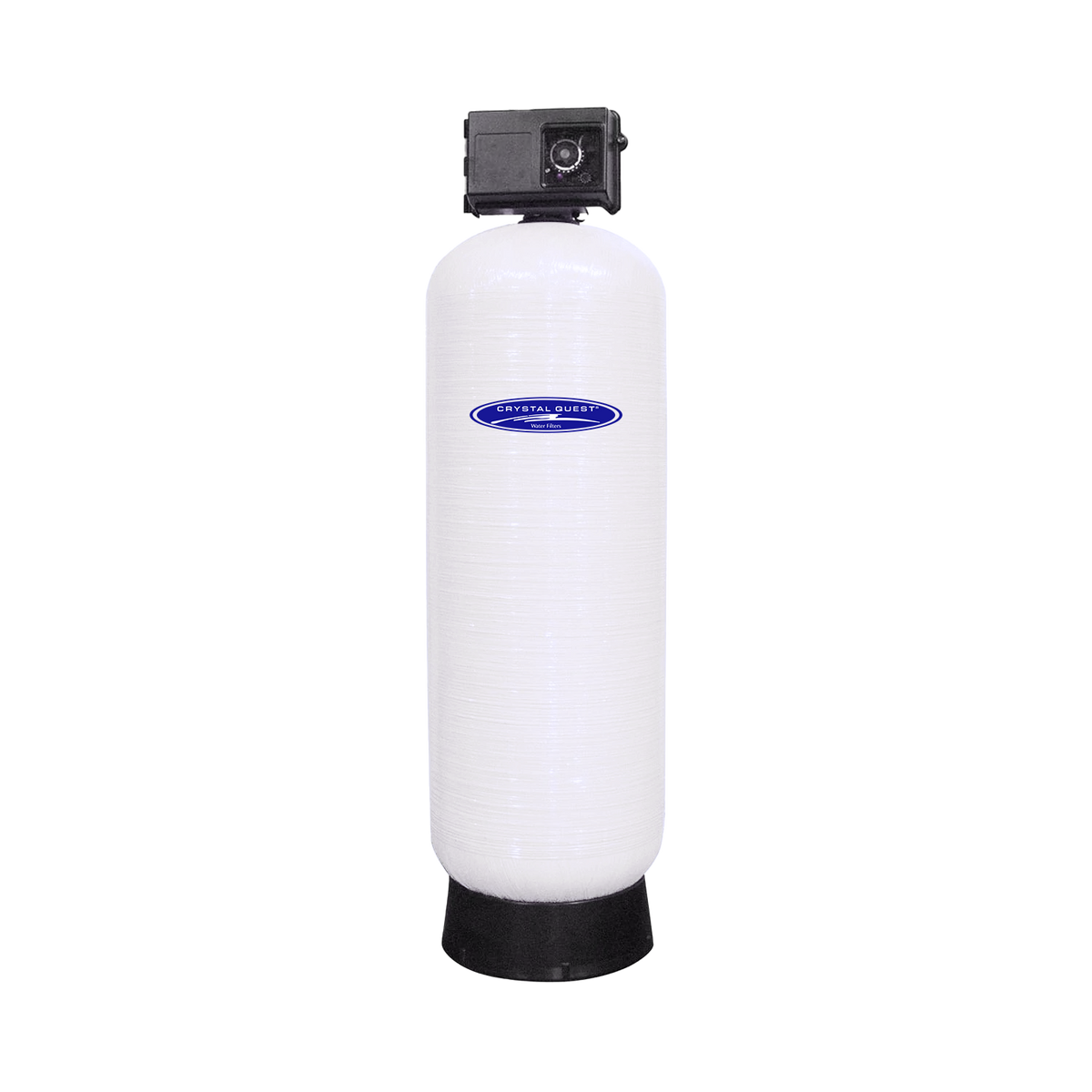

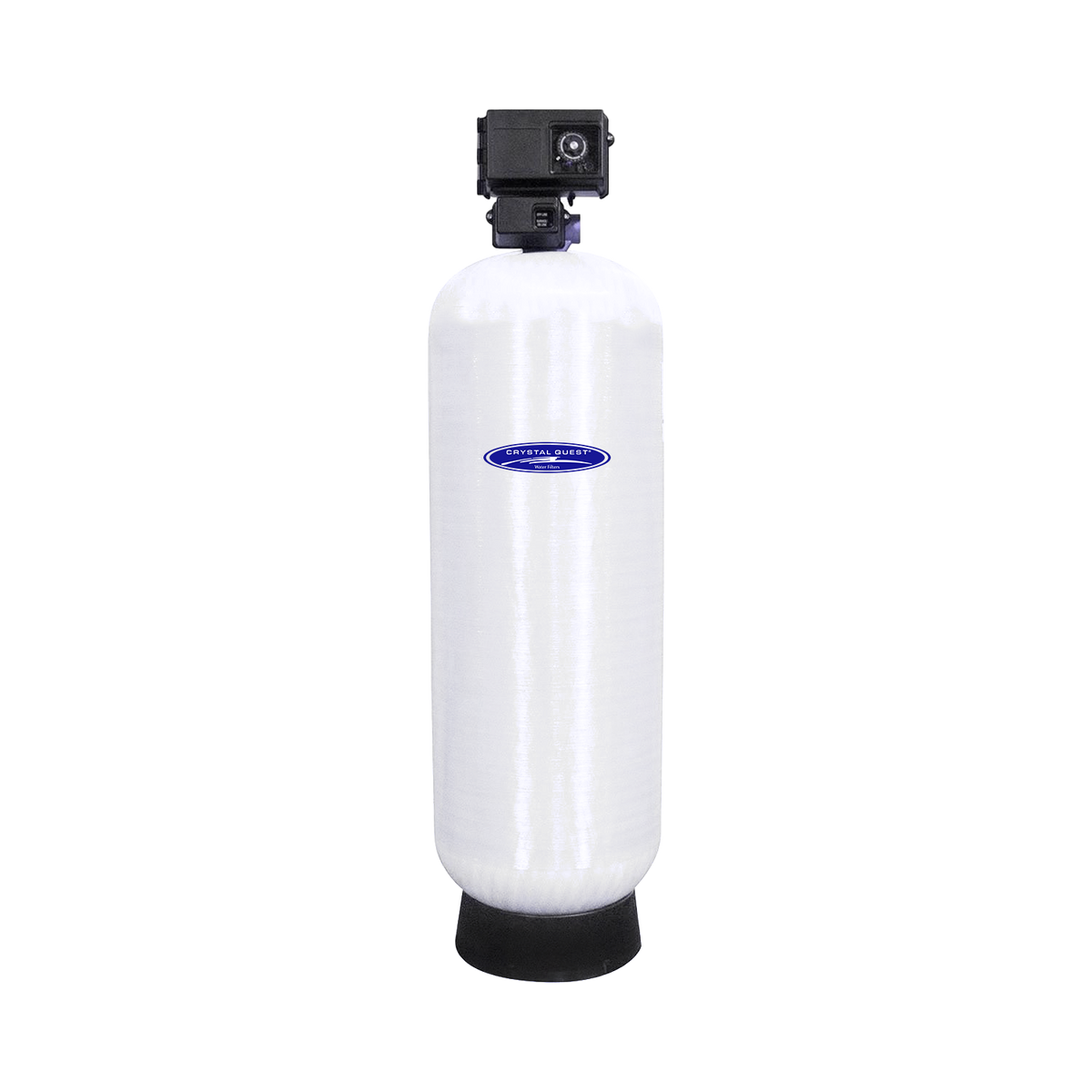

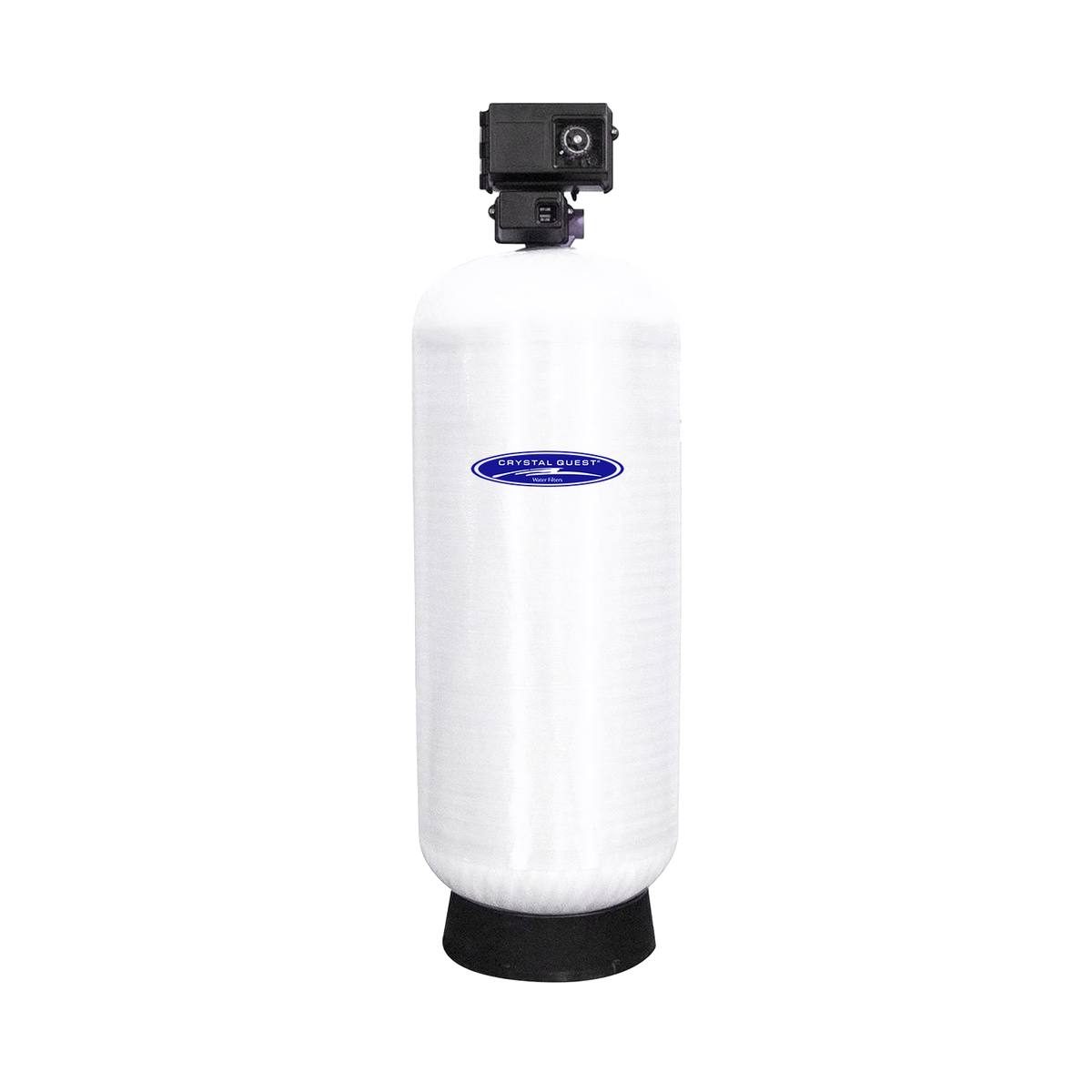

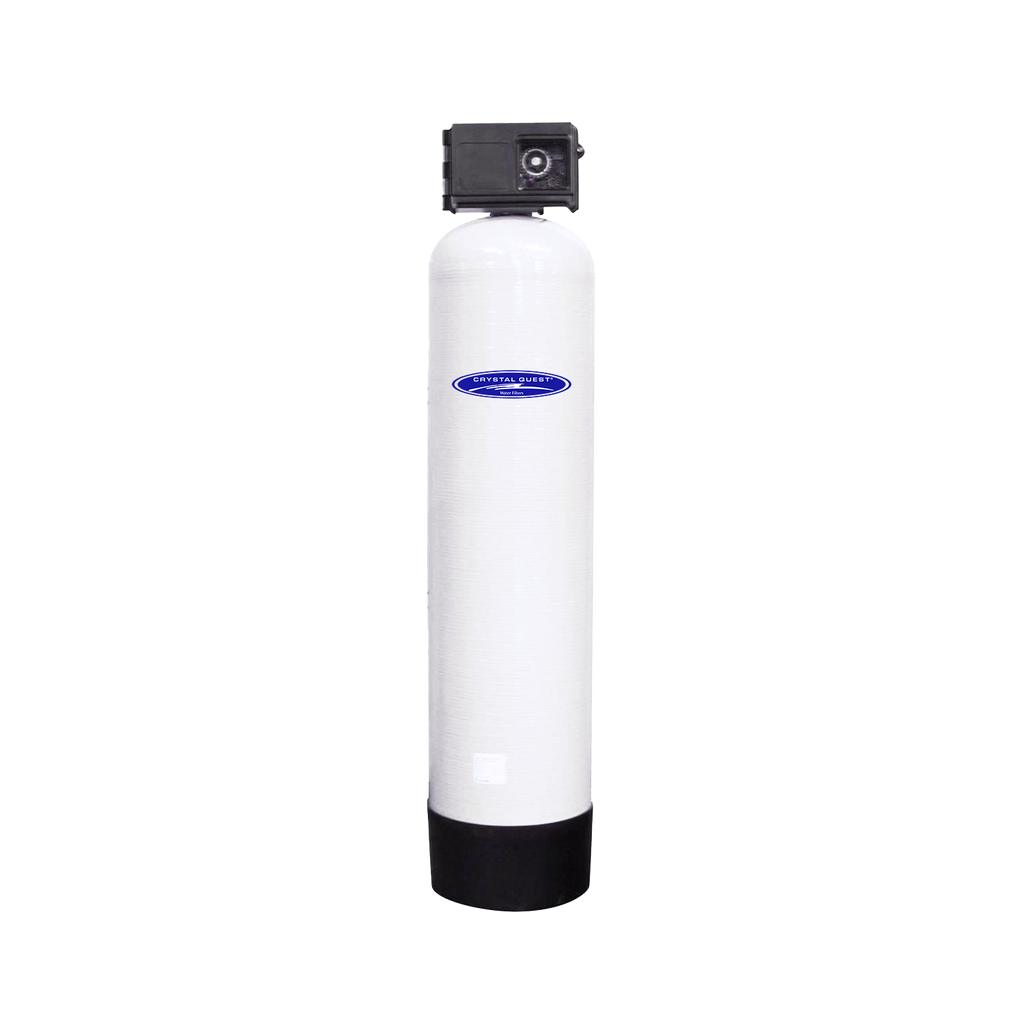

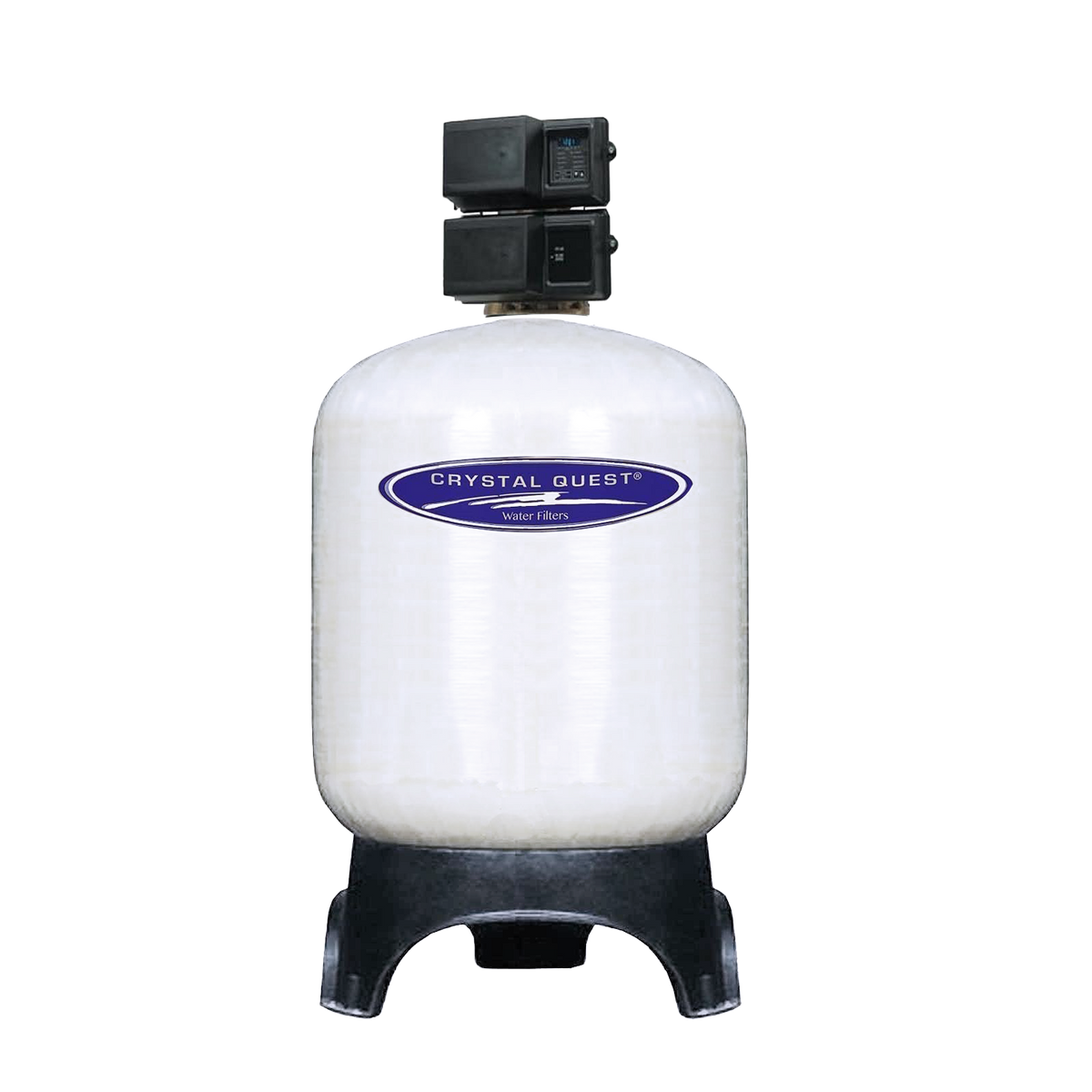

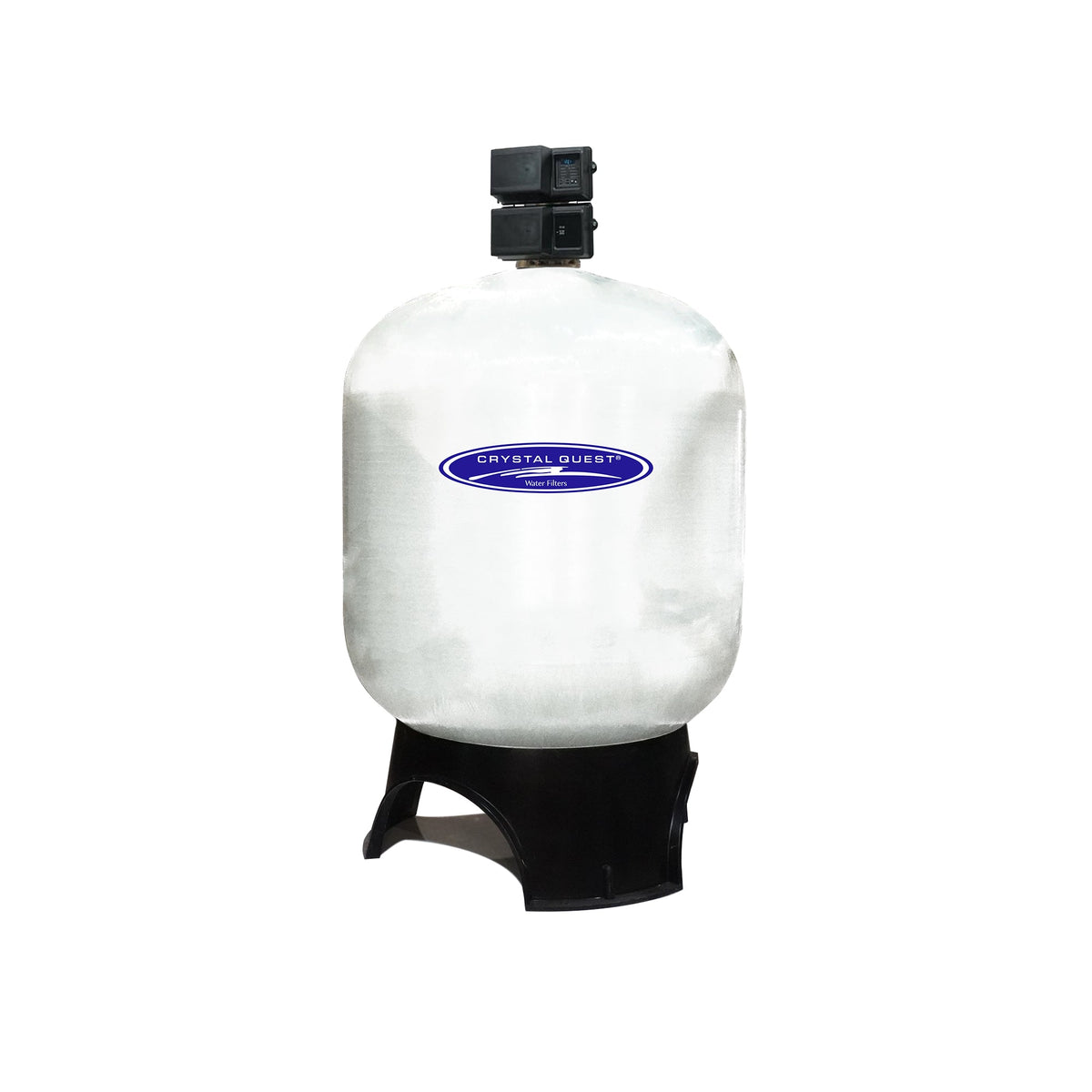

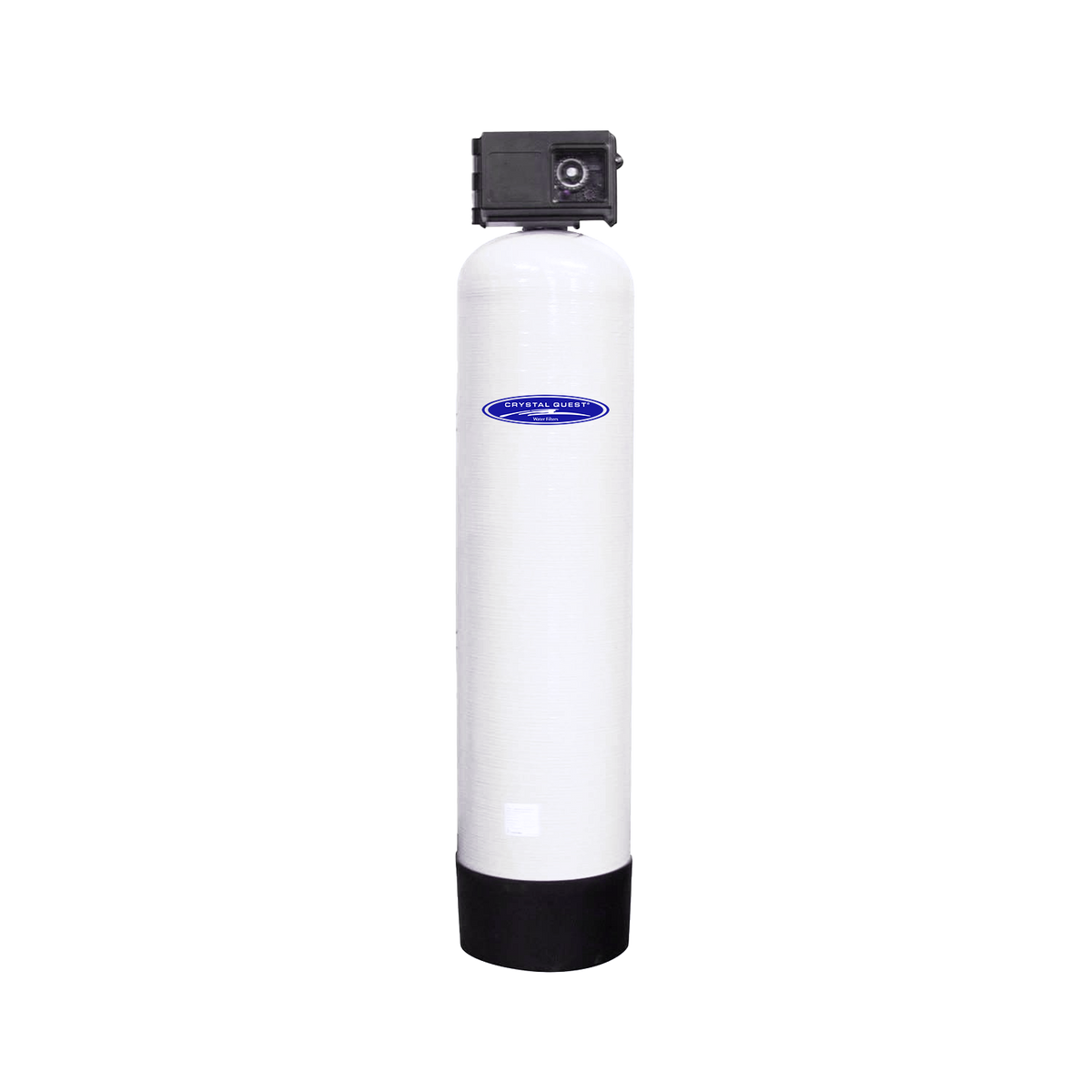

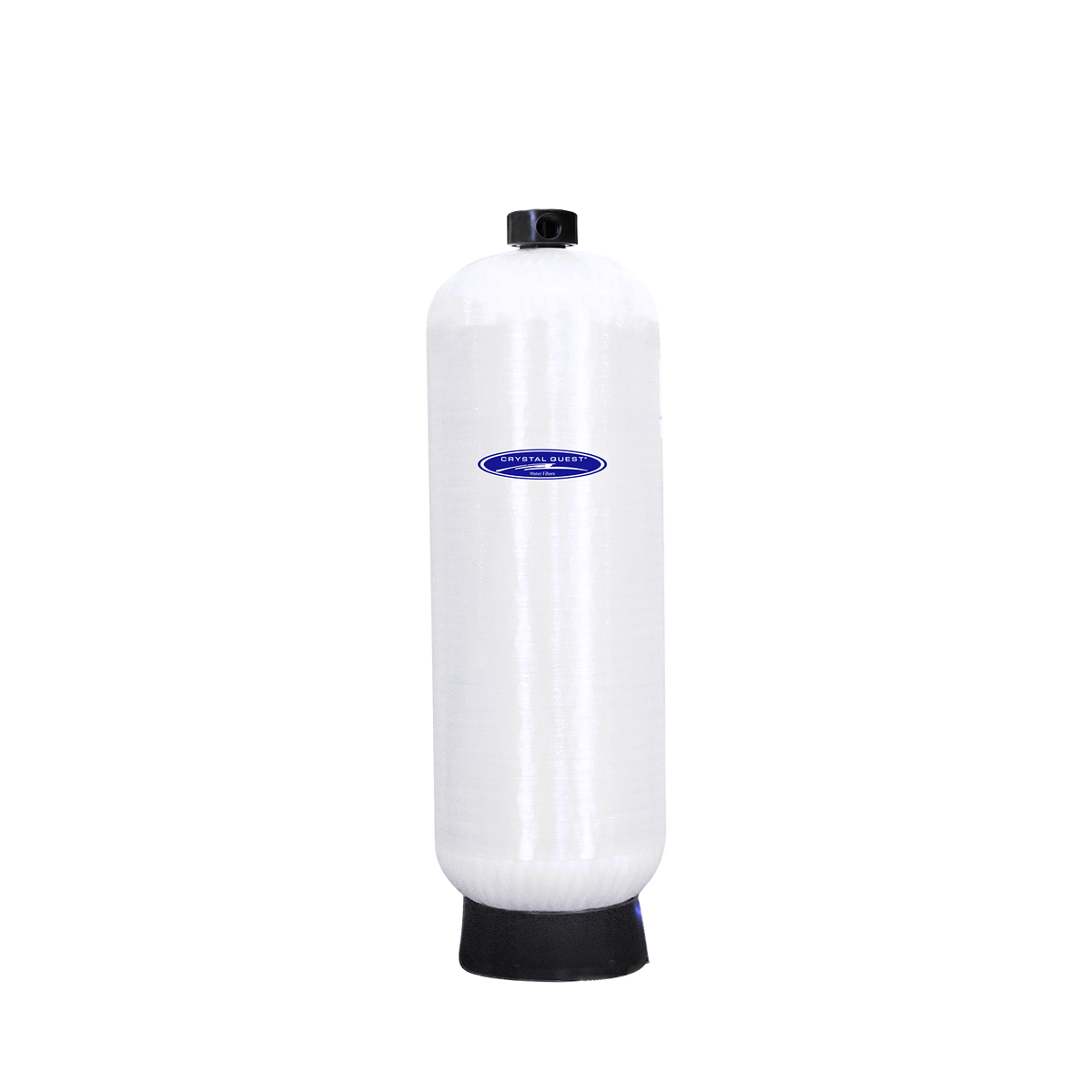

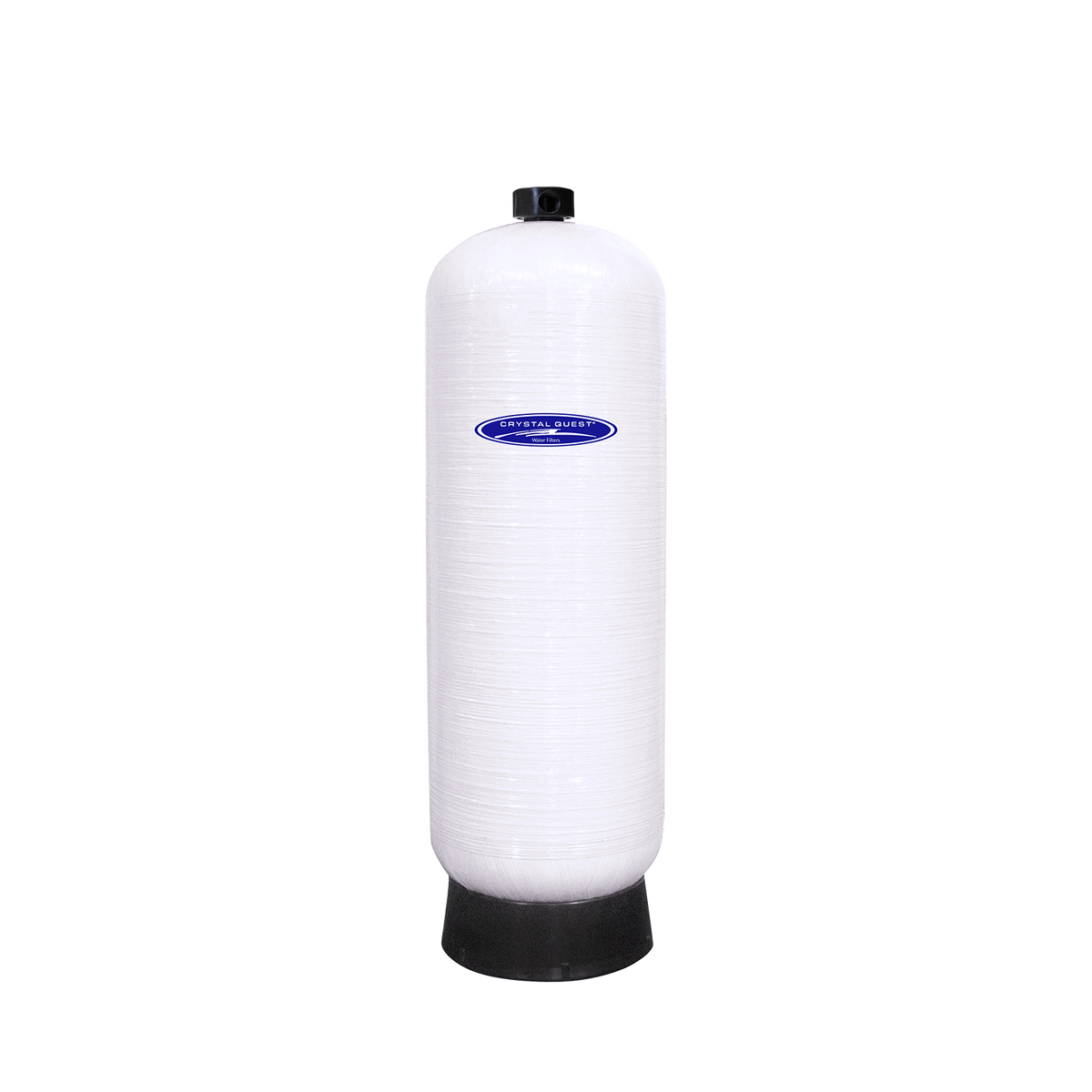

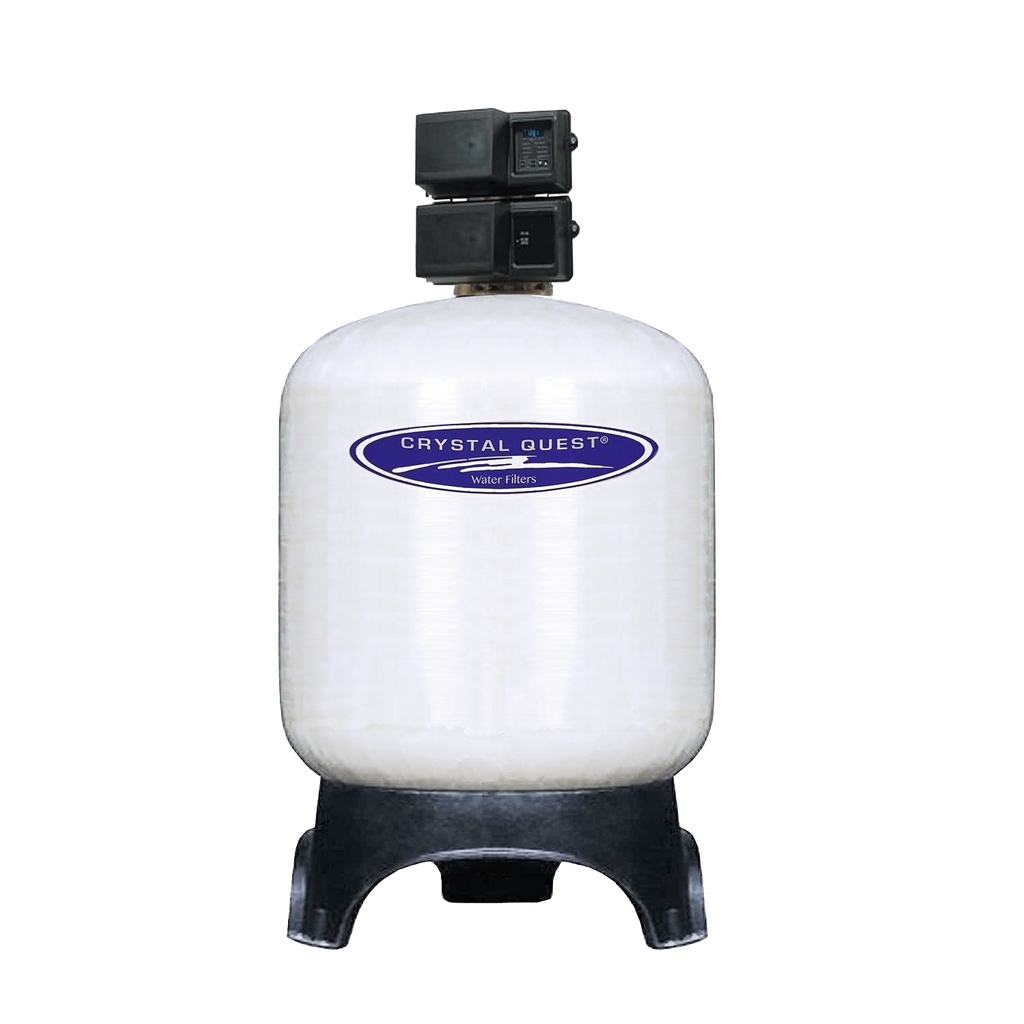

Radium and uranium occur naturally in some groundwater and cannot be detected by taste, smell, or sight. The Crystal Quest Commercial Radium & Uranium Water Filtration System treats water at service flow rates from 15 GPM up to 390 GPM, with 3 to 60 cubic feet of removal media depending on size.
Highlights
- Reduces radium and uranium for commercial, community, and industrial water supplies
- Nine service flow sizes from 15 GPM to 390 GPM to match facility demand

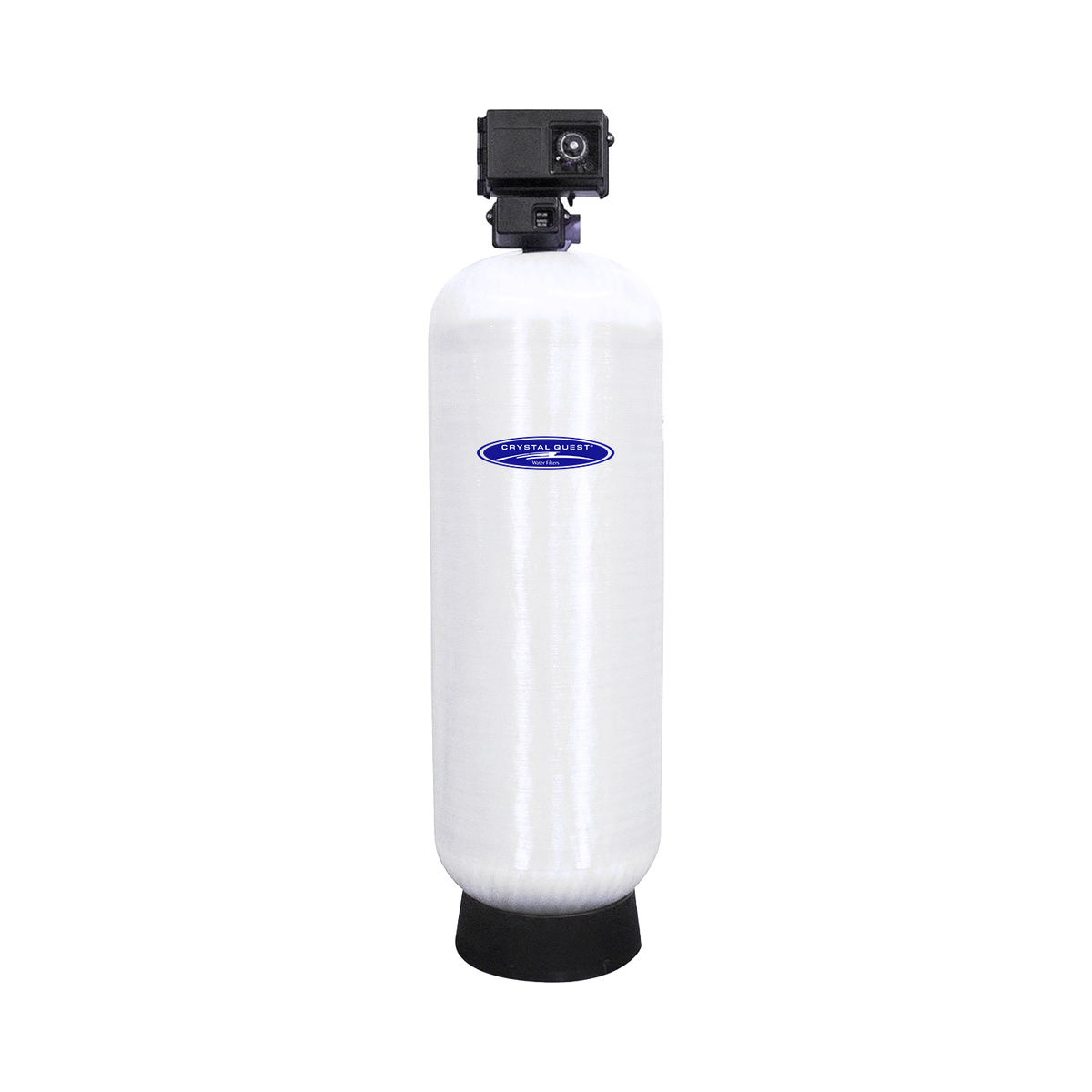

- Automatic timer control heads or manual upflow and manual backwash heads on 15–75 GPM sizes
- All-brass automatic control valves rated for commercial and industrial use
- Media options include MetalX-Lite, ERA 6500 & 9500, and ion exchange resin
Details
Avermont Direct is an authorized Crystal Quest dealer. This system is intended for facilities and communities where testing has shown radium or uranium in the supply. Sizing depends on peak flow, available space, and pipe size, so our team can help confirm the right model before you order.
Need Help?
If you have questions about this product before you order, our team is happy to help.
Email: support@avermontdirect.com
Phone: +1 (844) 455-3695
Hours: Monday–Friday, 9AM–5PM
Live Chat: Available 24/7
| Service Flow | 15, 20, 35, 60, 75, 185, 200, 245, 390 GPM |
| Peak Flow | 22, 41, 60, 95, 140, 250, 270, 280, 450 GPM |
| Backwash Flow | 5, 7, 12, 15, 25, 35, 50, 65, 75 GPM |
| Pipe Size | 1" (15 GPM), 1.5" (20–35 GPM), 2" (60–75 GPM), 2" or 3" (185 GPM), 3" (200–390 GPM) |
| Control Valve | 2510 (15 GPM), 2850 (20–35 GPM), 2900 (60–75 GPM), 3150 / 3900 (185 GPM), 3900 (200–390 GPM) |
| Removal Media Volume | 3, 4, 7, 10, 15, 20, 30, 40, 60 cu. ft. |
| Quartz Underbed | 30, 40, 70, 100, 150, 200, 300, 400, 600 lbs. |
| Operating Pressure | 35–60 PSI |
| Mineral Tank | 14" x 65" (15 GPM) up to 63" x 83" (390 GPM) |
| Space Required (D x H) | 16" x 75" (15 GPM) up to 67" x 203" (390 GPM) |
| EPA Limits Referenced | 5 pCi/L combined radium-226 and radium-228; 30 µg/L uranium |
- 2510 head: 19 GPM high service flow, 17 GPM backwash capacity; 2850 head: 60 GPM high service flow, 47 GPM backwash, 5-cycle control; 2900 head: 106 GPM high service flow, 36 GPM backwash, self-adjusting backwash controller

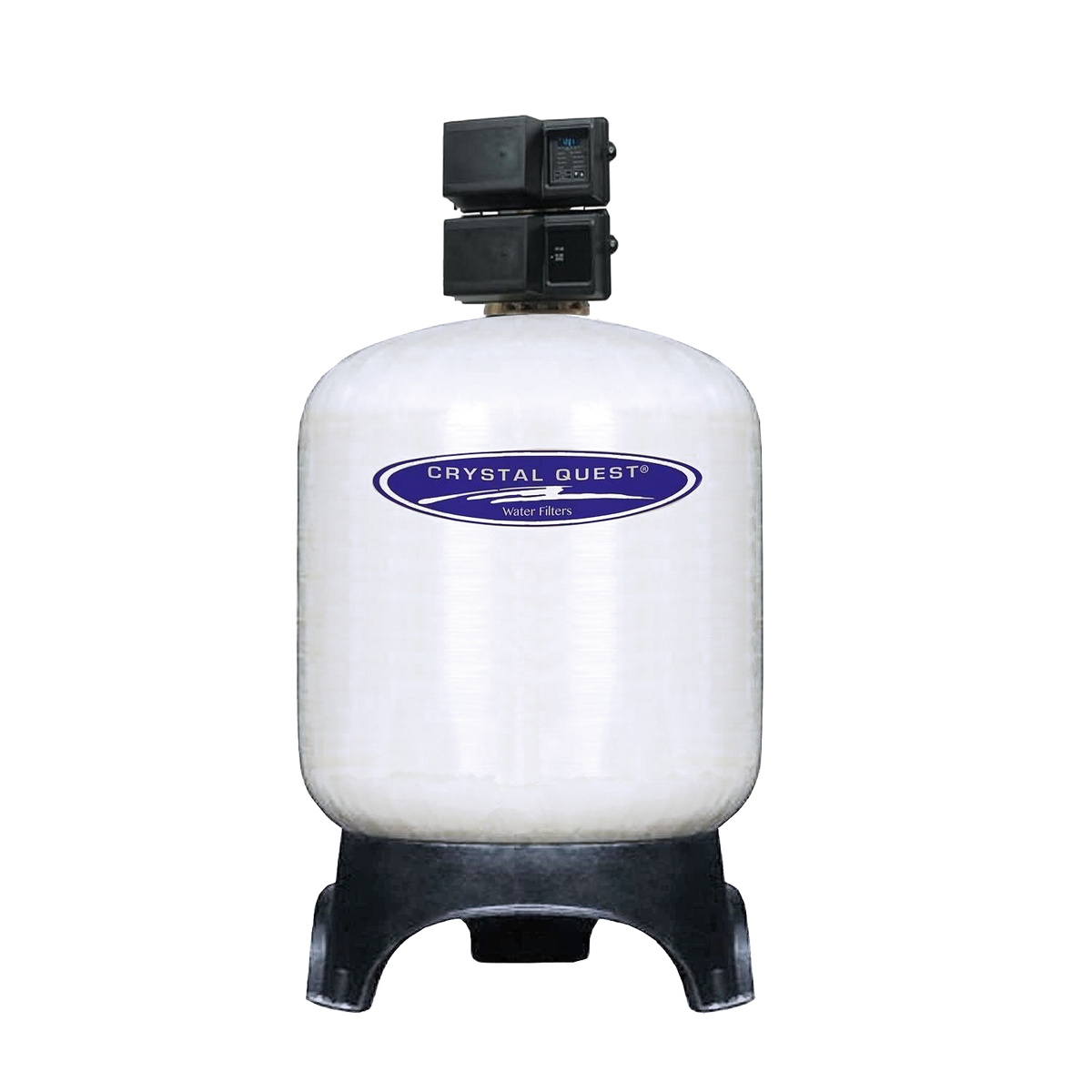

- 3900 head: NXT display controller, 3" BSP female connections and 6" tank adapters, downflow or upflow regeneration

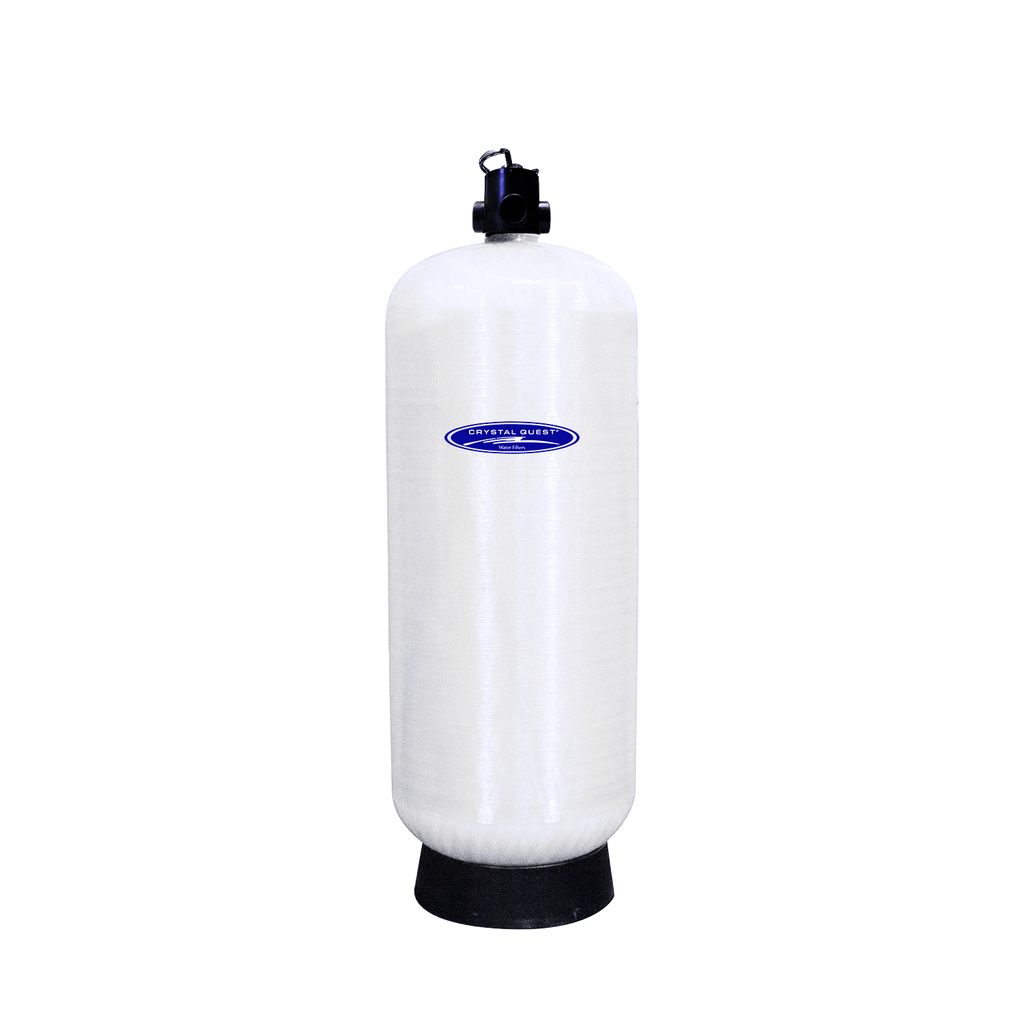

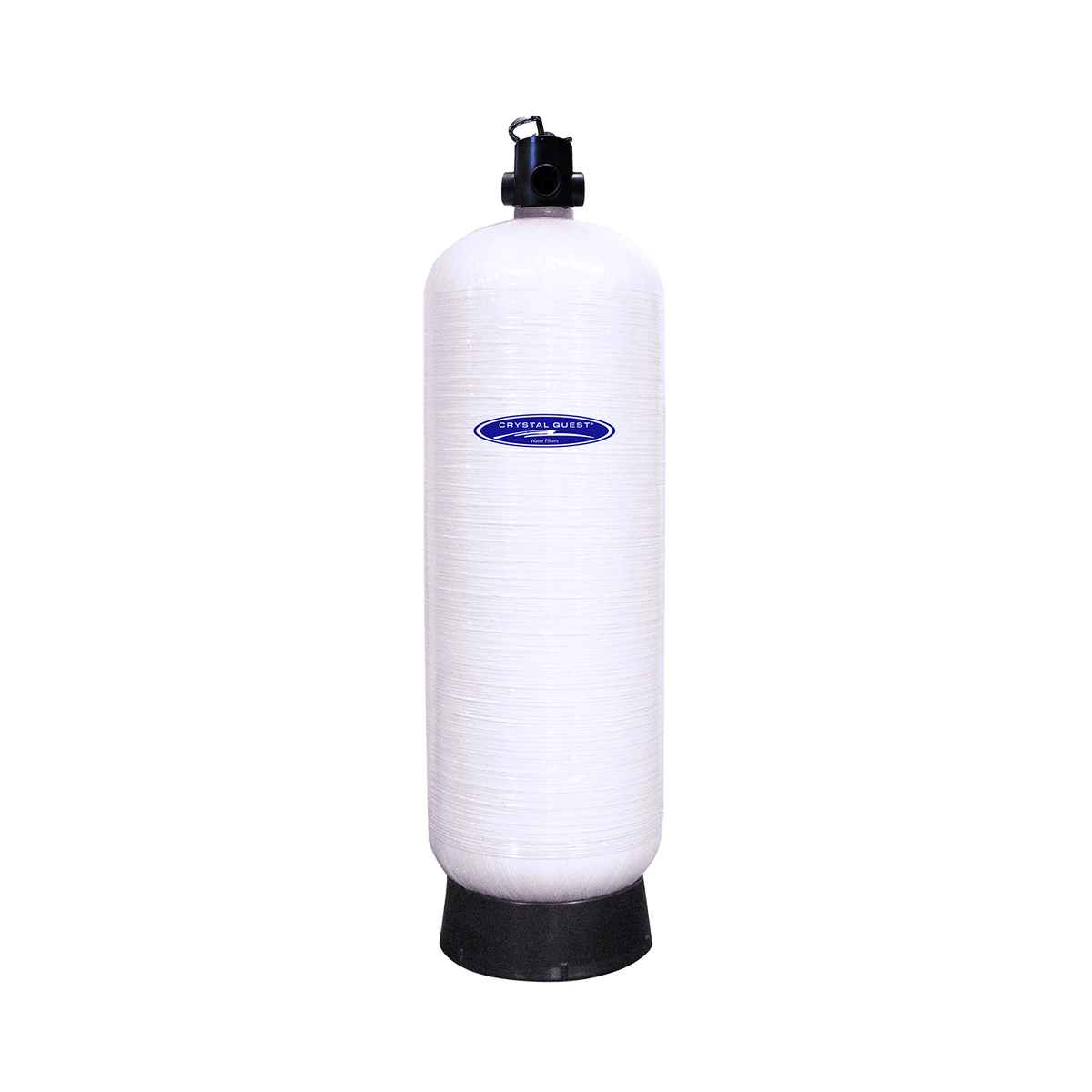

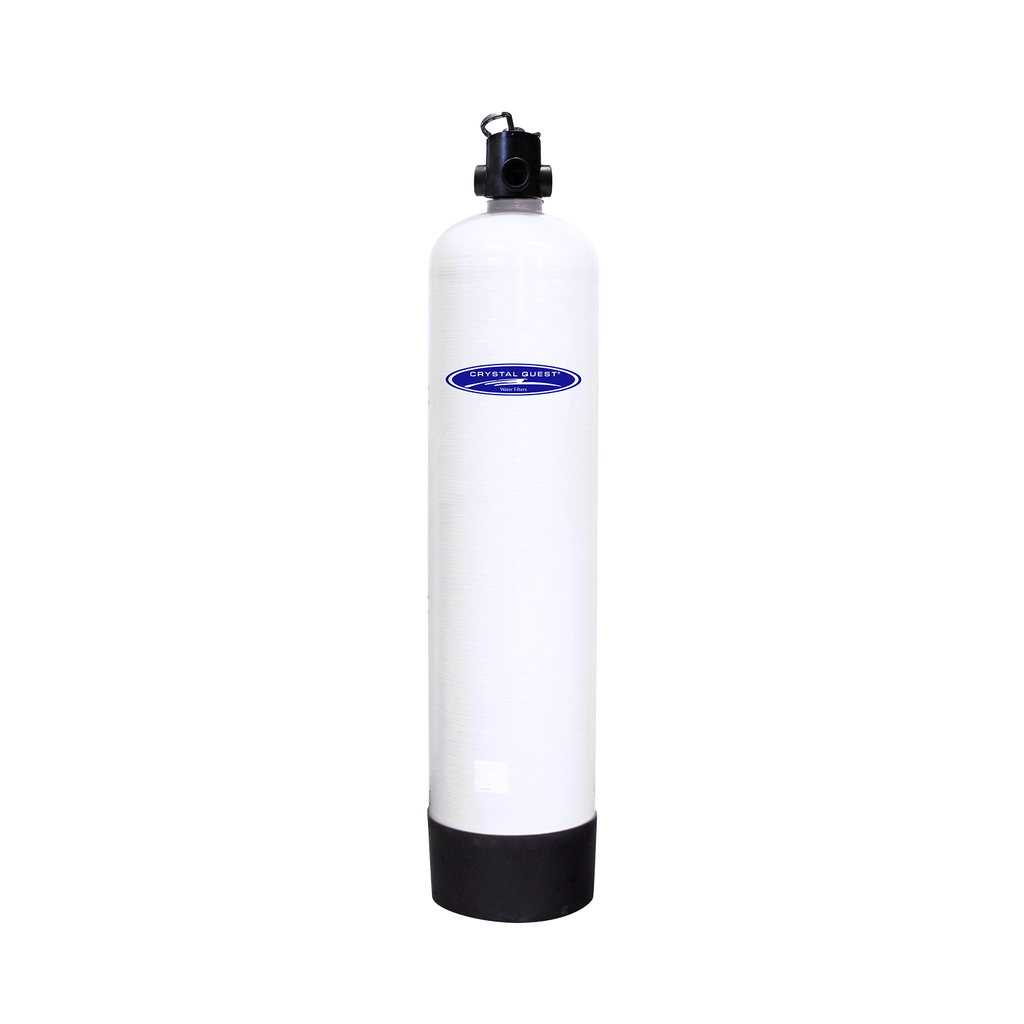

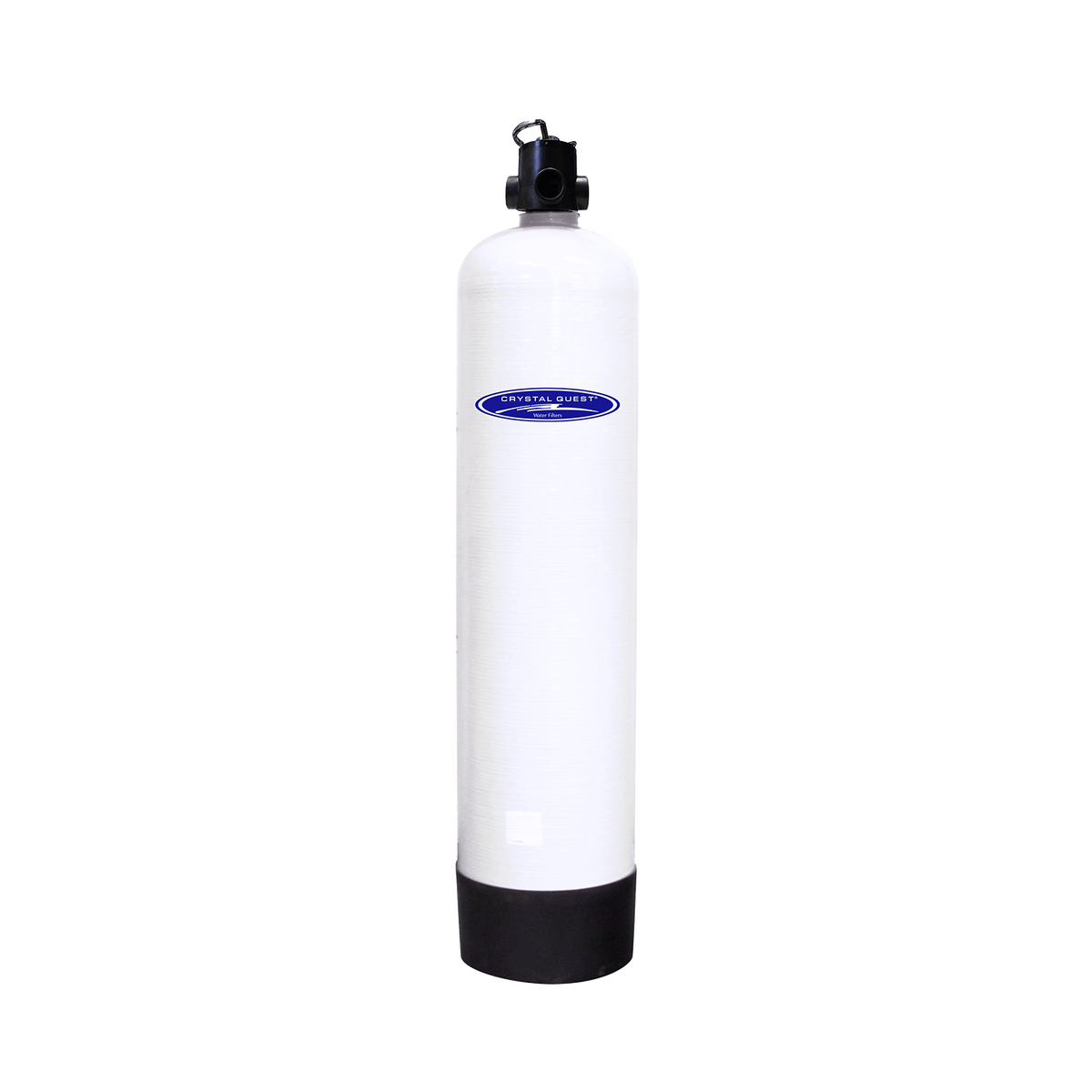

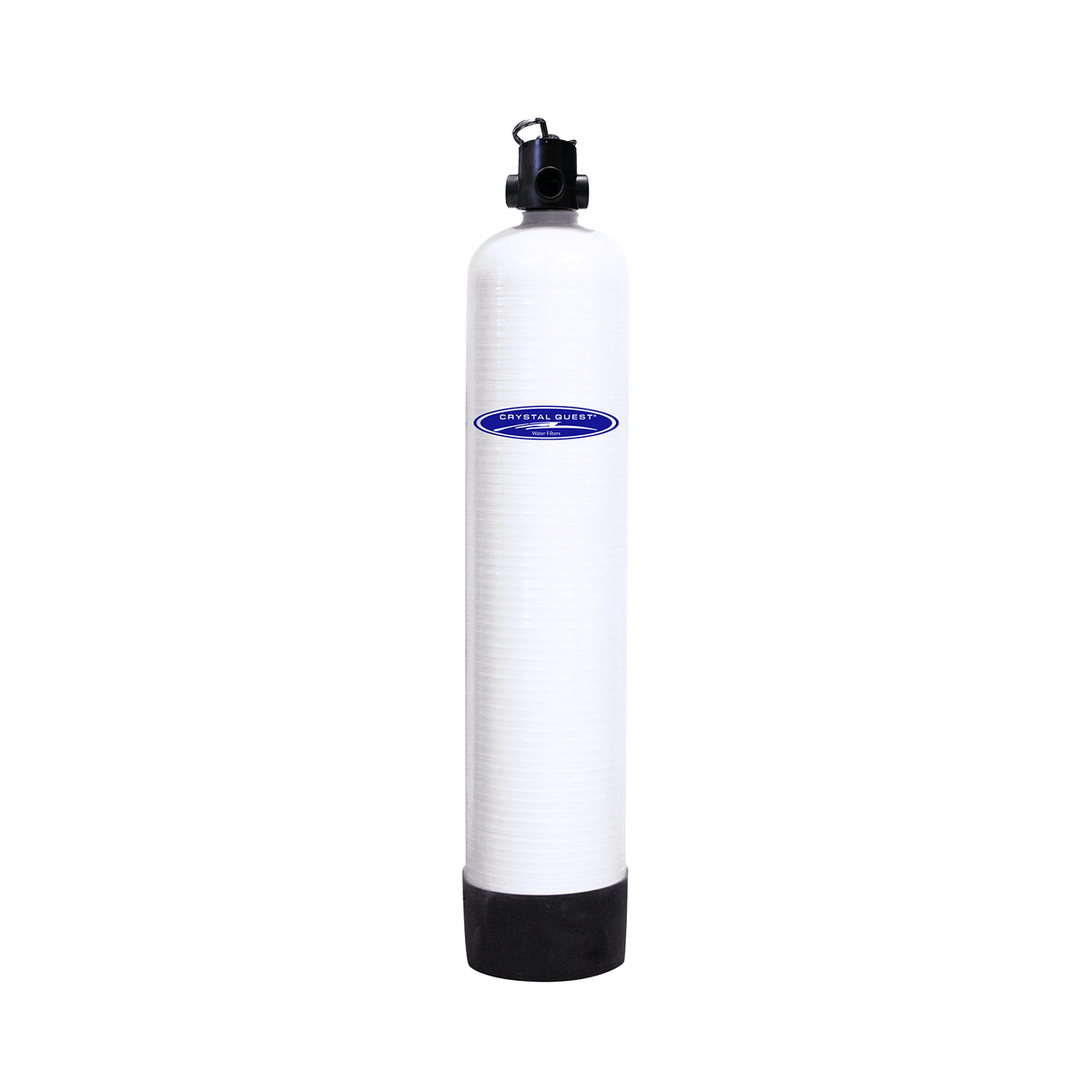

- Manual upflow head needs no electricity and has no backwash; it can be plumbed for upflow or downflow
- Optional add-ons (UV sterilizer, leak detector valve, vacuum breaker, metered valve, ozone oxidation system) are arranged by phone
- Stainless steel tanks can pit or rust in high humidity, around salt, or if condensation is left on the surface; fiberglass is recommended in those conditions
- Dosing or regeneration needs are determined with a product specialist
