Description

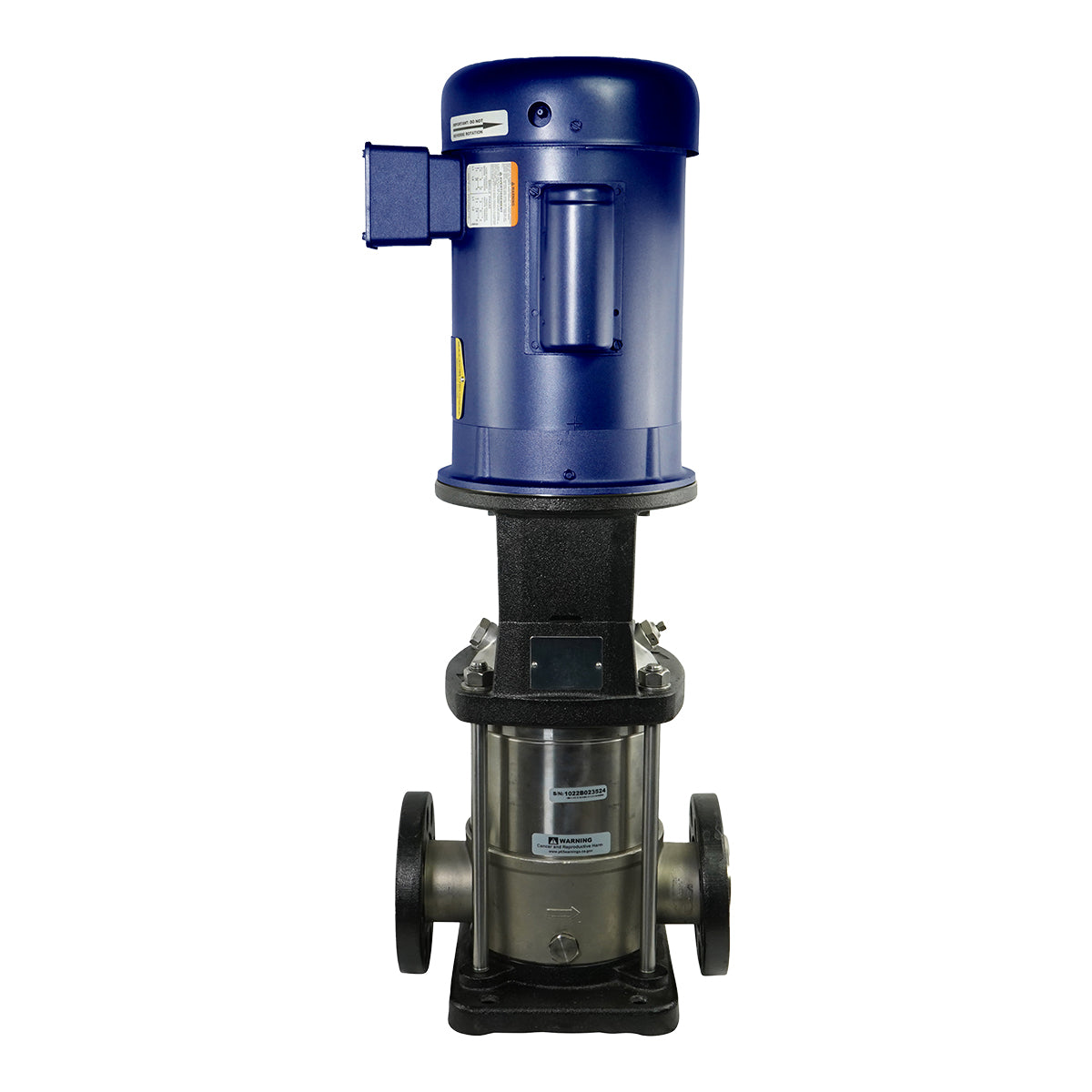

The Crystal Quest V-Flow NV65-4S is a 4-stage vertical multistage booster pump rated for 65 GPM at up to 232 PSI working pressure. It runs on single-phase power and is certified to NSF/ANSI 61 and NSF/ANSI 372.
Highlights
- 65 GPM rated flow for reverse osmosis, filtration systems, heat exchangers and water boosting
- Single-phase motor for sites without three-phase power
- Certified to NSF/ANSI 61 and NSF/ANSI 372
- Maintenance-free cartridge-type mechanical seal
- 304 stainless steel pump head, impellers, diffusers and casing
Details
Avermont Direct is an authorized Crystal Quest dealer. This pump is intended for industrial, commercial and agricultural water systems, including reverse osmosis feed, filtration, heat exchangers and hot and cold water circulation. It should be mounted on a level, solid base with supported suction and discharge piping.
Need Help?
If you have questions about this product before you order, our team is happy to help.
Email: support@avermontdirect.com
Phone: +1 (844) 455-3695
Hours: Monday–Friday, 9AM–5PM
Live Chat: Available 24/7
| Model | NV65-4S |
| Rated Flow | 65 GPM |
| Stages | 4 |
| Max Working Pressure | 232 PSI |
| Max Inlet Pressure | 118 PSI |
| Motor Power | 7.5 HP |
| Motor Phase / Frequency | 1PH / 60Hz |
| Motor Frame | 213TC |
| Motor Enclosure | Totally enclosed fan-cooled |
| Connections | 2" ANSI 150# flanged |
| Pump Length (Flanged) | 21.22 in |
| Weight (Flanged) | 94 lbs |
| Certifications | NSF/ANSI 61, NSF/ANSI 372 |
| Pump Head, Impeller, Diffuser, Casing, Base | 304 stainless steel |
| Shaft | 431 stainless steel |
| Motor Bracket / Base Plate | Cast iron |
| Neck Ring | Teflon |
| O-Ring | EPDM |
| Mechanical Seal | Silicon Carbide / Silicon Carbide / EPDM, cartridge type |
- Electrical supply should be verified by a certified electrician against the motor nameplate before installation
- Install isolation valves on the suction and discharge sides; hot water systems need a bleed valve in the discharge line
- Never operate the pump without water; prime the casing before startup
