Description

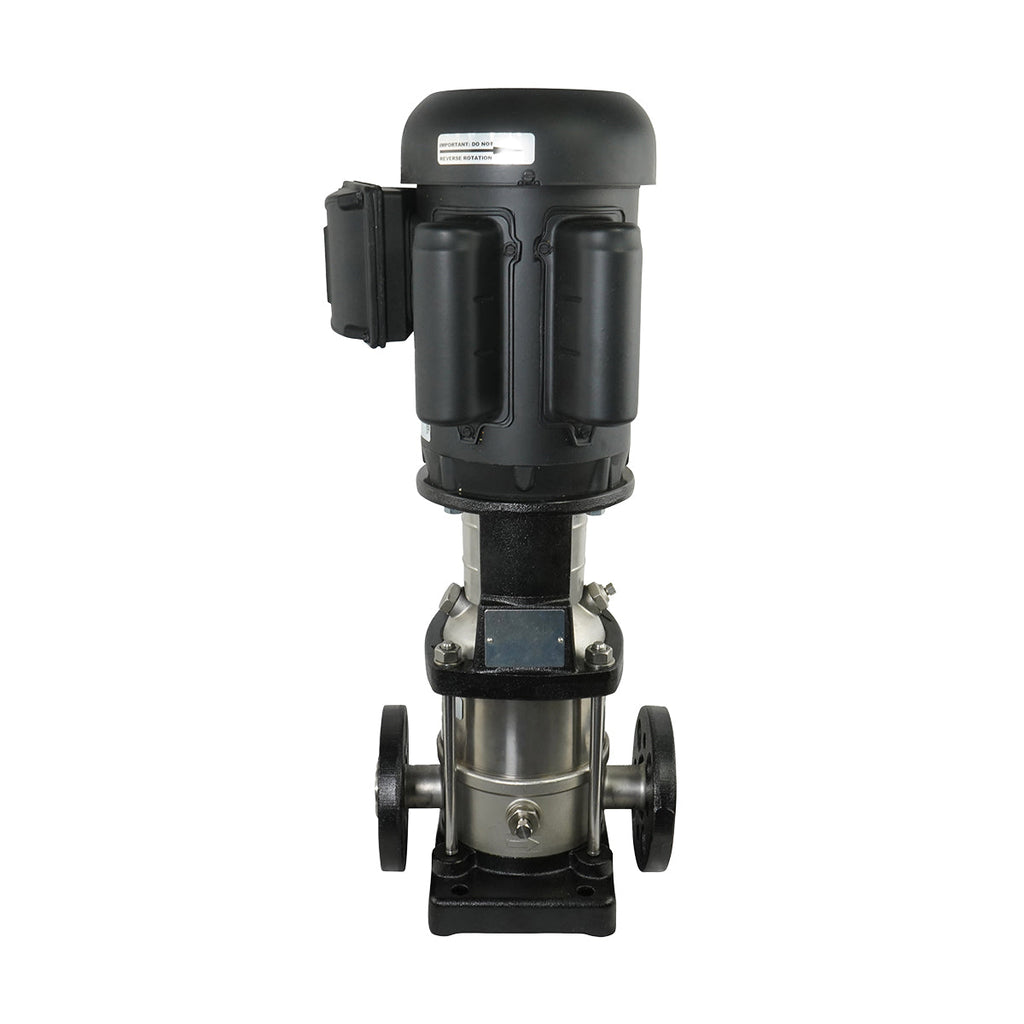

The Crystal Quest V-Flow NV25-8S is an 8-stage vertical multistage booster pump rated for 25 GPM at up to 362 PSI working pressure. It runs on a 3 HP three-phase motor and is certified to NSF/ANSI 61 and NSF/ANSI 372.
Highlights
- 25 GPM rated flow for reverse osmosis, filtration systems, irrigation and water boosting
- 8 stages and a 3 HP three-phase motor for higher-pressure duty
- Certified to NSF/ANSI 61 and NSF/ANSI 372
- Maintenance-free cartridge-type mechanical seal
- Compact in-line design with 1.5" ANSI 150# flanged connections
Details
Avermont Direct is an authorized Crystal Quest dealer. This pump is intended for industrial, commercial and agricultural water systems, including reverse osmosis feed, filtration, irrigation and hot or cold water circulation. It should be mounted on a level, solid base with supported suction and discharge piping.
Need Help?
If you have questions about this product before you order, our team is happy to help.
Email: support@avermontdirect.com
Phone: +1 (844) 455-3695
Hours: Monday–Friday, 9AM–5PM
Live Chat: Available 24/7
| Model | NV25-8S |
| Rated Flow | 25 GPM |
| Stages | 8 |
| Max Working Pressure | 362 PSI |
| Max Inlet Pressure | 150 PSI |
| Motor Power | 3 HP |
| Motor Phase / Frequency | 3PH / 60Hz |
| Motor Frame | 182TC |
| Motor Enclosure | Totally enclosed fan-cooled |
| Connections | 1.5" ANSI 150# flanged |
| Pump Length (Flanged) | 19.35 in |
| Weight (Flanged) | 46 lbs |
| Certifications | NSF/ANSI 61, NSF/ANSI 372 |
| Pump Head, Impeller, Diffuser, Casing, Base | 304 stainless steel |
| Shaft | 431 stainless steel |
| Motor Bracket / Base Plate | Cast iron |
| Neck Ring | Teflon |
| O-Ring | EPDM |
| Mechanical Seal | Silicon Carbide / Silicon Carbide / EPDM, cartridge type |
- Requires a three-phase power supply, verified by a certified electrician
- Install isolation valves on the suction and discharge sides; hot water systems need a bleed valve in the discharge line
- Never operate the pump without water; prime the casing before startup
