Description

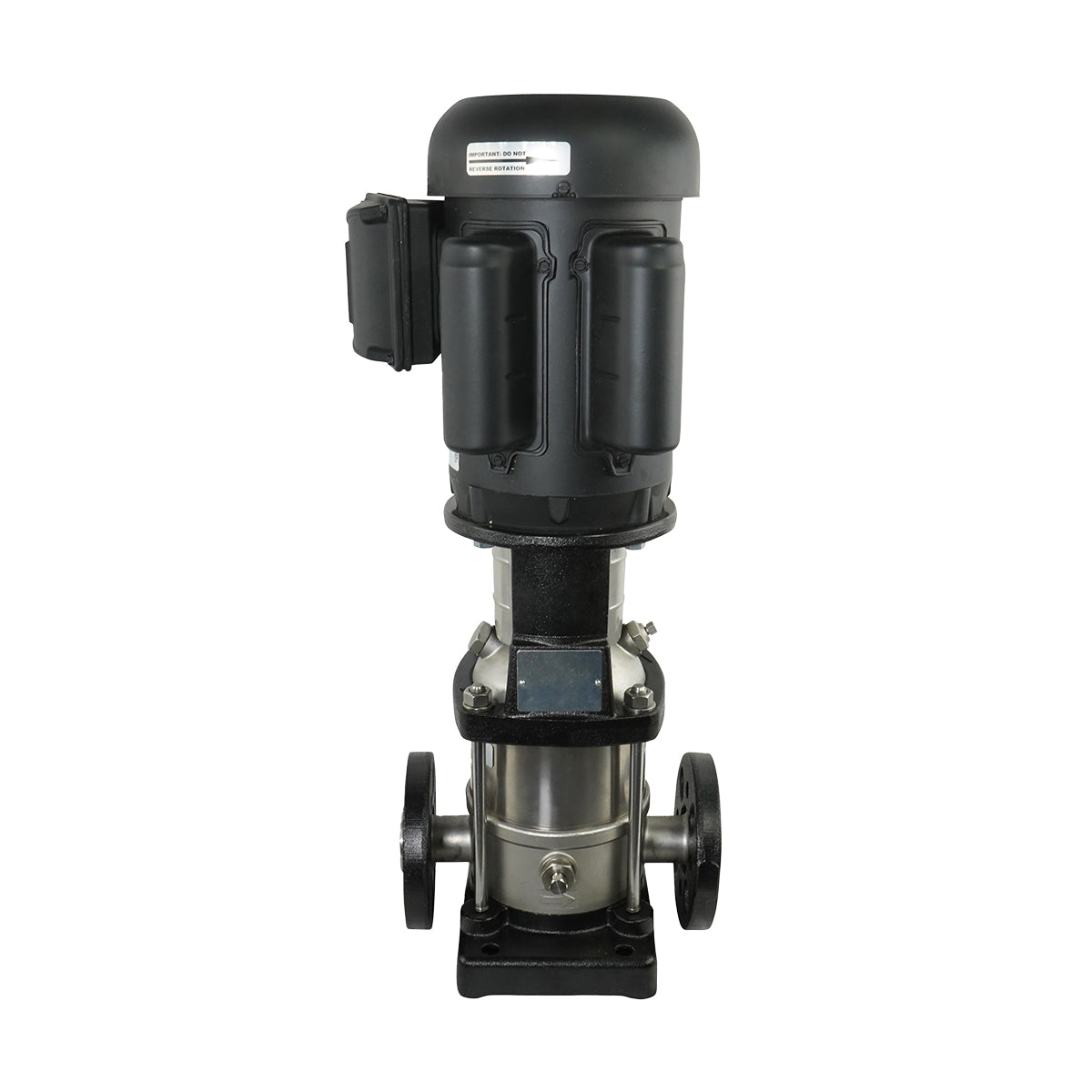

The Crystal Quest V-Flow NV12-6S is a 6-stage vertical multistage booster pump rated for 12 GPM, with a maximum working pressure of 362 PSI. Wetted parts are 304 stainless steel, and it runs on a 1 HP single-phase totally enclosed fan-cooled motor.
Highlights
- 12 GPM rated flow for reverse osmosis, water treatment, irrigation and general water boosting
- Single-phase 1 HP motor for sites without three-phase power
- 304 stainless steel pump head, impellers, diffusers and casing
- Vertical in-line design with 1.25" ANSI 150# flanged connections
- Silicon carbide mechanical seal with EPDM elastomers
Details
Avermont Direct is an authorized Crystal Quest dealer. This pump is intended for industrial, commercial and agricultural water systems, including reverse osmosis feed, irrigation, sprinkler systems and hot and cold water circulation. It should be mounted on a level, solid base with supported suction and discharge piping.
Need Help?
If you have questions about this product before you order, our team is happy to help.
Email: support@avermontdirect.com
Phone: +1 (844) 455-3695
Hours: Monday–Friday, 9AM–5PM
Live Chat: Available 24/7
| Model | NV12-6S |
| Rated Flow | 12 GPM |
| Stages | 6 |
| Max Working Pressure | 362 PSI |
| Max Inlet Pressure | 150 PSI |
| Motor Power | 1 HP |
| Motor Phase / Frequency | 1PH / 60Hz |
| Motor Frame | 56C |
| Motor Enclosure | Totally enclosed fan-cooled |
| Connections | 1.25" ANSI 150# flanged |
| Pump Length (Flanged) | 14.13 in |
| Weight (Flanged) | 36 lbs |
| Pump Head, Impeller, Diffuser, Casing, Base | 304 stainless steel |
| Shaft | 431 stainless steel |
| Motor Bracket / Base Plate | Cast iron |
| Neck Ring | Teflon |
| O-Ring | EPDM |
| Mechanical Seal | Silicon Carbide / Silicon Carbide / EPDM |
- Same flow and pressure as the three-phase version, with slightly lower electrical efficiency; better suited to lighter duty cycles
- Install isolation valves on the suction and discharge sides; hot water systems need a bleed valve in the discharge line
- Electrical supply should be verified by a certified electrician
- Never operate the pump without water; prime the casing before startup
