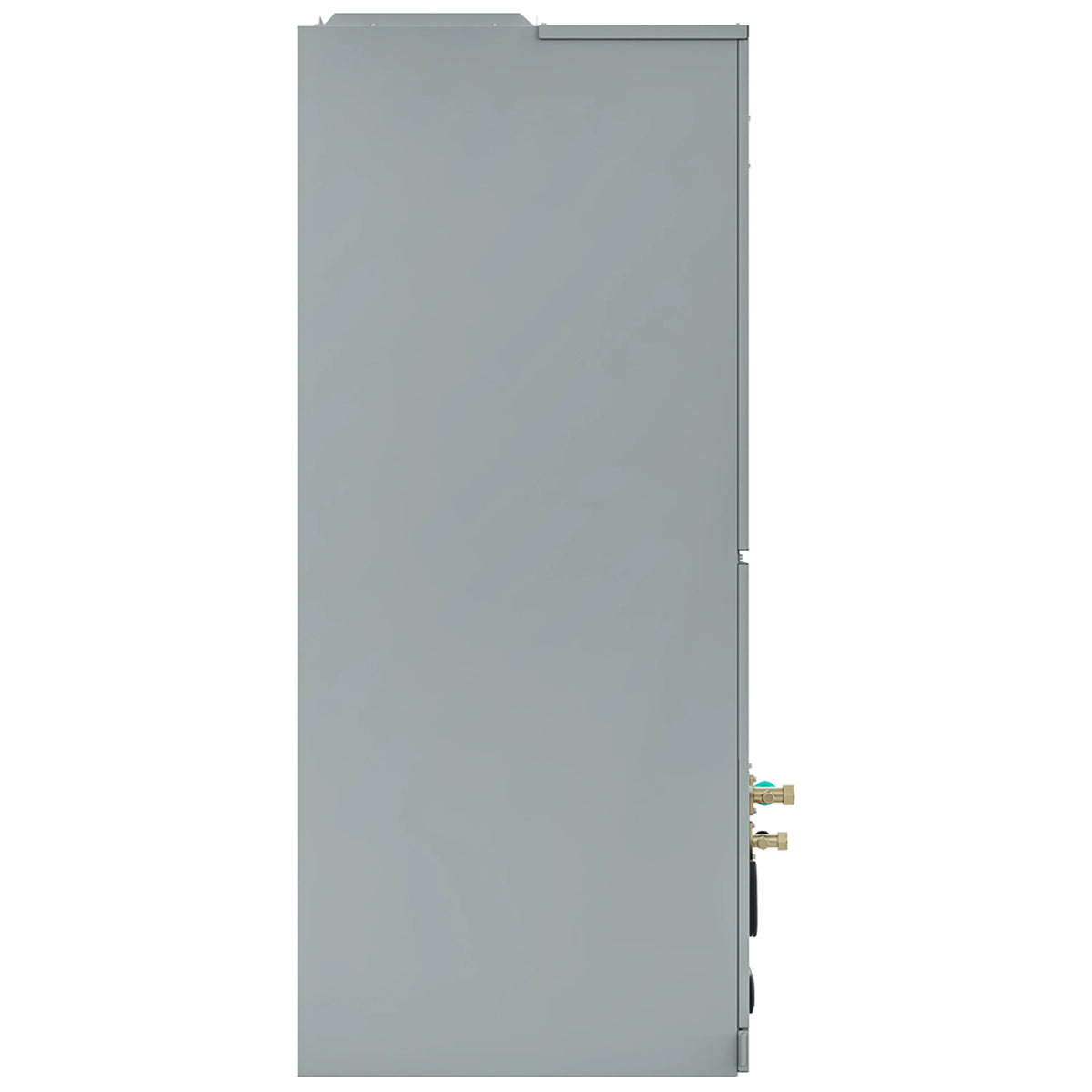

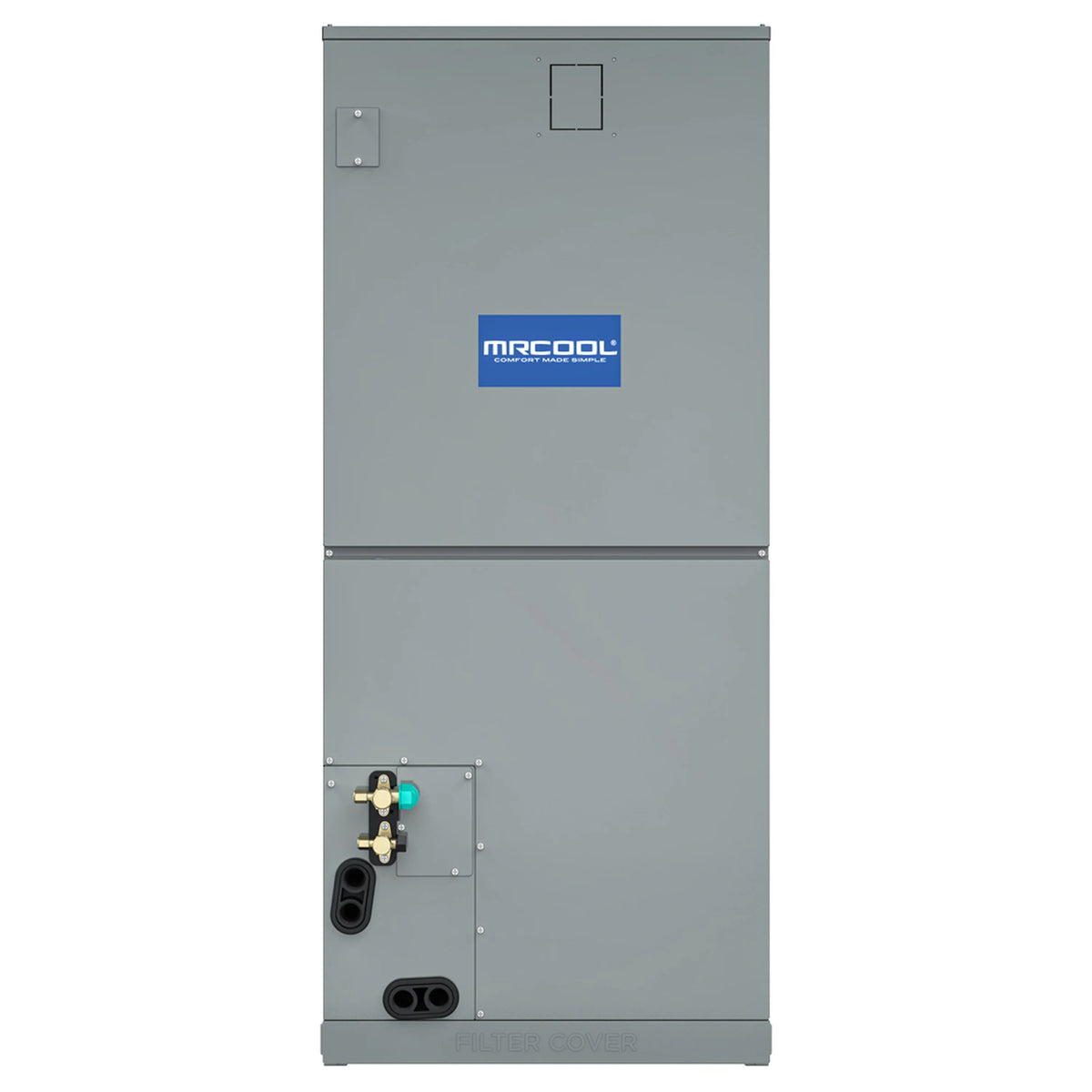

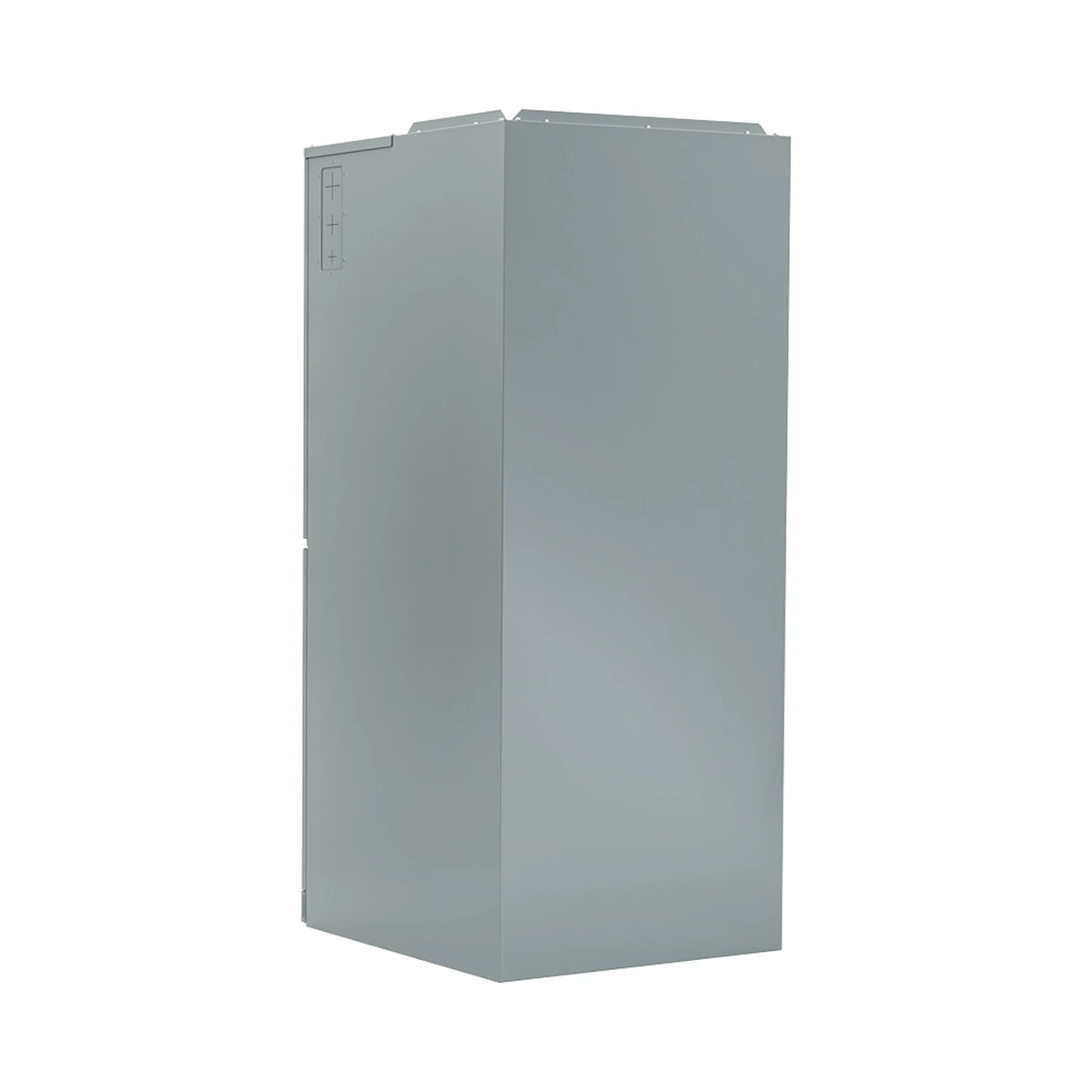

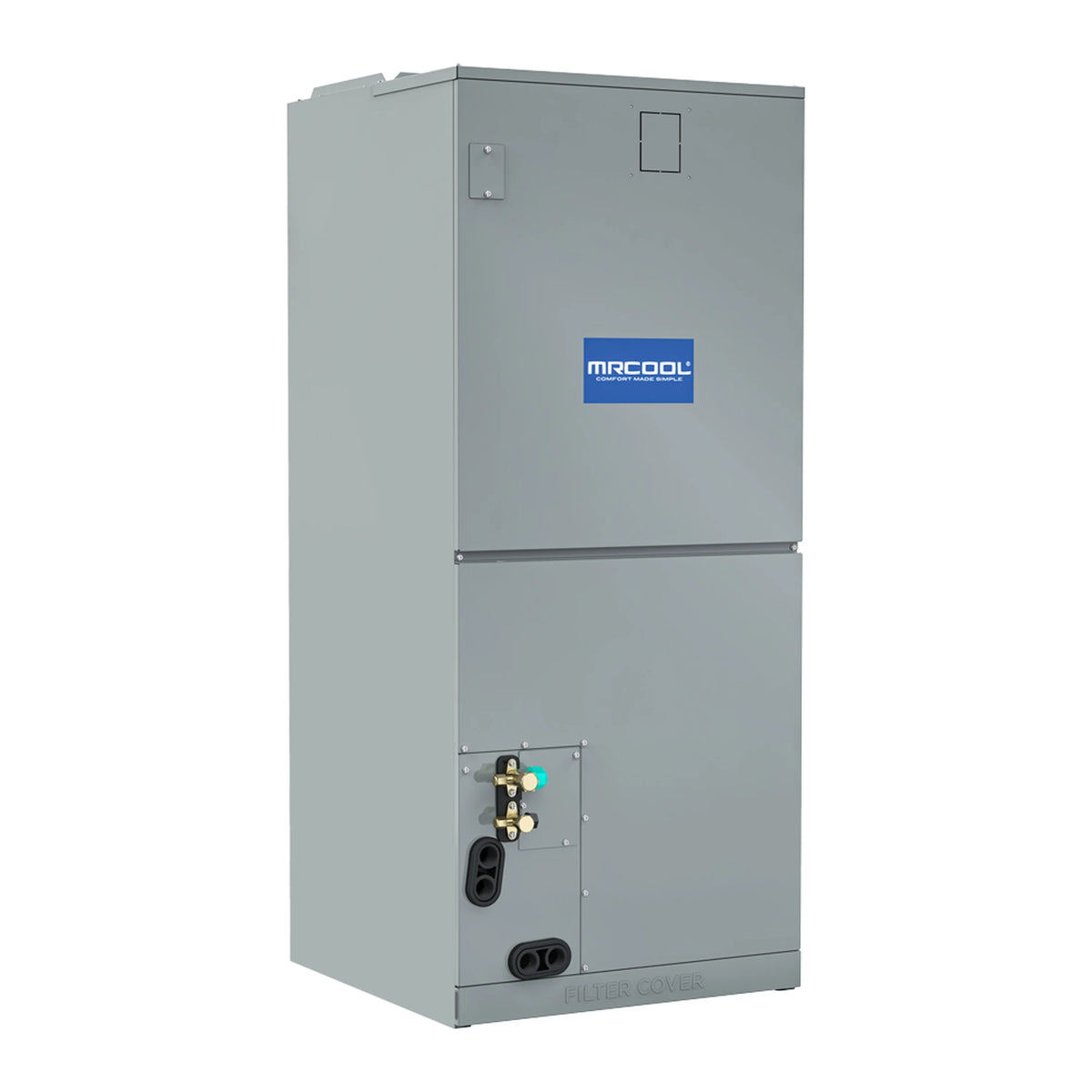

This MRCOOL VersaPro 2nd Gen air handler is the 18K BTU (1.5 ton) indoor unit of a central ducted split system, in a multi-position cabinet that connects to the home's ductwork.
Highlights
- Pairs with the MRCOOL VersaPro 2nd Gen 18K condenser (MVP-18-HP-C-230A00-O)
- Multi-position cabinet for flexible placement
- Accepts an optional electric heat kit, sold separately
- Airflow of 618.03 / 576.83 / 529.74 / 488.54 CFM across its fan speeds
- Sound level of 33–44 dBA
Specs & Features
| Part number |
MVP-18-HP-MUAH-230A00-O |
| Series |
MRCOOL VersaPro 2nd Gen |
| Component |
Indoor air handler, multi-position |
| Nominal capacity |
18,000 BTU (1.5 ton) |
| Rated heating capacity |
18,000 BTU |
| Power supply |
115/208-230V, 1-phase |
| Refrigerant |
R-454B |
| Line set connections |
3/8" liquid x 3/4" suction |
| Airflow |
618.03 / 576.83 / 529.74 / 488.54 CFM |
| Sound level |
33–44 dBA |
| Minimum circuit ampacity |
5.5/4.0 A |
| Maximum fuse / breaker |
15 A |
| Dimensions |
17.52" D x 45" H x 21.02" W |
| Net weight |
105.82 lbs |
| ENERGY STAR certified |
No |
| AHRI certified |
Yes |
| Parts warranty |
10 years |
- Air handler only. The condenser, line set, heat kit and thermostat are ordered separately.
Details
Avermont Direct is an authorized MRCOOL dealer. Ordering the air handler on its own suits replacing an indoor unit or pairing it with a VersaPro or Hyper Heat condenser. MRCOOL's base warranty is 10 years on parts, and full terms are set out in the product documentation.
