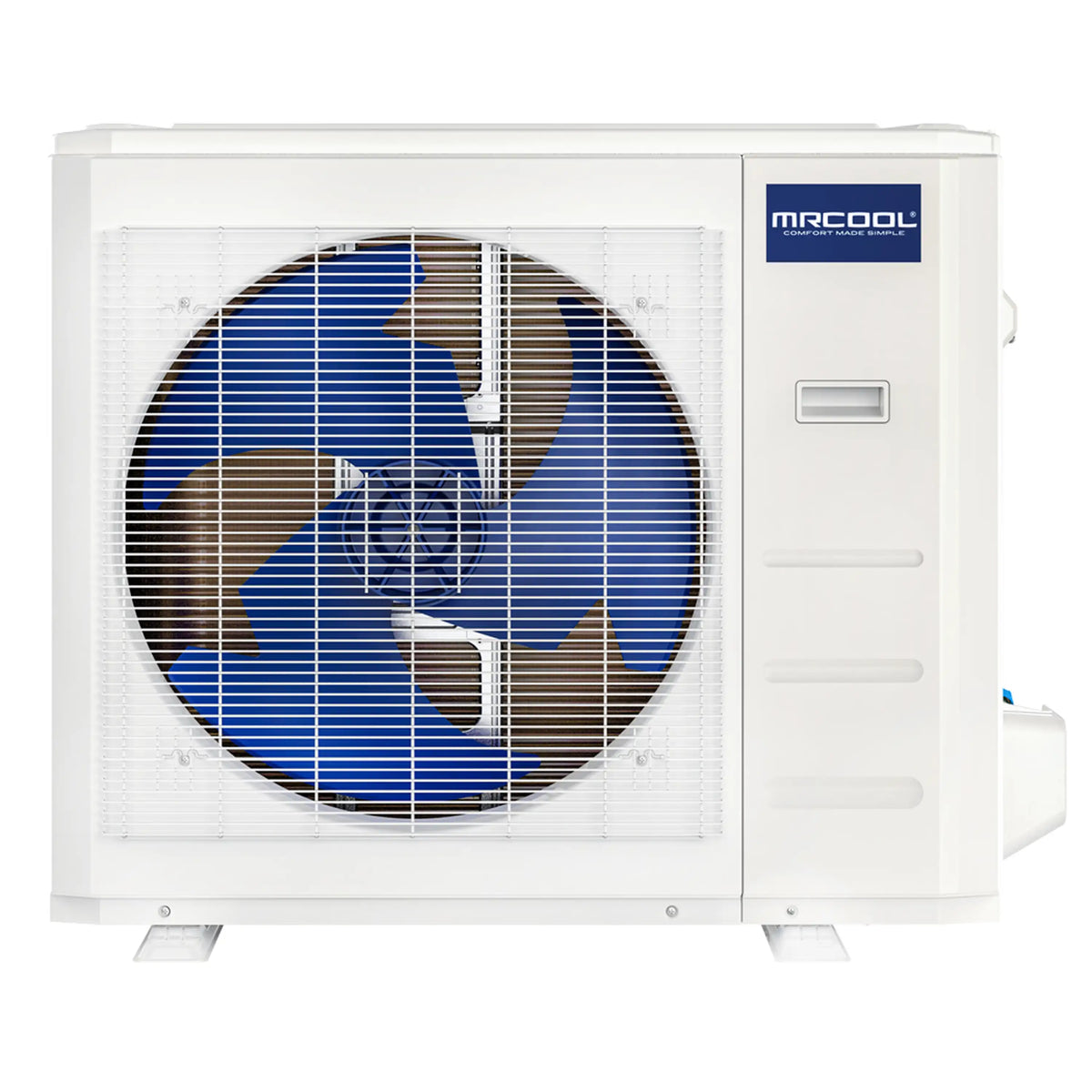

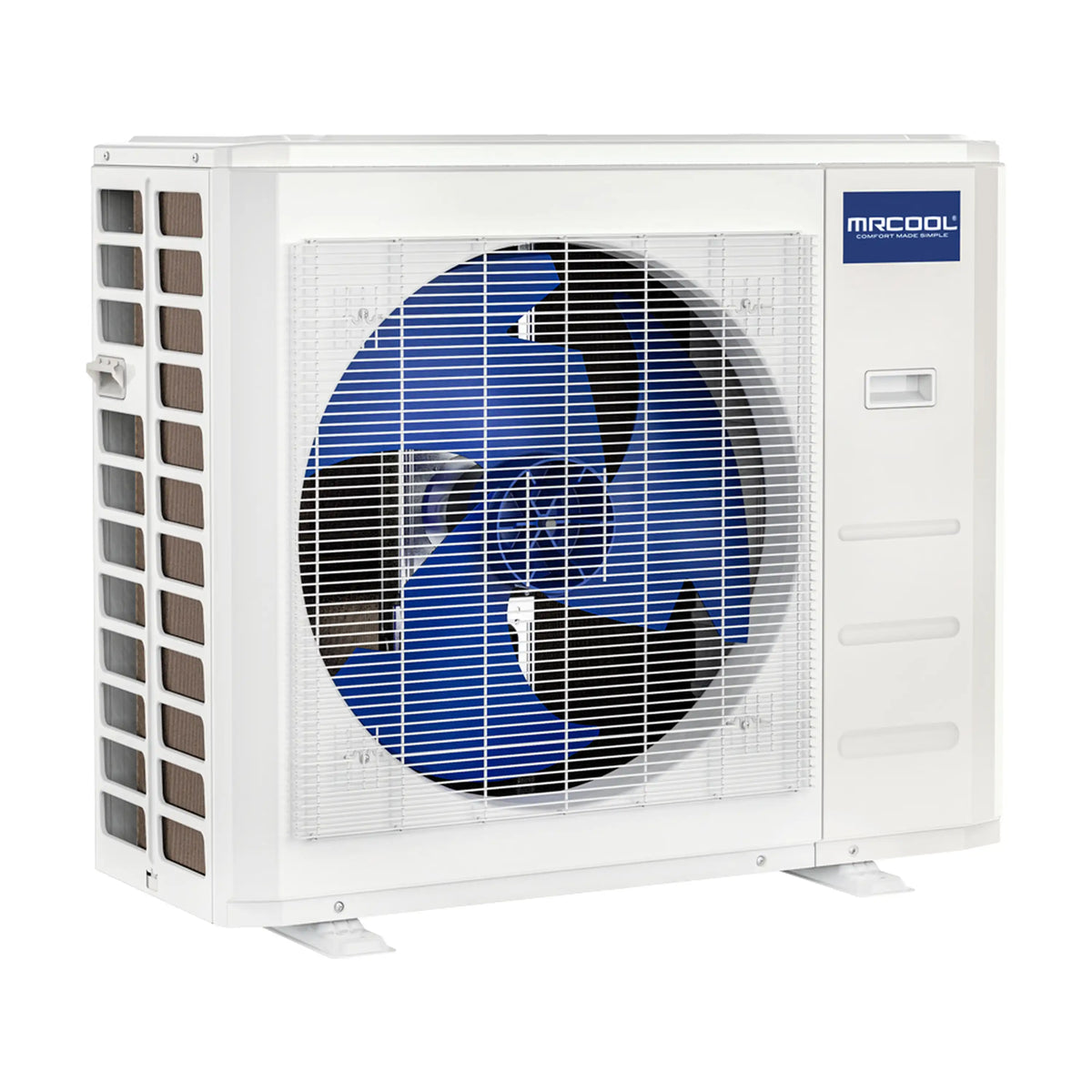

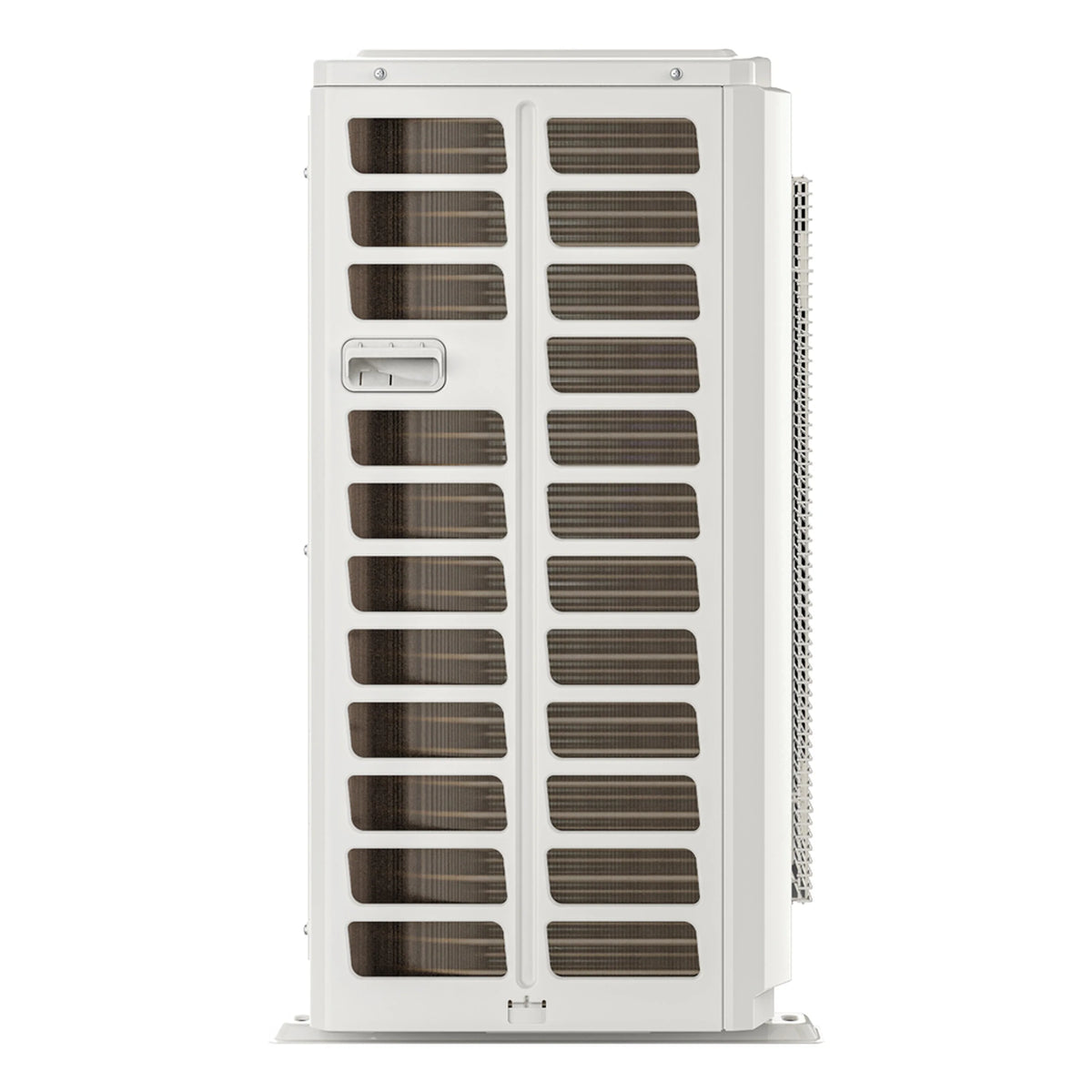

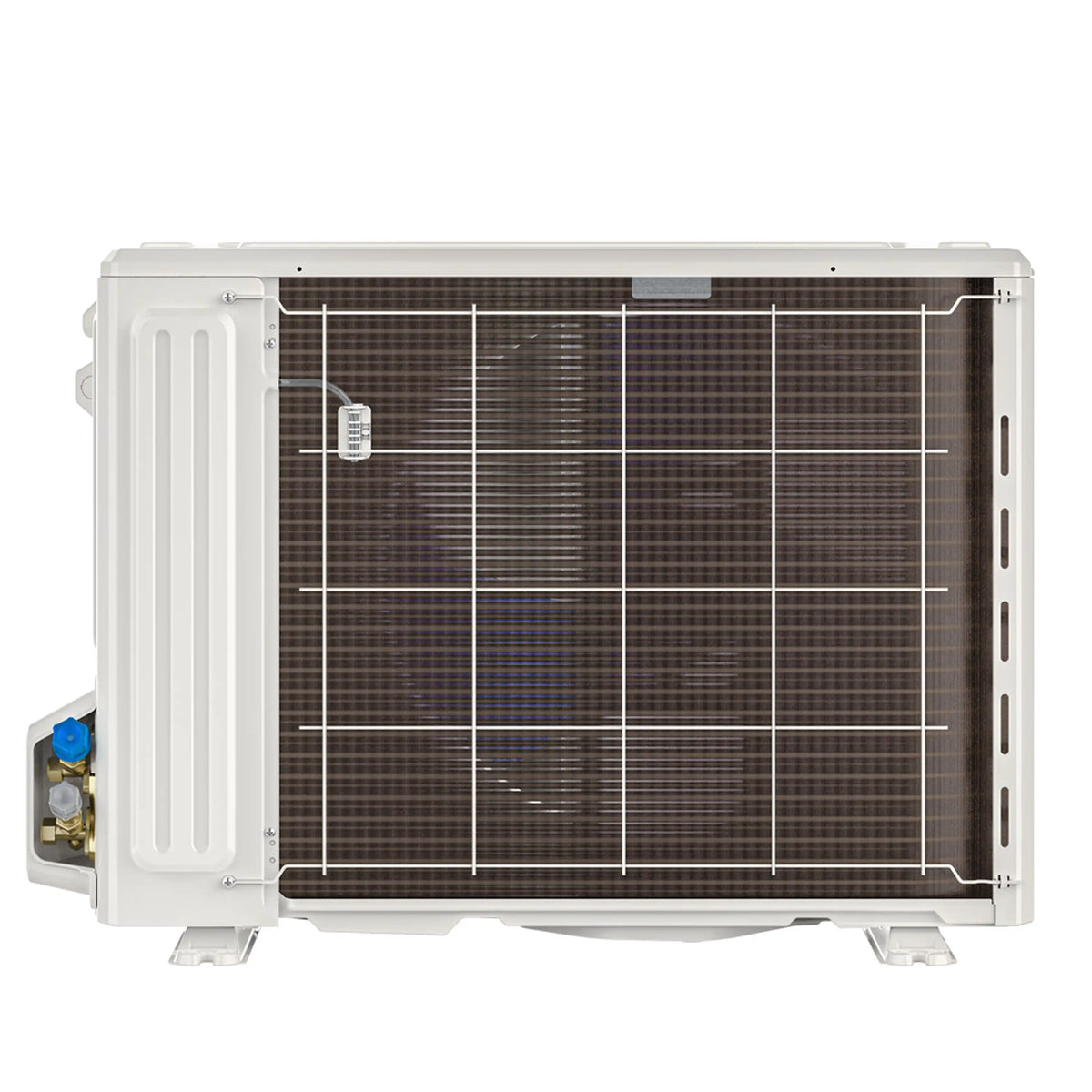

This MRCOOL VersaPro 2nd Gen condenser is the 18K BTU (1.5 ton) outdoor heat pump of a central ducted split system.
Highlights
- Rated 18.8 SEER2 and 11 EER2
- Pairs with the MRCOOL VersaPro 2nd Gen 18K multi-position air handler (MVP-18-HP-MUAH-230A00-O)
- Heat pump operation, providing both cooling and heating
- Uses R-454B refrigerant
- Sound level of 55 dBA
Specs & Features
| Part number |
MVP-18-HP-C-230A00-O |
| Series |
MRCOOL VersaPro 2nd Gen |
| Component |
Outdoor condenser |
| Nominal capacity |
18,000 BTU (1.5 ton) |
| Rated heating capacity |
18,000 BTU |
| SEER2 |
18.8 |
| EER2 |
11 |
| HSPF-4 |
9.1 |
| Power supply |
208-230V, 1-phase |
| Refrigerant |
R-454B |
| Line set connections |
3/8" liquid x 3/4" suction |
| Sound level |
55 dBA |
| Minimum circuit ampacity |
16 A |
| Maximum fuse / breaker |
20 A |
| Dimensions |
12.99" D x 21.81" H x 31.69" W |
| Net weight |
77 lbs |
| ENERGY STAR certified |
No |
| AHRI certified |
Yes |
| Parts warranty |
10 years |
| Compressor warranty |
10 years |
- Condenser only. The air handler, line set and thermostat are ordered separately.
Details
Avermont Direct is an authorized MRCOOL dealer. Ordering the condenser on its own suits replacing an outdoor unit or matching it to a VersaPro air handler already in place. MRCOOL's base warranty is 10 years on parts and 10 years on the compressor, and full terms are set out in the product documentation.
