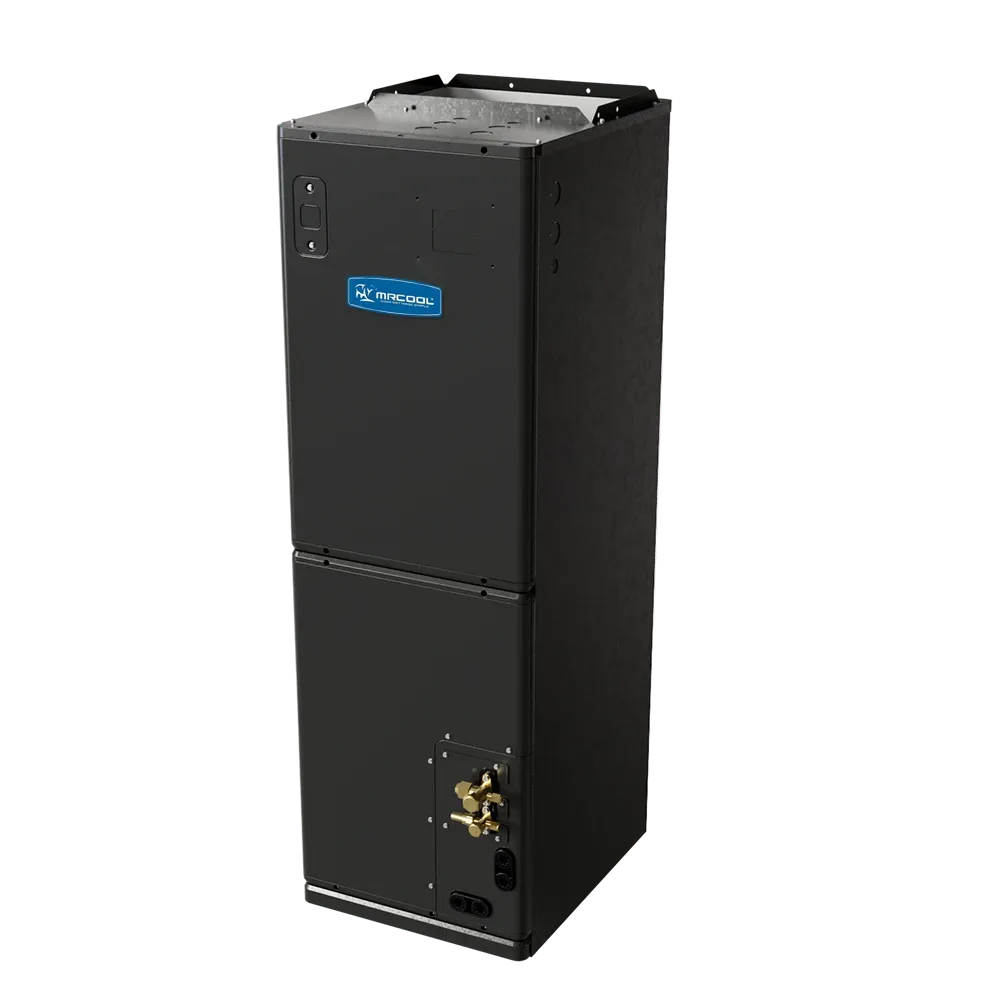

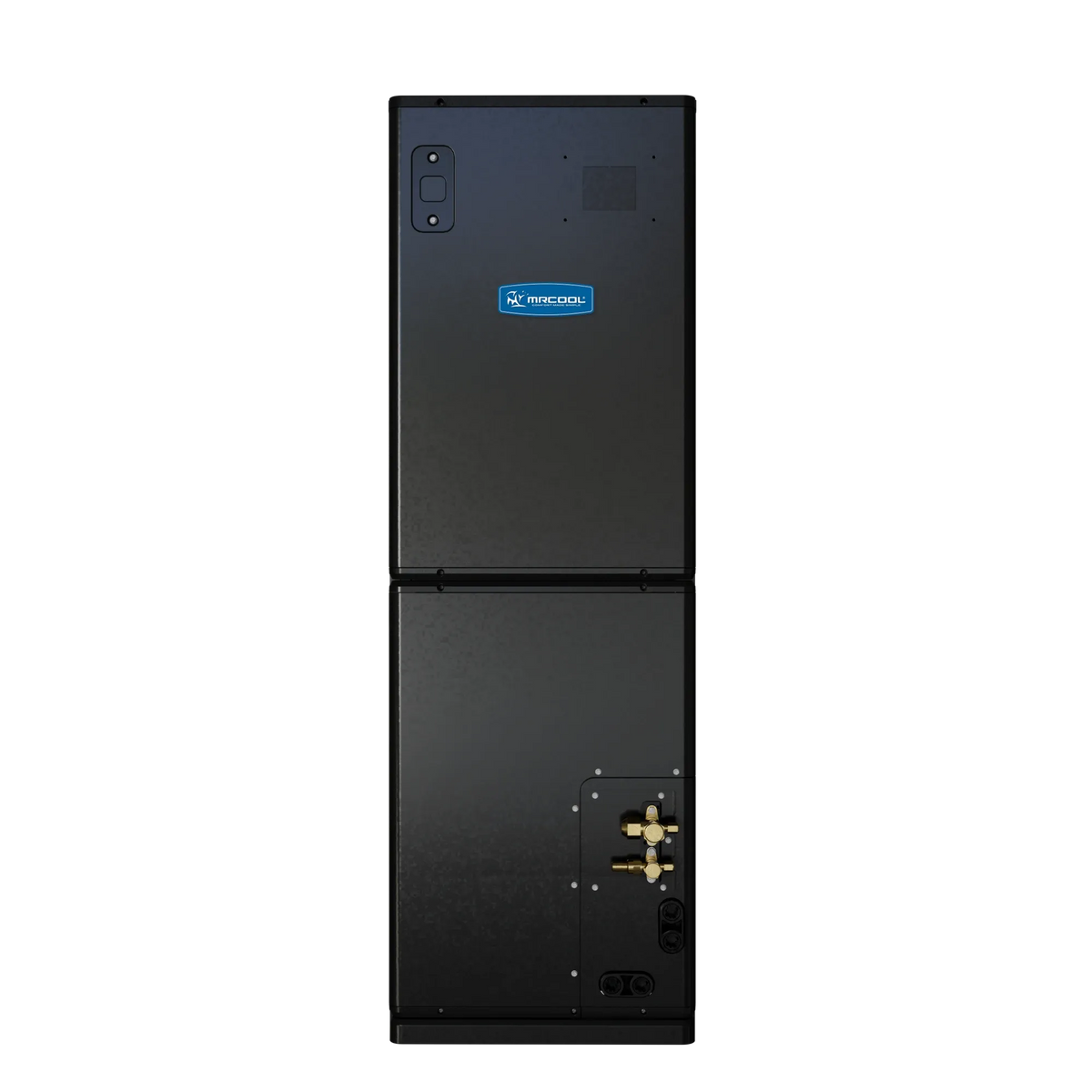

This MRCOOL Universal air handler is the 60K BTU (5 ton) indoor unit of a central ducted split system, in a multi-position cabinet that connects to the home's ductwork.
Highlights
- Pairs with the MRCOOL Universal 60K inverter heat pump condenser (UHP18060-O)
- Multi-position cabinet for flexible placement
- Accepts an optional MRCOOL Universal series electric heat kit, sold separately
- Airflow of 1801.1 / 1648.1 / 1500.9 / 1236.1 CFM across its fan speeds
- Sound level of 37–60 dBA
Specs & Features
| Part number |
UAH18060-O |
| Series |
MRCOOL Universal |
| Component |
Indoor air handler, multi-position |
| Nominal capacity |
60,000 BTU (5 ton) |
| Power supply |
115/208/230V, 1-phase |
| Refrigerant |
R-454B |
| Line set connections |
3/8" liquid x 3/4" suction |
| Airflow |
1801.1 / 1648.1 / 1500.9 / 1236.1 CFM |
| Sound level |
37–60 dBA |
| Minimum circuit ampacity |
14.5/10 A |
| Maximum fuse / breaker |
15 A |
| Net weight |
188.05 lbs |
| Parts warranty |
10 years |
| Labor warranty |
2 years |
- Air handler only. The condenser, line set, heat kit and thermostat are ordered separately.
Details
Avermont Direct is an authorized MRCOOL dealer. Ordering the air handler on its own suits replacing an indoor unit or matching it to a Universal condenser already in place. MRCOOL's base warranty is 10 years on parts and 2 years on labor, and full terms are set out in the product documentation.
