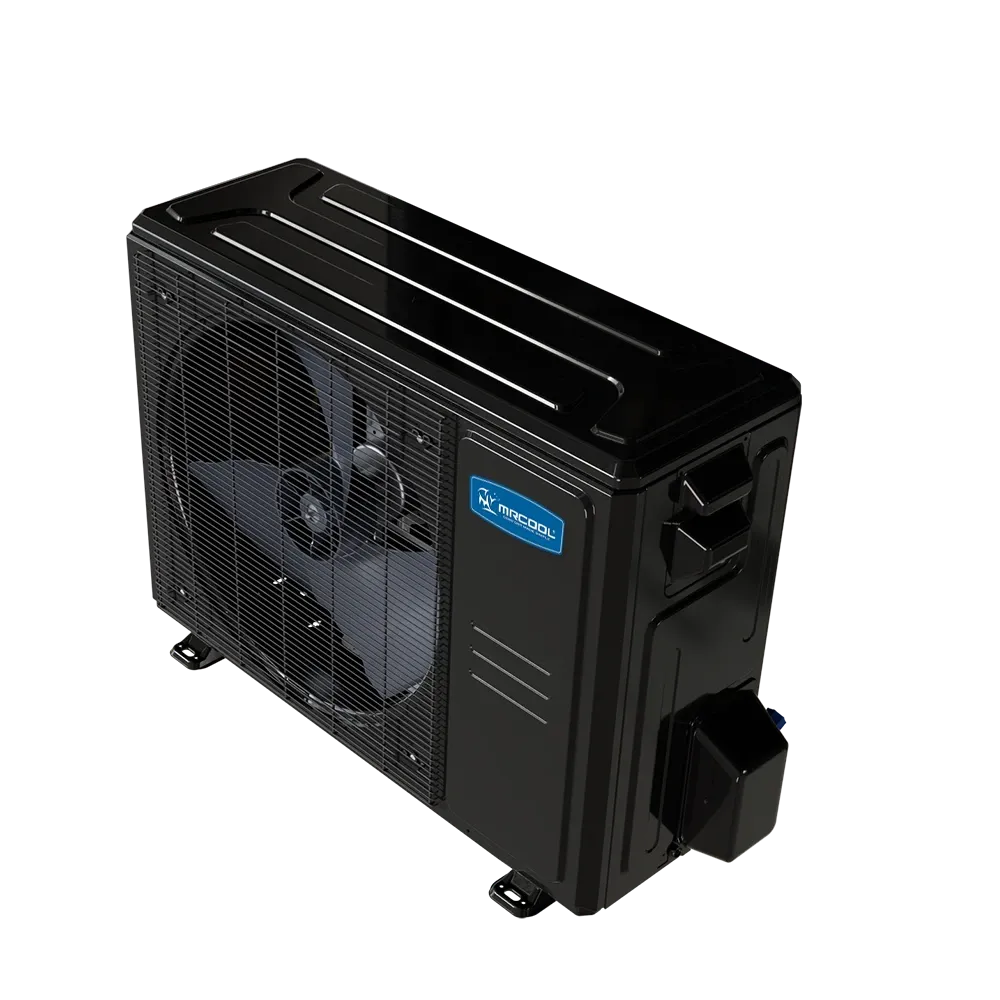

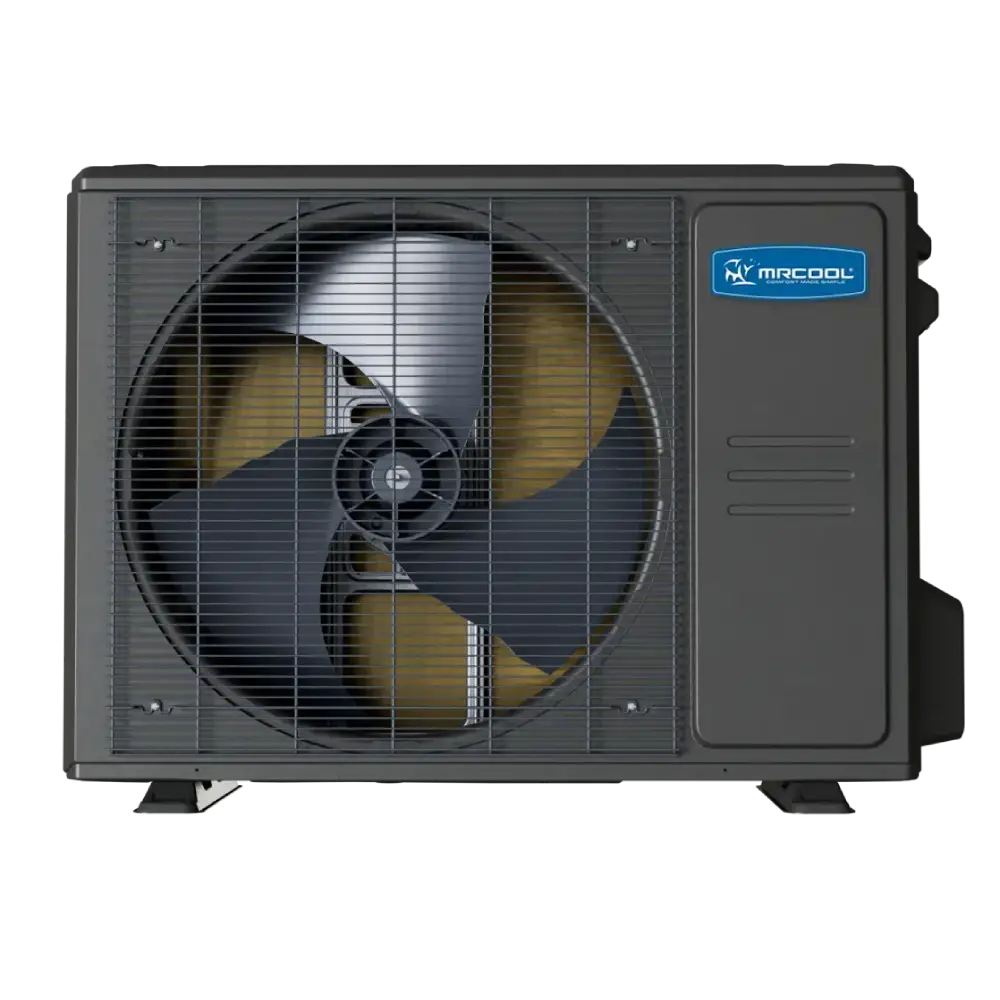

This MRCOOL Universal condenser is the 30K BTU (2.5 ton) outdoor DC inverter heat pump of a central ducted split system.
Highlights
- Rated 17.2 SEER2, 12 EER2 and 10.8 HSPF2 (Region IV)
- Pairs with the MRCOOL Universal 30K multi-position air handler (UAH18030-O)
- DC inverter heat pump, providing both cooling and heating
- Uses R-454B refrigerant
- Sound level of 62 dBA
Specs & Features
| Part number |
UHP18030-O |
| Series |
MRCOOL Universal |
| Component |
Outdoor condenser |
| Nominal capacity |
30,000 BTU (2.5 ton) |
| Rated heating capacity |
33,000 BTU |
| SEER2 |
17.2 |
| EER2 |
12 |
| HSPF2 (Region IV) |
10.8 |
| HSPF2 (Region V) |
8.8 |
| Power supply |
208/230V |
| Refrigerant |
R-454B |
| Line set connections |
3/8" liquid x 3/4" suction |
| Sound level |
62 dBA |
| Minimum circuit ampacity |
29.5 A |
| Maximum fuse / breaker |
30 A |
| Net weight |
166.67 lbs |
| Parts warranty |
10 years |
| Labor warranty |
2 years |
- Condenser only. The air handler, line set and thermostat are ordered separately.
Details
Avermont Direct is an authorized MRCOOL dealer. Ordering the condenser on its own suits replacing an outdoor unit or matching it to a Universal air handler already in place. MRCOOL's base warranty is 10 years on parts and 2 years on labor, and full terms are set out in the product documentation.
