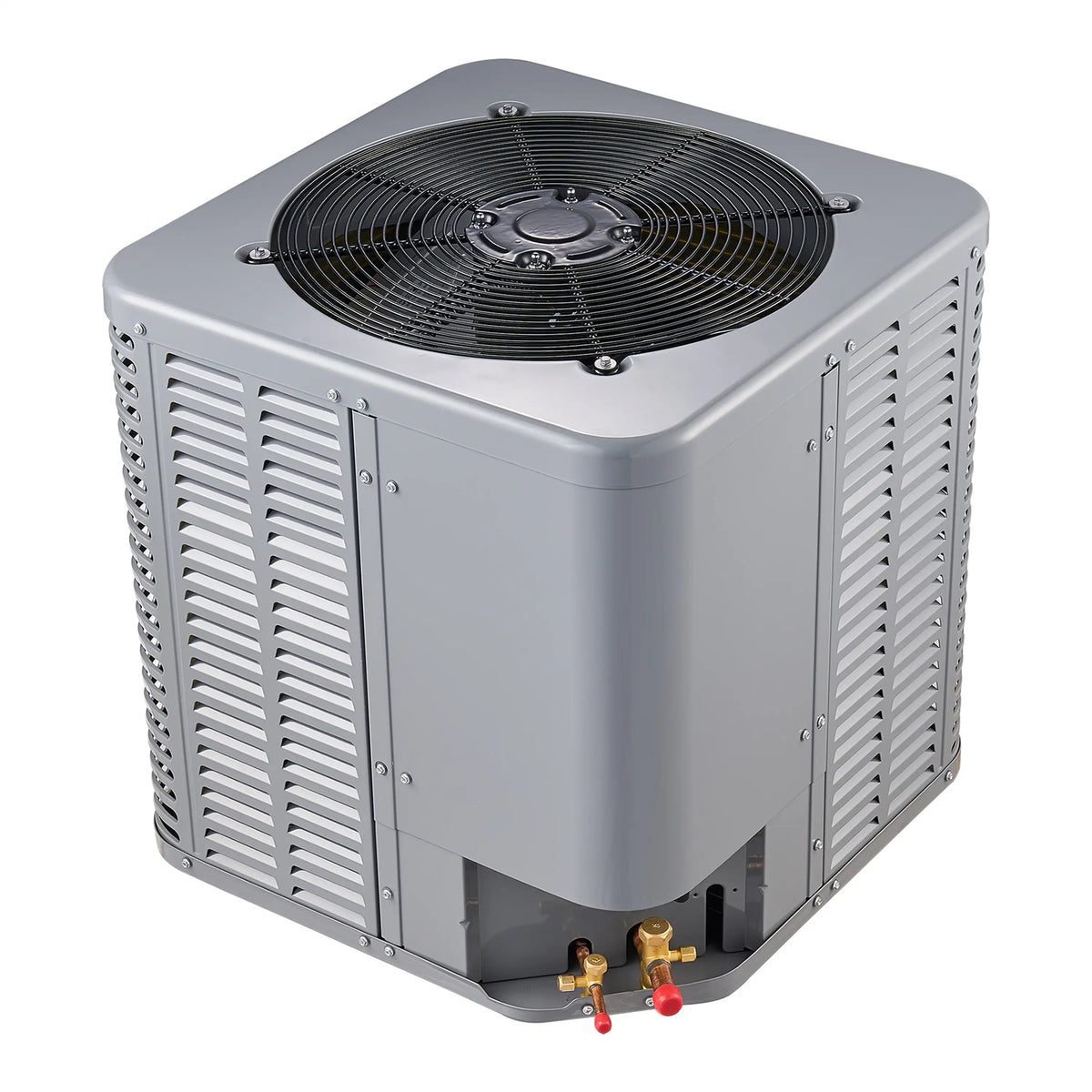

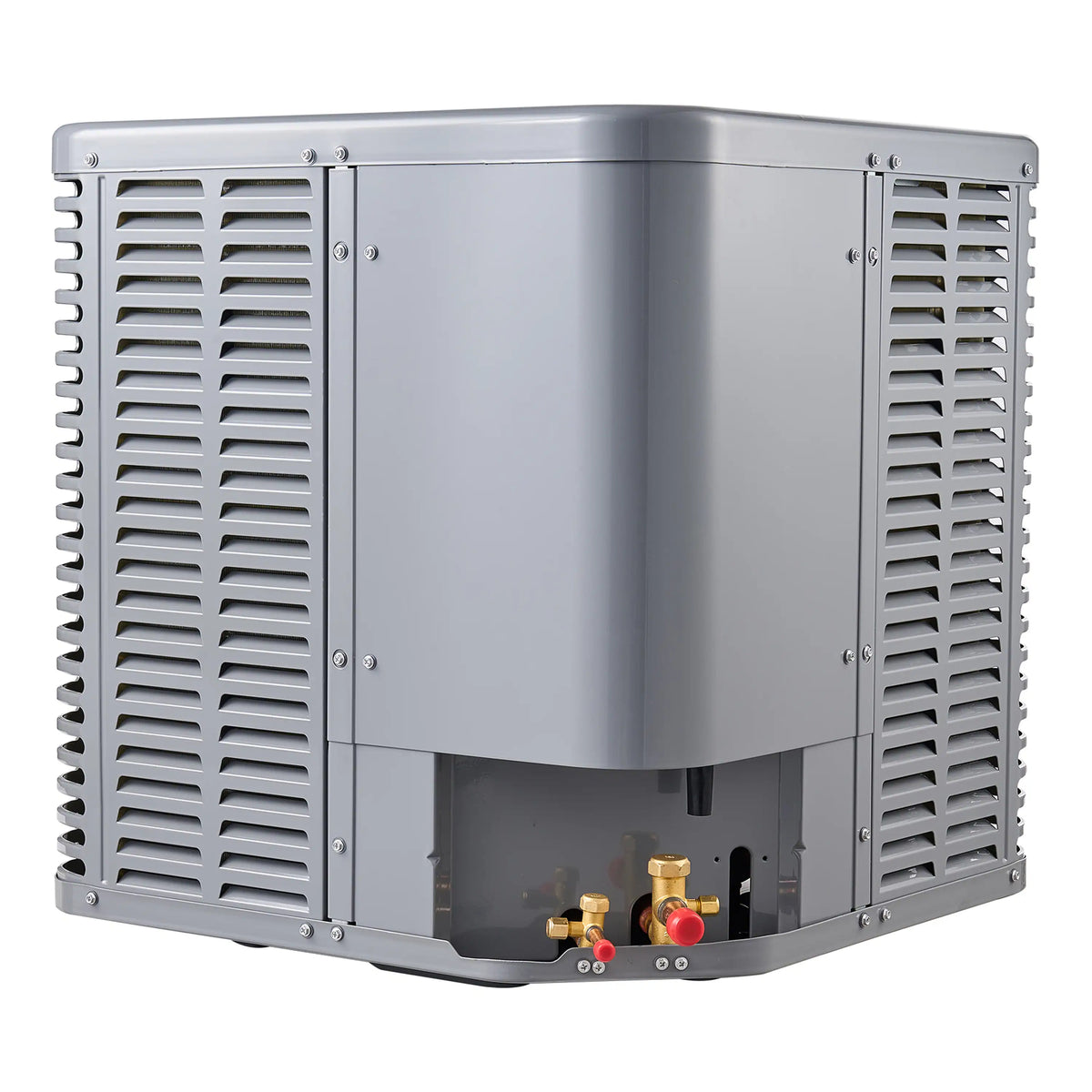

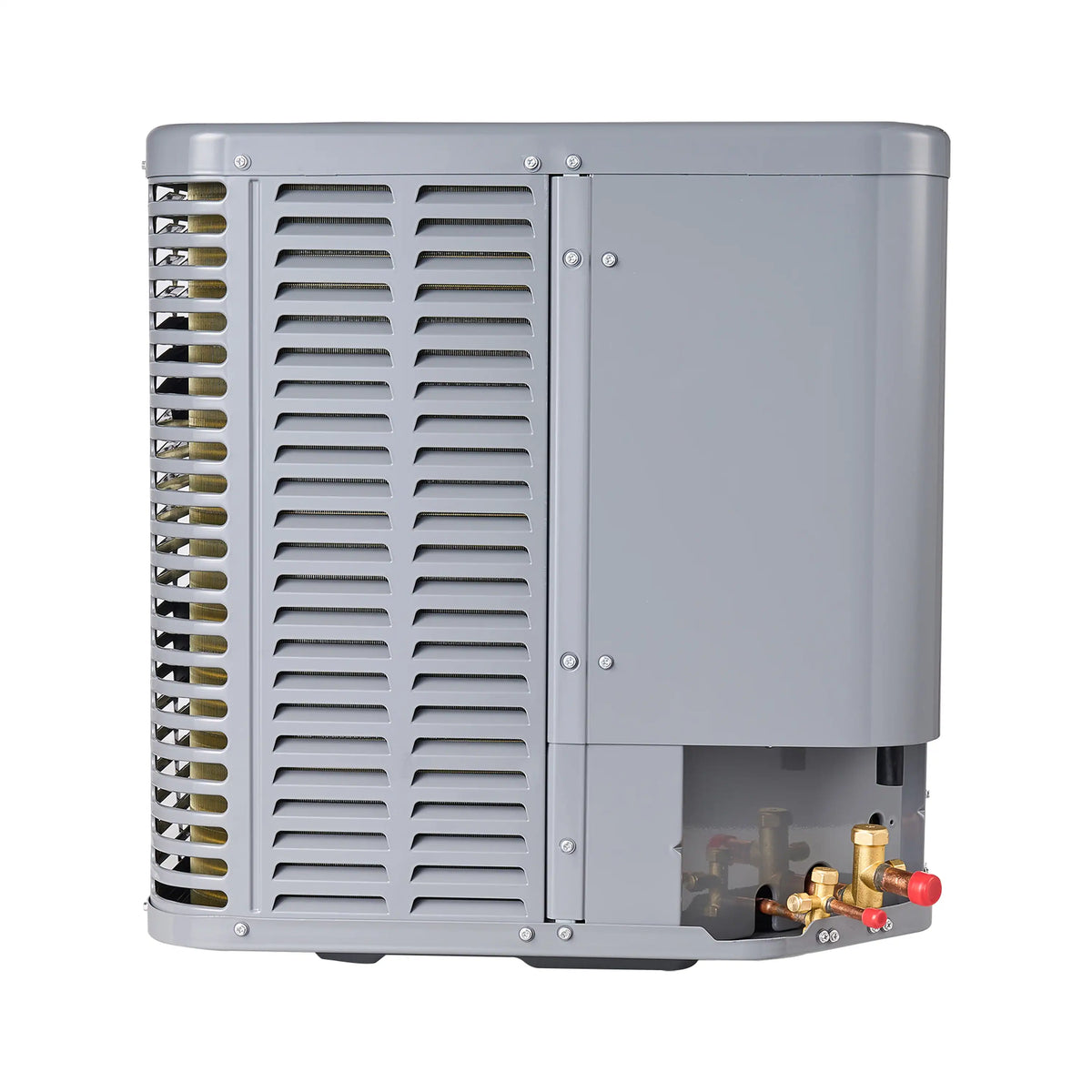

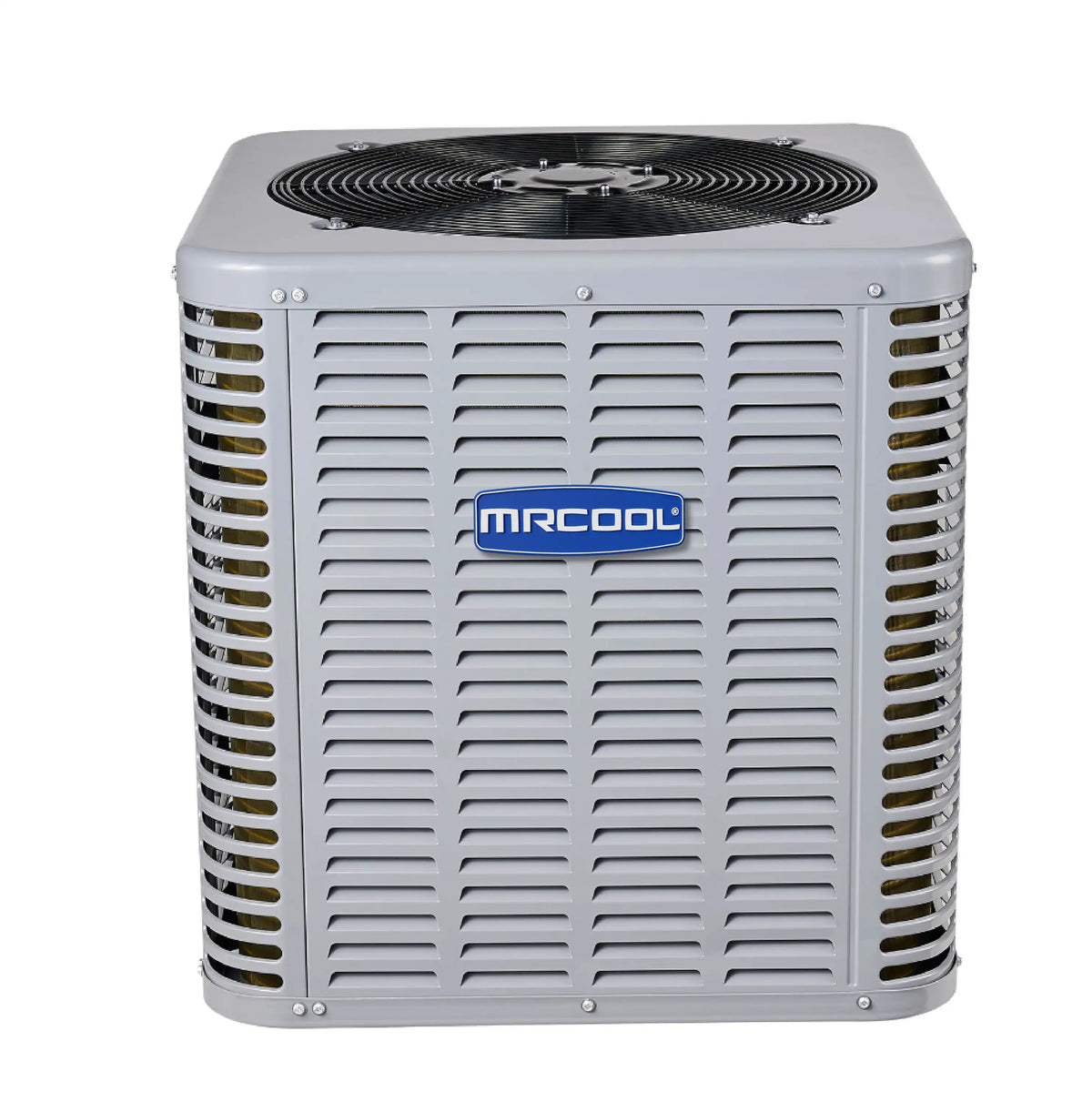

This MRCOOL Signature condenser is the 60K BTU (5 ton) outdoor air conditioner of a central ducted split system.
Highlights
- Rated 13.8 SEER2 and 11.2 EER2
- Pairs with the MRCOOL Signature 60K multi-position air handler (MCAEAMPEF60E21AA)
- Cooling-only air conditioner condenser
- Uses R-454B refrigerant
- Sound level of 65 dBA
Specs & Features
| Part number |
MCAESAS4T6021AA |
| Series |
MRCOOL Signature |
| Component |
Outdoor condenser |
| Nominal capacity |
60,000 BTU (5 ton) |
| Rated cooling capacity |
55,000 BTU |
| SEER2 |
13.8 |
| EER2 |
11.2 |
| Power supply |
208/230V, 1-phase |
| Refrigerant |
R-454B |
| Line set connections |
3/8" liquid x 7/8" suction |
| Sound level |
65 dBA |
| Minimum circuit ampacity |
37 A |
| Maximum fuse / breaker |
60 A |
| Net weight |
206 lbs |
| ENERGY STAR certified |
No |
| AHRI certified |
Yes |
| Parts warranty |
10 years |
| Compressor warranty |
Limited lifetime |
- Condenser only. The air handler, line set and thermostat are ordered separately.
Details
Avermont Direct is an authorized MRCOOL dealer. Ordering the condenser on its own suits replacing an outdoor unit or matching it to a Signature air handler already in place. MRCOOL's base warranty is 10 years on parts and limited lifetime on the compressor, and full terms are set out in the product documentation.
