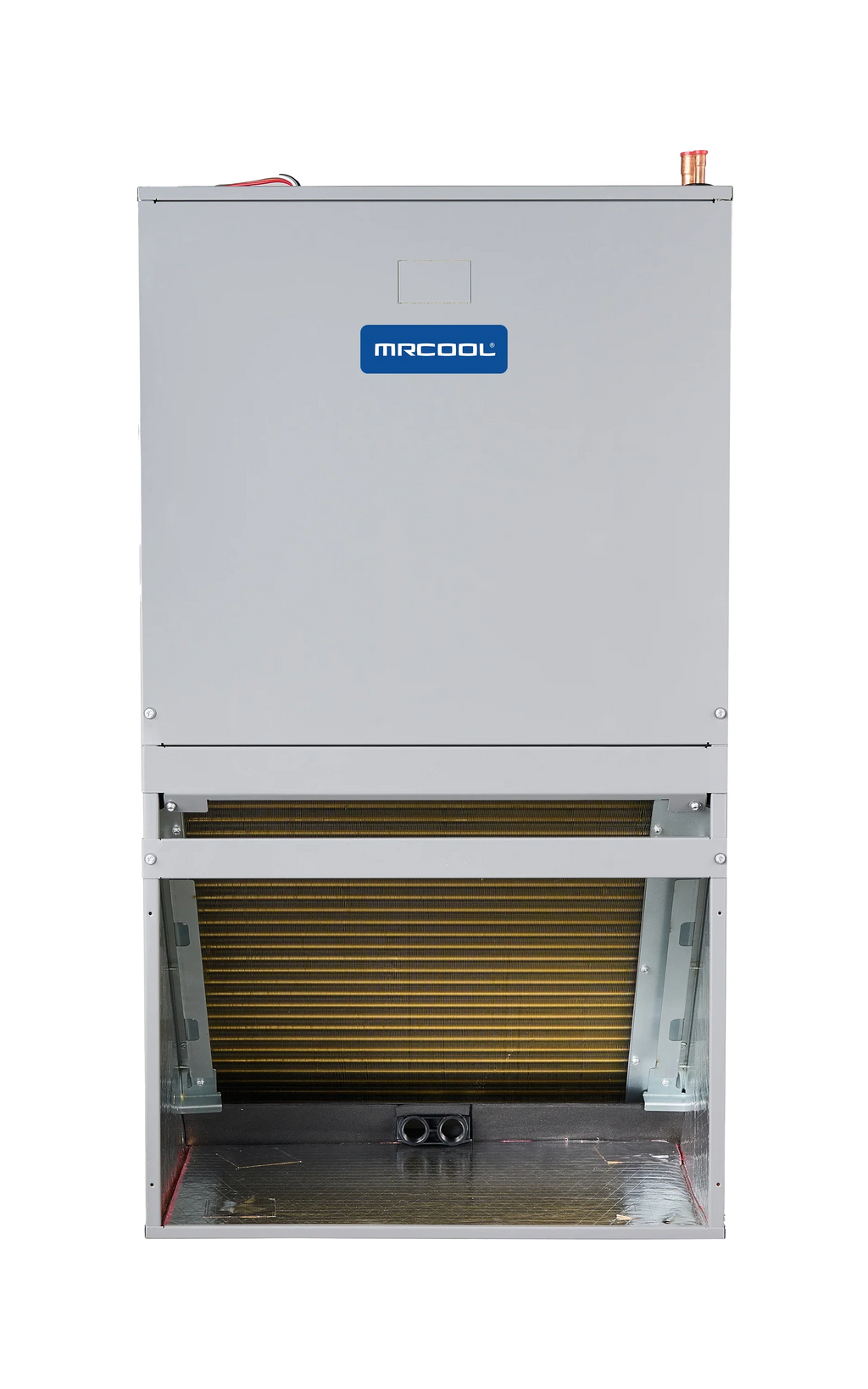

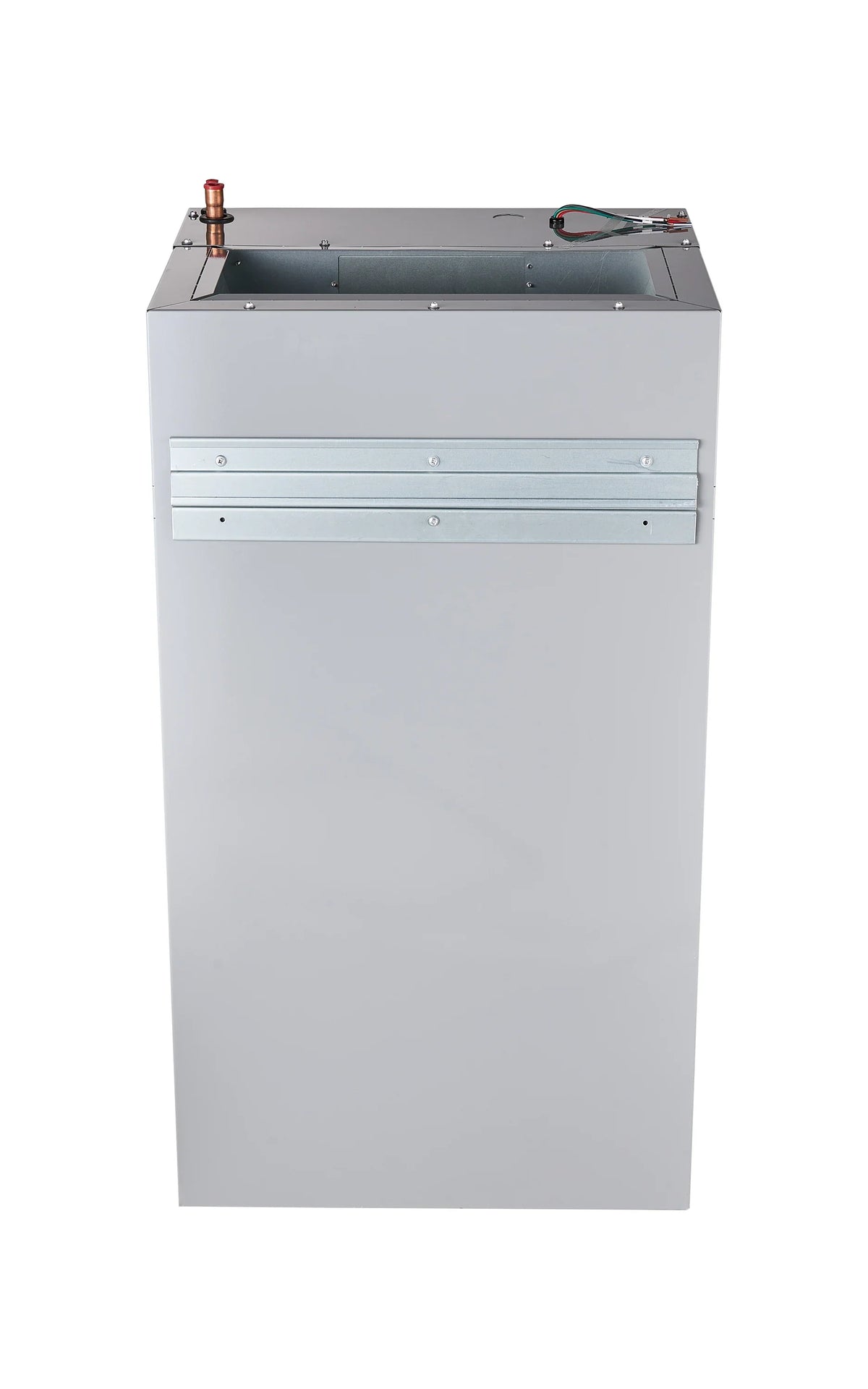

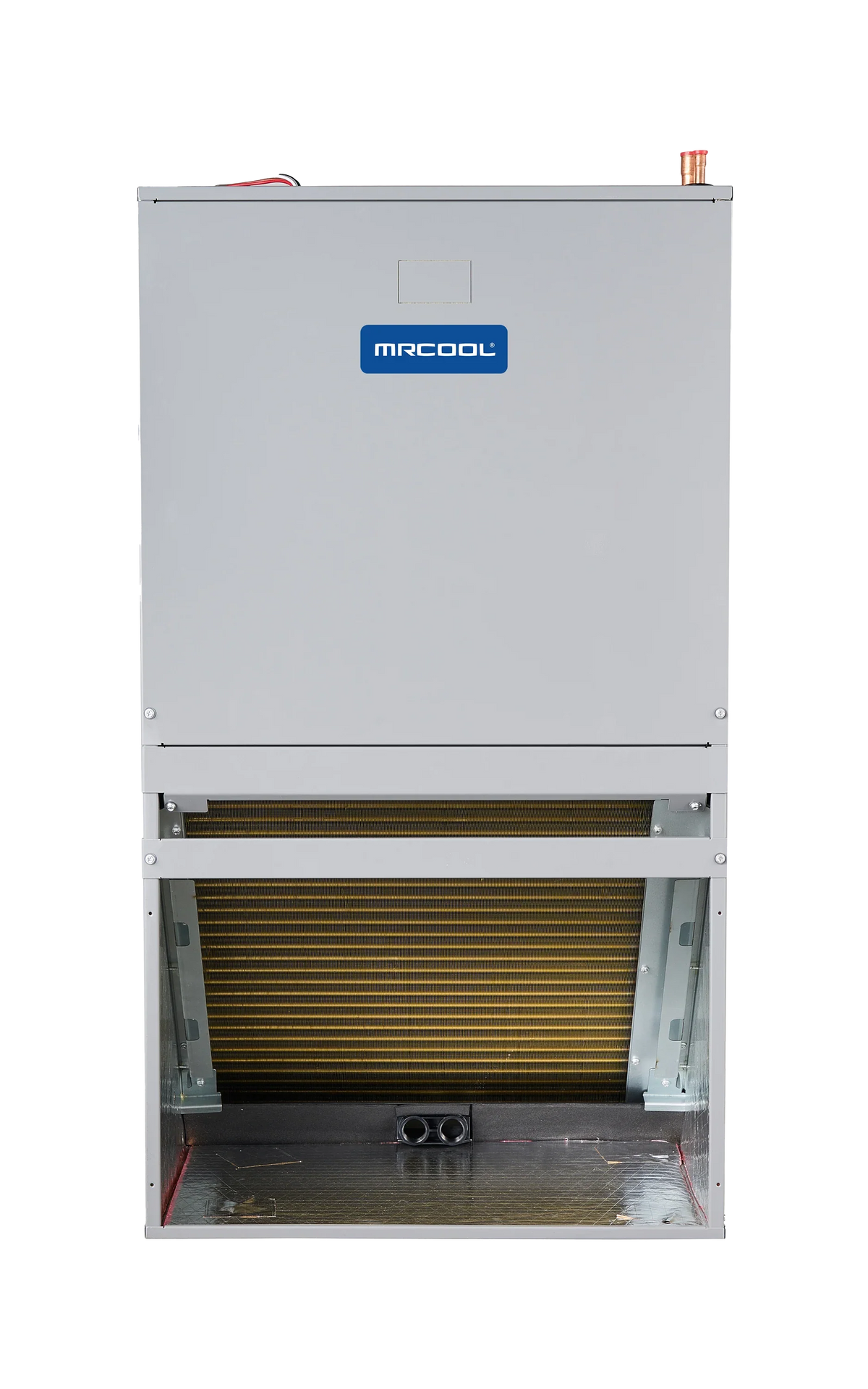

This MRCOOL Signature stud mount air handler is the 36K BTU (3 ton) indoor unit of a central ducted split system.
Highlights
- Pairs with the MRCOOL Signature 36K heat pump condenser (MCAESHS4T3621AA) or air conditioner condenser (MCAESAS4T3621AA)
- Stud mount cabinet design
- Accepts an optional MRCOOL electric heat kit for stud mount air handlers, sold separately
- Rated airflow of 1095 CFM
- Sound level of 57 dBA
Specs & Features
| Part number |
MCAEAWPEF36E21AA |
| Series |
MRCOOL Signature |
| Component |
Indoor air handler, stud mount |
| Nominal capacity |
36,000 BTU (3 ton) |
| Power supply |
208/230V, 1-phase |
| Refrigerant |
R-454B |
| Line set connections |
3/8" liquid x 3/4" suction |
| Airflow |
1095 CFM |
| Sound level |
57 dBA |
| Minimum circuit ampacity |
4.5 A |
| Maximum fuse / breaker |
6 A |
| Net weight |
110 lbs |
| ENERGY STAR certified |
No |
| AHRI certified |
Yes |
| Parts warranty |
10 years |
- Air handler only. The condenser, line set, heat kit and thermostat are ordered separately.
Details
Avermont Direct is an authorized MRCOOL dealer. Ordering the air handler on its own suits replacing an indoor unit or matching it to a Signature condenser already in place. MRCOOL's base warranty is 10 years on parts, and full terms are set out in the product documentation.
