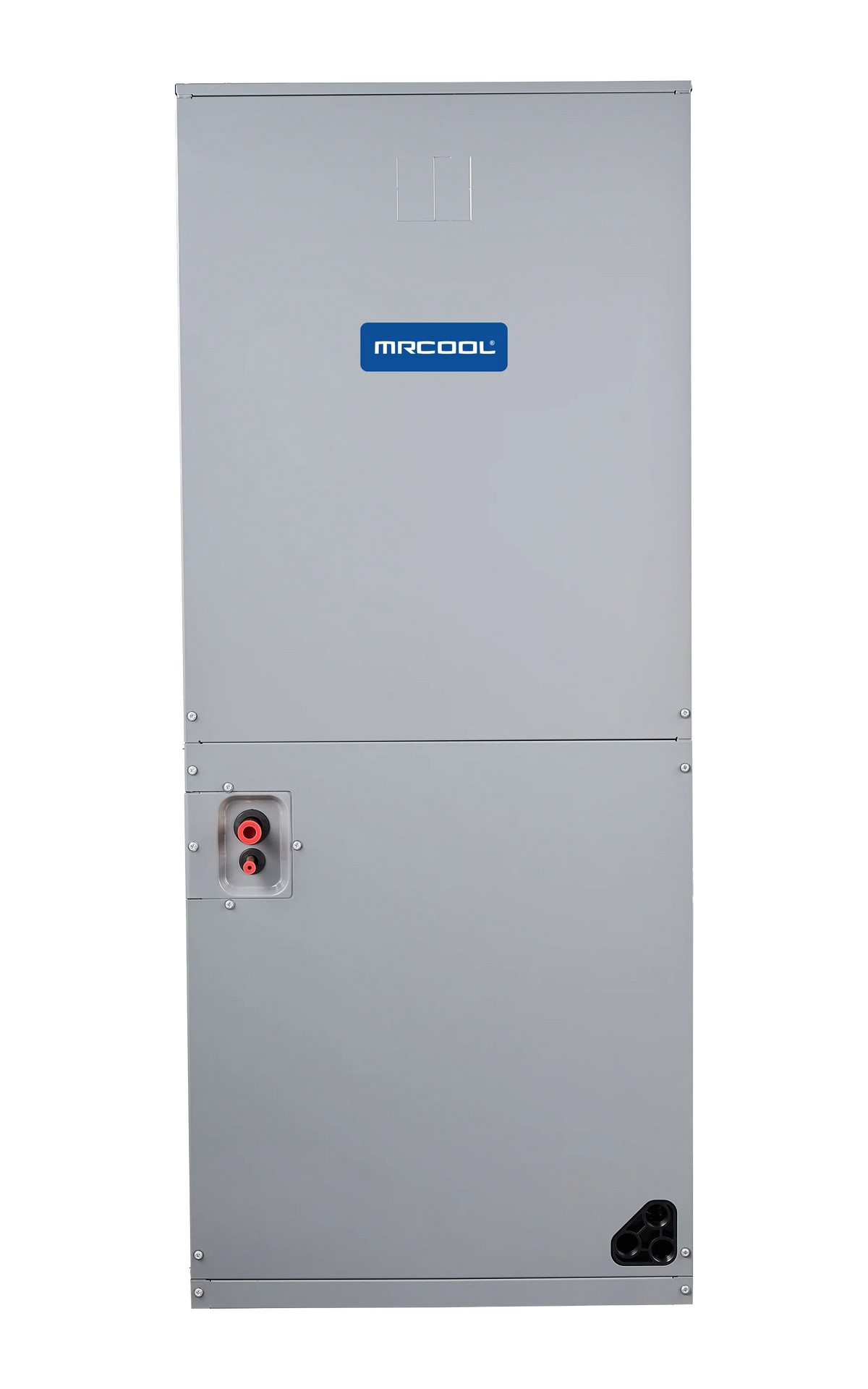

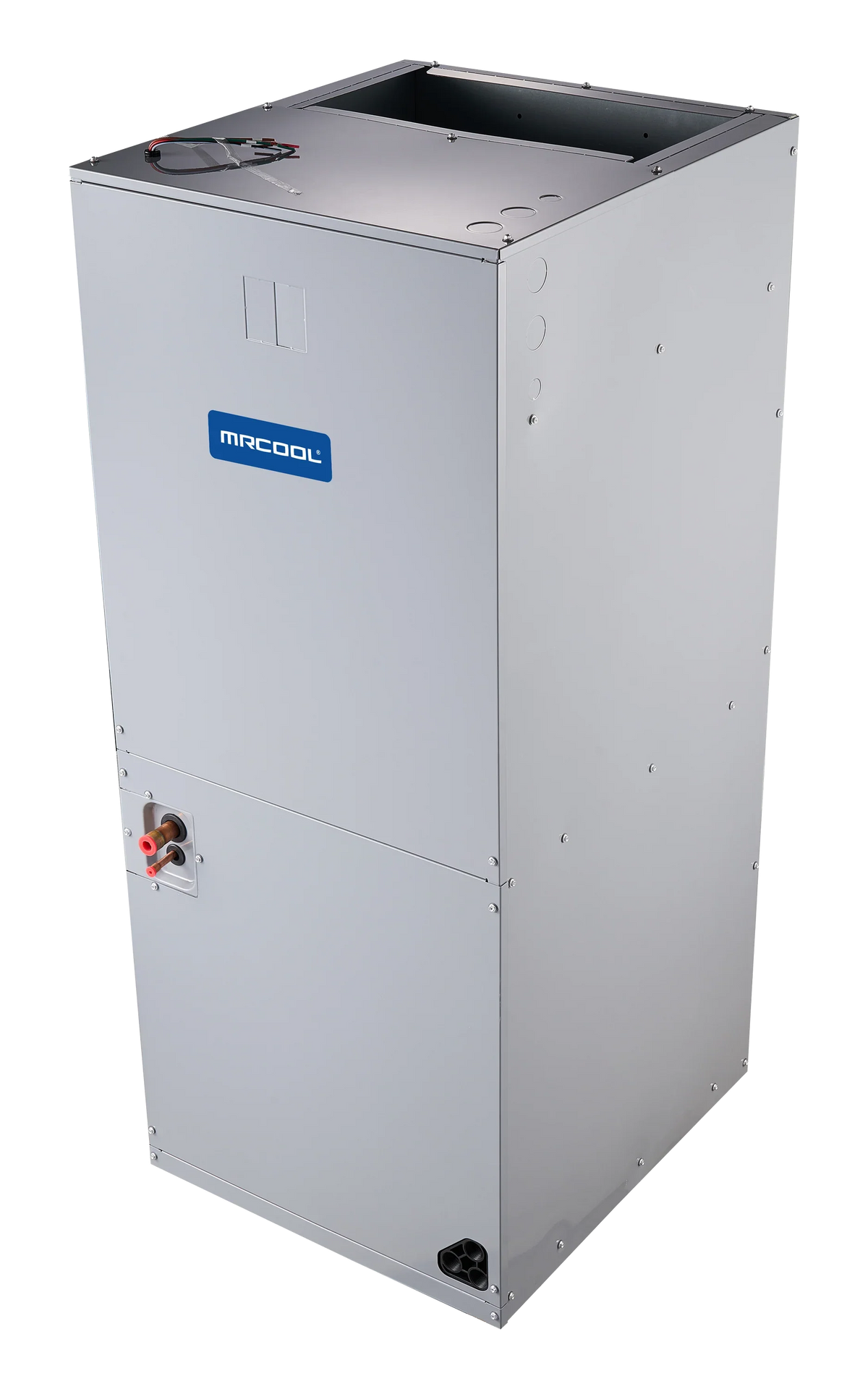

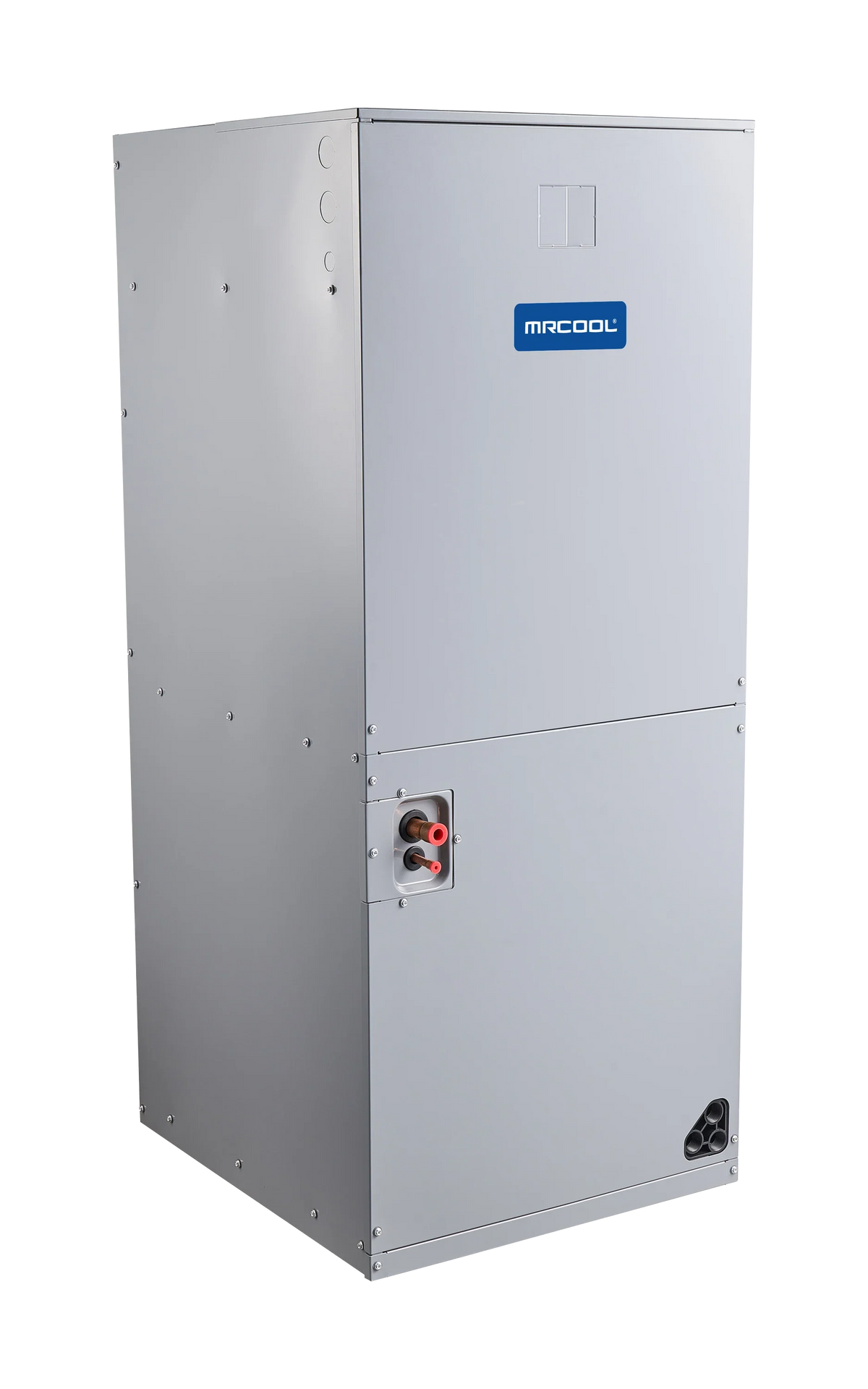

This MRCOOL Signature multi-position air handler is the 30K BTU (2.5 ton) indoor unit of a central ducted split system.
Highlights
- Pairs with the MRCOOL Signature 30K heat pump condenser (MCAESHS4T3021AA) or air conditioner condenser (MCAESAS4T3021AA)
- Multi-position cabinet for flexible placement
- Accepts an optional MRCOOL electric heat kit for multi-position air handlers, sold separately
- Rated airflow of 983 CFM
- Sound level of 53 dBA
Specs & Features
| Part number |
MCAEAMPEF30C21AA |
| Series |
MRCOOL Signature |
| Component |
Indoor air handler, multi-position |
| Nominal capacity |
30,000 BTU (2.5 ton) |
| Power supply |
208/230V, 1-phase |
| Refrigerant |
R-454B |
| Line set connections |
3/8" liquid x 3/4" suction |
| Airflow |
983 CFM |
| Sound level |
53 dBA |
| Minimum circuit ampacity |
4.5 A |
| Maximum fuse / breaker |
6 A |
| Net weight |
129 lbs |
| ENERGY STAR certified |
No |
| AHRI certified |
Yes |
| Parts warranty |
10 years |
- Air handler only. The condenser, line set, heat kit and thermostat are ordered separately.
Details
Avermont Direct is an authorized MRCOOL dealer. Ordering the air handler on its own suits replacing an indoor unit or matching it to a Signature condenser already in place. MRCOOL's base warranty is 10 years on parts, and full terms are set out in the product documentation.
