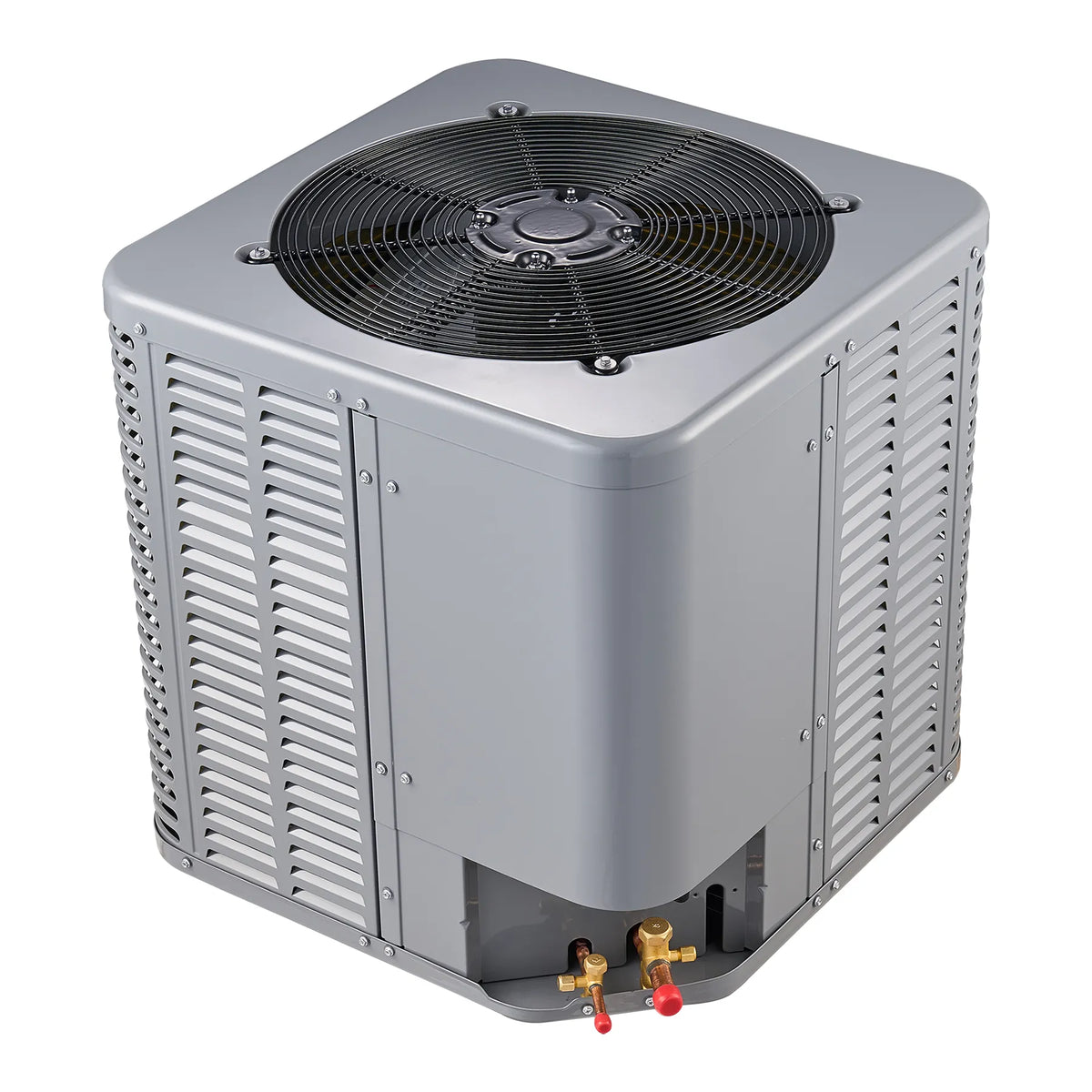

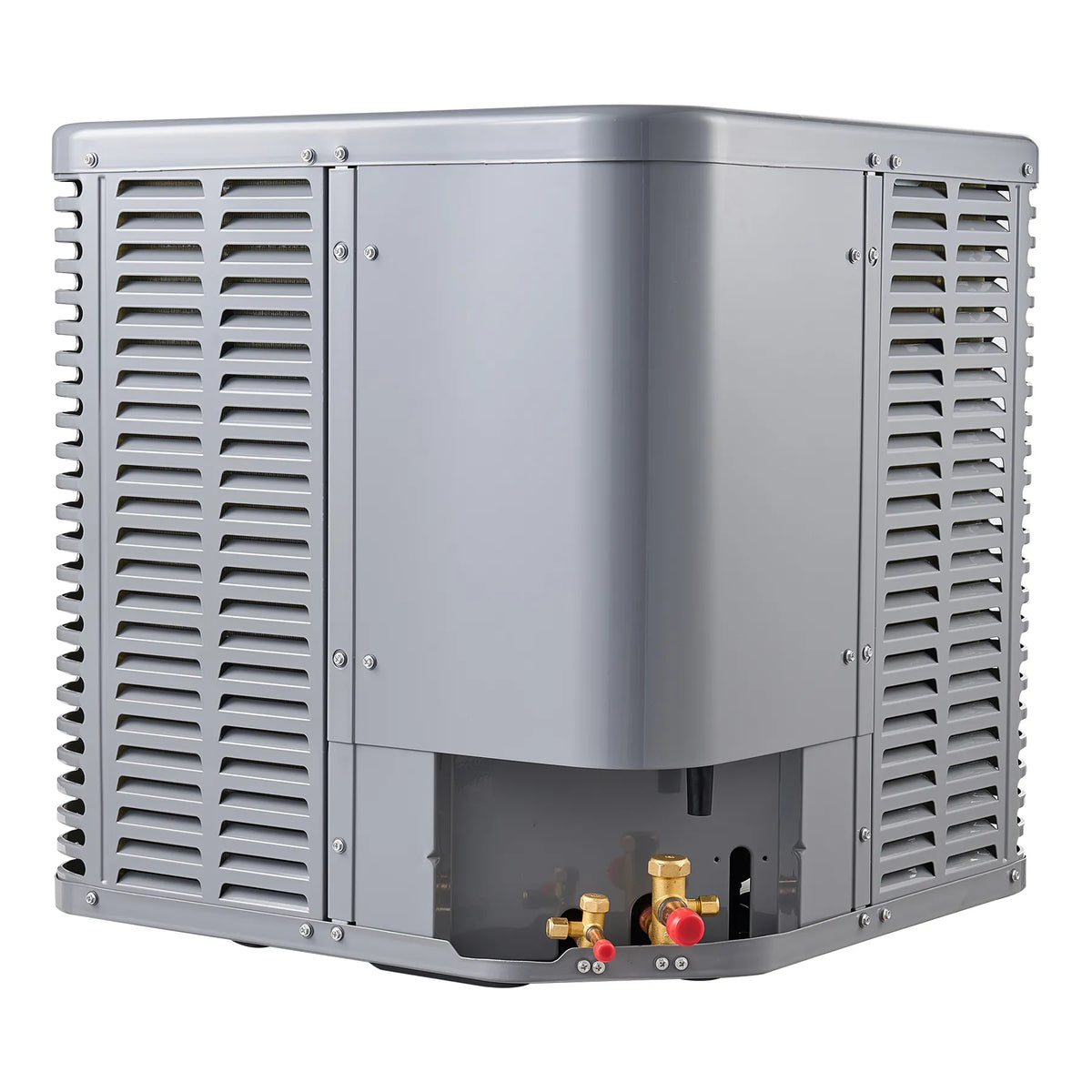

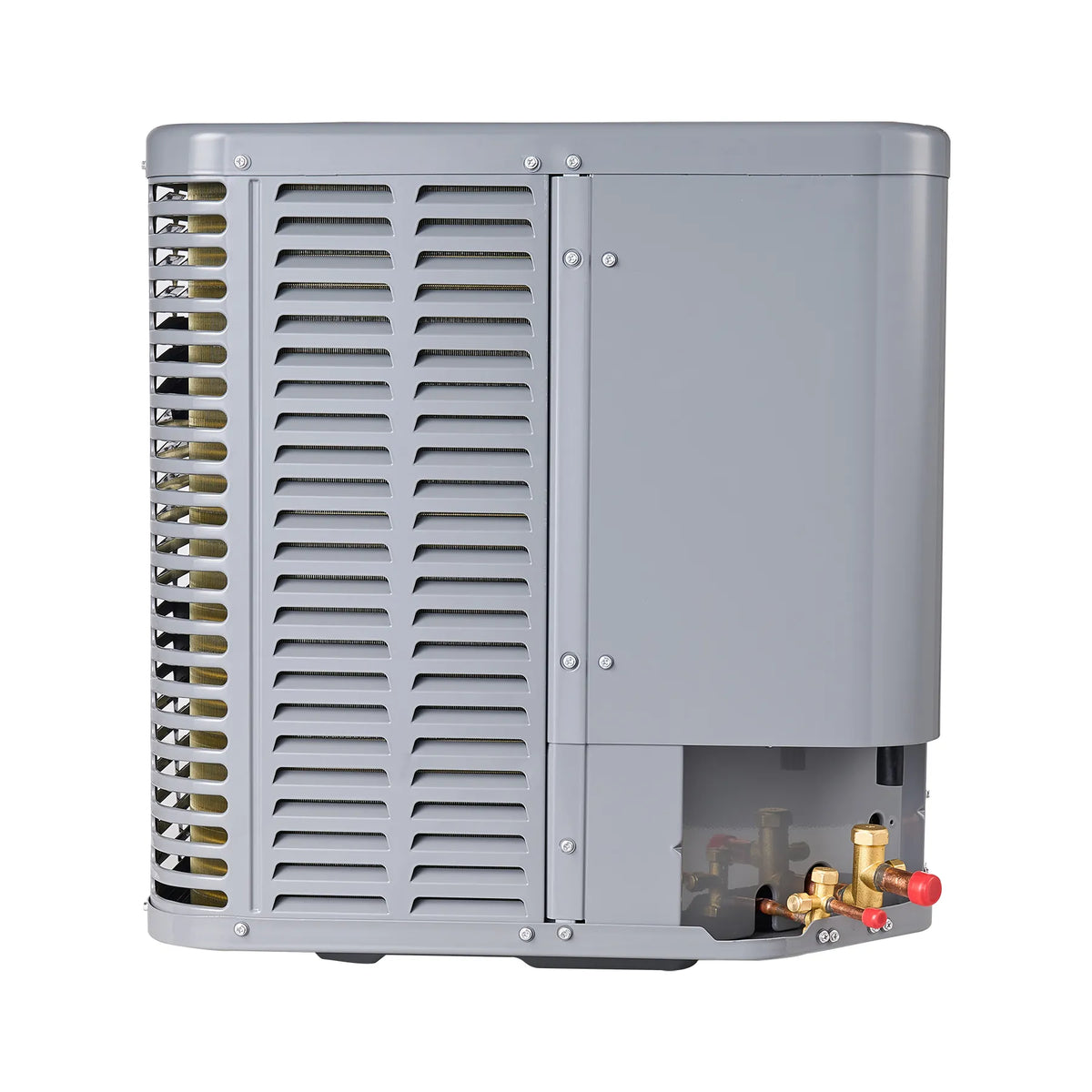

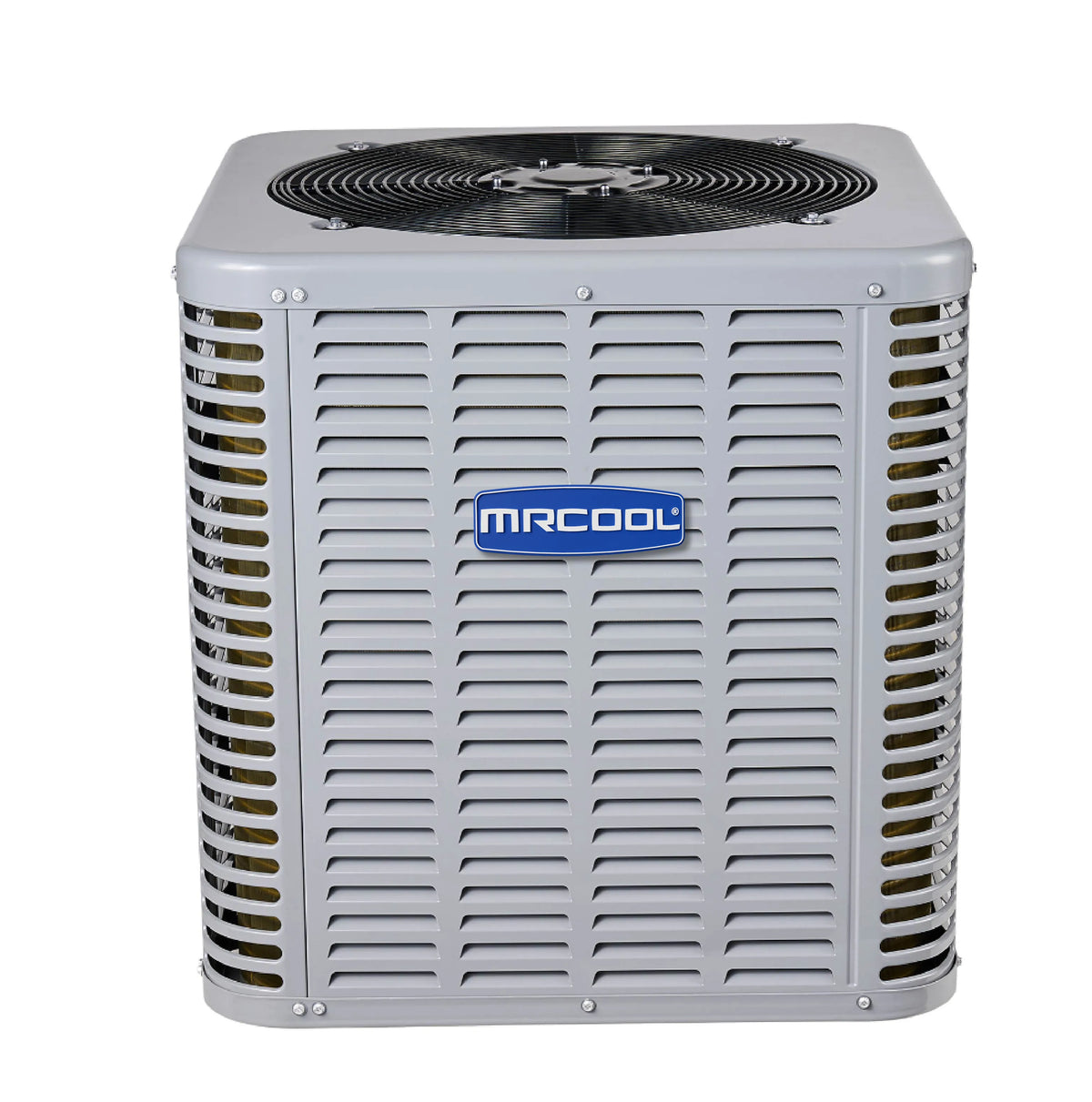

This MRCOOL Signature condenser is the 30K BTU (2.5 ton) outdoor heat pump of a central ducted split system.
Highlights
- Rated 14.3 SEER2, 11.7 EER2 and 7.5 HSPF2 (Region IV)
- Pairs with the MRCOOL Signature 30K multi-position air handler (MCAEAMPEF30C21AA) or stud mount air handler (MCAEAWPEF30E21AA)
- Heat pump operation, providing both cooling and heating
- Uses R-454B refrigerant
- Sound level of 63 dBA
Specs & Features
| Part number |
MCAESHS4T3021AA |
| Series |
MRCOOL Signature |
| Component |
Outdoor condenser |
| Nominal capacity |
30,000 BTU (2.5 ton) |
| Rated cooling capacity |
27,500 BTU |
| Rated heating capacity |
27,500 BTU |
| SEER2 |
14.3 |
| EER2 |
11.7 |
| HSPF2 (Region IV) |
7.5 |
| Power supply |
208/230V, 1-phase |
| Refrigerant |
R-454B |
| Line set connections |
3/8" liquid x 3/4" suction |
| Sound level |
63 dBA |
| Minimum circuit ampacity |
18 A |
| Maximum fuse / breaker |
30 A |
| Net weight |
146 lbs |
| ENERGY STAR certified |
No |
| AHRI certified |
Yes |
| Parts warranty |
10 years |
| Compressor warranty |
Limited lifetime |
- Condenser only. The air handler, line set and thermostat are ordered separately.
Details
Avermont Direct is an authorized MRCOOL dealer. Ordering the condenser on its own suits replacing an outdoor unit or matching it to a Signature air handler already in place. MRCOOL's base warranty is 10 years on parts and limited lifetime on the compressor, and full terms are set out in the product documentation.
