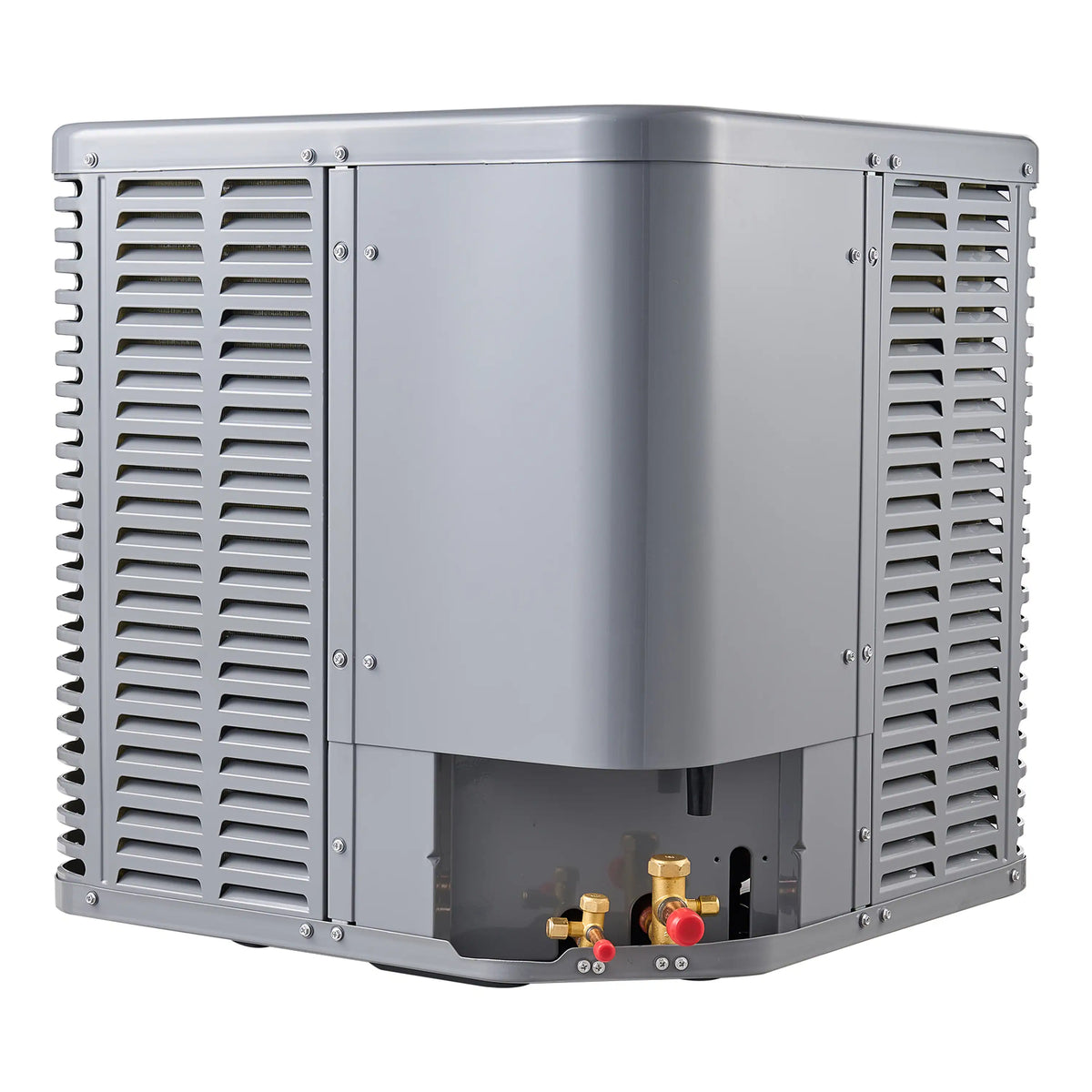

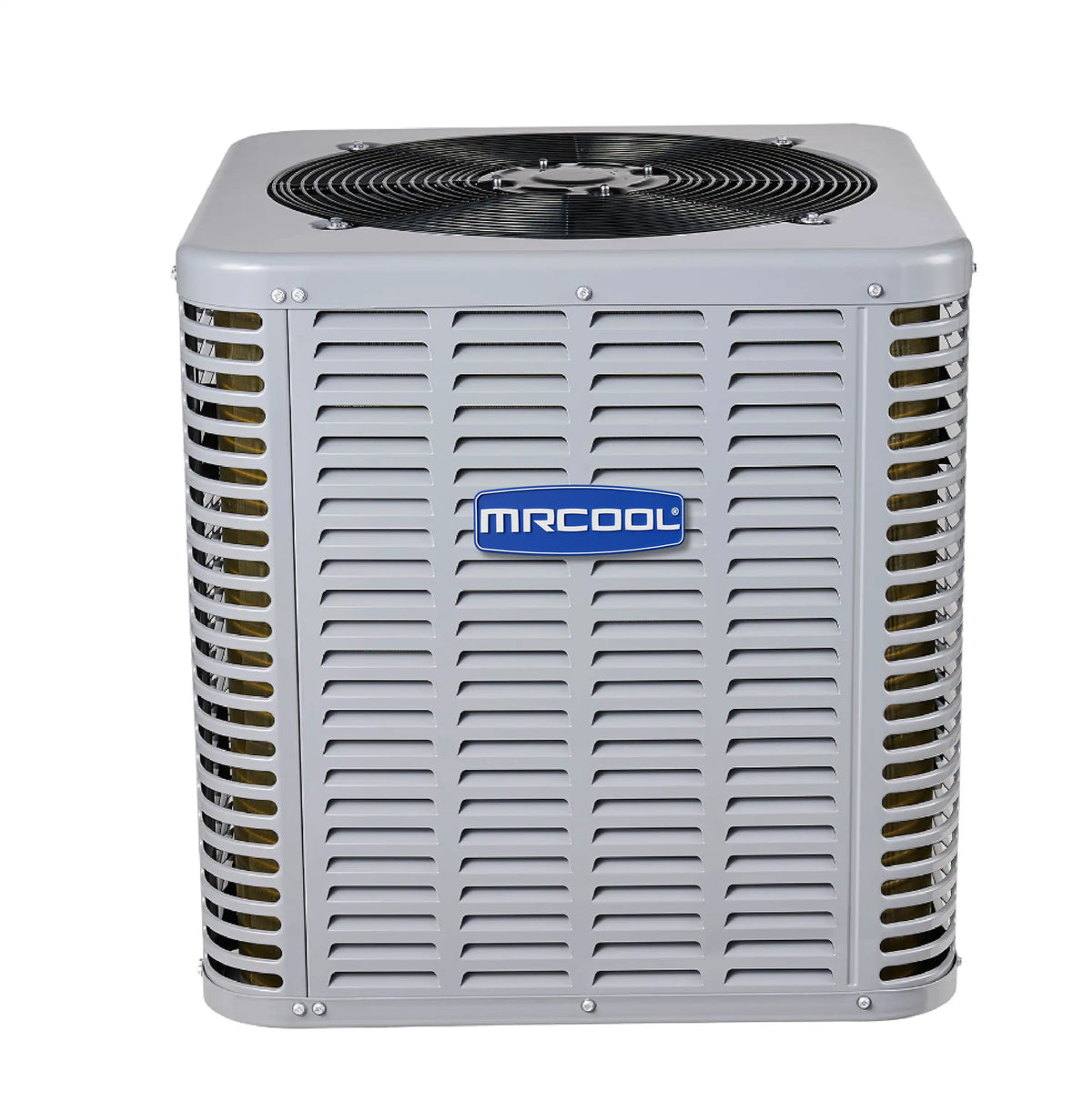

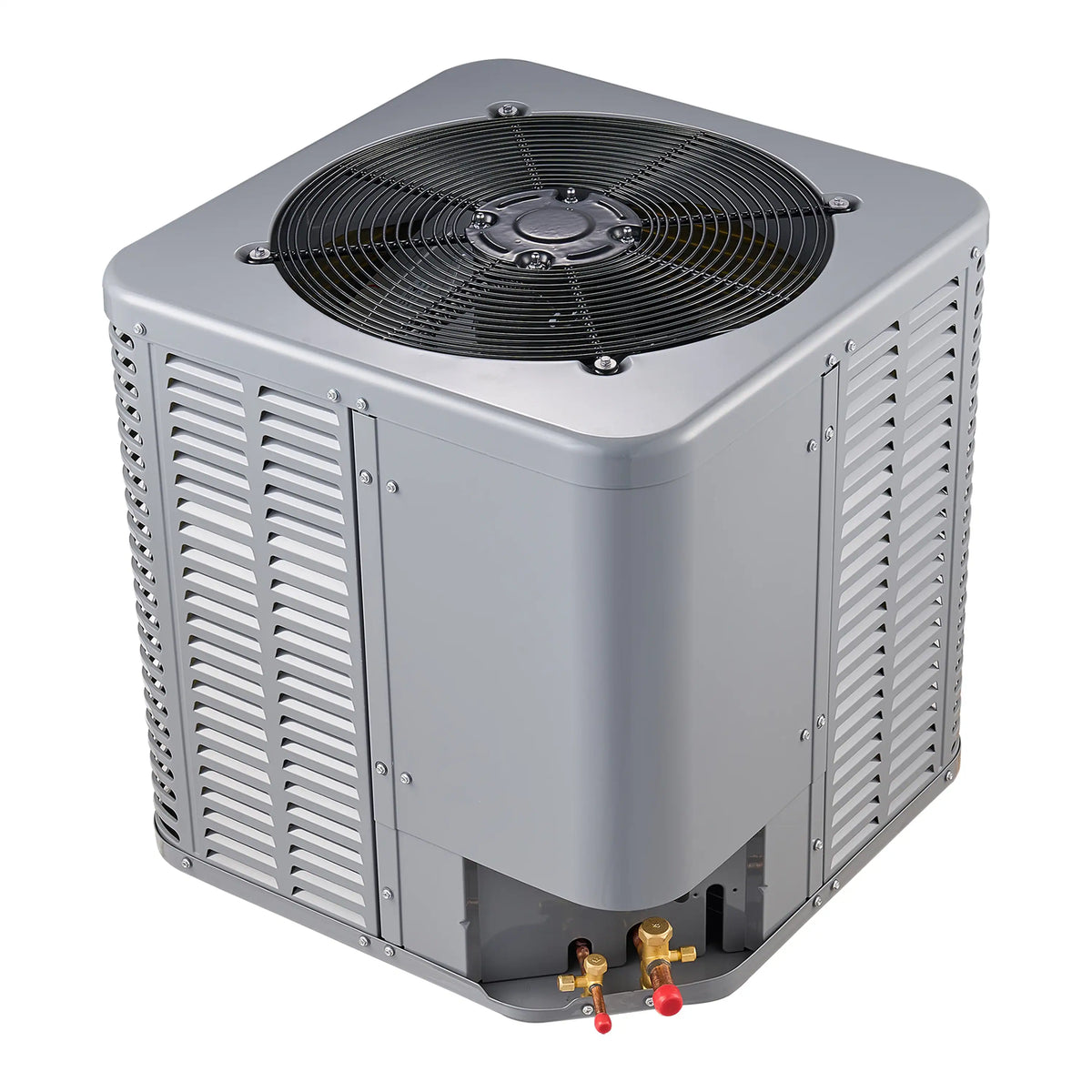

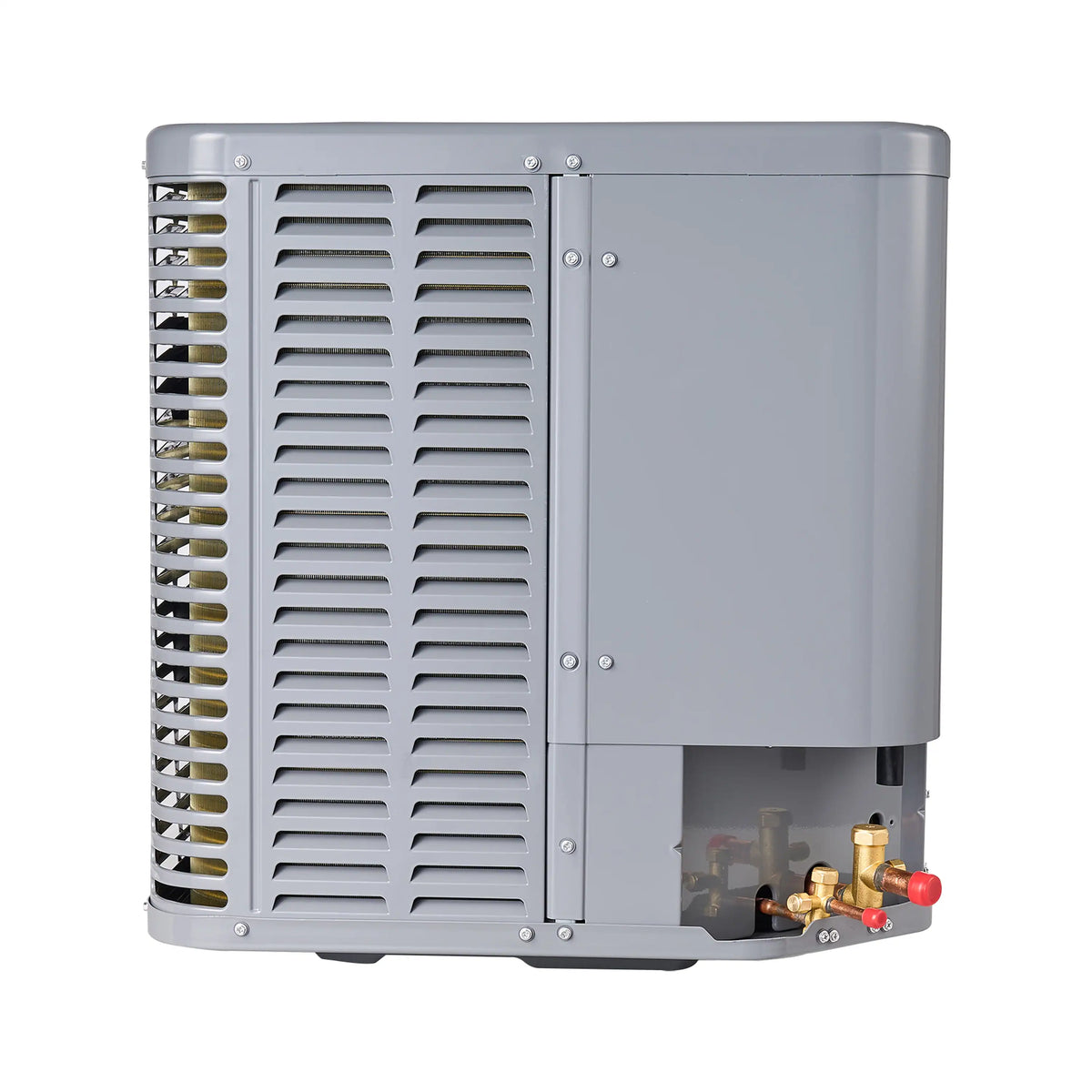

This MRCOOL Signature condenser is the 24K BTU (2 ton) outdoor air conditioner of a central ducted split system.
Highlights
- Rated 14.3 SEER2 and 11.7 EER2
- Pairs with the MRCOOL Signature 24K multi-position air handler (MCAEAMPSF24C21AA) or stud mount air handler (MCAEAWPEF24D21AA)
- Cooling-only air conditioner condenser
- Uses R-454B refrigerant
- Sound level of 60 dBA
Specs & Features
| Part number |
MCAESAS4T2421AA |
| Series |
MRCOOL Signature |
| Component |
Outdoor condenser |
| Nominal capacity |
24,000 BTU (2 ton) |
| Rated cooling capacity |
22,000 BTU |
| SEER2 |
14.3 |
| EER2 |
11.7 |
| Power supply |
208/230V, 1-phase |
| Refrigerant |
R-454B |
| Line set connections |
3/8" liquid x 3/4" suction |
| Sound level |
60 dBA |
| Minimum circuit ampacity |
15.2 A |
| Maximum fuse / breaker |
20 A |
| Net weight |
133 lbs |
| ENERGY STAR certified |
No |
| AHRI certified |
Yes |
| Parts warranty |
10 years |
| Compressor warranty |
Limited lifetime |
- Condenser only. The air handler, line set and thermostat are ordered separately.
Details
Avermont Direct is an authorized MRCOOL dealer. Ordering the condenser on its own suits replacing an outdoor unit or matching it to a Signature air handler already in place. MRCOOL's base warranty is 10 years on parts and limited lifetime on the compressor, and full terms are set out in the product documentation.
