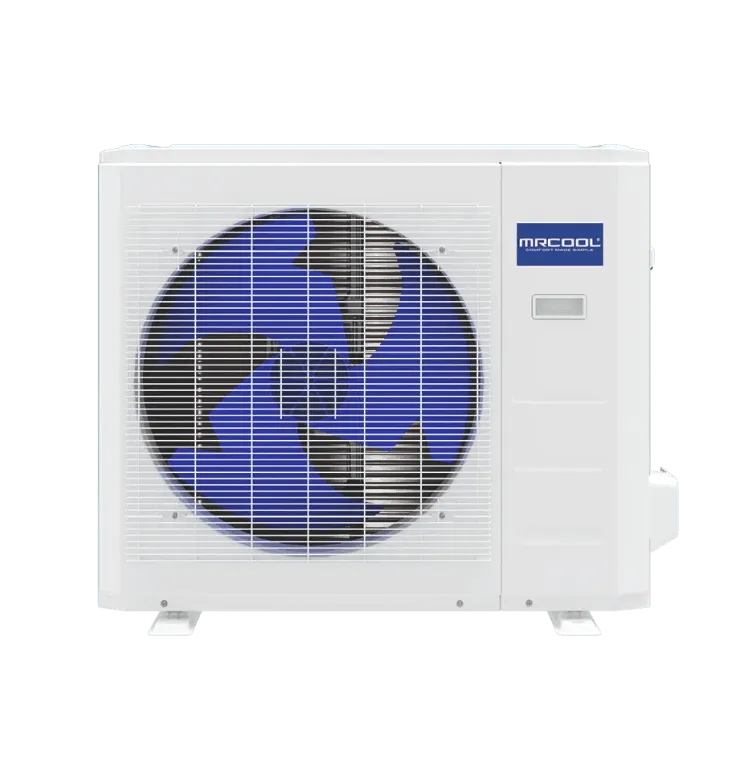

This MRCOOL Olympus E Star condenser is the 9,000 BTU (0.75 ton) outdoor unit of a professionally installed single-zone mini split.
Highlights
- Rated 27.4 SEER2, 15.4 EER2 and 12.5 HSPF2 (Region IV)
- Pairs with an Olympus 9,000 BTU wall mount (O-09-HP-WMAH-230C-O), ceiling cassette (CASSETTE09HP-230C-P-O) or ceiling concealed ducted (DUCT-09HP-230B-O) air handler
- ENERGY STAR certified
- Uses R-454B refrigerant
- Professional installation by a licensed HVAC technician is required
Specs & Features
| Part number |
O-ES-09-HP-C-230C-O1 |
| Series |
MRCOOL Olympus |
| Component |
Outdoor condenser |
| Nominal capacity |
9,000 BTU (0.75 ton) |
| Rated heating capacity |
12,000 BTU |
| SEER2 |
27.4 |
| EER2 |
15.4 |
| HSPF2 (Region IV) |
12.5 |
| HSPF2 (Region V) |
9.5 |
| Power supply |
208/230V, 1-phase |
| Refrigerant |
R-454B |
| Line set connections |
1/4" liquid x 3/8" suction |
| Sound level |
56 dBA |
| Minimum circuit ampacity |
15 A |
| Maximum fuse / breaker |
15 A |
| Net weight |
72.75 lbs |
| ENERGY STAR certified |
Yes |
| AHRI certified |
Yes |
| Parts warranty |
5 years |
| Compressor warranty |
7 years |
| Installation |
Professional. A licensed HVAC technician is required. |
- Condenser only. The air handler and line set are ordered separately.
Details
Avermont Direct is an authorized MRCOOL dealer. Ordering the condenser on its own lets the indoor unit be a wall mount, ceiling cassette or ducted handler to suit the room. MRCOOL's base warranty is 5 years on parts and 7 years on the compressor, and full terms are set out in the product documentation.
