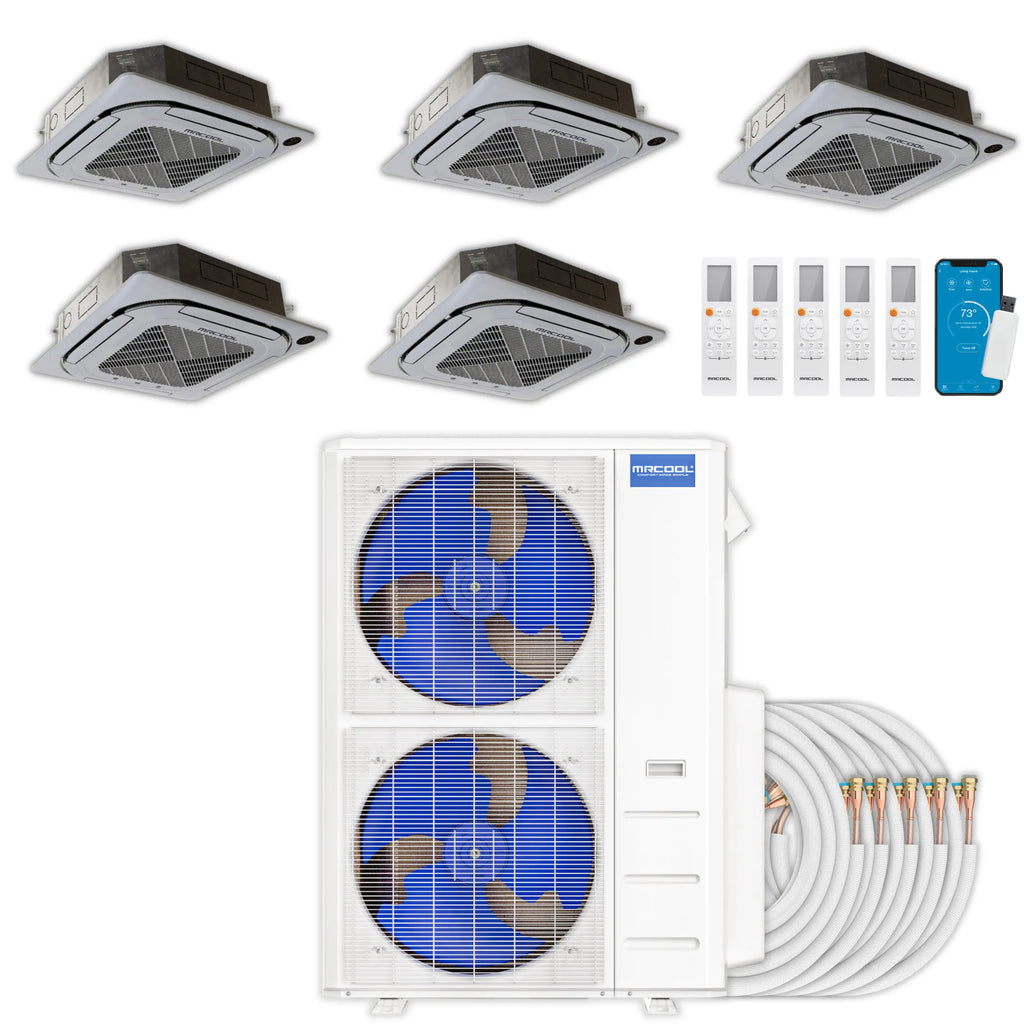

The MRCOOL Olympus 48,000 BTU 5-zone heat pump condenser pairs with five ceiling cassette air handlers — two 12,000 BTU and three 9,000 BTU units — each mounting flush into the ceiling for quiet, discreet comfort. Inverter-driven operation delivers SEER2 ratings as high as 24 and keeps working reliably in outdoor temperatures as low as 5°F.
Highlights
- Whole-home, multi-room comfort: one outdoor condenser powers five independently controlled zones — two 12,000 BTU and three 9,000 BTU ceiling cassette air handlers — for tailored heating and cooling room by room.

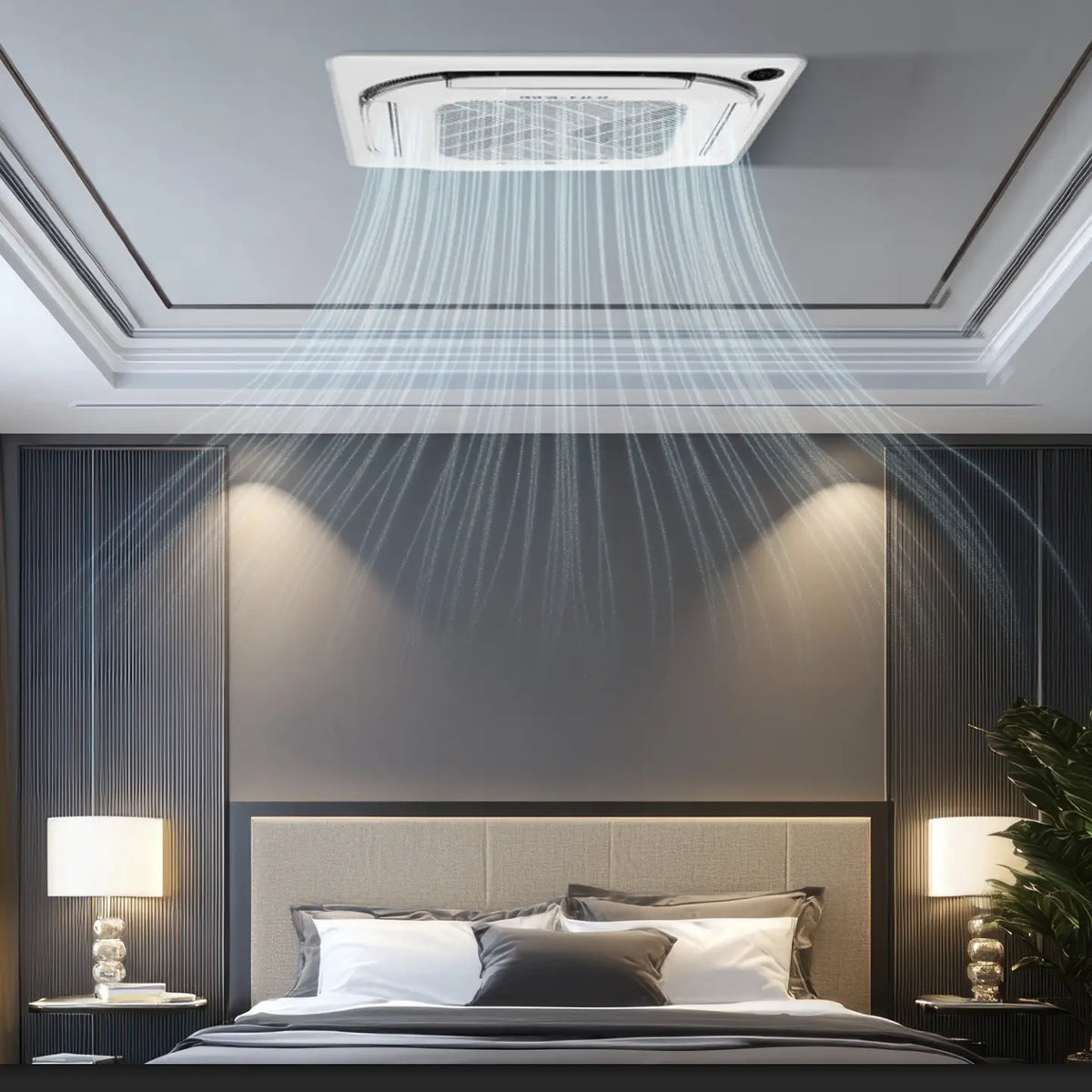

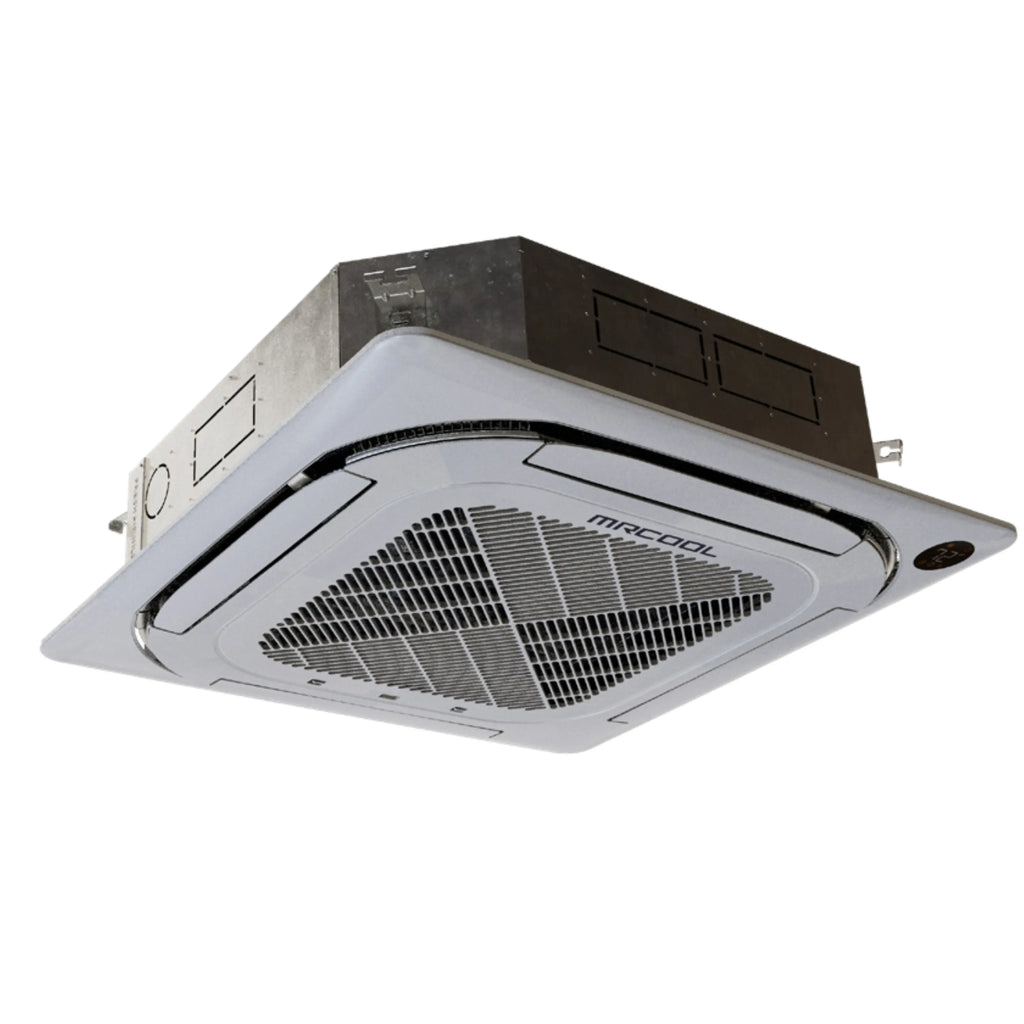

- Discreet ceiling cassette design: mounts flush into the ceiling for a clean, modern look with no bulky indoor unit on the wall.
- Quiet operation: 46 dB on the 12,000 BTU cassettes and 42 dB on the 9,000 BTU cassettes.
- High-efficiency inverter technology: SEER2 ratings up to 24 and HSPF2-4 up to 10.6 help lower energy costs year-round.
- Cold-climate reliability: rated to operate in outdoor temperatures as low as 5°F.
- Flexible control: manage the system with the MRCOOL SmartHVAC app, the included remotes, or voice commands via Amazon Alexa and Google Assistant.
Specs & Features

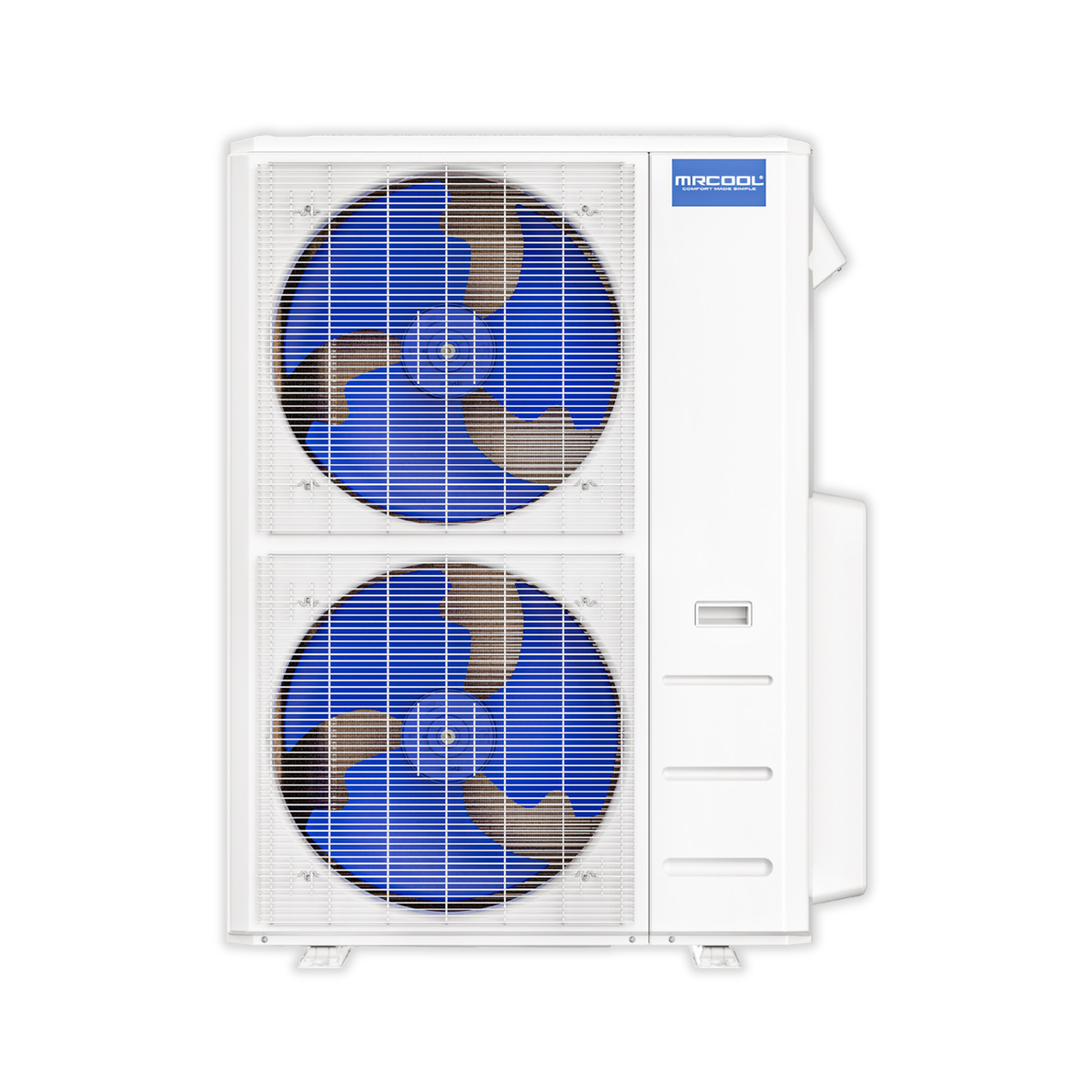

| Condenser Model |
MULTI6-48HP230C-O |
| System Type |
5-Zone Ductless Air Conditioner & Heat Pump |
| Total Condenser Capacity |
48,000 BTU |
| Zones Installed |
5 (condenser supports up to 6) |
| Indoor Unit Configuration |
12,000 + 12,000 + 9,000 + 9,000 + 9,000 BTU, Ceiling Cassette |
| 12,000 BTU Cassette Coverage |
Up to 550 sq. ft. each |
| 12,000 BTU Cassette Indoor Fan Noise |
46 dB |
| 9,000 BTU Cassette Coverage |
Up to 400 sq. ft. each |
| 9,000 BTU Cassette Indoor Fan Noise |
42 dB |
| System SEER2 |
Up to 24 |
| System HSPF2-4 |
Up to 10.6 |
| Minimum Outdoor Operating Temperature |
5°F |
| Refrigerant |
R-454B |
| Compressor Warranty |
7 years |
| Parts Warranty |
5 years (with professional installation and registration); indoor units backed by limited lifetime warranty |
| Certification |
Energy Star Certified |
| Installation |
Professional installation required |
- Each cassette air handler includes a wired wall-mounted controller and a handheld remote.
- Compatible with the MRCOOL SmartHVAC app, Amazon Alexa, and Google Assistant.
Details
Avermont Direct is an authorized MRCOOL dealer. This 5-zone Olympus system pairs a single outdoor condenser with five ceiling cassette air handlers that recess flush into the ceiling for a clean, low-profile look while still delivering independent temperature control in each room. Backed by a 7-year compressor warranty and a 5-year parts warranty when professionally installed and registered, it suits multi-room homes, additions, or offices that want quiet, discreet climate control without visible wall units. Professional HVAC installation is required.
