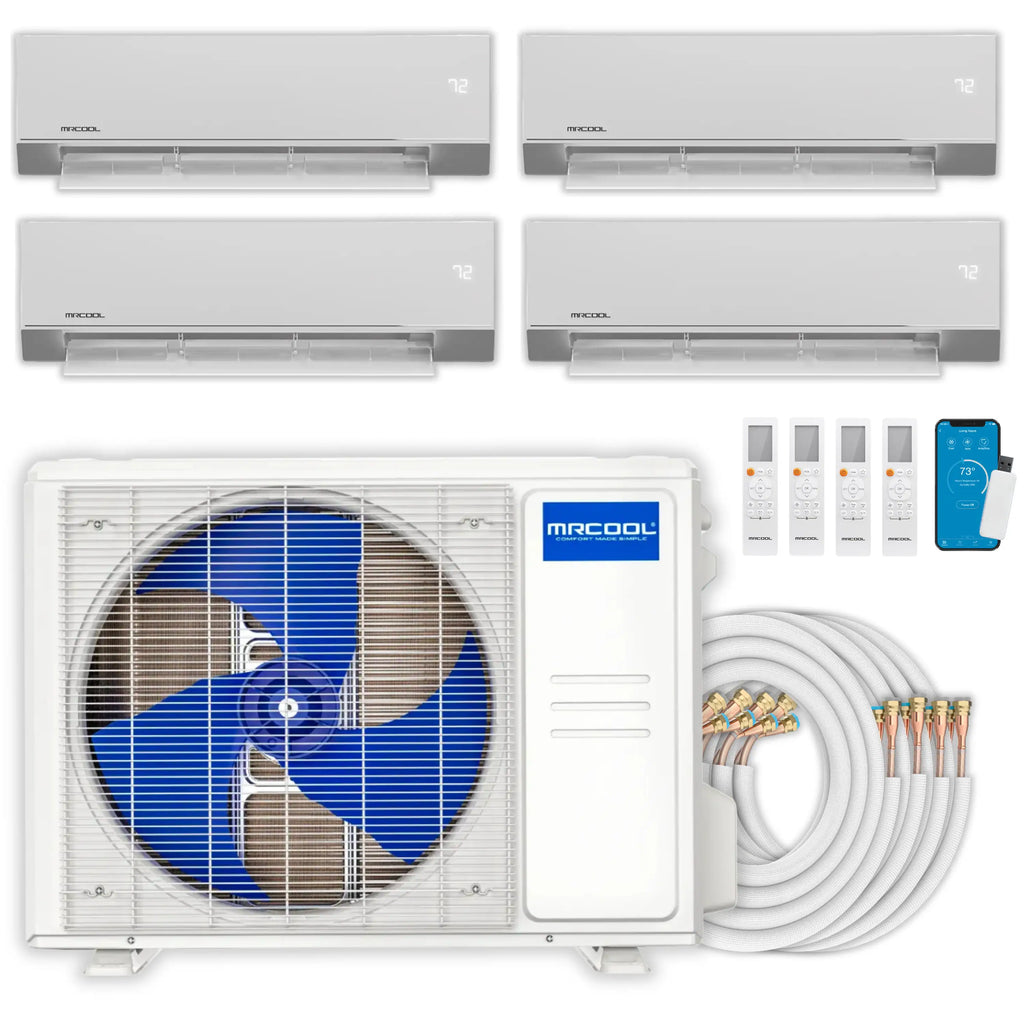

This MRCOOL Olympus 4th Gen ductless mini-split system pairs a 36,000 BTU multi-zone heat pump condenser with four independently controlled Wall Mount indoor air handlers (18,000 BTU + 9,000 BTU + 9,000 BTU + 9,000 BTU), giving up to four rooms their own heating and cooling zone from a single outdoor unit.
Highlights
-

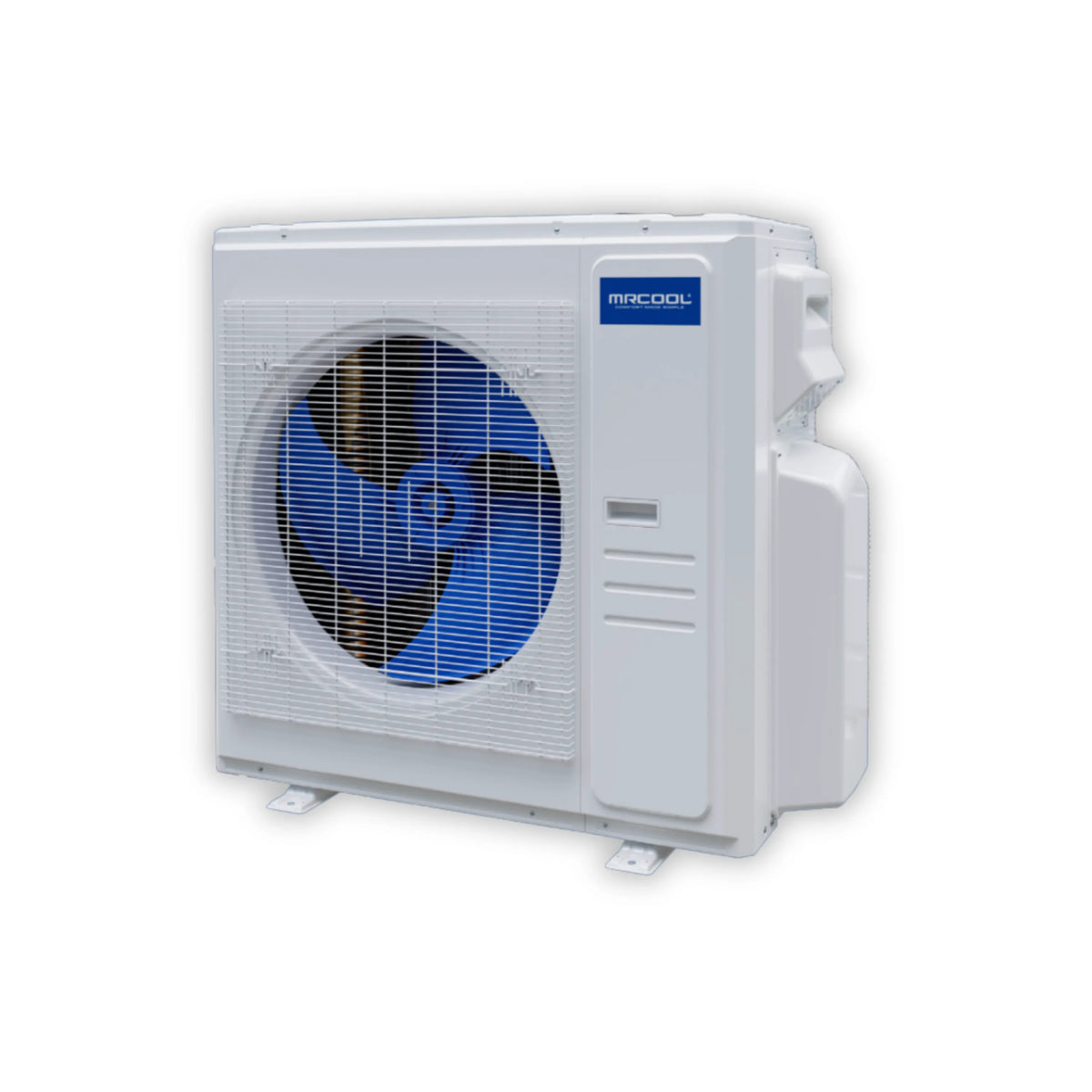

Four-zone, single-condenser design — one 36,000 BTU outdoor condenser (model MULTI5-36HP230C-O) supports up to 5 indoor units, so all four air handlers in this configuration run independently from one outdoor unit.
-
High-efficiency inverter operation — SEER2 ratings up to 24 and HSPF2-4 up to 9.5 help lower cooling and heating costs across all four zones.
-
Reliable cold-climate heating — rated to operate in outdoor temperatures as low as 5°F, so the system keeps heating through cold winter conditions.
-

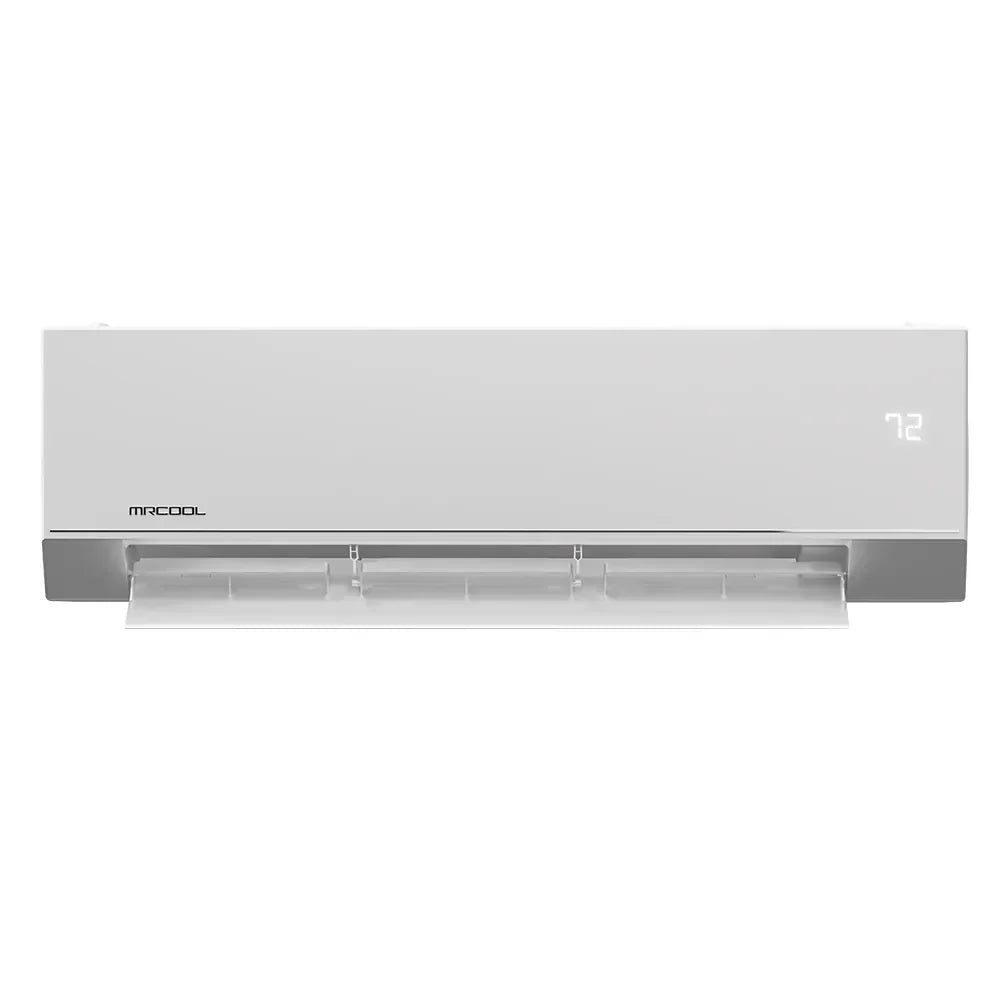

Wall Mount indoor units throughout — all four zones use wall mount air handlers (18,000 BTU + 9,000 BTU + 9,000 BTU + 9,000 BTU), for a consistent look and installation approach across every room.
-
Smart, flexible control — operate the system from the MRCOOL SmartHVAC app, the included remote control, or hands-free through Amazon Alexa and Google Assistant.
-
Built-in safety and efficiency features — sleep mode, auto restart, and built-in refrigerant leak detection support safe, efficient day-to-day operation.
Specs & Features
| Configuration |
4-Zone, 36,000 BTU condenser with 4 indoor air handlers |
| Condenser Model |
MULTI5-36HP230C-O |
| Total Cooling/Heating Capacity |
36,000 BTU |
| Indoor Air Handlers |
18,000 BTU + 9,000 BTU + 9,000 BTU + 9,000 BTU (Wall Mount) |
| Max Indoor Units Supported |
Up to 5 (this configuration uses 4) |
| SEER2 (condenser) |
Up to 24 |
| HSPF2-4 (condenser) |
Up to 9.5 |
| Minimum Outdoor Operating Temperature |
5°F |
| Refrigerant |
R-454B |
| Compressor Warranty |
7-Year limited warranty |
| Parts Warranty |
5-Year (when registered and professionally installed) |
| Certification |
Energy Star Certified |
| Installation |
Requires installation by a licensed HVAC professional |
| 18,000 BTU Wall Mount Air Handler — Coverage |
Up to 800 sq. ft. |
| 18,000 BTU Wall Mount Air Handler — Indoor Sound Level |
As low as 49 dB |
| 18,000 BTU Wall Mount Air Handler — Efficiency |
SEER2 23.5, EER2 12.7, HSPF2-4 10.8 |
| 9,000 BTU Wall Mount Air Handler — Coverage |
Up to 400 sq. ft. |
| 9,000 BTU Wall Mount Air Handler — Indoor Sound Level |
As low as 47 dB |
| 9,000 BTU Wall Mount Air Handler — Efficiency |
SEER2 25.8, EER2 14.9, HSPF2-4 12.5 |
- Wi-Fi enabled MRCOOL SmartHVAC app control on every zone
- Voice control compatible with Amazon Alexa and Google Assistant
- Included remote control for each indoor air handler
- Sleep mode, auto restart, and built-in refrigerant leak detection
Details
Avermont Direct is an authorized MRCOOL dealer. This 4-zone Olympus 4th Gen system is backed by a 7-year limited compressor warranty and a 5-year parts warranty when the unit is registered and professionally installed. With 4 independently controlled wall mount zones totaling 36,000 BTU, it suits homes or offices that need separate, zone-specific temperature control across four rooms or areas from a single outdoor condenser. As with all ductless mini-split systems, installation must be performed by a licensed HVAC professional.
