What's in this package
Everything shown here ships as part of this package. Select a piece to see its description, specs and manuals.
Description

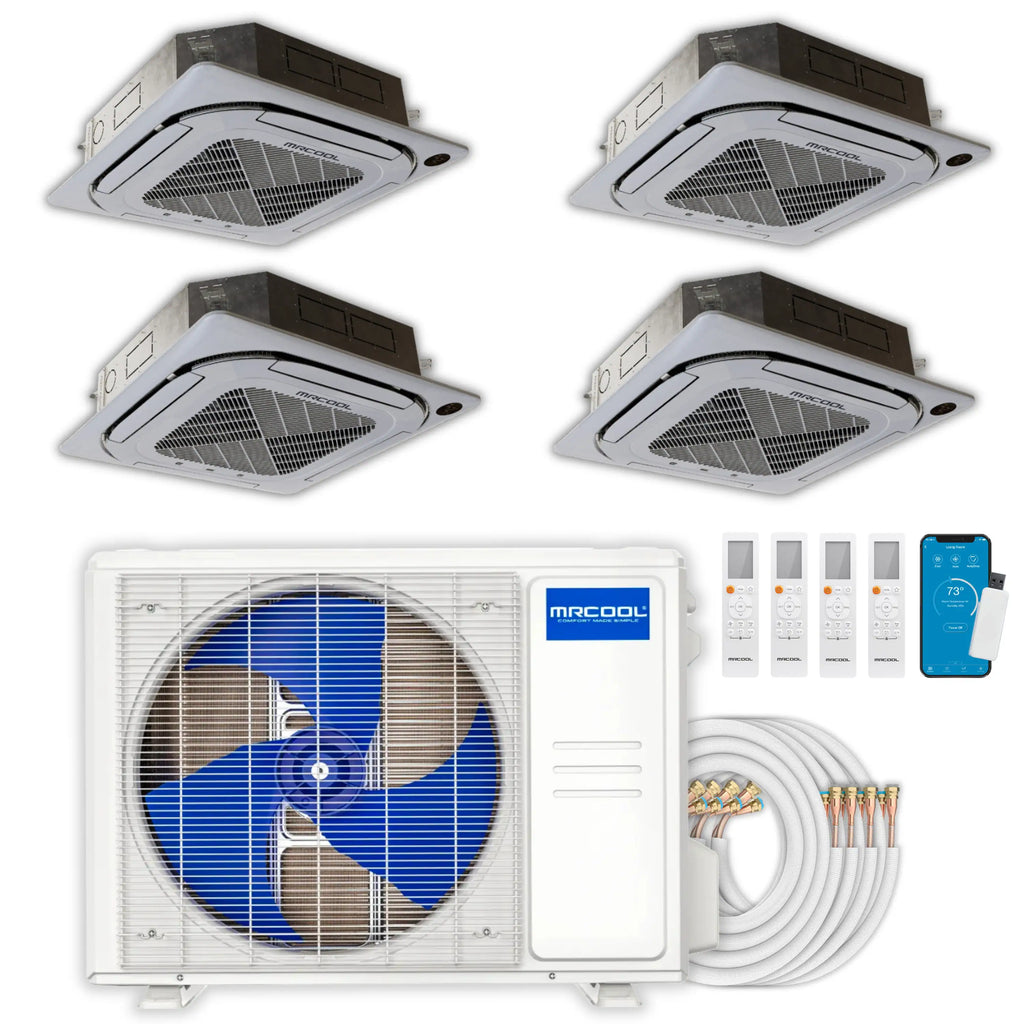

This MRCOOL Olympus 4th Gen ductless mini-split system pairs a 36,000 BTU multi-zone heat pump condenser with four independently controlled Ceiling Cassette indoor air handlers (12,000 BTU + 12,000 BTU + 9,000 BTU + 9,000 BTU), giving up to four rooms their own heating and cooling zone from a single outdoor unit.
Highlights

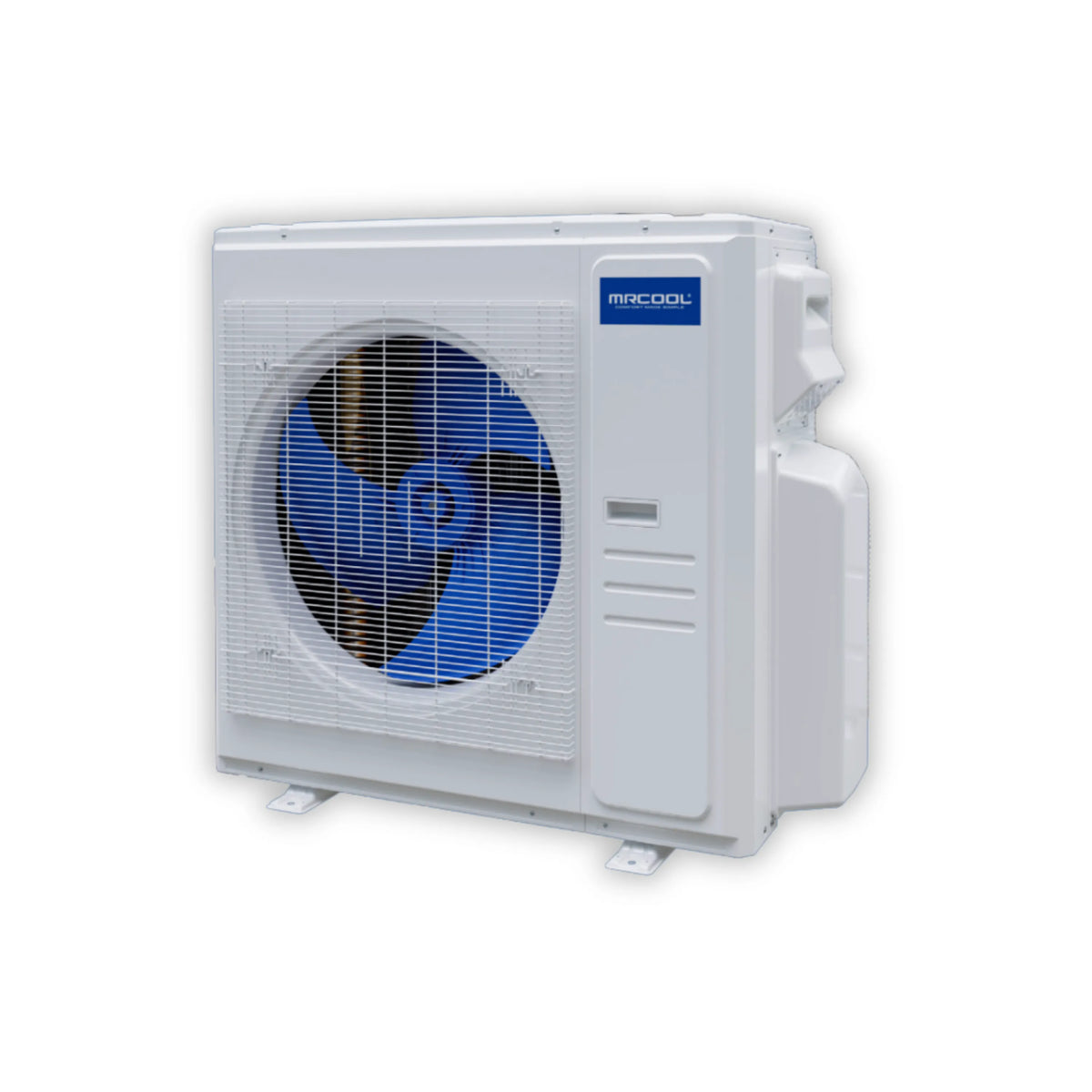

- Four-zone, single-condenser design — one 36,000 BTU outdoor condenser (model MULTI5-36HP230C-O) supports up to 5 indoor units, so all four air handlers in this configuration run independently from one outdoor unit.
- High-efficiency inverter operation — SEER2 ratings up to 24 and HSPF2-4 up to 9.5 help lower cooling and heating costs across all four zones.
- Reliable cold-climate heating — rated to operate in outdoor temperatures as low as 5°F, so the system keeps heating through cold winter conditions.

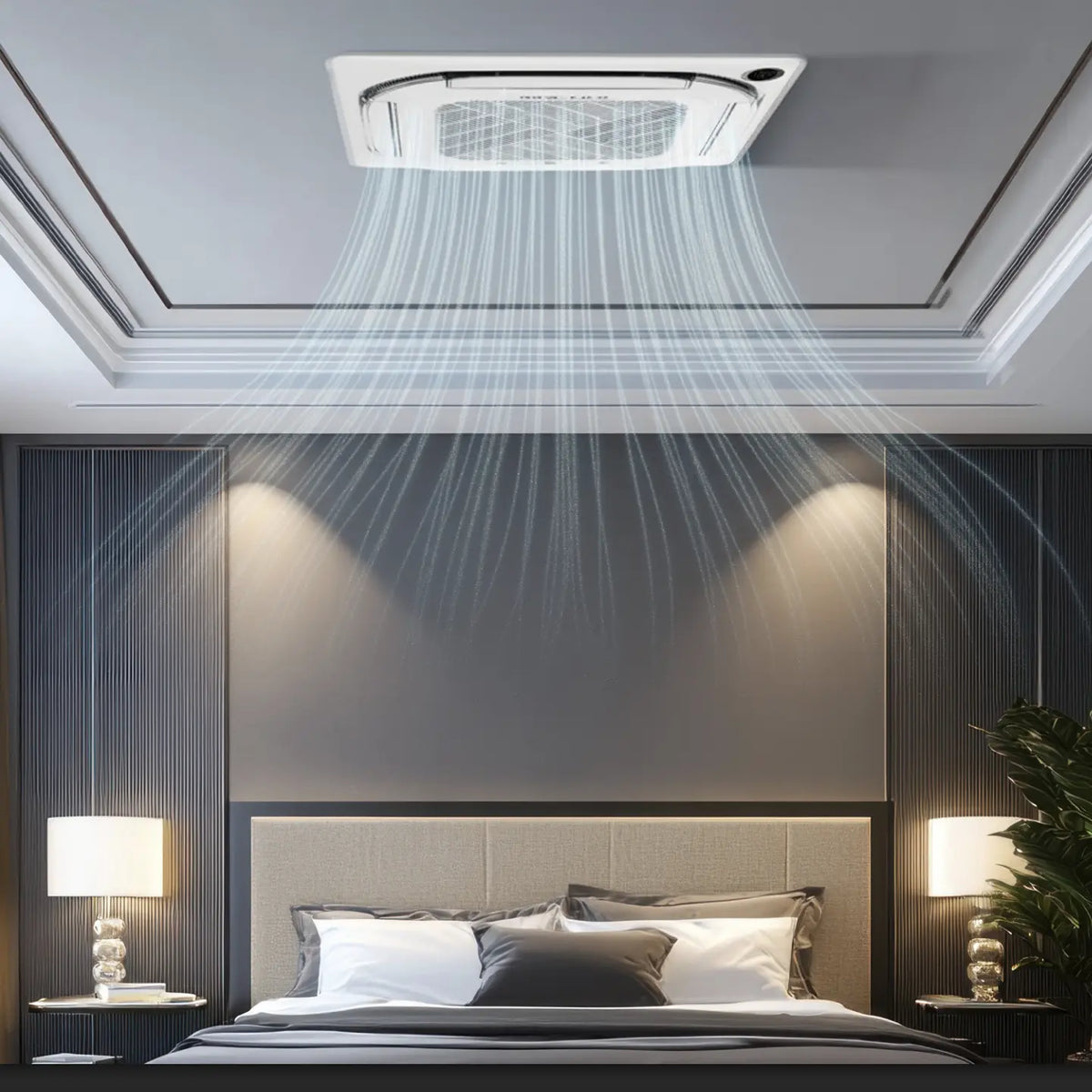

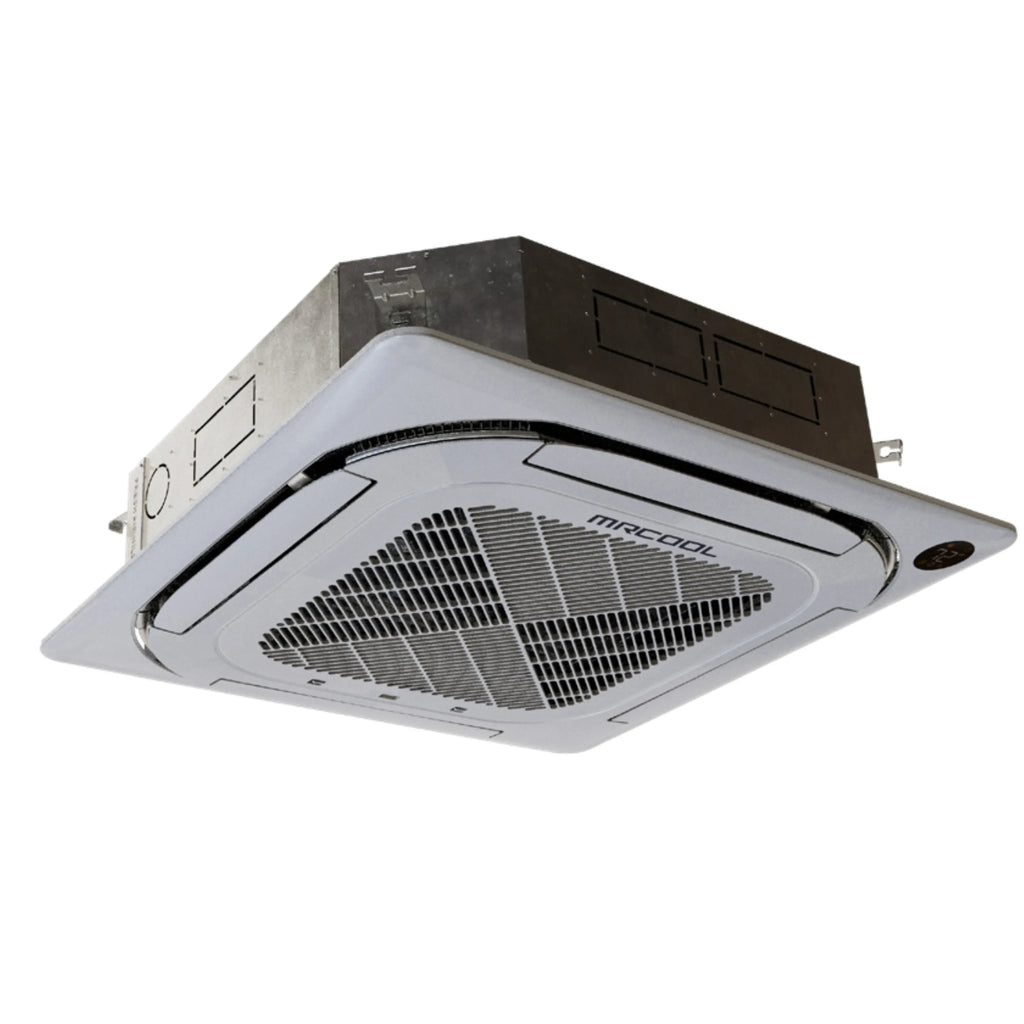

- Ceiling Cassette indoor units throughout — all four zones use ceiling cassette air handlers (12,000 BTU + 12,000 BTU + 9,000 BTU + 9,000 BTU), for a consistent look and installation approach across every room.
- Smart, flexible control — operate the system from the MRCOOL SmartHVAC app, the included remote control, or hands-free through Amazon Alexa and Google Assistant.
- Built-in safety and efficiency features — sleep mode, auto restart, and built-in refrigerant leak detection support safe, efficient day-to-day operation.
Details
Avermont Direct is an authorized MRCOOL dealer. This 4-zone Olympus 4th Gen system is backed by a 7-year limited compressor warranty and a 5-year parts warranty when the unit is registered and professionally installed. With 4 independently controlled ceiling cassette zones totaling 36,000 BTU, it suits homes or offices that need separate, zone-specific temperature control across four rooms or areas from a single outdoor condenser. As with all ductless mini-split systems, installation must be performed by a licensed HVAC professional.
Need Help?
If you have questions about this product before you order, our team is happy to help.
Email: support@avermontdirect.com
Phone: +1 (844) 455-3695
Hours: Monday–Friday, 9AM–5PM
Live Chat: Available 24/7
| Configuration | 4-Zone, 36,000 BTU condenser with 4 indoor air handlers |
| Condenser Model | MULTI5-36HP230C-O |
| Total Cooling/Heating Capacity | 36,000 BTU |
| Indoor Air Handlers | 12,000 BTU + 12,000 BTU + 9,000 BTU + 9,000 BTU (Ceiling Cassette) |
| Max Indoor Units Supported | Up to 5 (this configuration uses 4) |
| SEER2 (condenser) | Up to 24 |
| HSPF2-4 (condenser) | Up to 9.5 |
| Minimum Outdoor Operating Temperature | 5°F |
| Refrigerant | R-454B |
| Compressor Warranty | 7-Year limited warranty |
| Parts Warranty | 5-Year (when registered and professionally installed) |
| Certification | Energy Star Certified |
| Installation | Requires installation by a licensed HVAC professional |
| 12,000 BTU Ceiling Cassette Air Handler — Coverage | Up to 550 sq. ft. |
| 12,000 BTU Ceiling Cassette Air Handler — Indoor Sound Level | As low as 46 dB |
| 9,000 BTU Ceiling Cassette Air Handler — Coverage | Up to 400 sq. ft. |
| 9,000 BTU Ceiling Cassette Air Handler — Indoor Sound Level | As low as 42 dB |
- Wi-Fi enabled MRCOOL SmartHVAC app control on every zone
- Voice control compatible with Amazon Alexa and Google Assistant
- Included remote control for each indoor air handler
- Sleep mode, auto restart, and built-in refrigerant leak detection
