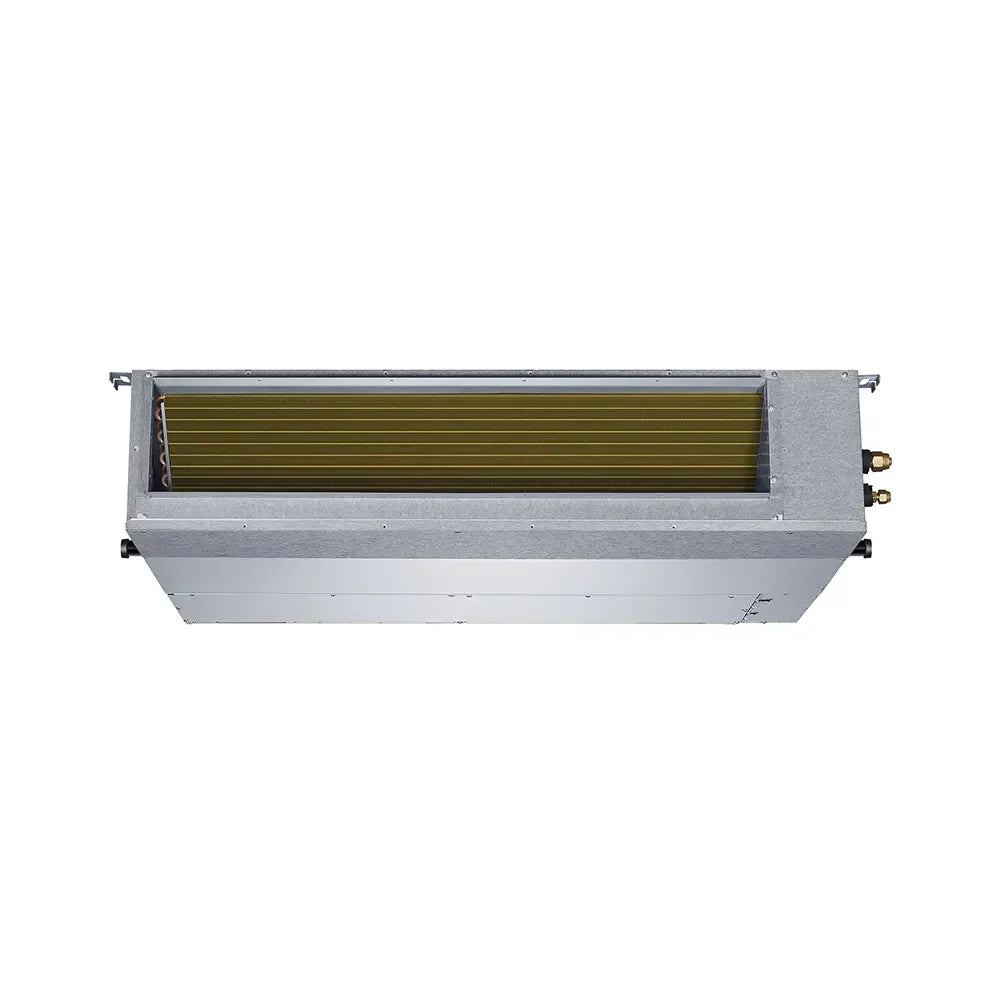

This MRCOOL Olympus ducted air handler is the 12,000 BTU indoor unit for one zone of a professionally installed multi-zone system, hidden above the ceiling and connected to the room by ductwork.
Highlights
- Installs out of sight above the ceiling, with only the supply and return grilles visible in the room
- Distributes air through ductwork, so one zone can serve more than one room or an awkward layout
- Pairs with a MRCOOL Olympus multi-zone condenser
- Takes a 1/4" x 1/2" line set, shared with the 18,000 BTU handler
- Heat pump operation, providing both cooling and heating in the zone
Specs & Features
| Part number |
DUCT-12HP-230B-O |
| Series |
MRCOOL Olympus |
| Component |
Indoor air handler, one zone |
| Rated capacity |
12,000 BTU |
| Mounting style |
Ceiling concealed, ducted |
| Line set size |
1/4" x 1/2" |
| Power supply |
230V |
| Installation |
Professional. A licensed HVAC technician is required. |
- Air handler only. The condenser, line set, ductwork and grilles are ordered separately.
- Requires ceiling cavity space for the unit and its duct runs. Check the installation manual before ordering.
- Used by the Build Your Own Mini Split configurator to assemble a custom system.
Details
Avermont Direct is an authorized MRCOOL dealer. A ducted handler suits rooms where nothing should be visible on the wall or ceiling, and ordering it on its own lets a contractor use it for one zone while the rest of the system stays wall mounted or cassette. It is backed by the manufacturer's warranty, and full terms are set out in the product documentation.
