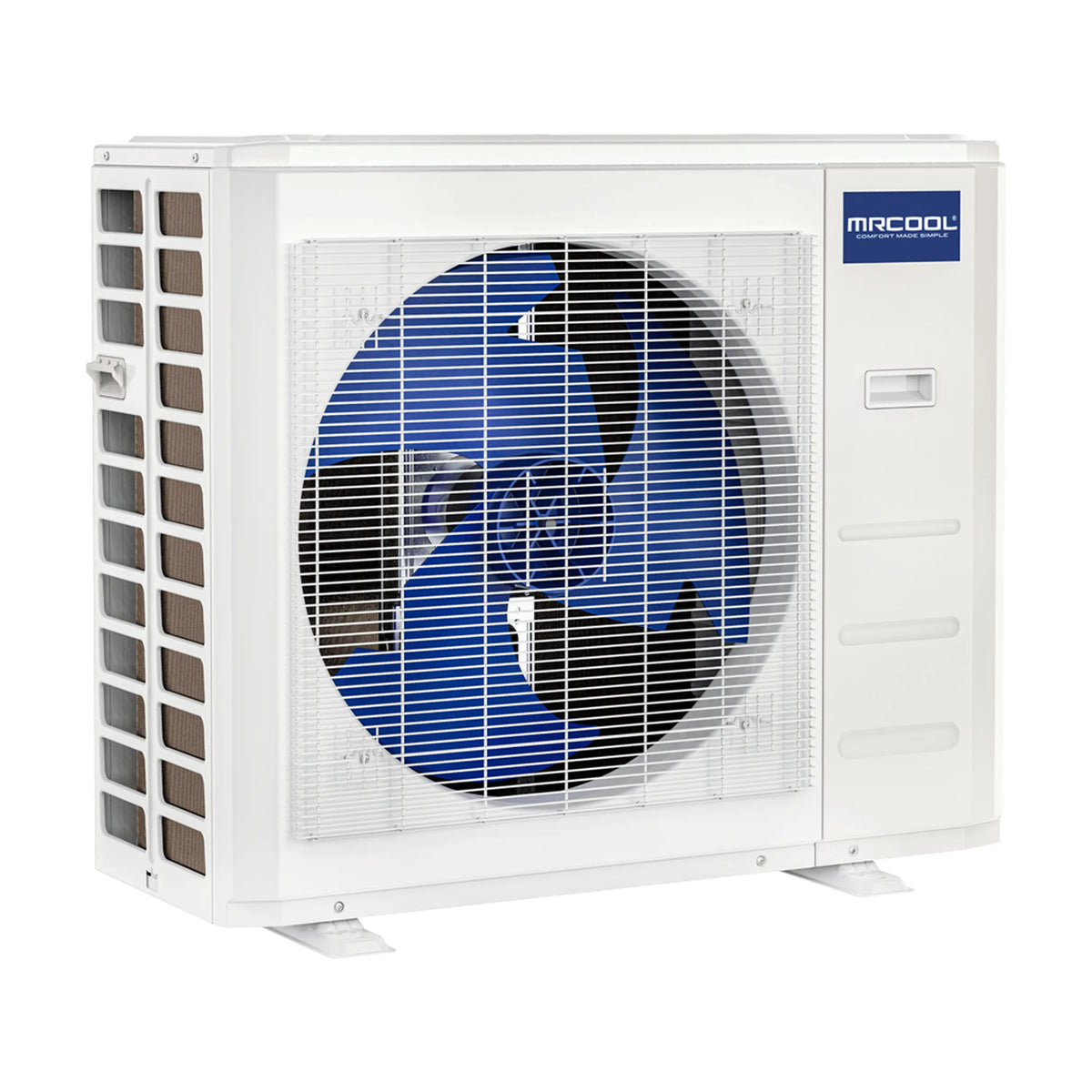

This MRCOOL Hyper Heat 2nd Gen condenser is the 36K BTU (3 ton) outdoor heat pump of a central ducted split system.
Highlights
- Rated 17.4 SEER2 and 11.7 EER2
- Pairs with the MRCOOL VersaPro 2nd Gen 36K central ducted air handler (MVP-36-HP-MUAH-230A00-O)
- Heat pump operation, providing both cooling and heating
- Uses R-454B refrigerant
- ENERGY STAR certified
Specs & Features
| Part number |
CENTRAL-36-HP-C-230B00-O |
| Series |
MRCOOL Hyper Heat 2nd Gen |
| Component |
Outdoor condenser |
| Nominal capacity |
36,000 BTU (3 ton) |
| Rated heating capacity |
37,000 BTU |
| SEER2 |
17.4 |
| EER2 |
11.7 |
| HSPF-4 |
10.2 |
| Power supply |
208-230V, 1-phase |
| Refrigerant |
R-454B |
| Line set connections |
3/8" liquid x 3/4" suction |
| Sound level |
62.5 dBA |
| Minimum circuit ampacity |
29 A |
| Maximum fuse / breaker |
30 A |
| Dimensions |
16.34" D x 38.39" H x 38.58" W |
| Net weight |
204.15 lbs |
| ENERGY STAR certified |
Yes |
| AHRI certified |
Yes |
| Parts warranty |
10 years |
| Compressor warranty |
10 years |
| Labor warranty |
10 years |
- Condenser only. The air handler, line set, heat kit and thermostat are ordered separately.
Details
Avermont Direct is an authorized MRCOOL dealer. Ordering the condenser on its own suits replacing an outdoor unit or matching it to a VersaPro air handler already in place. MRCOOL's base warranty is 10 years on parts, 10 years on the compressor and 10 years on labor, and full terms are set out in the product documentation.
