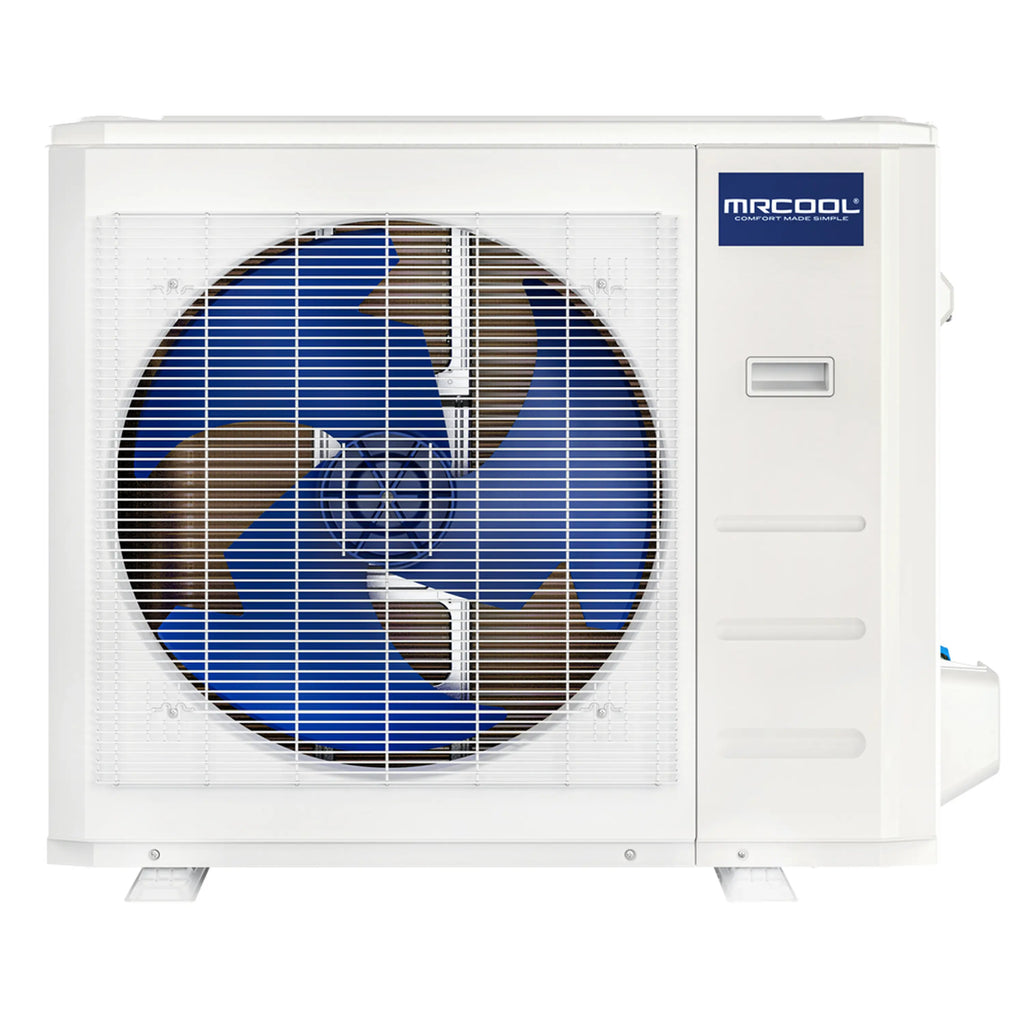

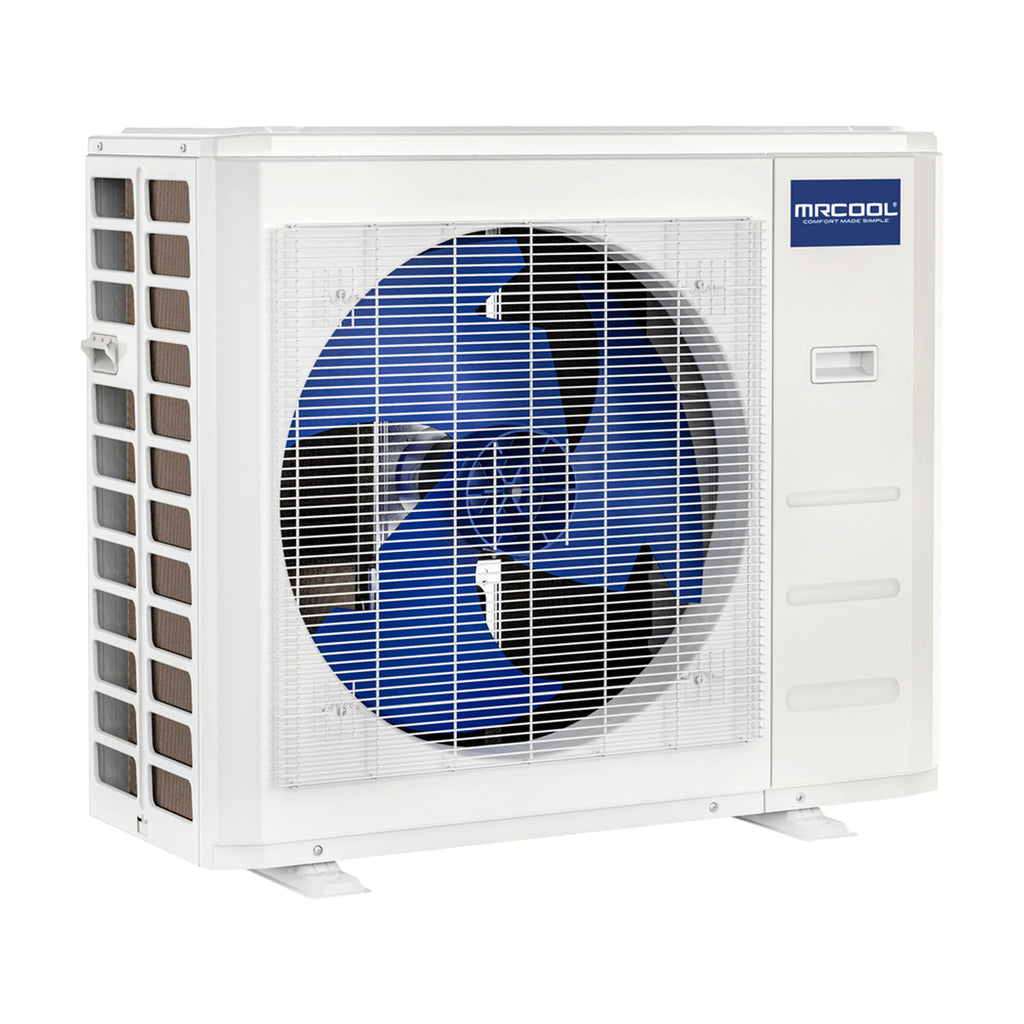

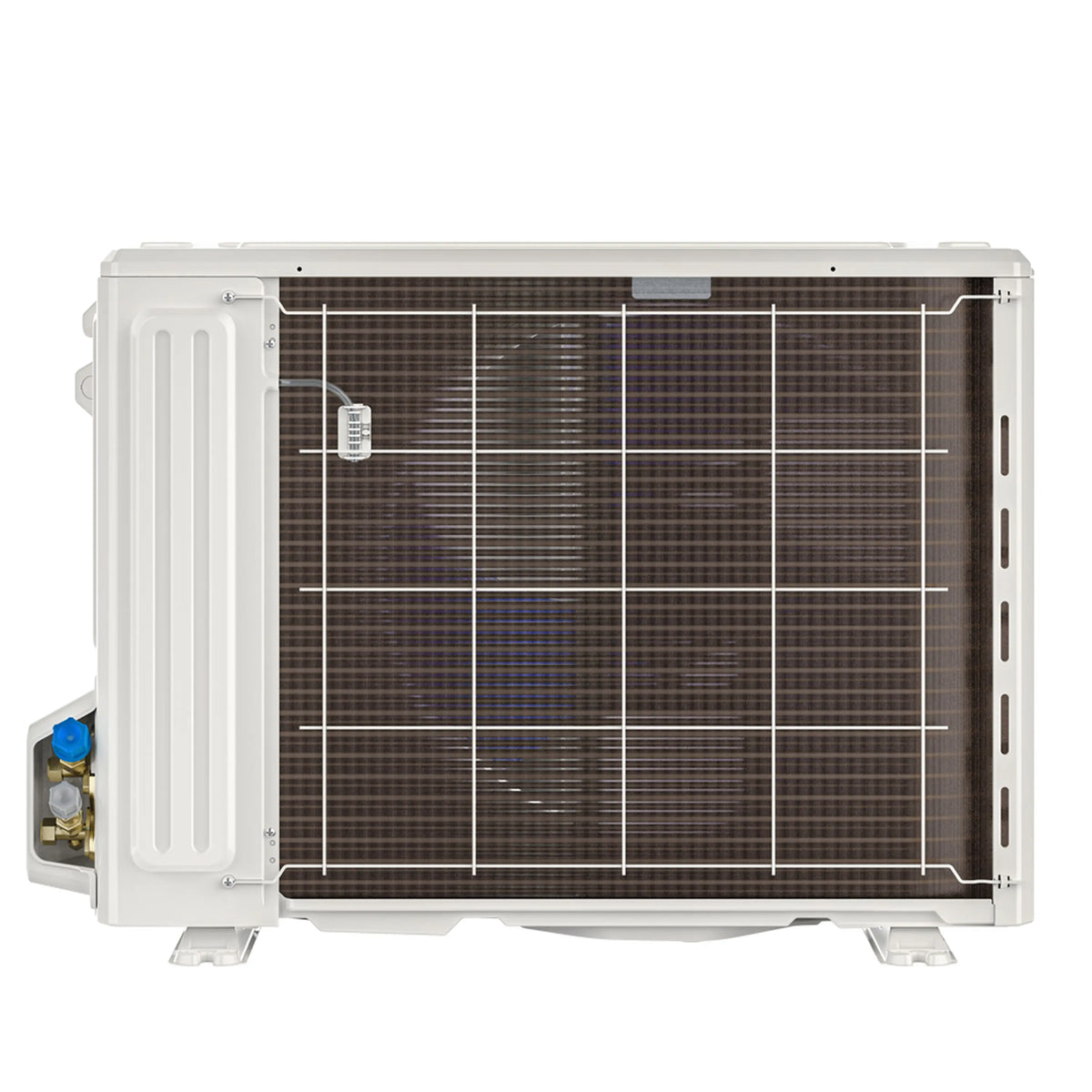

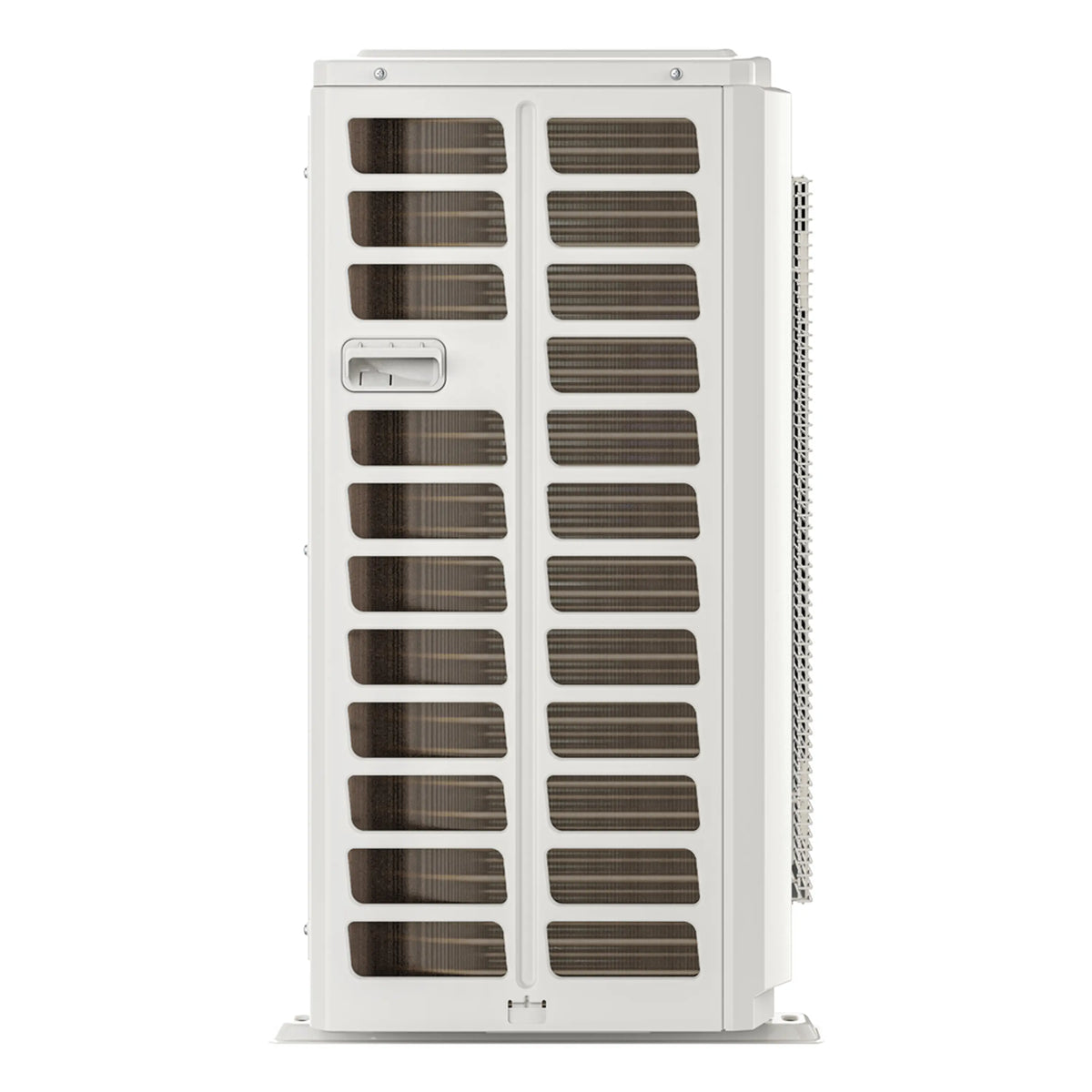

Elevate your home into a haven of comfort with the 30K MRCOOL® Hyper Heat Central Ducted Condenser, crafted to excel in harsh winters and sweltering summers. This advanced unit combines robust performance with energy efficiency, featuring a DC Inverter and variable speed technology. With a SEER2 rating of up to 16.8 and an HSPF2-4 rating of up to 10, it provides dependable operation while helping to reduce your home's energy costs. The included MRCOOL® Smart thermostat ensures effortless temperature control for your convenience.
The 30K MRCOOL® Hyper Heat Central Ducted Condenser is compatible with the 30K MRCOOL® VersaPro® Central Ducted Air Handler. Designed with flexibility in mind, the air handler supports multiple installation configurations and offers the option to add a heat kit for enhanced versatility. The system utilizes R-454B refrigerant, reflecting a forward-thinking approach to environmental sustainability.
The outdoor heat pump is designed for durability and features a sturdy painted galvanized steel exterior. The air handler has a compact design that simplifies maintenance and includes a slide-out blower and a self-diagnostic panel.
For ultimate peace of mind, the 30K MRCOOL® Hyper Heat Central Ducted Condenser is backed by a 10-year warranty covering the compressor, parts, and labor. The labor warranty activates automatically upon installation, offering hassle-free protection. Upgrade your home's climate control with this reliable, energy-efficient system today!
|
Dimensions
|
16.14" D x 31.89" H x 37.24" W
|
|
SEER2
|
16.8
|
|
EER2
|
11.7
|
|
HSPF-4
|
10
|
|
HSPF-5
|
8.3
|
|
CFM
|
3001.8
|
|
Tonnage
|
2.5
|
|
Cooling Capacity (BTU)
|
30000
|
|
Heating Capacity (BTU)
|
34000
|
|
Voltage (V)
|
208-230
|
|
Phase
|
1
|
|
Cycle
|
60
|
|
Max Fuse Breaker (A)
|
30
|
|
Min Circuit Ampacity (A)
|
29.5
|
|
Color
|
gray
|
|
Refrigerant Type
|
R454B
|
|
Refrigerant Volume (OZ)
|
105.82
|
|
Decibel Rating (DBA)
|
60.5
|
|
Liquid Line Size
|
3/8
|
|
Suction Line Size
|
3/4
|
|
WIFI Compatibility
|
Yes
|
|
APP Compatibility
|
Yes
|
|
ETL Certified
|
Yes
|
|
Energy Star Certified
|
Yes
|
|
AHRI Certified
|
Yes
|
|
Base Parts Warranty
|
10 Years
|
|
Base Compressor Warranty
|
10 Years
|
|
Base Labor Warranty
|
10 Years
|
|
Contains Electronics
|
Yes
|
|
Contains Chemicals
|
Yes
|
|
Contains Compressed Gas
|
Yes
|
|
Net Weight (Lbs)
|
164.02
|
|
Gross Depth (In)
|
19.68
|
|
Gross Height (In)
|
34.84
|
|
Gross Width (In)
|
42.91
|
|
Gross Weight (Lbs)
|
174.6
|
