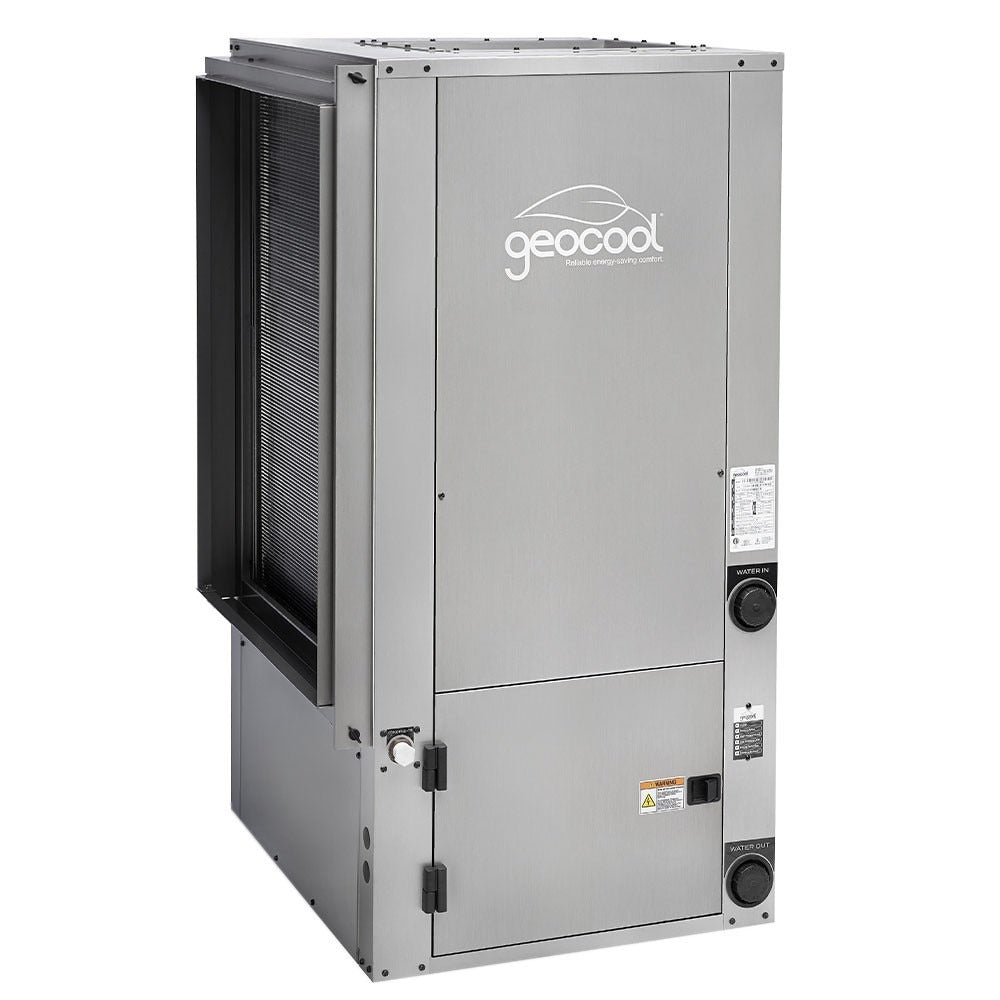

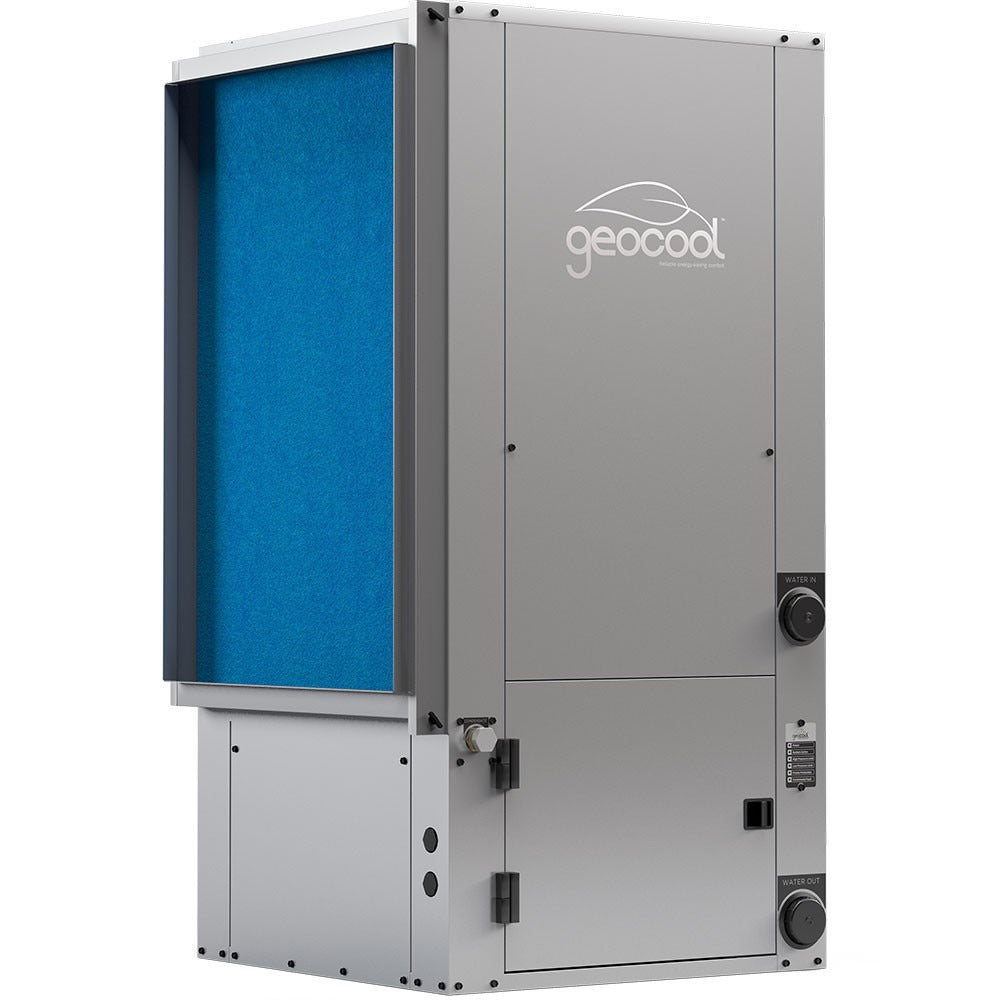

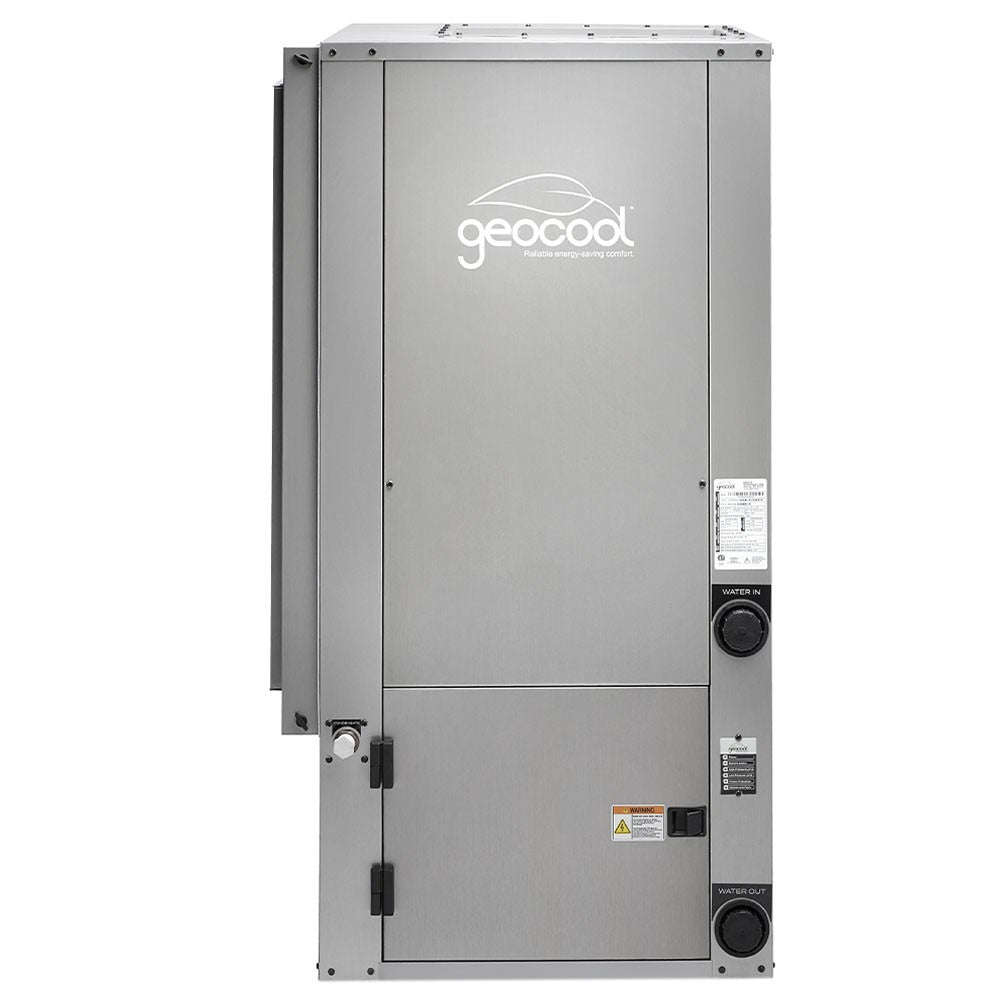

This 48,000 BTU, 4-ton GeoCool geothermal heat pump is a vertical configuration with a two-stage CuNi coil, left return, and an integrated desuperheater for supplemental domestic water pre-heating.
Highlights
- Two-stage compressor operation, qualifying for the federal tax credit and other applicable incentives
- Integrated desuperheater captures waste heat for domestic water pre-heating
- Full-featured sinusoidal ECM motor control technology for quiet, efficient operation
- Safety high- and low-pressure switches with an insulated, sloped stainless steel drain pan

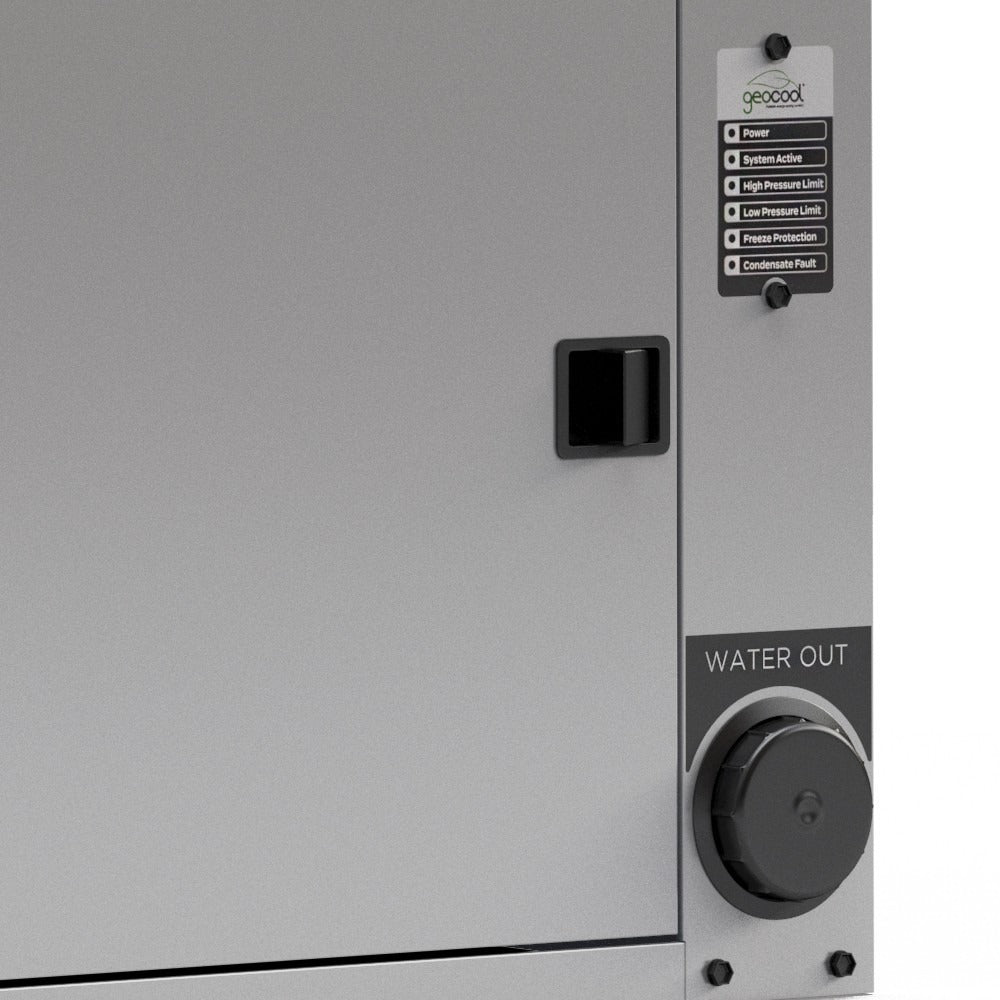

- Advanced unit control board with diagnostic LEDs and double O-ring water connections for easy service access
- Made in the USA, backed by a 10-year compressor warranty
Specs & Features
| Dimensions |
48" H x 32" D x 25.75" W |
| Tonnage |
4 |
| Cooling Capacity |
48,000 BTU |
| Heating Capacity |
48,000 BTU |
| EER |
20.0–28.6 |
| EER Part Load |
26.6–35 |
| COP 47 |
4.1–5.0 |
| COP 47 Part Load |
4.5–5.3 |
| Max Coverage Area |
2,000 sq ft |
| Voltage / Phase / Cycle |
230V / 1-Phase / 60Hz |
| Refrigerant |
R-410A |
| Compressor / Stage |
Scroll, Two-Stage |
| Blower Motor |
Axial Flux (No Shaft), 3/4 HP |
| Filter |
Replaceable, 32x30 |
| AHRI / Energy Star Certified |
Yes |
| Base Warranty |
5-year limited parts warranty |
| Registered Warranty |
10-year registered parts limited warranty & 10-year compressor warranty |
| Net Weight |
330 lbs |
Details
Avermont Direct is an authorized MRCOOL dealer for the GeoCool line of geothermal heat pump systems. This 4-ton vertical unit with desuperheater is backed by a 5-year limited parts warranty with 10-year registered parts and compressor coverage available. Professional installation by a licensed HVAC contractor is required, along with a properly sized ground loop or water source.
