Description

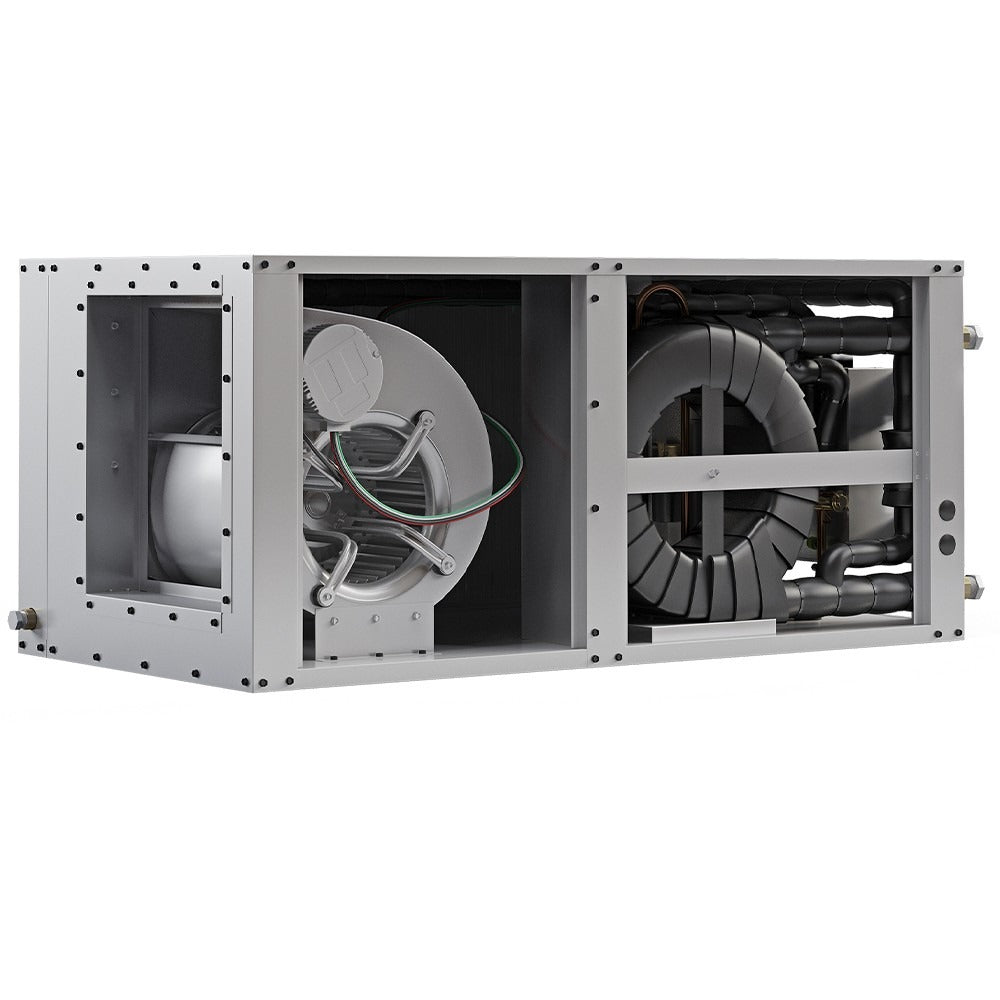

The MRCOOL GeoCool GCHPH024TGTANDR is a 24,000 BTU (2-ton) horizontal geothermal heat pump with a copper-nickel (CuNi) coil for ground-source or water-source heat exchange, built for right-side return configuration.
Highlights
- 2-ton, 24,000 BTU two-stage scroll compressor with safety high- and low-pressure switches for quiet, efficient operation
- Built-in desuperheater recovers waste heat from the compressor to help offset domestic water heating
- Full-featured sinusoidal ECM blower motor control technology for efficient, variable-speed operation
- Insulated, sloped stainless steel drain pan
- Advanced unit control board with diagnostic LEDs for easy troubleshooting
- Double O-ring water connections for easy service access
- Optional domestic water pre-heating capability
- Made in the USA; may qualify for federal tax credits and other incentives
Details
Avermont Direct is an authorized MRCOOL dealer. This GeoCool horizontal heat pump uses the stable, moderate temperature of the ground or a water source instead of outside air to heat and cool the home, which is why geothermal systems can run more efficiently than conventional air-source units in many climates. Base warranty: 5-year limited parts; when registered, coverage extends to a 10-year limited parts warranty and a 10-year compressor warranty. It's sized for homes with a coverage need around 1000 sq. ft. and, like any geothermal system, requires professional installation by a licensed HVAC contractor. The built-in desuperheater can also help offset domestic water heating costs by recovering waste heat from the compressor.
Need Help?
If you have questions about this product before you order, our team is happy to help.
Email: support@avermontdirect.com
Phone: +1 (844) 455-3695
Hours: Monday–Friday, 9AM–5PM
Live Chat: Available 24/7
| Configuration | Horizontal, Right Return with Desuperheater |
| Dimensions | 23.125" H x 51" D x 25.75" W |
| Tonnage | 2 Ton |
| Cooling Capacity | 24,000 BTU/h |
| Heating Capacity | 24,000 BTU/h |
| EER | 21.3–28.8 |
| COP 47 | 4.1–5.2 |
| Max Coverage Area | 1000 sq. ft. |
| Refrigerant Type | R-410A |
| Voltage / Phase / Cycle | 230V, 1-Phase, 60Hz |
| Filter Type / Size | Replaceable, 20x37 |
| Compressor Type | Scroll, Two-Stage |
| Blower Motor | 3/4 HP Axial Flux (No Shaft) BLA |
| Certifications | AHRI Certified, ENERGY STAR Certified, ETL Listed |
| Warranty | 5-year limited parts (base); 10-year limited parts & 10-year compressor when registered |
