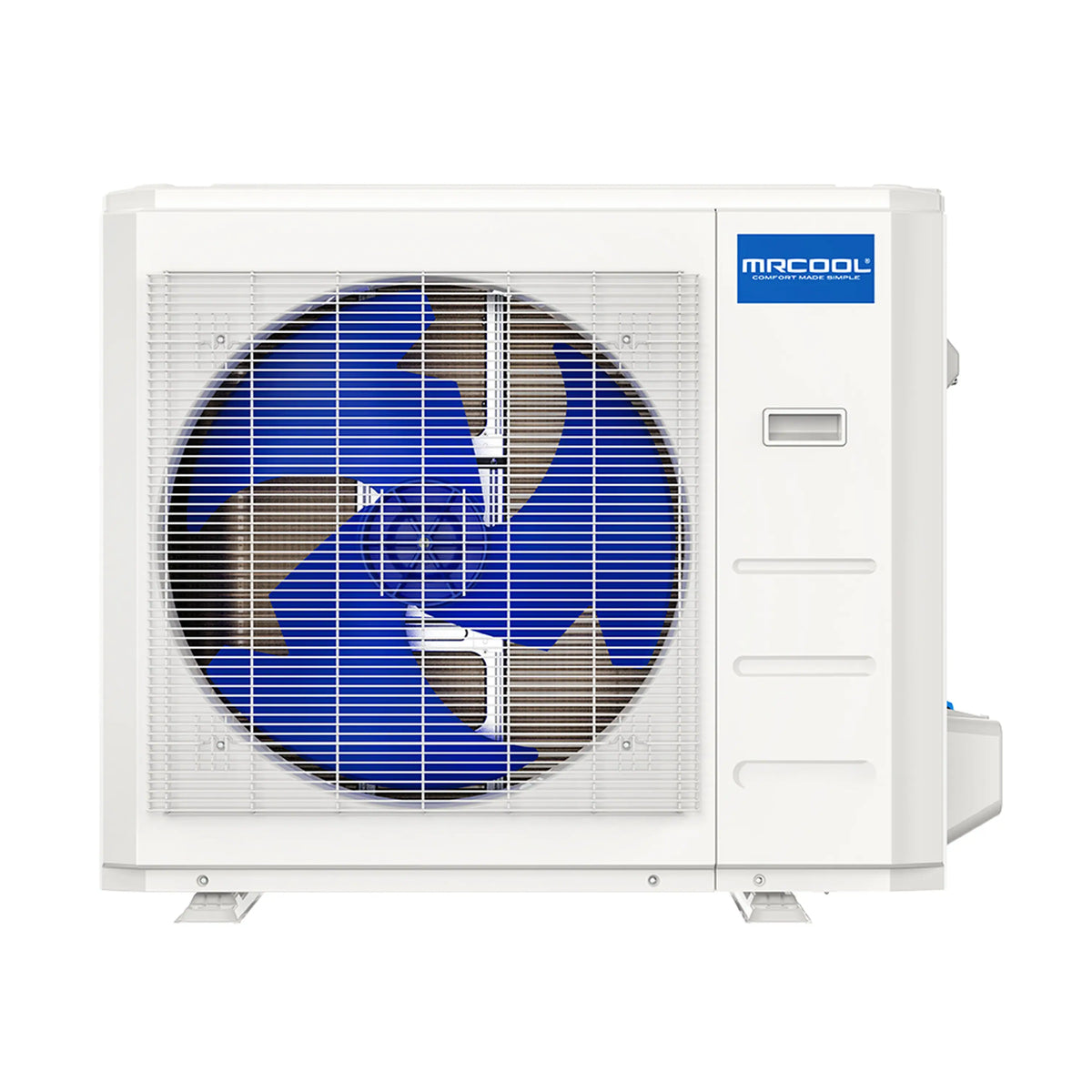

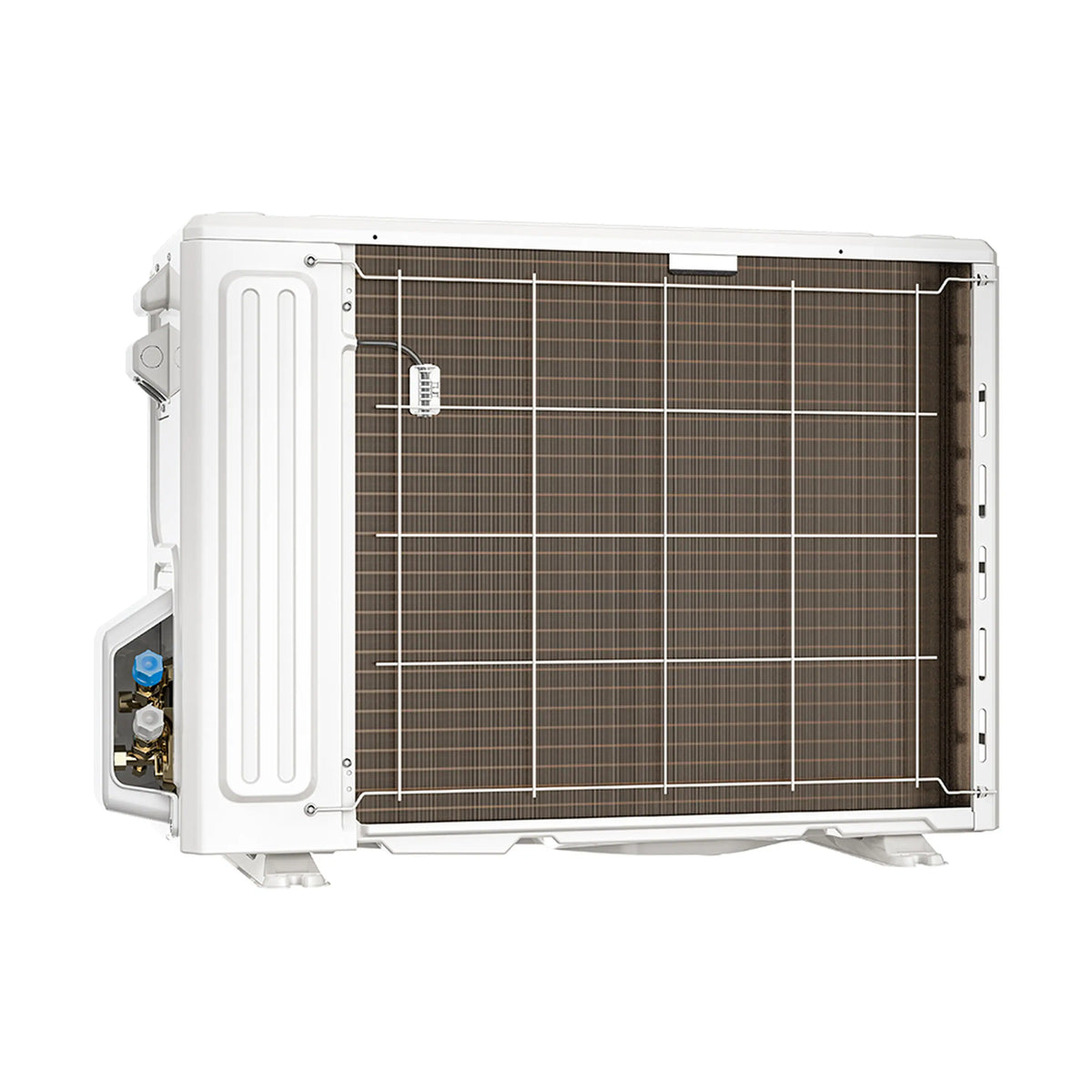

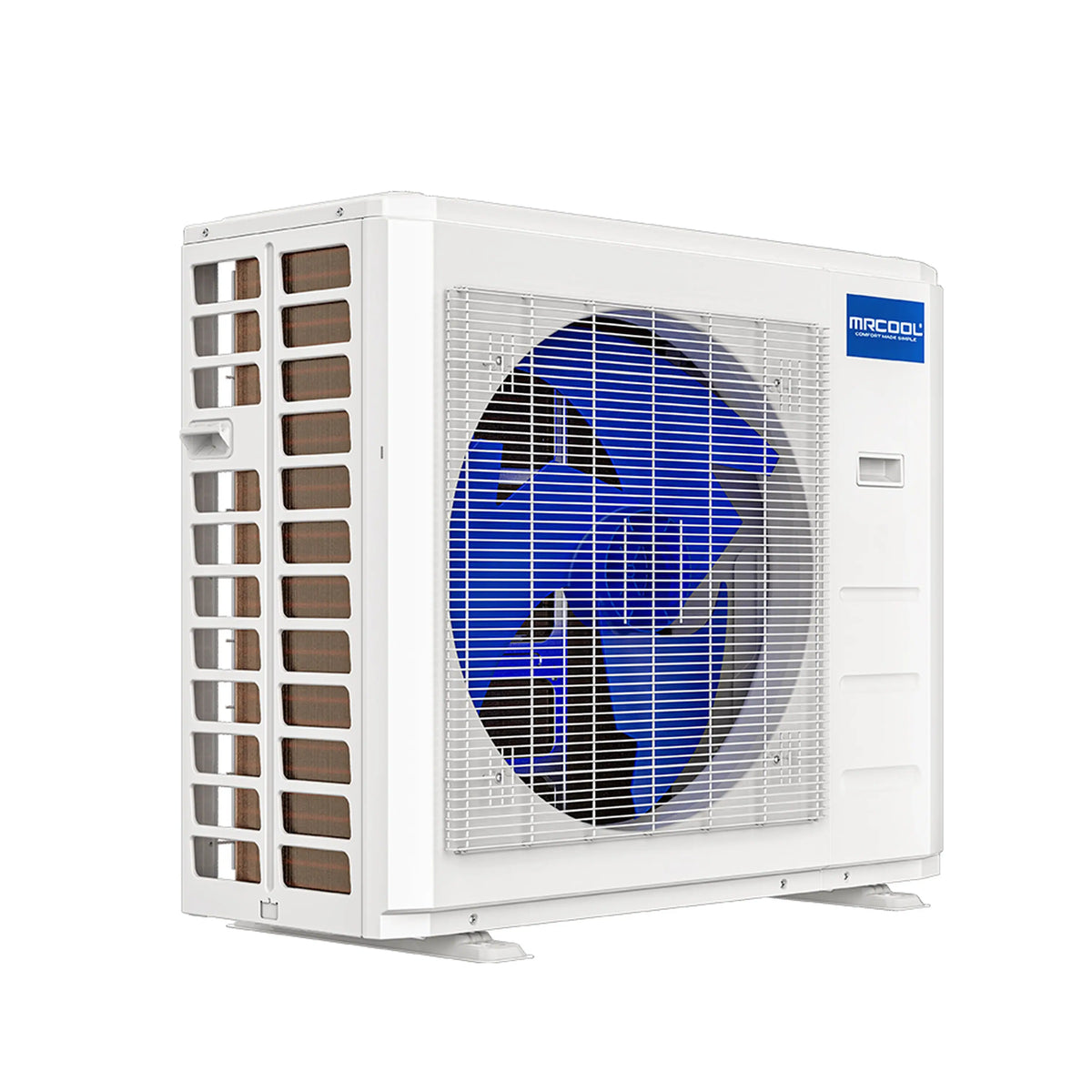

This MRCOOL DIY Hyper Heat condenser is the 12,000 BTU outdoor unit of a single-zone DIY mini split, supplied with a 25 ft. line set.
Highlights
- Rated 23.5 SEER2, 12.8 EER2 and 10 HSPF2 (Region IV)
- Pairs with the MRCOOL DIY 5th Gen 12,000 BTU 230V wall mount air handler (DIY-12-HP-WMAH-230D25-O) or ceiling cassette (DIYCASSETTE12HP-230D25-O)
- Uses R-454B refrigerant with a 25 ft. line set included
- ENERGY STAR certified
- Heat pump operation, providing both cooling and heating
Specs & Features
| Part number |
DIYHH-12-HP-C-230D25-O |
| Series |
MRCOOL DIY Hyper Heat |
| Component |
Outdoor condenser |
| Nominal capacity |
12,000 BTU (1 ton) |
| Rated heating capacity |
12,000 BTU |
| SEER2 |
23.5 |
| EER2 |
12.8 |
| HSPF2 (Region IV) |
10 |
| HSPF2 (Region V) |
8 |
| Power supply |
208/230V, 1-phase |
| Refrigerant |
R-454B |
| Line set connections |
1/4" liquid x 3/8" suction |
| Sound level |
56.5 dBA |
| Minimum circuit ampacity |
15 A |
| Maximum fuse / breaker |
15 A |
| Net weight |
72.31 lbs |
| ENERGY STAR certified |
Yes |
| AHRI certified |
Yes |
| Parts warranty |
5 years |
| Compressor warranty |
7 years |
| Installation |
DIY, using pre-charged Quick Connect line sets |
- Condenser and 25 ft. line set only. The indoor air handler is ordered separately.
Details
Avermont Direct is an authorized MRCOOL dealer. It is the outdoor half of a DIY Hyper Heat single-zone system, so the indoor unit can be chosen as a wall mount or a ceiling cassette. MRCOOL's base warranty is 5 years on parts and 7 years on the compressor, and full terms are set out in the product documentation.
