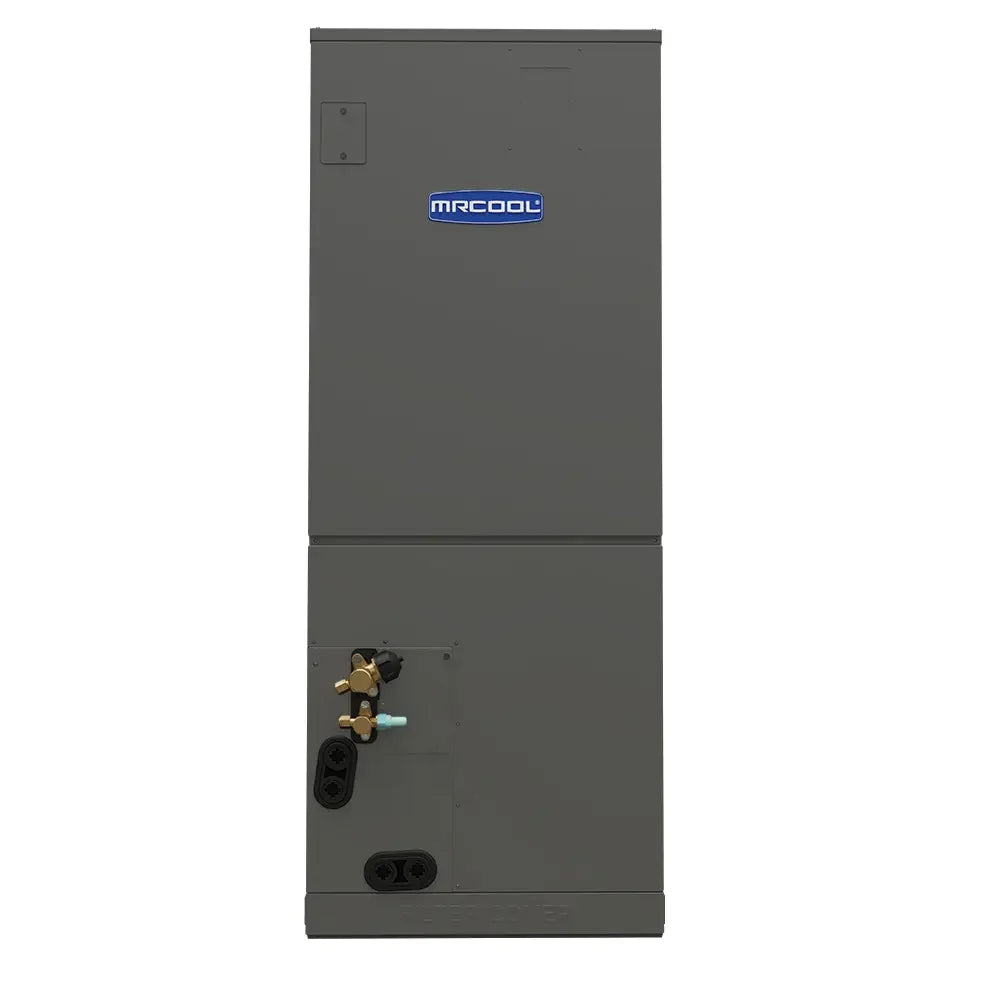

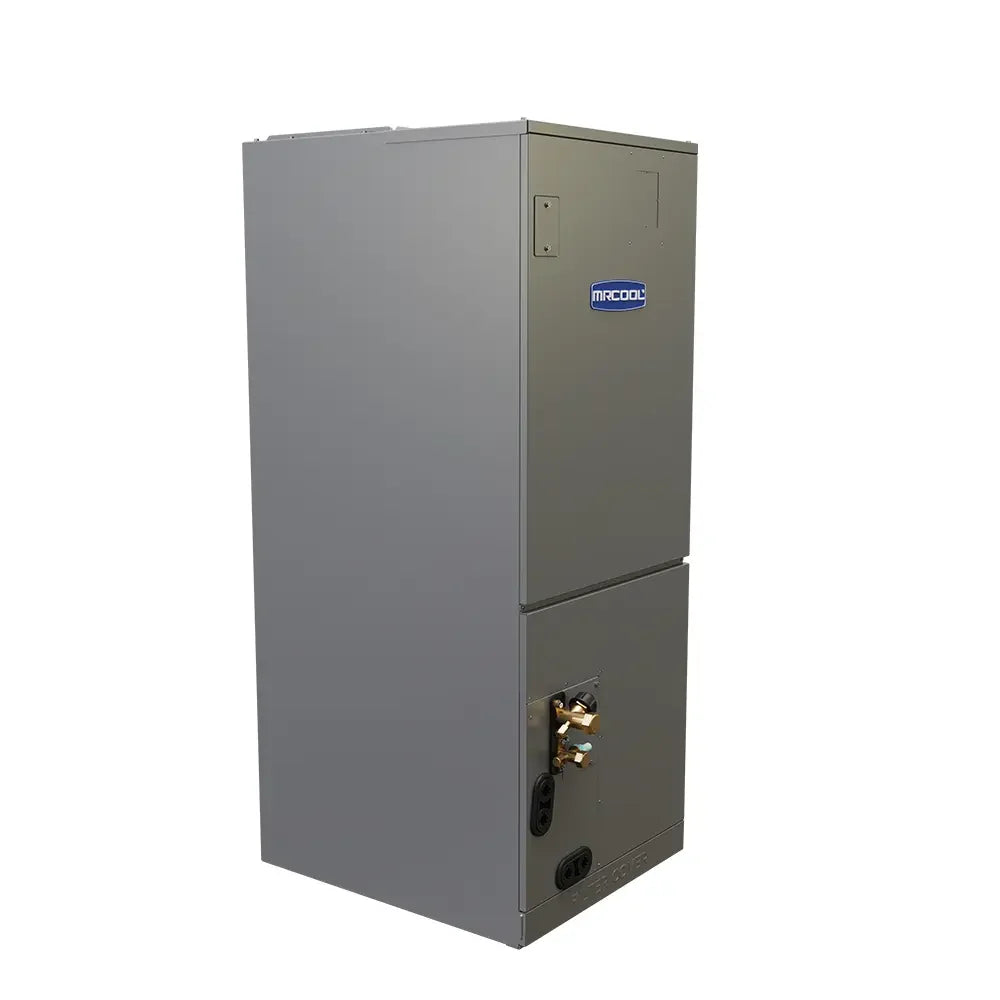

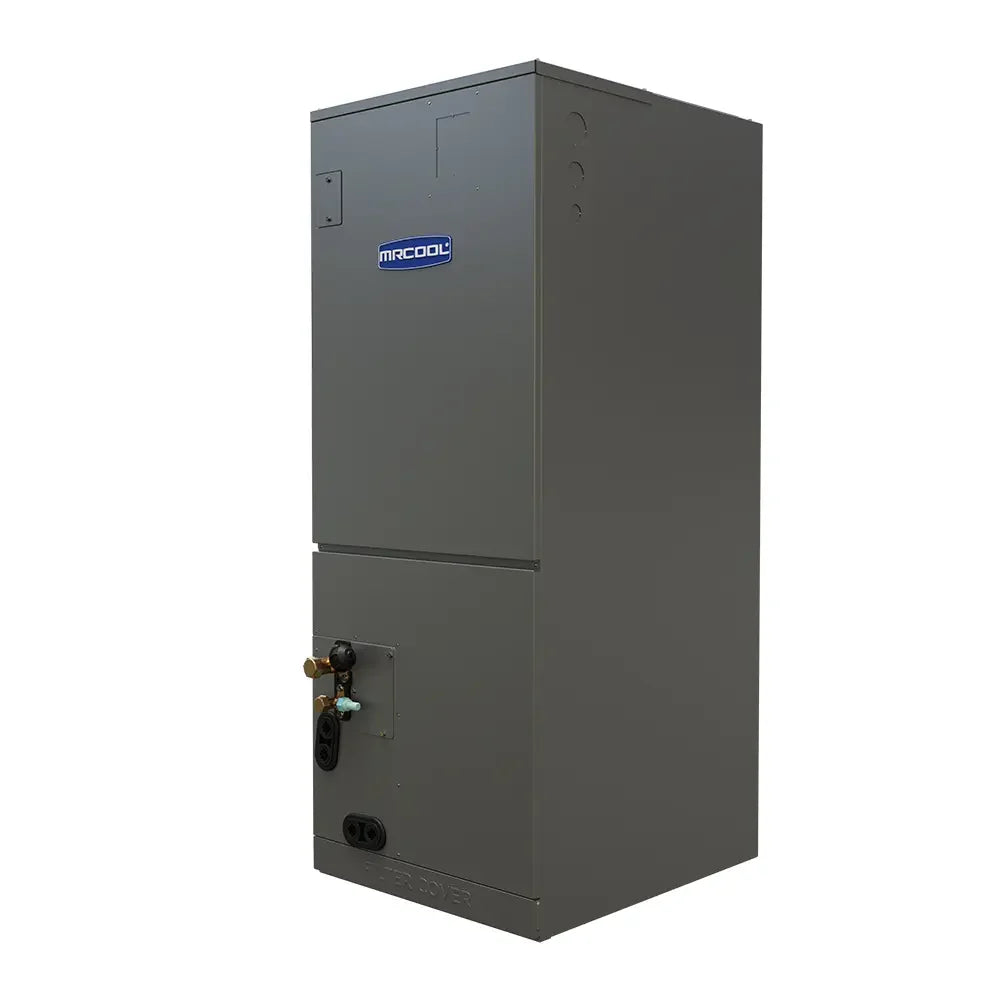

This MRCOOL DIY Hybrid air handler is the 36K BTU (3 ton) ducted indoor unit of a DIY Hybrid central ducted and mini split system, in a multi-position cabinet that connects to the home's ductwork.
Highlights
- Serves the ducted zone of a DIY Hybrid system, alongside ductless wall mount air handlers on the same condenser
- Pairs with a MRCOOL DIY 5th Gen multi-zone condenser

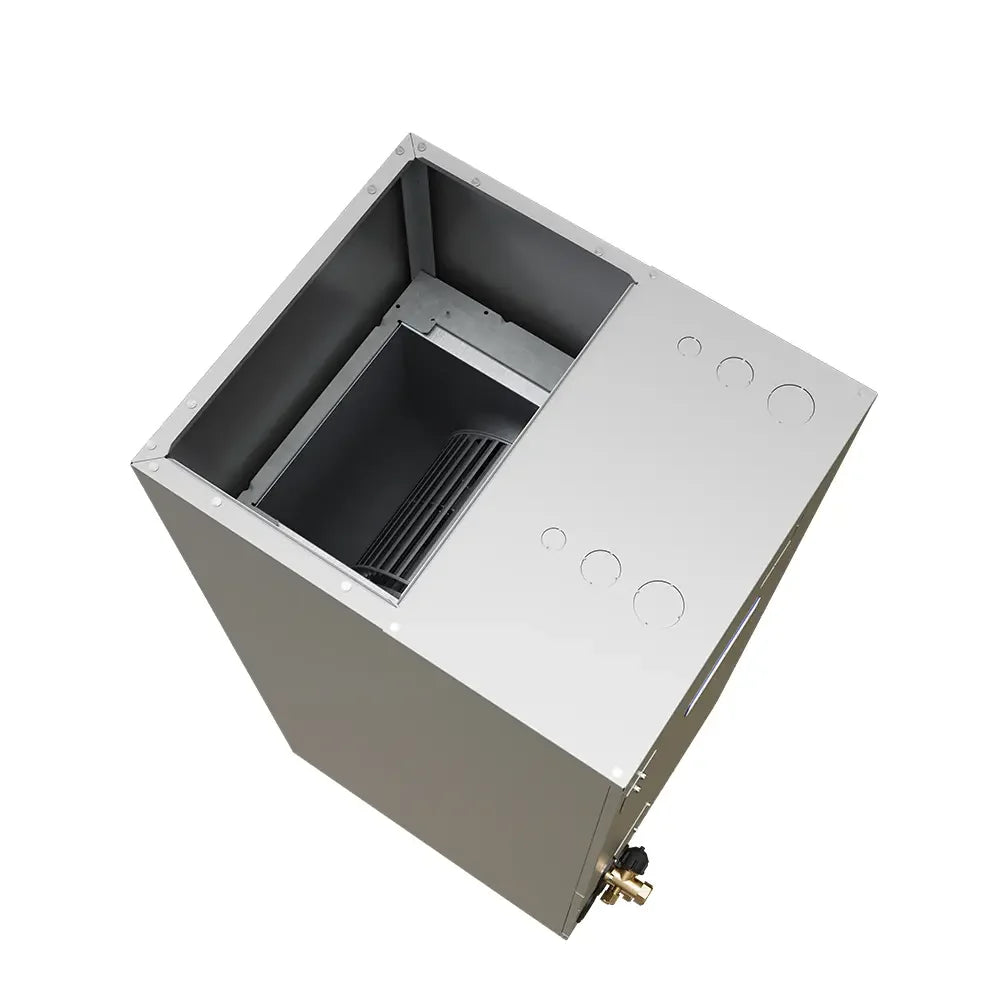

- Multi-position cabinet for flexible placement
- Sound level of 45 dBA
- Uses R-454B refrigerant
Specs & Features
| Part number |
DIY-36-HP-MUAH-230D25-O |
| Series |
MRCOOL DIY Hybrid |
| Component |
Indoor air handler, multi-position |
| Nominal capacity |
36,000 BTU (3 ton) |
| Rated heating capacity |
37,000 BTU |
| Power supply |
208/230V, 1-phase |
| Refrigerant |
R-454B |
| Line set connections |
3/8" liquid x 5/8" suction |
| Airflow |
1189 / 1083 / 971.2 / 865.2 CFM |
| Sound level |
45 dBA |
| Minimum circuit ampacity |
6 A |
| Maximum fuse / breaker |
15 A |
| Net weight |
128.31 lbs |
| ENERGY STAR certified |
No |
| AHRI certified |
Yes |
| Parts warranty |
5 years |
| Installation |
DIY, using pre-charged Quick Connect line sets |
- Air handler only. The condenser, line set and ductwork are ordered separately.
Details
Avermont Direct is an authorized MRCOOL dealer. A ducted handler lets one zone of a DIY Hybrid system feed several rooms through existing ductwork. MRCOOL's base warranty is 5 years on parts, and full terms are set out in the product documentation.
