This MRCOOL DIY 5th Generation 48,000 BTU 5-Zone Ductless Mini-Split System pairs a single outdoor condenser with five ceiling cassette indoor air handlers — a 18,000 + 18,000 + 18,000 + 12,000 + 6,000 BTU lineup in this configuration — engineered for do-it-yourself installation with no HVAC professional required.
Highlights
- Pre-charged 25-ft. DIY® QuickConnect® line sets filled with R-454B refrigerant eliminate on-site vacuuming, cutting installation time and cost.
- Rated 21.8 SEER2 and an HSPF2 of 10 for efficient year-round heating and cooling.
- The included DIYPRO® cable removes the need for electrical conduit, adding durability against outdoor elements.
- Control each zone with the wireless remote, the SmartHVAC app (iOS and Android), or hands-free through Amazon Alexa and Google Assistant.

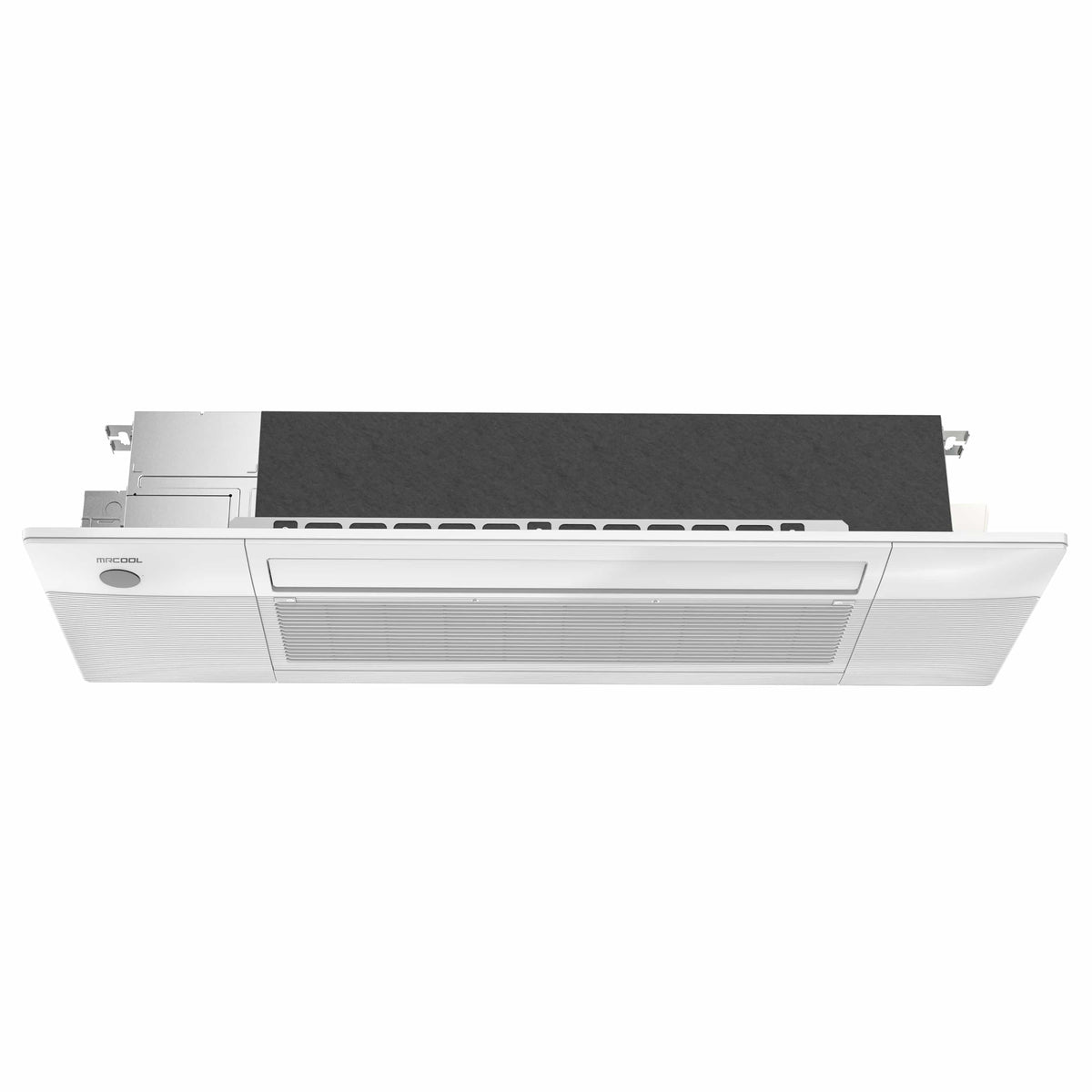

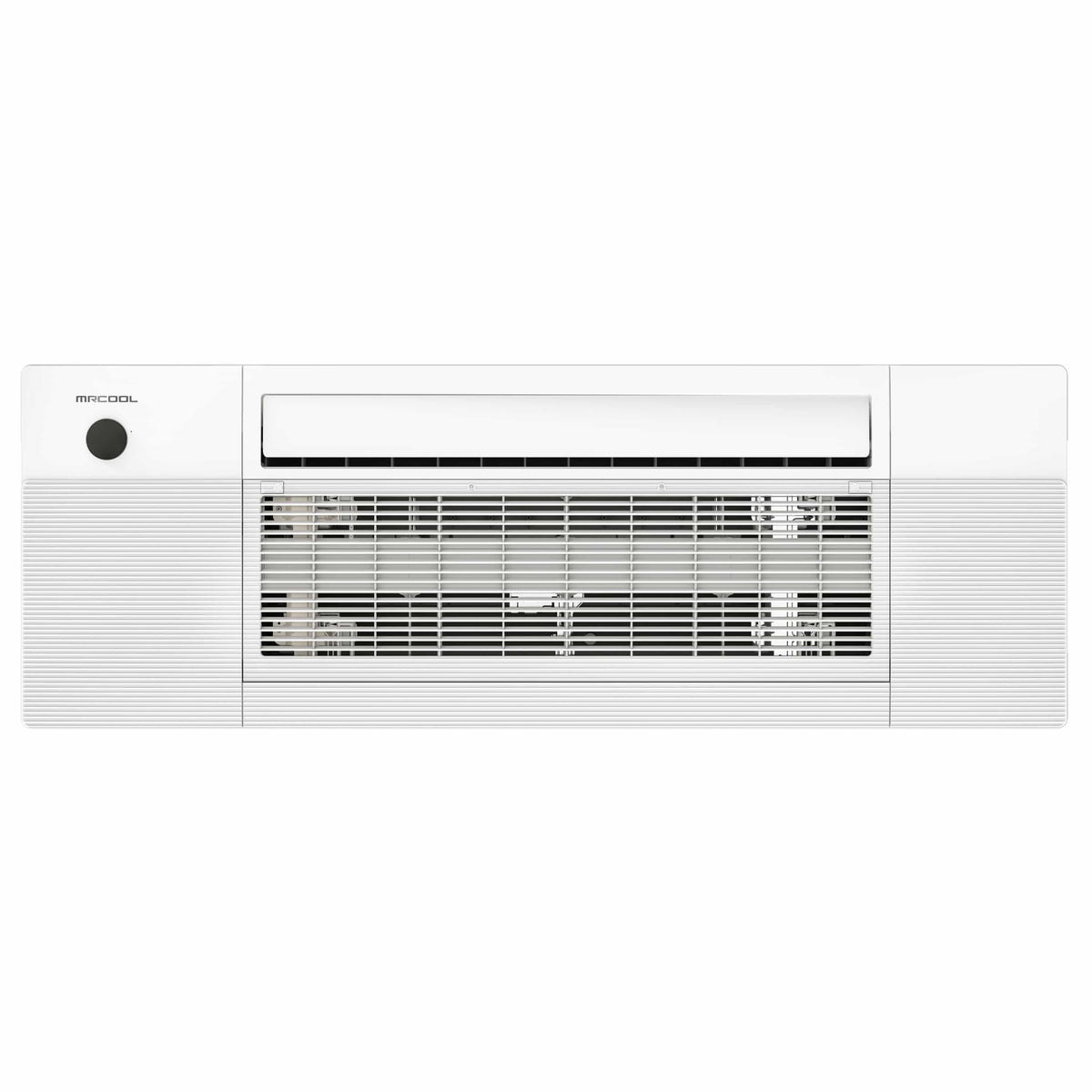

- Each OuttaSight® ceiling cassette fits flush between 16” ceiling joists (including pre-manufactured I-joists), and the Elevation function lowers the filter panel for easy cleaning.
- Backed by a 5-year parts warranty and a 7-year compressor warranty, with a Limited Lifetime Replacement warranty available through the MRCOOL® Care Program.
Specs & Features
| Brand |
MRCOOL DIY, 5th Generation |
| System type |
Ductless mini-split, multi-zone |
| Zones |
5 |
| Condenser capacity |
48,000 BTU |
| Indoor air handlers (this configuration) |
18,000 + 18,000 + 18,000 + 12,000 + 6,000 BTU |
| Air handler mount type |
Ceiling Cassette |
| Efficiency |
21.8 SEER2 / 10 HSPF2 |
| Refrigerant |
R-454B, pre-charged in 25-ft. Quick Connect® line sets |
| Electrical |
DIYPRO® cable included (no conduit required) |
| Certification |
Intertek listed 5031495 |
| Parts warranty |
5 years |
| Compressor warranty |
7 years |
| Extended warranty |
Limited Lifetime Replacement (with MRCOOL® Care Program subscription) |
- 18,000 BTU handlers (3x) — up to 800 sq. ft. each
- 12,000 BTU handler — up to 550 sq. ft.
- 6,000 BTU handler — up to 200 sq. ft.

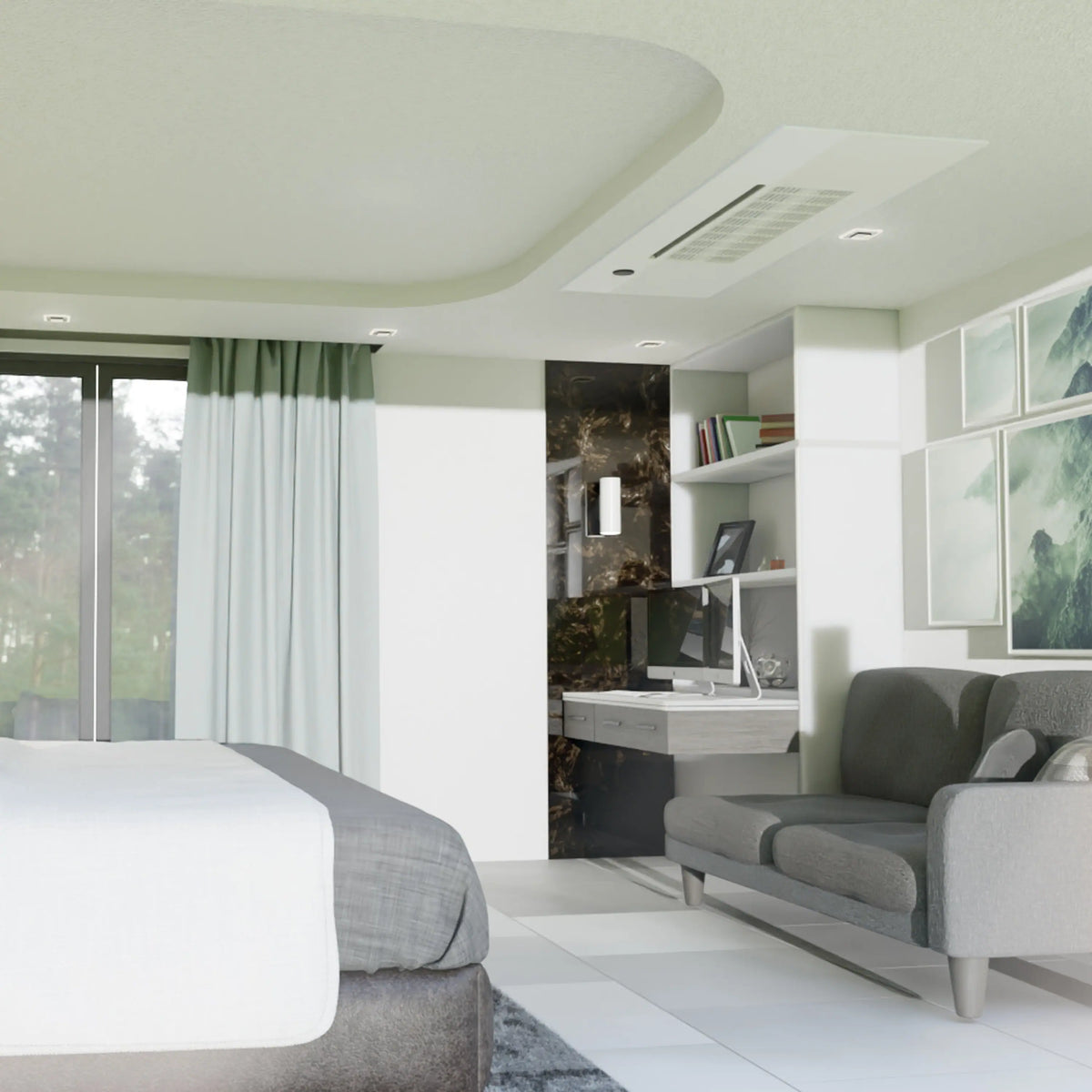

- Low-profile design fits between 16” ceiling joists, including pre-manufactured I-joists, for a flush, discreet installation.
- Two-stage DC motor with Swing Technology for quiet, adjustable airflow.
- Advanced filtration helps improve indoor air quality.
Details
Avermont Direct is an authorized MRCOOL dealer. This DIY 5th Generation 5-zone system installs without a professional HVAC crew, using pre-charged Quick Connect® line sets and a DIYPRO® cable in place of conduit. This 18,000 + 18,000 + 18,000 + 12,000 + 6,000 BTU ceiling cassette configuration suits a home or addition with five separate rooms to condition from one outdoor condenser, and it carries a 5-year parts warranty and a 7-year compressor warranty as standard.
