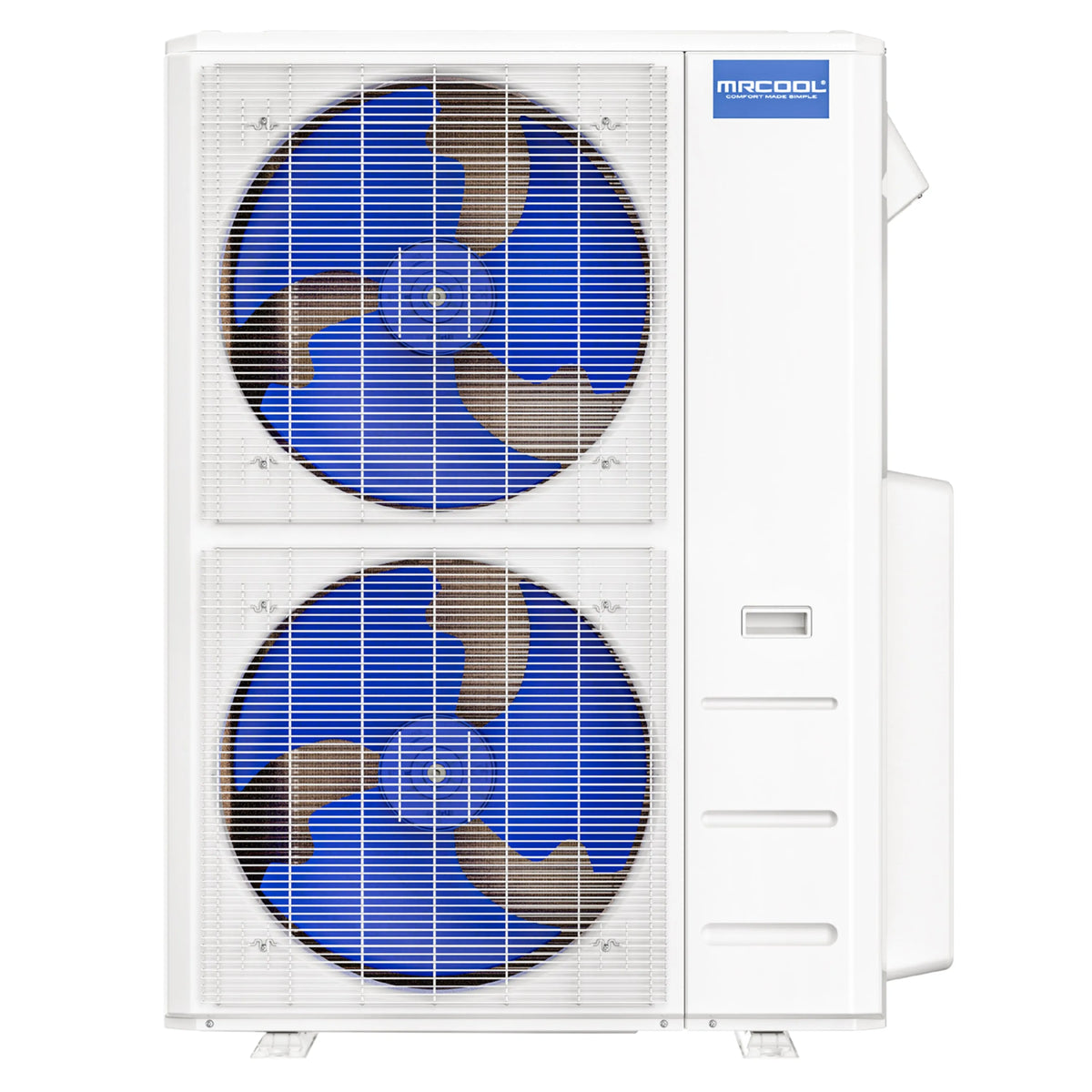

This MRCOOL DIY 5th Gen condenser is the 48,000 BTU outdoor unit of a multi-zone system, and supports up to 6 indoor air handlers from a single 230V outdoor unit.
Highlights
- Runs up to 6 zones from one outdoor unit, so a single condenser can cover a whole floor
- Pairs with MRCOOL DIY 5th Gen wall mount and ceiling cassette air handlers
- Connects with DIY pre-charged quick-connect line sets, so no vacuum pump or HVAC licence is needed
- Heat pump operation, providing both cooling and heating
- Sold as the condenser on its own, so each room's air handler size and style is chosen separately
Specs & Features
| Part number |
DIY-MULTI6-48HP230D-O |
| Series |
MRCOOL DIY 5th Gen |
| Component |
Outdoor condenser, multi-zone |
| Rated capacity |
48,000 BTU |
| Zones supported |
Up to 6 |
| Power supply |
230V |
| Installation |
DIY, using pre-charged quick-connect line sets |
- Condenser only. Air handlers and line sets are ordered separately.
- Used by the Build Your Own Mini Split configurator to assemble a custom system.
Details
Avermont Direct is an authorized MRCOOL dealer. This condenser is the starting point for a custom DIY multi-zone system, letting each room take the air handler size and mounting style that suits it rather than a fixed factory combination. It is backed by the manufacturer's warranty, and full terms are set out in the product documentation.
