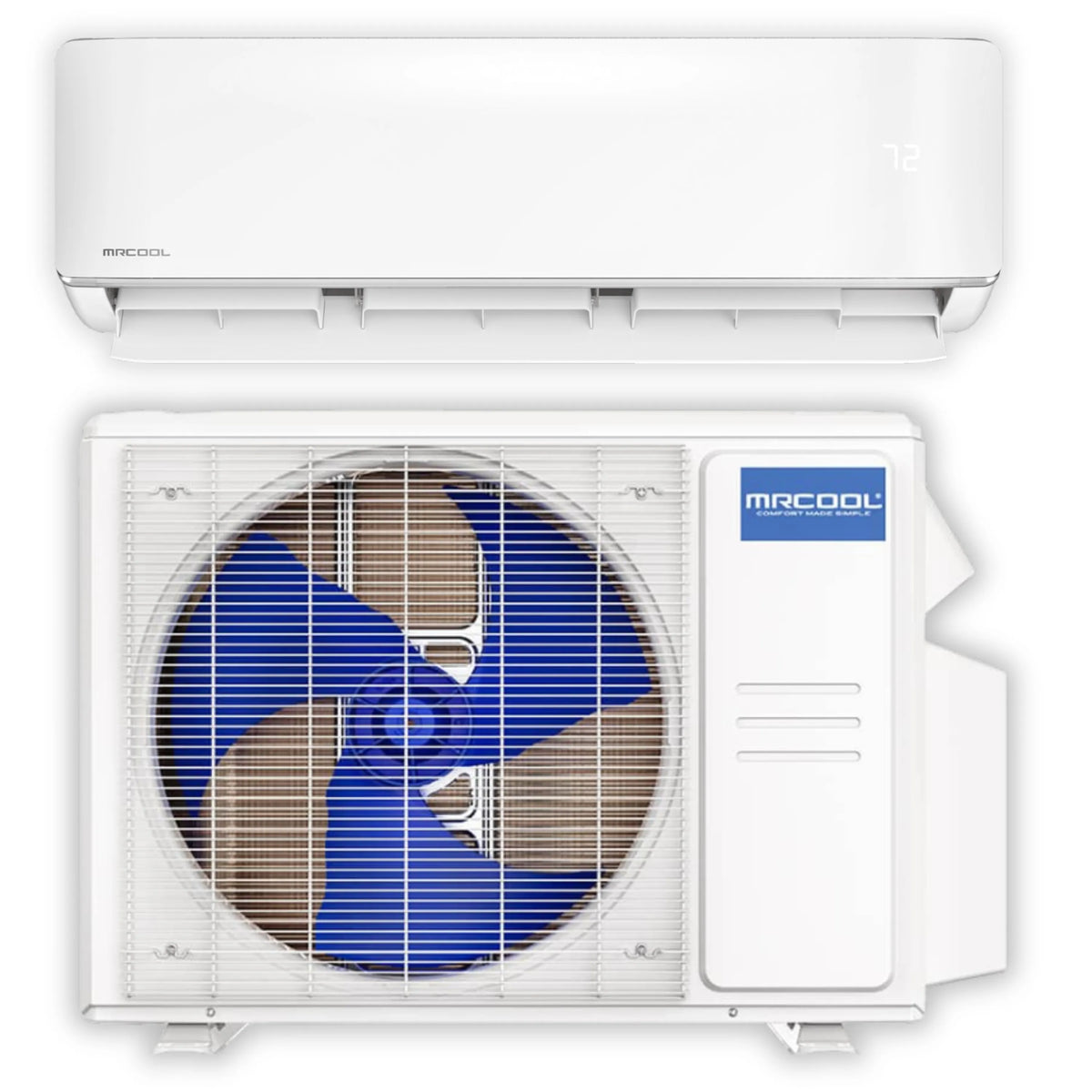

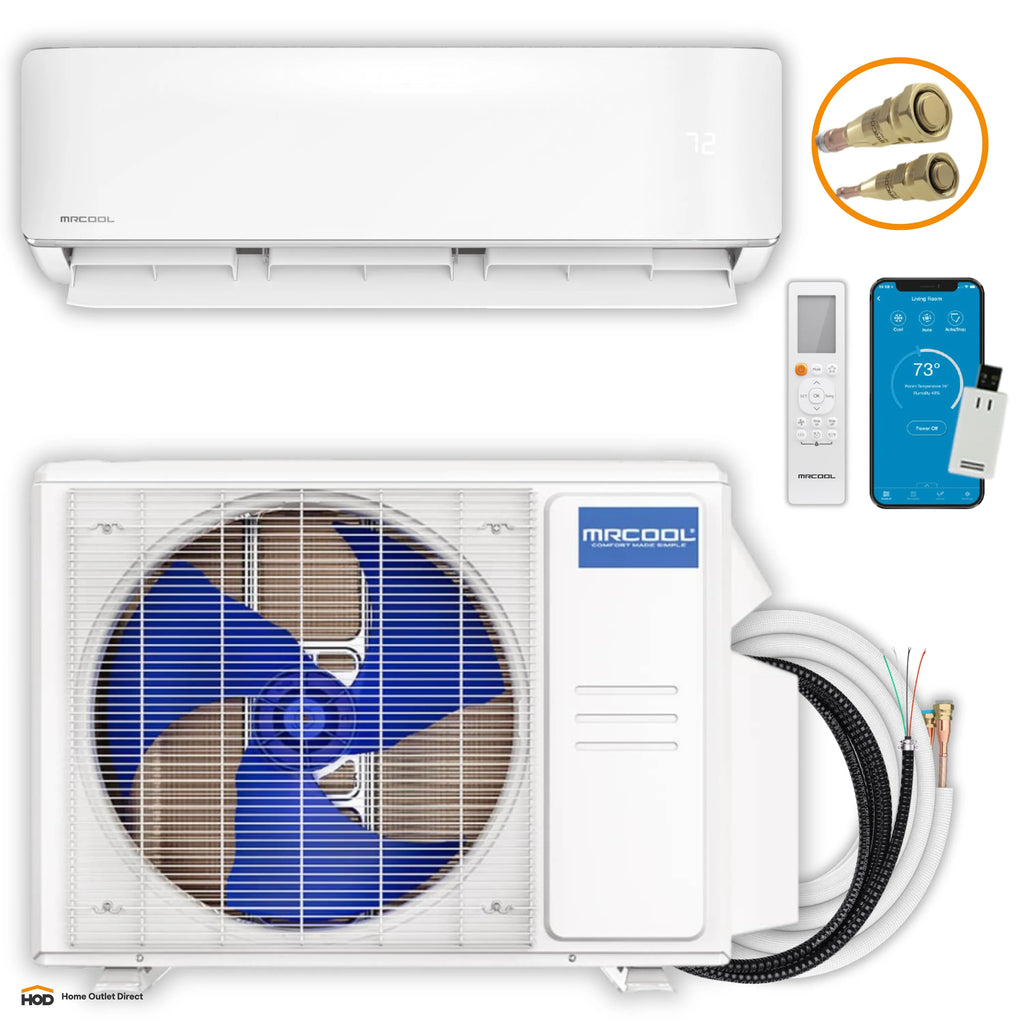

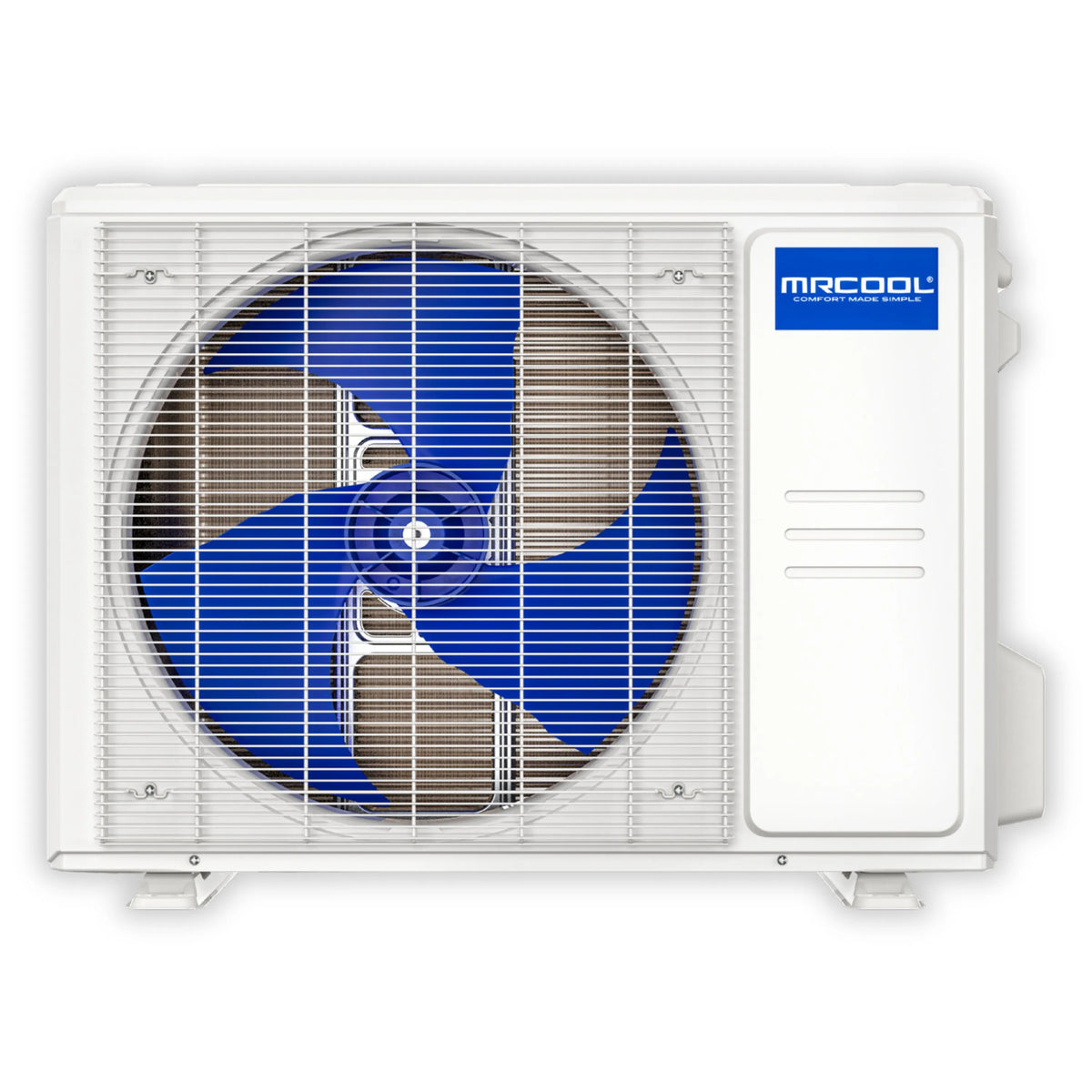

The MRCOOL DIY 5th Gen E Star 36,000 BTU single-zone mini split is rated 18 SEER2, sized for 1,000–1,500 sq. ft., and includes a 25-ft. pre-charged DIY QuickConnect line set with R-454B refrigerant for vacuum-free installation.
Highlights
-
Tool-free DIY installation — no prior HVAC experience required.
-

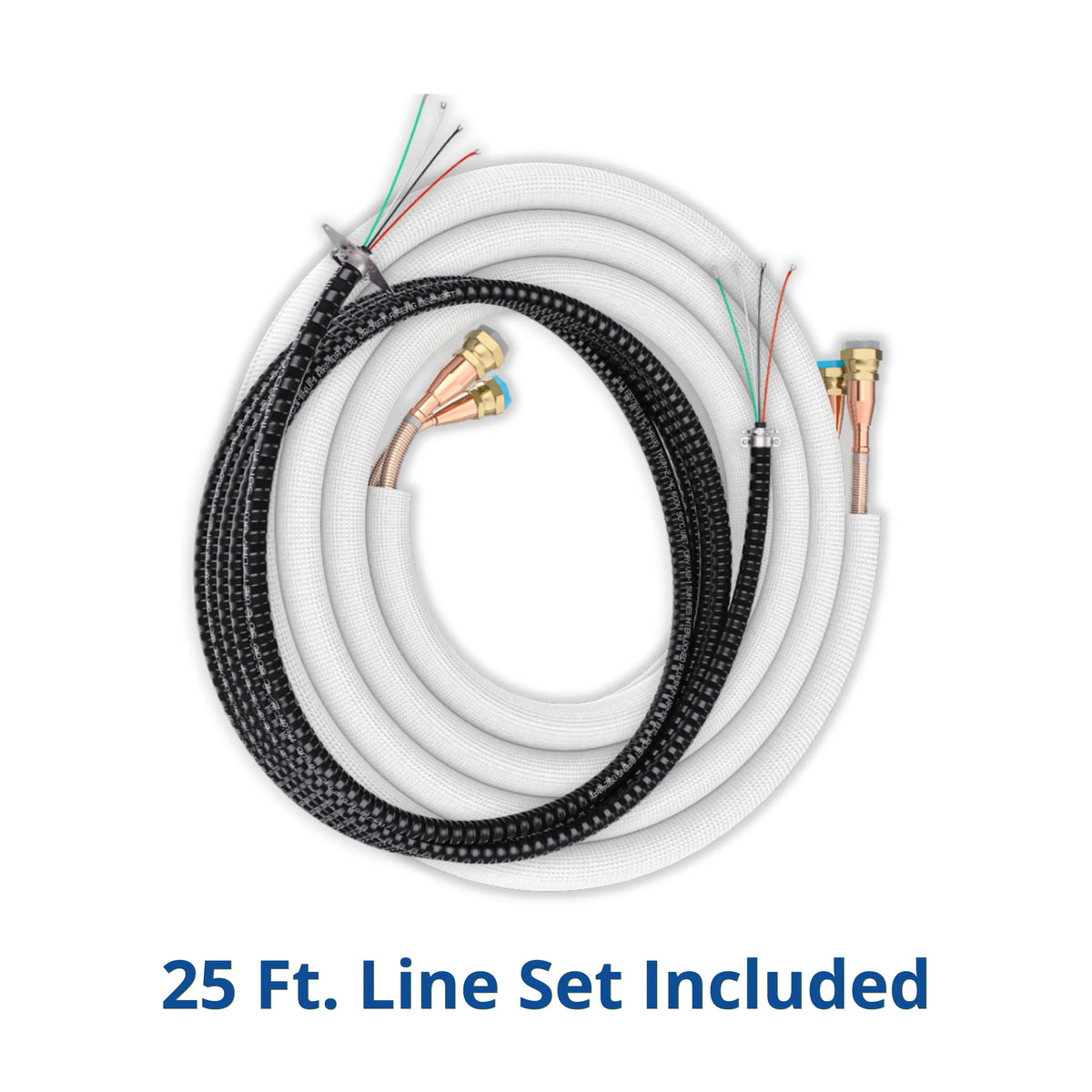

DIY QuickConnect line set pre-charged with lower-GWP R-454B refrigerant for quick, vacuum-free setup.
-
DIYPRO cable eliminates the need for electrical conduit, adding durability against outdoor elements and wildlife.
-

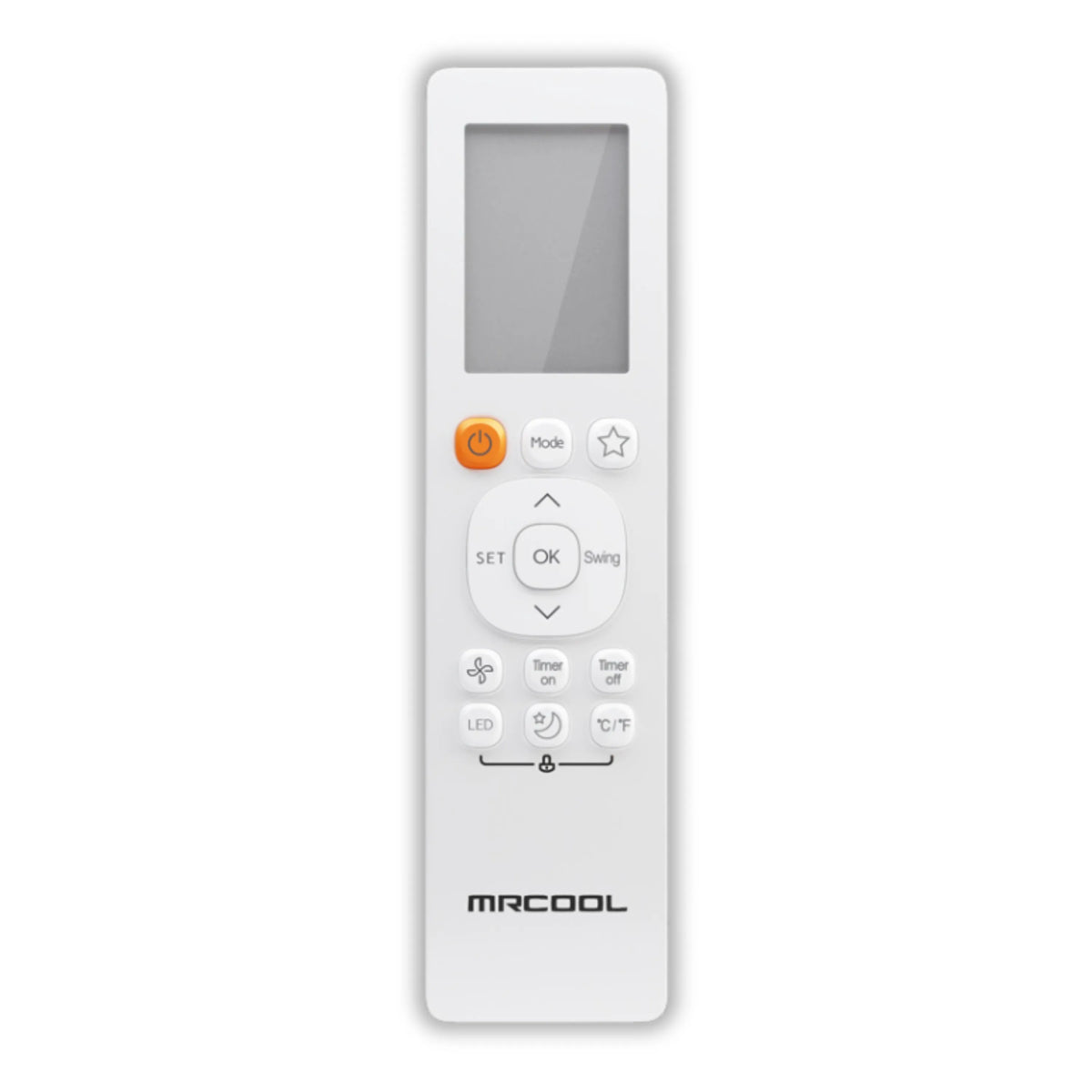

Multiple control options — included remote, SmartHVAC app (Apple and Android), or voice commands via Amazon Alexa and Google Assistant.
-
Follow Me function and Dry Mode for location-based comfort and humidity control.
-
Gold Fin condenser resists corrosion in coastal climates; Intertek listed 5031495.
Specs & Features
| Condenser Dimensions |
37.24"W x 16.14"D x 31.89"H |
| Air Handler Dimensions |
49.57"W x 11.10"D x 14.25"H |
| Condenser Weight |
152.12 lbs |
| Air Handler Weight |
48.729 lbs |
| Zone Capacity |
1 |
| Cooling Capacity |
36,000 BTU |
| Heating Capacity |
36,000 BTU |
| EER2 |
8.5 |
| SEER2 |
18 |
| HSPF2 (Region 4 / Region 5) |
8.5 / 6.5 |
| Coverage Area |
1,000 to 1,500 sq. ft. |
| Outdoor Noise Level |
60.5 dB(A) |
| Indoor Noise Level (Hi/Mi/Lo) |
55.5/49.5/43.5/38.0/27.5 dB(A) |
| Voltage |
208-230V, 1 Phase, 60 Hz |
| Refrigerant |
R-454B, 109.70 oz |
| Line Set |
3/8" liquid / 5/8" suction, max length 213.2 ft. |
| Remote Control Included |
Yes |
| Wifi / App Compatibility |
Yes (iOS and Android) |
| Certifications |
UL Listed, ETL Listed, AHRI Certified |
| Warranty |
7-year compressor, 5-year parts, extended limited lifetime replacement with registration and MRCOOL Care Program enrollment (defaults to standard 5-year parts / 7-year compressor if not registered) |
- DC inverter with rotary compressor; Quiet Mode and Fan Only options.
Details
Avermont Direct is an authorized MRCOOL dealer. This DIY 36,000 BTU single-zone system is sized for a larger room or open area of 1,000 to 1,500 sq. ft., installed with the pre-charged line set and DIYPRO cable so no HVAC professional is required. It carries a 7-year compressor and 5-year parts warranty, extendable to a limited lifetime replacement with registration and MRCOOL Care Program enrollment.
