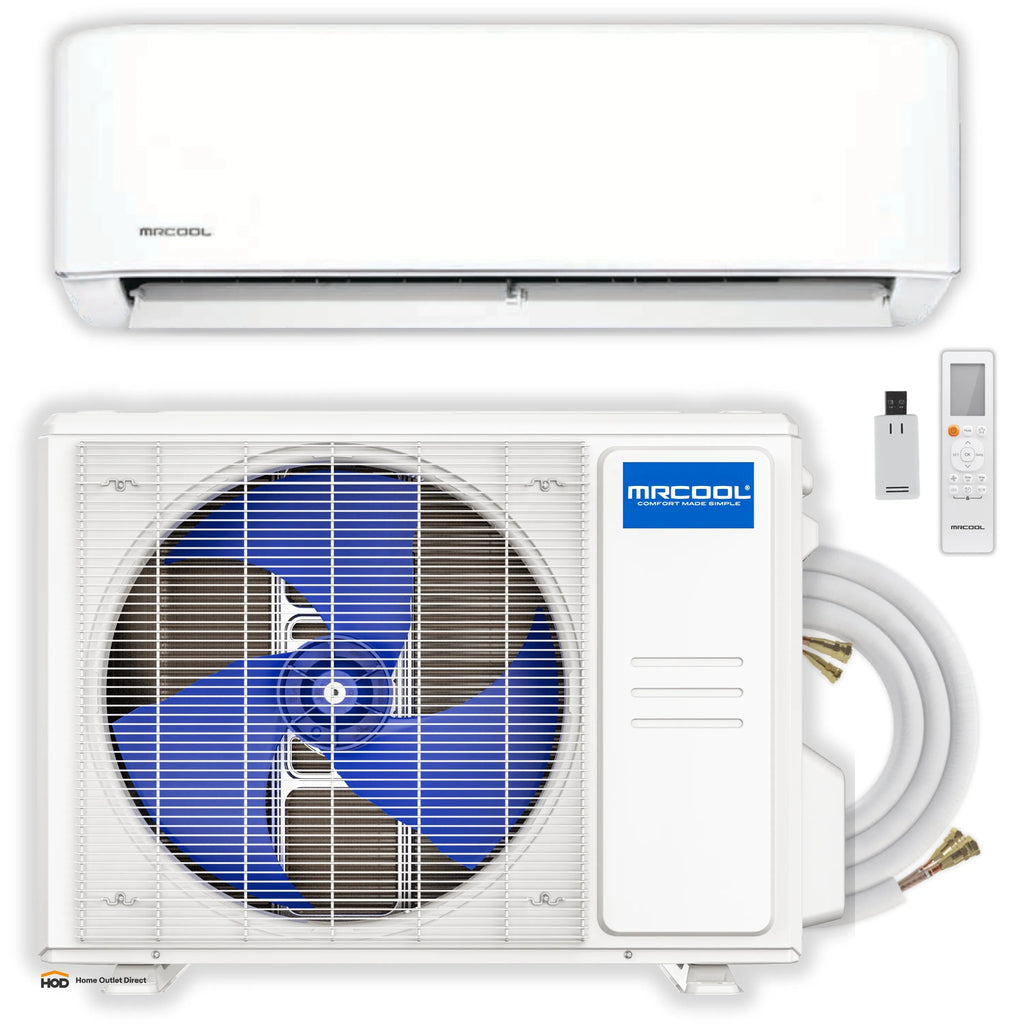

The MRCOOL Advantage 5th Gen 36,000 BTU single-zone mini split delivers 208–230V heating and cooling for spaces up to 1,550 square feet, with a wall-mounted Wi-Fi enabled indoor air handler and a 16 ft. line set included for a complete system installation.
Highlights
- 36,000 BTU of single-zone heating and cooling capacity for spaces up to 1,550 sq. ft. — suited to an open-plan living area, large bedroom, or workshop
- Built-in Wi-Fi connectivity via the MRCOOL Smart HVAC Controller app, with Amazon Alexa and Google Assistant compatibility
- Achieves SEER2 18 and HSPF2-4 8.5 for efficient year-round climate control
- R-454B refrigerant offers roughly 80% lower Global Warming Potential than previous-generation refrigerants
- Gold Fin corrosion-resistant coating on the outdoor condenser, suited to coastal or harsh-weather climates

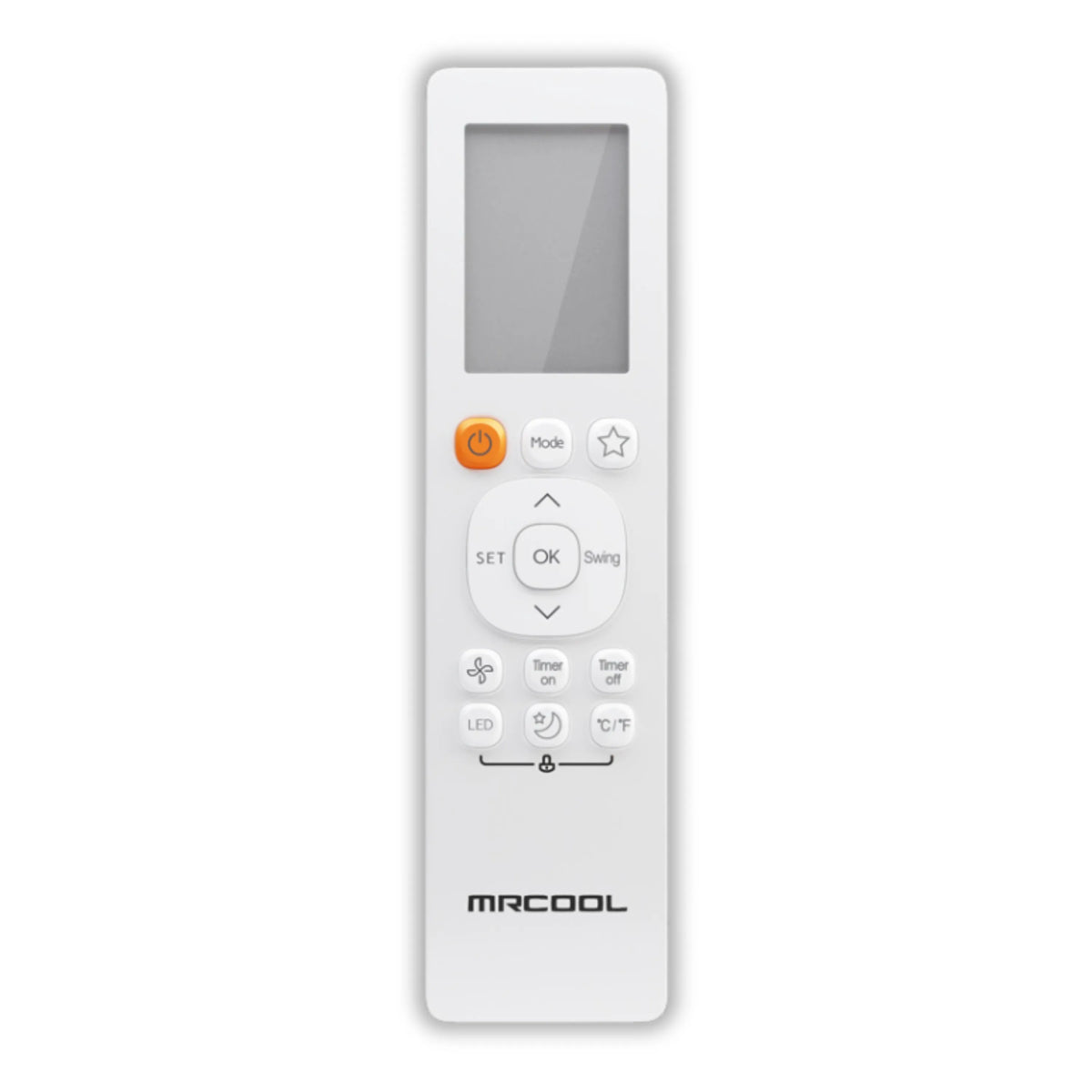

- Follow Me remote sensing, refrigerant leak detection, timer mode, and low-ambient cooling operation down to 5°F
Specs & Features
| Zone Configuration |
Single Zone |
| Cooling Capacity |
36,000 BTU/h |
| Heating Capacity |
36,000 BTU/h |

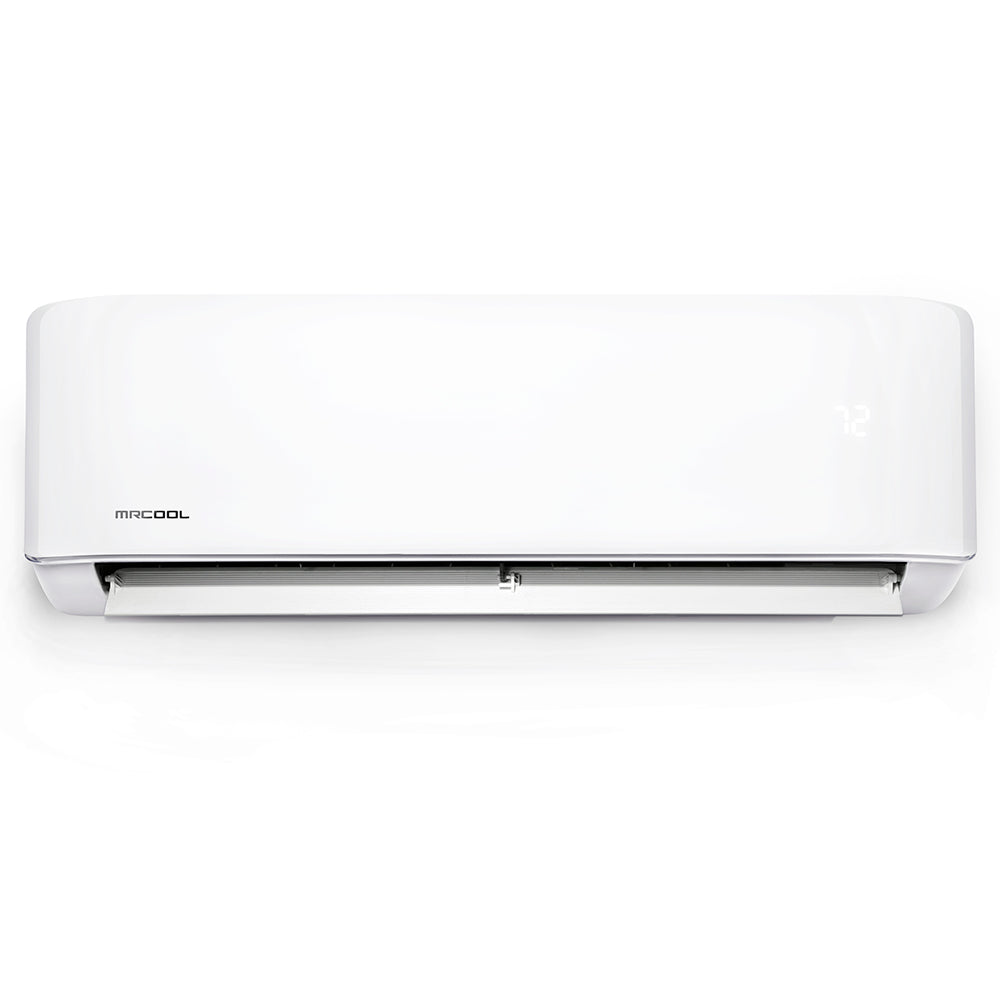

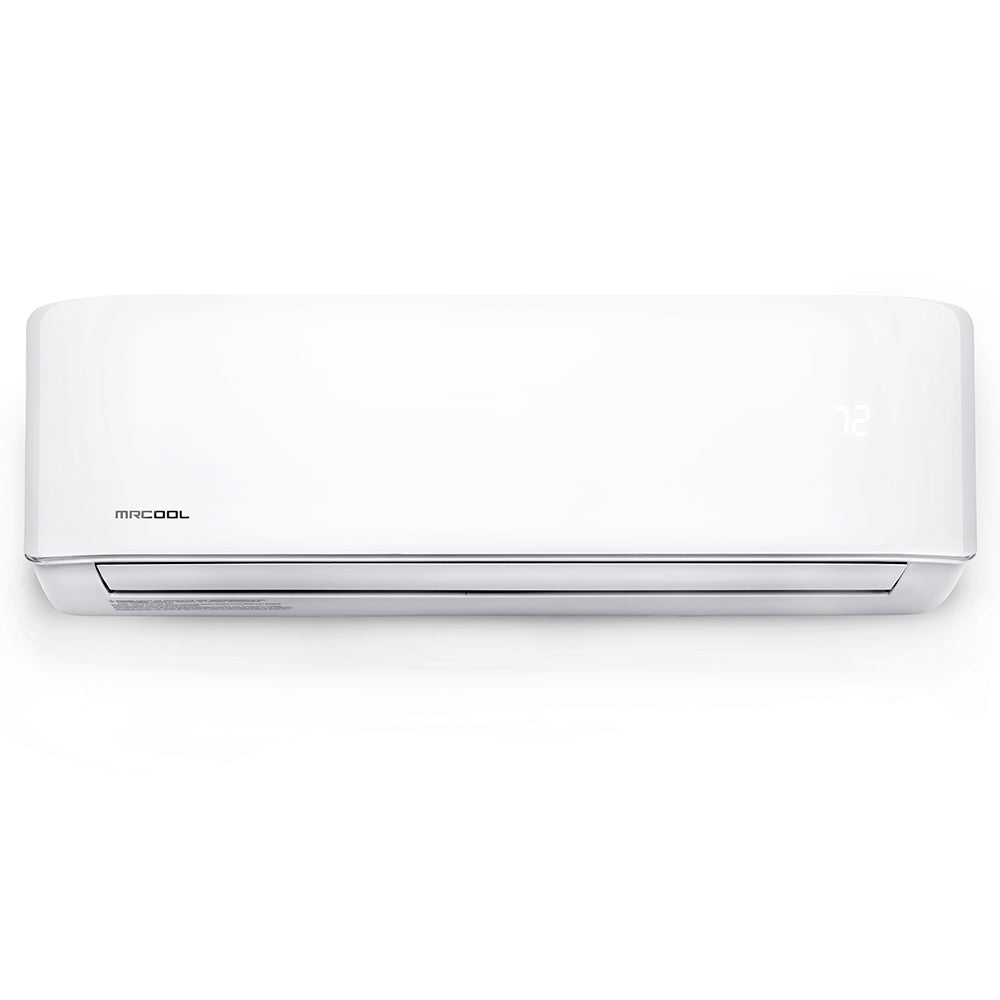

| Air Handler Type |
Wall Mount |
| Coverage Area |
Up to 1,550 sq. ft. |
| SEER2 |
18 |
| EER2 |
9.0 |
| HSPF2-4 |
8.5 |
| HSPF2-5 |
6.8 |
| Power Supply |
208–230V, 60Hz, 1Ph |
| Refrigerant |
R-454B, 112.88 oz charge |
| Piping Size (Liquid/Gas) |
3/8"–5/8" |
| Air Handler Model |
A-36-HP-WMAH-230D-O |
| Air Handler Dimensions (W x D x H) |
49.57 x 11.10 x 14.25 in. |
| Air Handler Net/Gross Weight |
40.34 / 54.01 lbs |
| Air Handler Sound Level (Turbo/Hi/Mi/Lo/Si) |
56.5 / 50.5 / 44.5 / 34 / 28 dB |

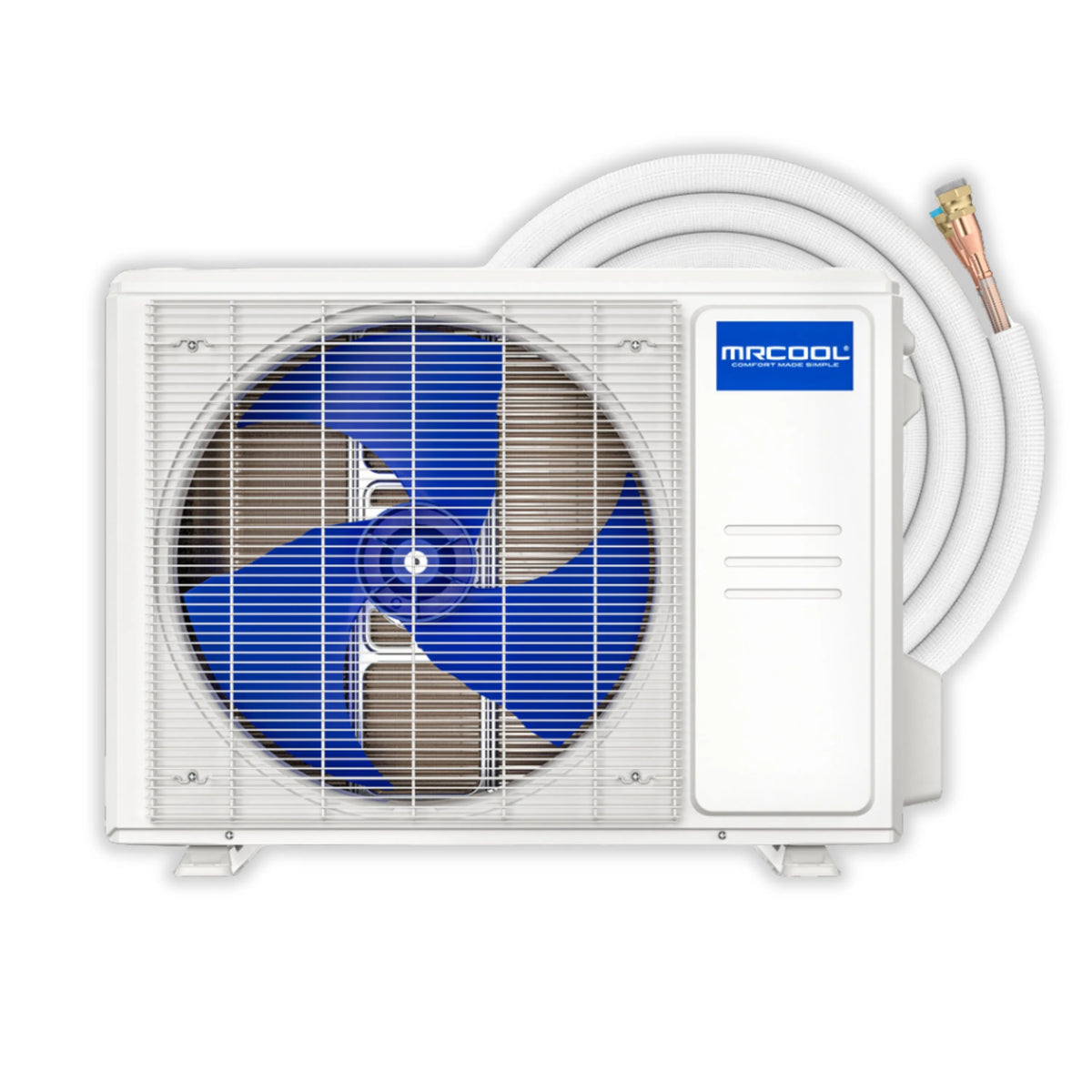

| Condenser Model |
A-36-HP-C-230D-O |
| Condenser Dimensions (W x D x H) |
37.24 x 16.14 x 31.89 in. |
| Condenser Net/Gross Weight |
150.35 / 160.27 lbs |
| Condenser Sound Level (Hi) |
60.5 dB |

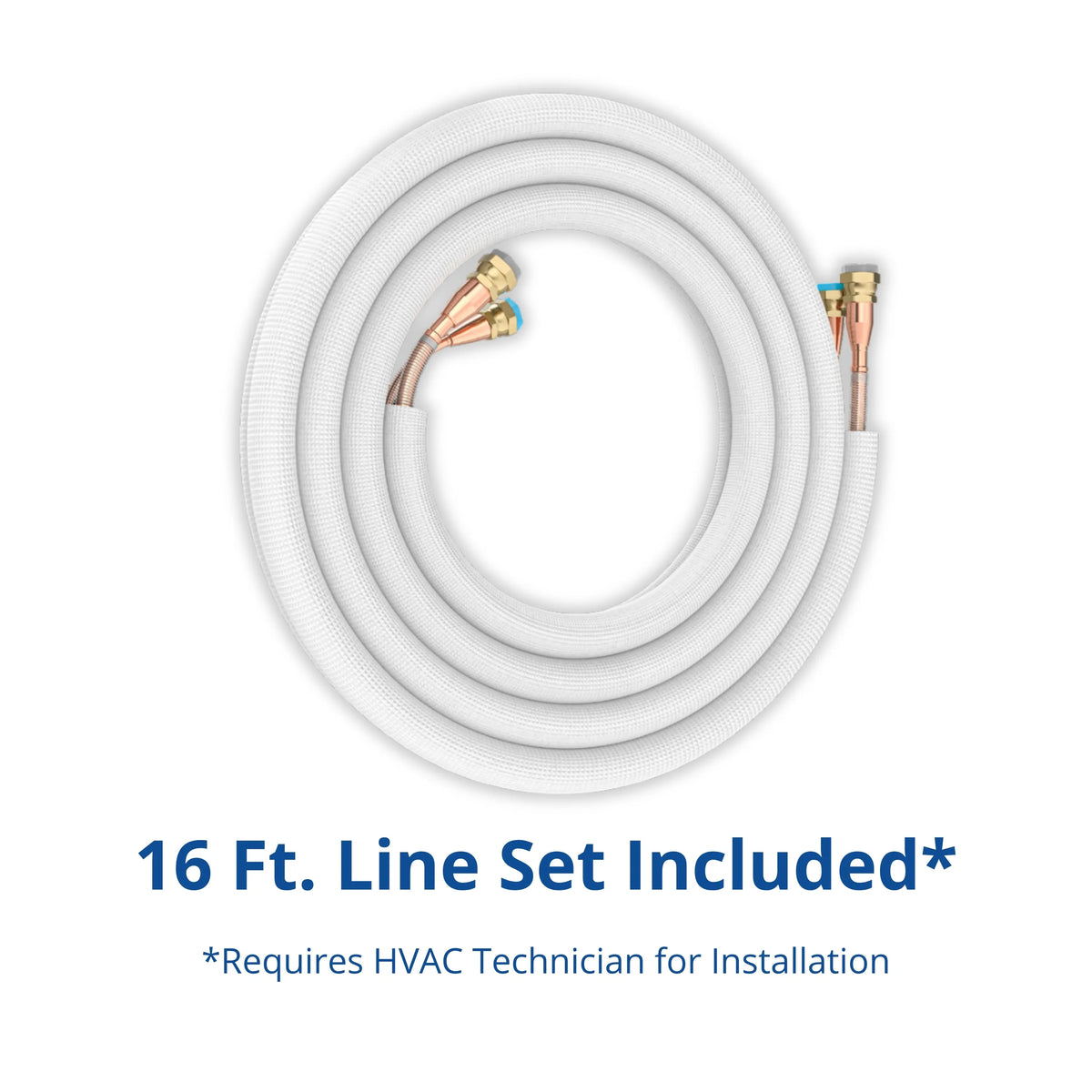

| Line Set |
16 ft., included |
| Certifications |
AHRI certified, NEEP ccASHP listed, CEE Tier 1 - North qualified |
| Warranty |
1-year parts and remote; 2-year compressor; eligible for the MRCOOL Care Program (Limited Lifetime warranty upon enrollment) |
| Installation |
Licensed HVAC technician required (not a DIY unit) |
Details
Avermont Direct is an authorized MRCOOL dealer offering the Advantage 5th Gen 36,000 BTU single-zone mini split as a complete system with a 16 ft. line set. This is not a DIY unit — it must be installed by a licensed HVAC technician for proper safety and warranty eligibility. Coverage of up to 1,550 square feet makes it a practical fit for an open floor plan, large bedroom, or workshop, and the system is eligible for the MRCOOL Care Program's Limited Lifetime warranty upon enrollment, in addition to its standard 1-year parts/remote and 2-year compressor coverage.
