What's in this package
Everything shown here ships as part of this package. Select a piece to see its description, specs and manuals.
Description

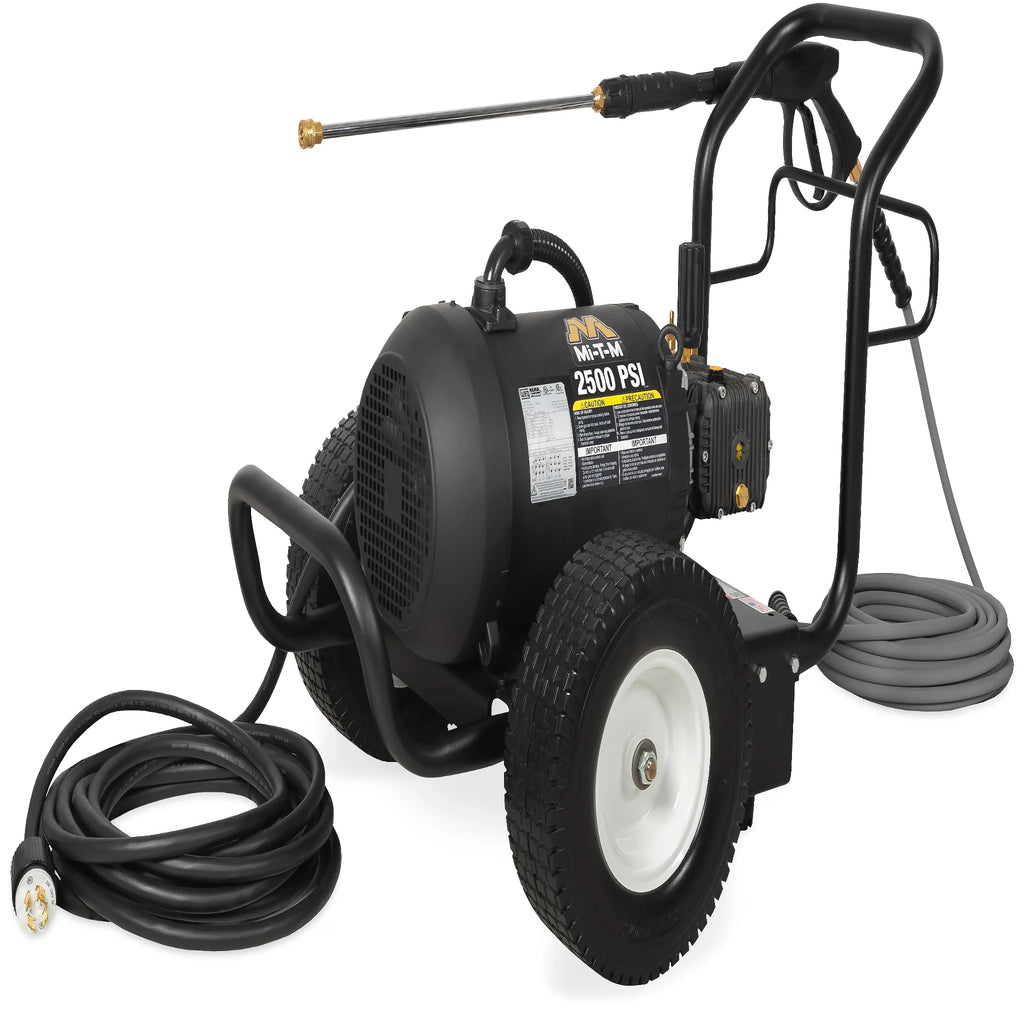

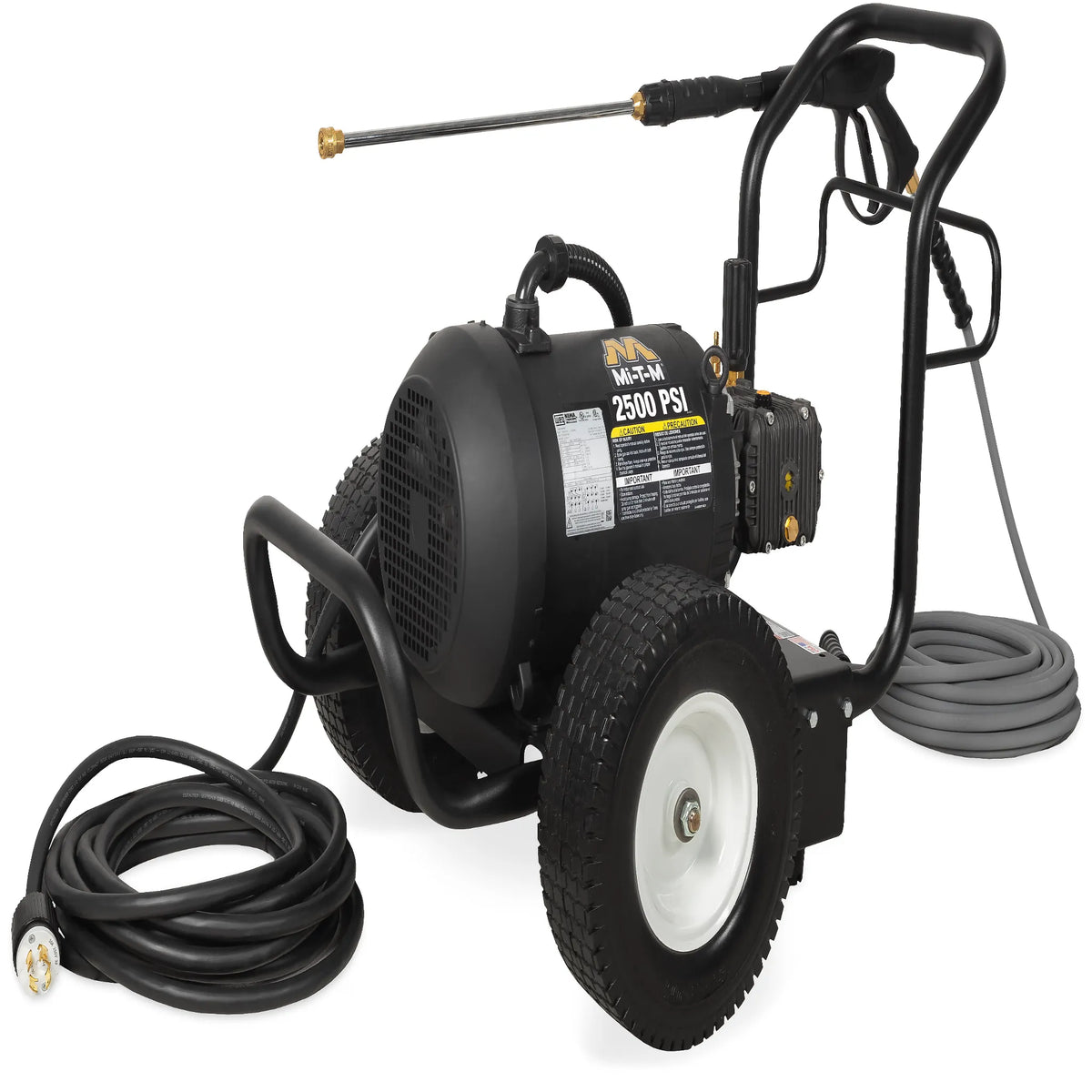

The Mi-T-M JP-2503-1ME3 is the three-phase JP, running a 6.0 HP, 230V 3-phase motor that draws 17.3 amps through a NEMA L15-20P plug for 2,500 PSI at 3.2 GPM. Sites with 460V power can order factory option CX-0066, a 6.0 HP, 460V 3-phase motor drawing 8.7 amps.
Highlights
- Three-phase power suits industrial buildings where single-phase circuits are scarce
- 460V motor available as a factory option for plants wired at that voltage
- AR pump with a forged brass manifold, thermal and safety relief valves and an adjustable unloader
- Totally enclosed fan-cooled motor on both the 230V and 460V versions
- Powder coated steel frame on 13 in flat-free tires
- Ships with a 50 ft non-marking hose and four quick-connect nozzles
Details
The JP-2503-1ME3 is built for food-processing plants and industrial facilities wired for three-phase power, plus wash bays and indoor cleaning crews working on floors and equipment. Pick the voltage at purchase, since the 460V motor is a factory option.
Need Help?
If you have questions about this product before you order, our team is happy to help.
Email: support@avermontdirect.com
Phone: +1 (844) 455-3695
Hours: Monday–Friday, 9AM–5PM
Live Chat: Available 24/7
| Model | JP-2503-1ME3 |
| Pressure | 2,500 PSI |
| Flow | 3.2 GPM |
| Motor | 6.0 HP, 230V, 3-phase, 17.3A, totally enclosed fan-cooled |
| Optional Motor | 6.0 HP, 460V, 3-phase, 8.7A (factory option CX-0066) |
| Pump | AR, forged brass manifold |
| Unloader | Adjustable pressure |
| Plug | NEMA L15-20P |
| Power Cord | 35 ft |
| High-Pressure Hose | 50 ft × 3/8 in non-marking |
| Tires | 13 in flat-free |
| Net Weight | 225 lb |
| Shipping Weight | 275 lb |
| Dimensions (L × W × H) | 44 × 26 × 27 in |
- Includes four quick-connect nozzles (0°, 15°, 25°, detergent), 50 ft × 3/8 in non-marking hose and 36 in lance with insulated trigger gun
- Requires a 230V 3-phase receptacle matching the NEMA L15-20P plug; confirm with your electrician before ordering
- The 35 ft power cord has no GFCI, unlike the single-phase JP cords
- 460V motor (CX-0066) must be ordered with the unit
- Built-in low pressure detergent injector; AW-7510 series rotating nozzle sold separately
- CX-0005 insulated dual lance is a factory option ordered with the washer
