Description

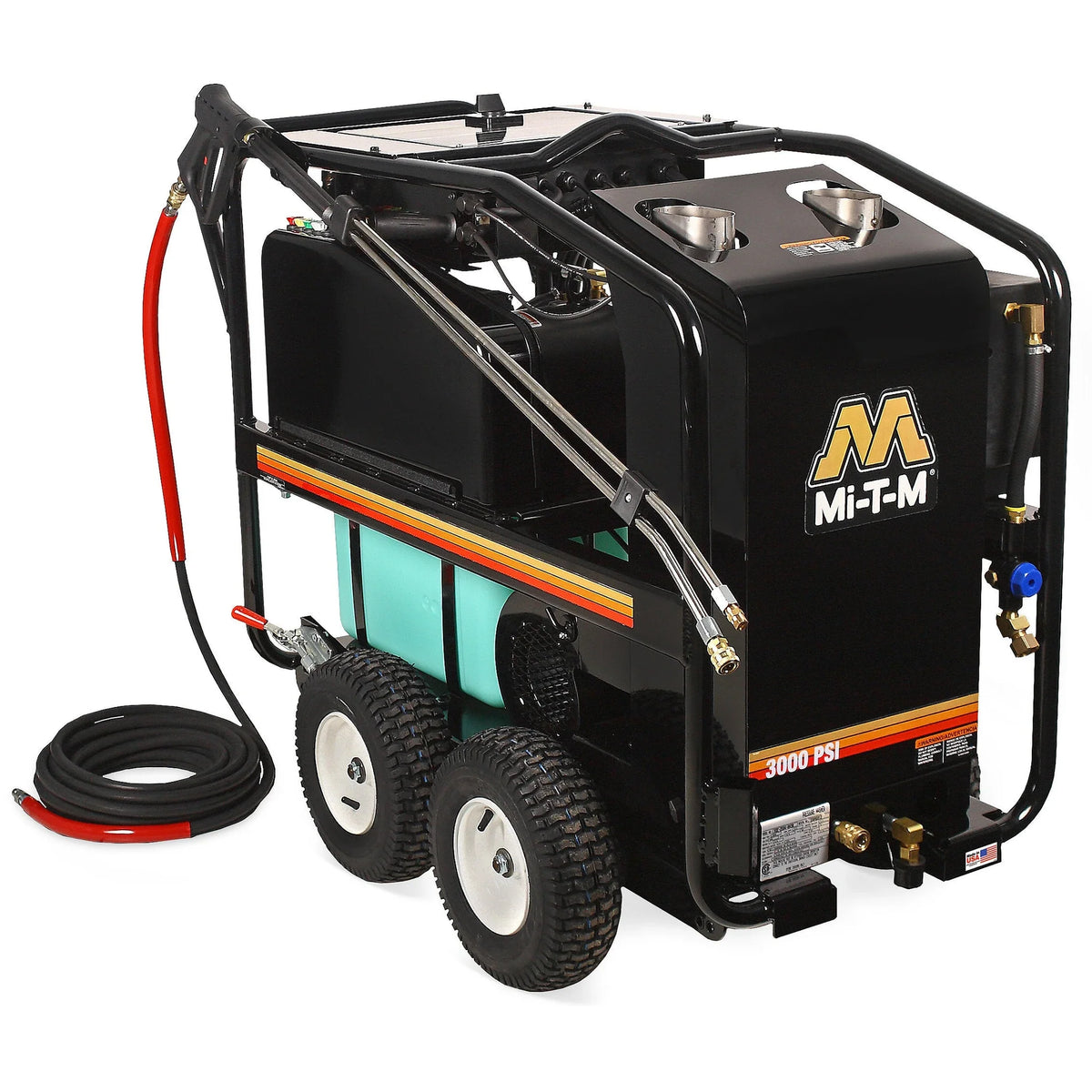

The Mi-T-M HSE-3004-0M30 pairs an 8.0 HP, 230-460V three-phase electric motor with a diesel- or kerosene-fired burner to deliver 3,000 PSI at 3.5 GPM with a 150°F temperature rise. The burner is rated at 294,000 BTU per hour and outlet water reaches up to 225°F.
Highlights
- Electric motor drives the pump while an energy-efficient top-fired heat exchanger heats the water, so hot water cleaning needs only electrical service plus burner fuel
- Burner runs on No. 1 or No. 2 diesel or kerosene from an onboard 10.0-gallon tank
- Totally enclosed fan-cooled motor with manual thermal overload protection and a 35 ft power cord
- External bypass system protects the General pump from heat build-up, backed by a factory preset unloader, forged brass manifold and thermal relief valve
- Reinforced powder coated steel frame with center balanced lift and 13-inch flat-free tires for moving the unit around a site
Details
Mi-T-M builds the HSE Series for heavy-duty work, removing greasy residue and debris on industrial and commercial worksites. It fits crews that have electrical service on site and want a commercial hot water pressure washer without a gas engine. Mi-T-M lists a 1-year electric motor, 3-year coil and 7-year General pump warranty.
Need Help?
If you have questions about this product before you order, our team is happy to help.
Email: support@avermontdirect.com
Phone: +1 (844) 455-3695
Hours: Monday–Friday, 9AM–5PM
Live Chat: Available 24/7
| Pressure | 3,000 PSI |
| Flow | 3.5 GPM |
| Motor | 8.0 HP, 230-460V, 3-phase, 24.0A, totally enclosed fan-cooled |
| Plug Type | NEMA L15-30P |
| Power Cord | 35 ft |
| Pump | General |
| Heat Exchanger | Energy-efficient, top-fired |
| Burner Fuel | No. 1 or No. 2 diesel or kerosene (not approved for bio-fuel) |
| Burner Fuel Tank | 10.0 gal. |
| Burner Fuel Consumption | 2.10 gph |
| BTU Per Hour | 294,000 |
| Temperature Rise | 150°F (66°C) above ambient |
| Maximum Outlet Temperature | 225°F |
| Frame | Reinforced powder coated steel, center balanced lift |
| Tires | 13-inch flat-free |
| Net Weight | 602.00 lbs. |
| Shipping Weight | 732.00 lbs. |
| Dimensions (L x W x H) | 49.50 x 28.00 x 40.50 in. |
- Included: quick connect nozzles (0°, 15°, 25° and 40°), 50 ft x 3/8 in. steel wire-braided hose, adjustable pressure insulated dual lance with trigger gun, high pressure detergent injector
- Electrical requirement: 230-460V three-phase power, 24.0A, NEMA L15-30P plug
- Burner fuel required: No. 1 or No. 2 diesel or kerosene; not approved for bio-fuel
- 460V operation is listed as factory option HX-0086
- Factory options (must be ordered with the unit and cannot be added later): HX-0070 Auto Start/Stop; HX-0072 Auto Start/Stop - Steam; HX-0074 Auto Start/Stop - CAD Cell; HX-0076 Auto Start/Stop - Steam - CAD Cell; HX-0086 460V on 8.0 HP, 3 Phase Models; HX-0088 Skid Feet; HX-0161 Hour Meter; HX-0294 Adjustable Thermostat
- Freight item: shipping weight 732.00 lbs.
