What's in this package
Everything shown here ships as part of this package. Select a piece to see its description, specs and manuals.
Description

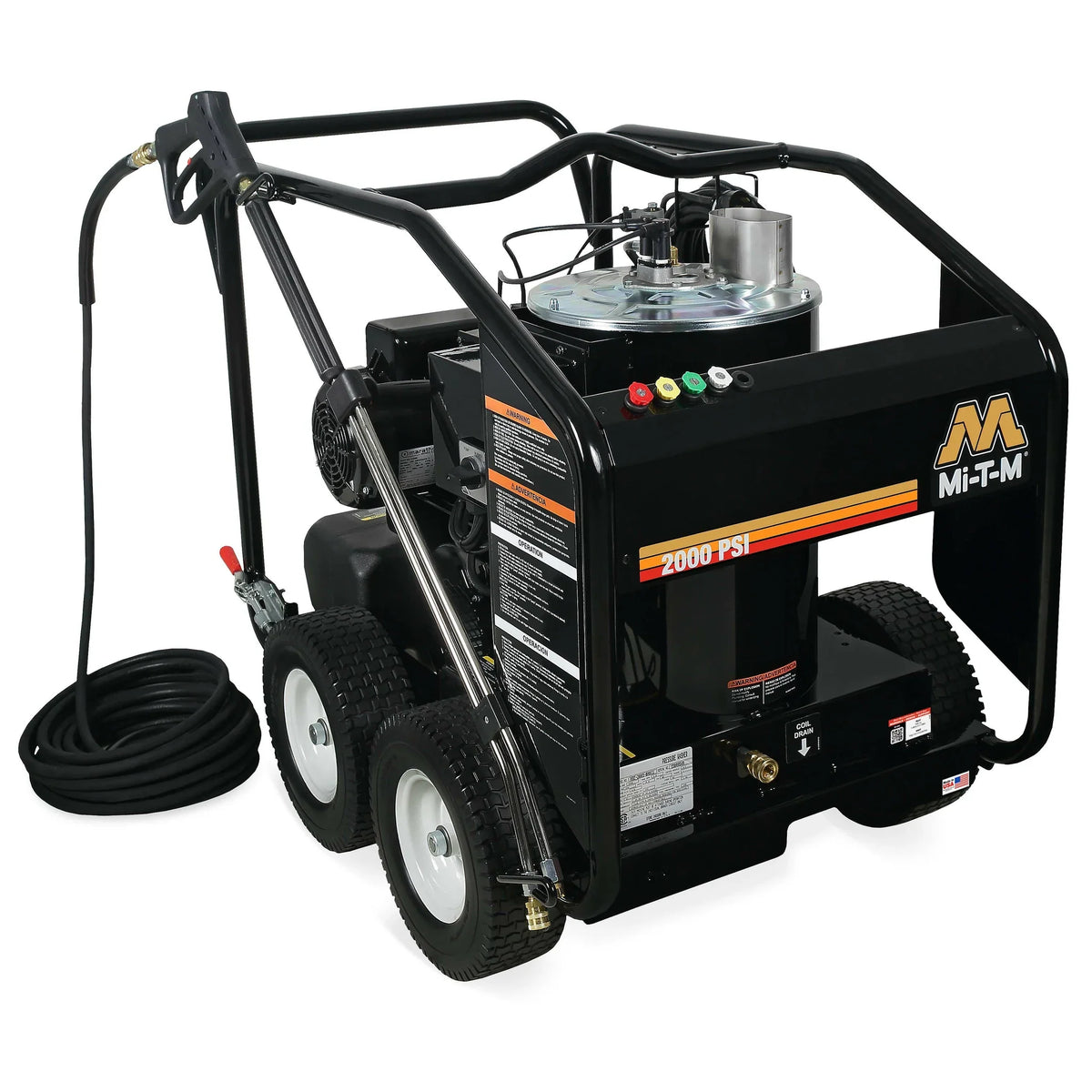

The Mi-T-M HSE-2003-0MM11 pairs a 4.0 HP, 230V single-phase electric motor with a diesel- or kerosene-fired burner to deliver 2,000 PSI at 2.8 GPM with a 150°F temperature rise. The burner is rated at 207,200 BTU per hour and outlet water reaches up to 225°F.
Highlights
- Electric motor drives the pump while an energy-efficient top-fired heat exchanger heats the water, so hot water cleaning needs only electrical service plus burner fuel
- Burner runs on No. 1 or No. 2 diesel or kerosene from an onboard 4.0-gallon tank
- Totally enclosed fan-cooled motor with manual thermal overload protection and a 35 ft power cord
- Mi-T-M pump with Mi-T-M Pressure Relief Start, factory preset unloader, forged brass manifold and thermal relief valve
- Reinforced powder coated steel frame with center balanced lift and 13-inch flat-free tires for moving the unit around a site
Details
Mi-T-M builds the HSE Series on a powder coated steel frame for cleaning on construction sites, farms, mining and oil fields. It fits crews that have electrical service on site and want a commercial hot water pressure washer without a gas engine. Mi-T-M lists a 1-year electric motor, 3-year coil and 7-year Mi-T-M pump warranty.
Need Help?
If you have questions about this product before you order, our team is happy to help.
Email: support@avermontdirect.com
Phone: +1 (844) 455-3695
Hours: Monday–Friday, 9AM–5PM
Live Chat: Available 24/7
| Pressure | 2,000 PSI |
| Flow | 2.8 GPM |
| Motor | 4.0 HP, 230V, 1-phase, 18.0A, totally enclosed fan-cooled |
| Plug Type | NEMA 6-20P |
| Power Cord | 35 ft |
| Pump | Mi-T-M, with Mi-T-M Pressure Relief Start |
| Heat Exchanger | Energy-efficient, top-fired |
| Burner Fuel | No. 1 or No. 2 diesel or kerosene (not approved for bio-fuel) |
| Burner Fuel Tank | 4.0 gal. |
| Burner Fuel Consumption | 1.48 gph |
| BTU Per Hour | 207,200 |
| Temperature Rise | 150°F (66°C) above ambient |
| Maximum Outlet Temperature | 225°F |
| Frame | Reinforced powder coated steel, center balanced lift |
| Tires | 13-inch flat-free |
| Net Weight | 308.00 lbs. |
| Shipping Weight | 431.00 lbs. |
| Dimensions (L x W x H) | 43.00 x 29.50 x 36.50 in. |
- Included: quick connect nozzles (0°, 15°, 25° and 40°), 50 ft x 3/8 in. steel wire-braided hose, adjustable pressure insulated dual lance with trigger gun
- Electrical requirement: 230V single-phase power, 18.0A, NEMA 6-20P plug
- Burner fuel required: No. 1 or No. 2 diesel or kerosene; not approved for bio-fuel
- Factory options (must be ordered with the unit and cannot be added later): HX-0233 Adjustable Thermostat; HX-0235 Hour Meter; HX-0241 300°F Steam; HX-0243 Auto Start/Stop; HX-0244 Time Delay Shutdown
- Freight item: shipping weight 431.00 lbs.
