What's in this package
Everything shown here ships as part of this package. Select a piece to see its description, specs and manuals.
Description

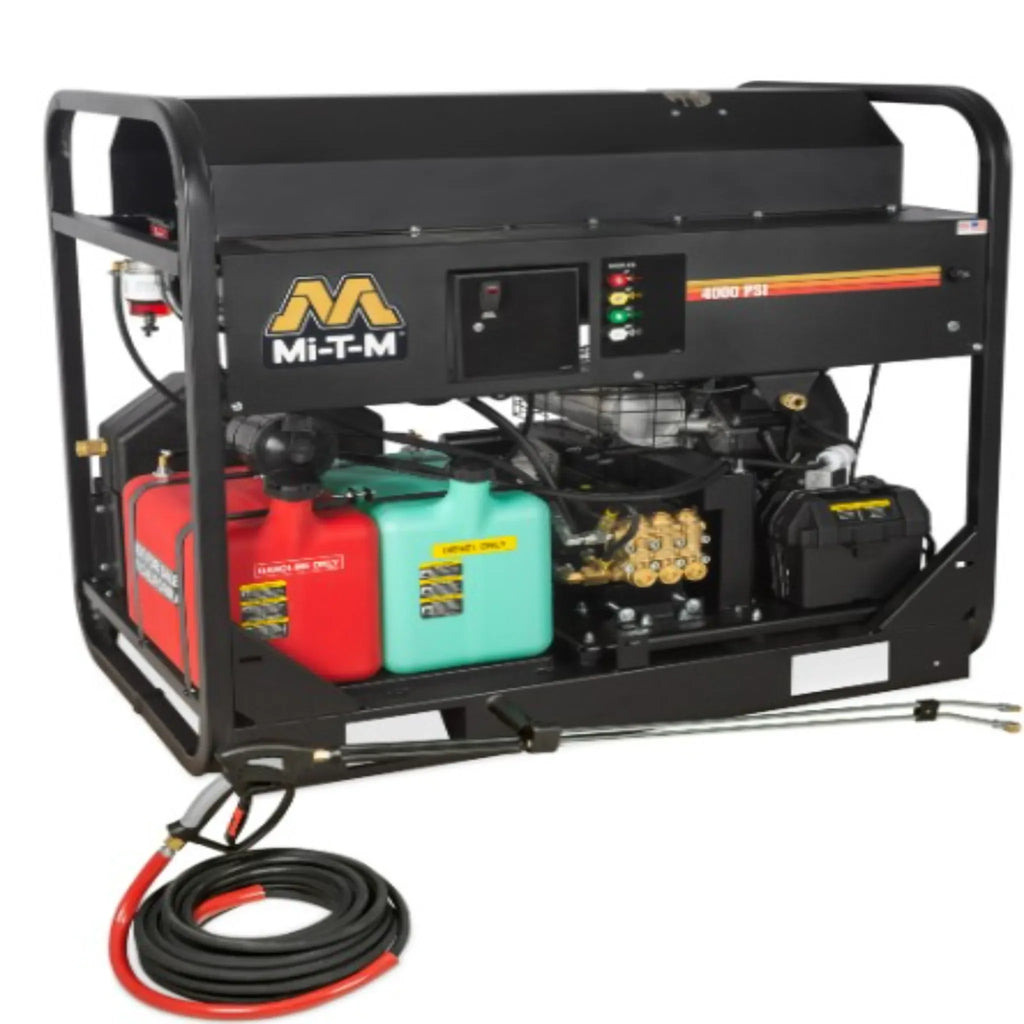

The Mi-T-M HS-4004-1MAK is a skid-mounted hot water pressure washer that delivers 4,000 PSI at 4.0 GPM from a 674cc Kohler CH640 OHV engine and an AR belt-drive pump. Its 386,400 BTU/hr burner raises water temperature 150°F above ambient, up to a 200°F maximum outlet temperature.
Highlights
- 4,000 PSI at 4.0 GPM supplies the pressure and flow for industrial degreasing, fleet washing and heavy equipment cleaning.
- 386,400 BTU/hr burner with a 1/2 in Schedule 80 coil and stainless-steel wrap keeps hot water coming at full flow.
- AR belt-drive pump with external bypass, factory-preset unloader, forged brass manifold and stainless-steel inlet strainer protects the pump from heat buildup.
- Onboard 2900W generator powers the electrical components at remote job sites without a separate generator.
- Dual cogged belt drive transfers engine power to the pump smoothly and dampens vibration.
- Powder-coated steel frame with mounting provisions for bolting to a trailer deck or truck bed.
Details
Built for mobile industrial cleaning crews who mount the machine on a trailer or truck bed and move between job sites, with hot water for grease and oil on fleets and heavy equipment. Mi-T-M lists a 3-year coil warranty, a 3-year Rehlko (Kohler) engine warranty and a 7-year AR pump warranty.
Need Help?
If you have questions about this product before you order, our team is happy to help.
Email: support@avermontdirect.com
Phone: +1 (844) 455-3695
Hours: Monday–Friday, 9AM–5PM
Live Chat: Available 24/7
| Model | HS-4004-1MAK |
| Pressure | 4,000 PSI |
| Flow Rate | 4.0 GPM |
| Engine | 674cc Kohler CH640 OHV |
| Pump | AR, belt drive |
| Heating Output | 386,400 BTU/hr |
| Max Outlet Temperature | 200°F (150°F rise above ambient) |
| Generator | 2900W |
| Engine Fuel Tank | 10.0 gal |
| Burner Fuel Tank | 10.0 gal |
| Burner Fuel Consumption | 2.76 gph |
| Burner Fuel | No. 1 or No. 2 diesel or kerosene |
| Weight | 750 lbs |
| Shipping Weight | 854 lbs |
| Dimensions (L x W x H) | 50 x 34 x 46 in |
- Included: quick-connect nozzles (0°, 15°, 25° and 40°), a 50 ft x 3/8 in steel wire-braided hose and an adjustable pressure insulated dual lance with trigger gun.
- Burner runs on No. 1 or No. 2 diesel or kerosene only; bio-fuel is not approved.
- Equipped with a trapping unloader.
- Factory options HX-0130 three-way ball valve, HX-0142 steam combination (250°F outlet), HX-0145 adjustable thermostat (86°F to 248°F), HX-0146 hour meter, HX-0147 four-point lifting and HX-0148 adjustable detergent valve must be ordered with the unit and cannot be added later.
- Designed for trailer or truck-bed mounting.
