What's in this package
Everything shown here ships as part of this package. Select a piece to see its description, specs and manuals.
Description

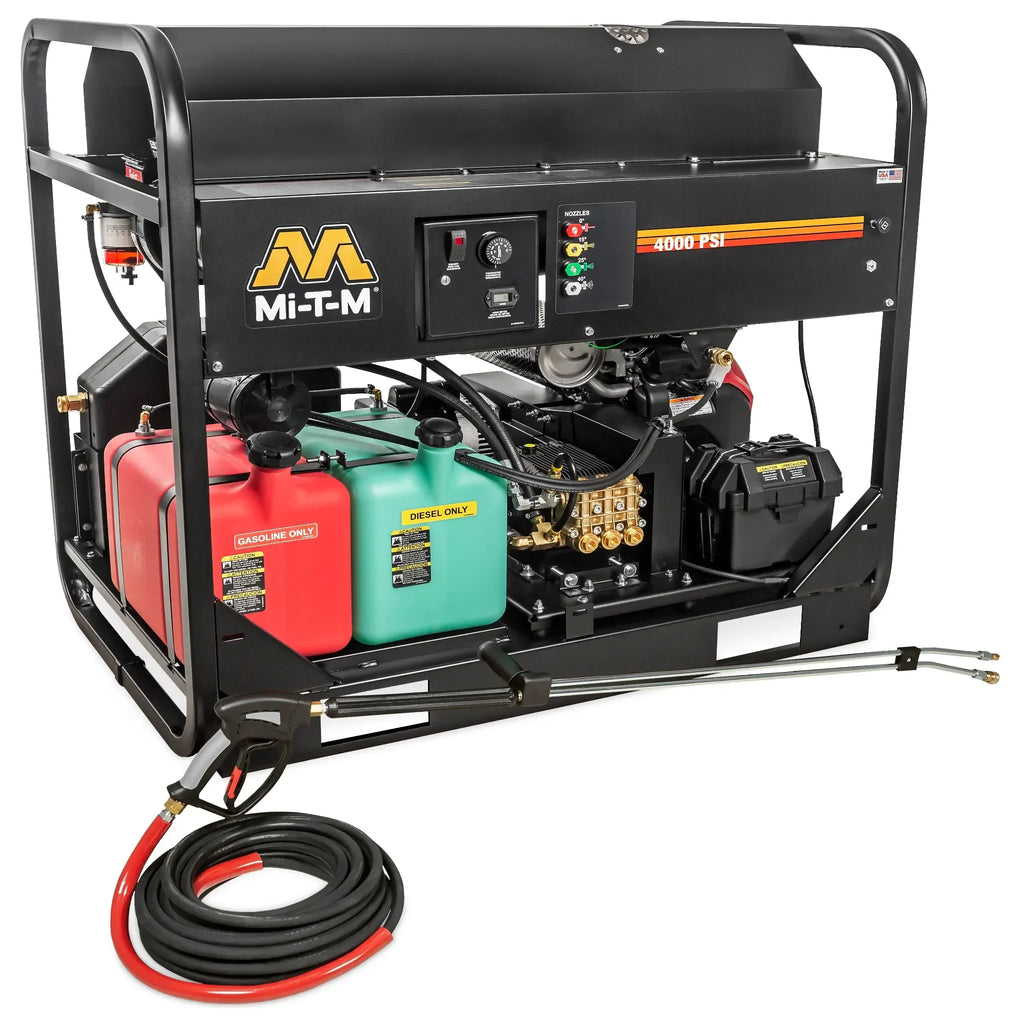

The Mi-T-M HS-4004-1MAH delivers 4,000 PSI at 4.0 GPM from a 688cc Honda GX630 OHV engine and an AR belt-drive pump. A 386,400 BTU/hr burner raises water 150°F above ambient, to a 200°F maximum outlet temperature.
Highlights
- 4,000 PSI at 4.0 GPM handles industrial degreasing, fleet washing and heavy equipment cleaning.
- Honda GX630 OHV engine with electric start and a sealed battery for push-button starts.
- 386,400 BTU/hr diesel or kerosene burner with a 1/2 in Schedule 80 stainless-wrapped coil for steady hot water.
- AR belt-drive pump with external bypass, factory-preset unloader, forged brass manifold and stainless-steel inlet strainer.
- Onboard 2900W generator supplies power at remote sites without a separate generator.
- Dual cogged belt drive delivers smooth power transfer with reduced vibration.
Details
A fit for contractors and fleet operators who run a trailer or truck-mounted wash rig and need hot water at 4.0 GPM for grease, oil and heavy soil. Mi-T-M lists a 3-year coil warranty, a 3-year Honda engine warranty and a 7-year AR pump warranty.
Need Help?
If you have questions about this product before you order, our team is happy to help.
Email: support@avermontdirect.com
Phone: +1 (844) 455-3695
Hours: Monday–Friday, 9AM–5PM
Live Chat: Available 24/7
| Model | HS-4004-1MAH |
| Pressure | 4,000 PSI |
| Flow Rate | 4.0 GPM |
| Engine | 688cc Honda GX630 OHV |
| Pump | AR, belt drive |
| Heating Output | 386,400 BTU/hr |
| Max Outlet Temperature | 200°F (150°F rise above ambient) |
| Generator | 2900W |
| Starting | Electric start, sealed battery included |
| Engine Fuel Tank | 10.0 gal |
| Burner Fuel Tank | 10.0 gal |
| Burner Fuel Consumption | 2.76 gph |
| Burner Fuel | Diesel or kerosene |
| Weight | 750 lbs |
| Shipping Weight | 854 lbs |
| Dimensions (L x W x H) | 50 x 34 x 46 in |
- Included: quick-connect nozzles (0°, 15°, 25° and 40°), a 50 ft x 3/8 in steel wire-braided hose and an adjustable dual lance with trigger gun.
- Burner fuel: diesel or kerosene.
- Factory options HX-0130 three-way ball valve, HX-0142 steam combination (250°F), HX-0145 adjustable thermostat (86°F to 248°F), HX-0146 hour meter, HX-0147 four-point lifting and HX-0148 detergent valve must be ordered with the unit and cannot be added later.
- Powder-coated steel frame with mounting provisions; designed for trailer or truck-bed mounting.
