What's in this package
Everything shown here ships as part of this package. Select a piece to see its description, specs and manuals.
Description

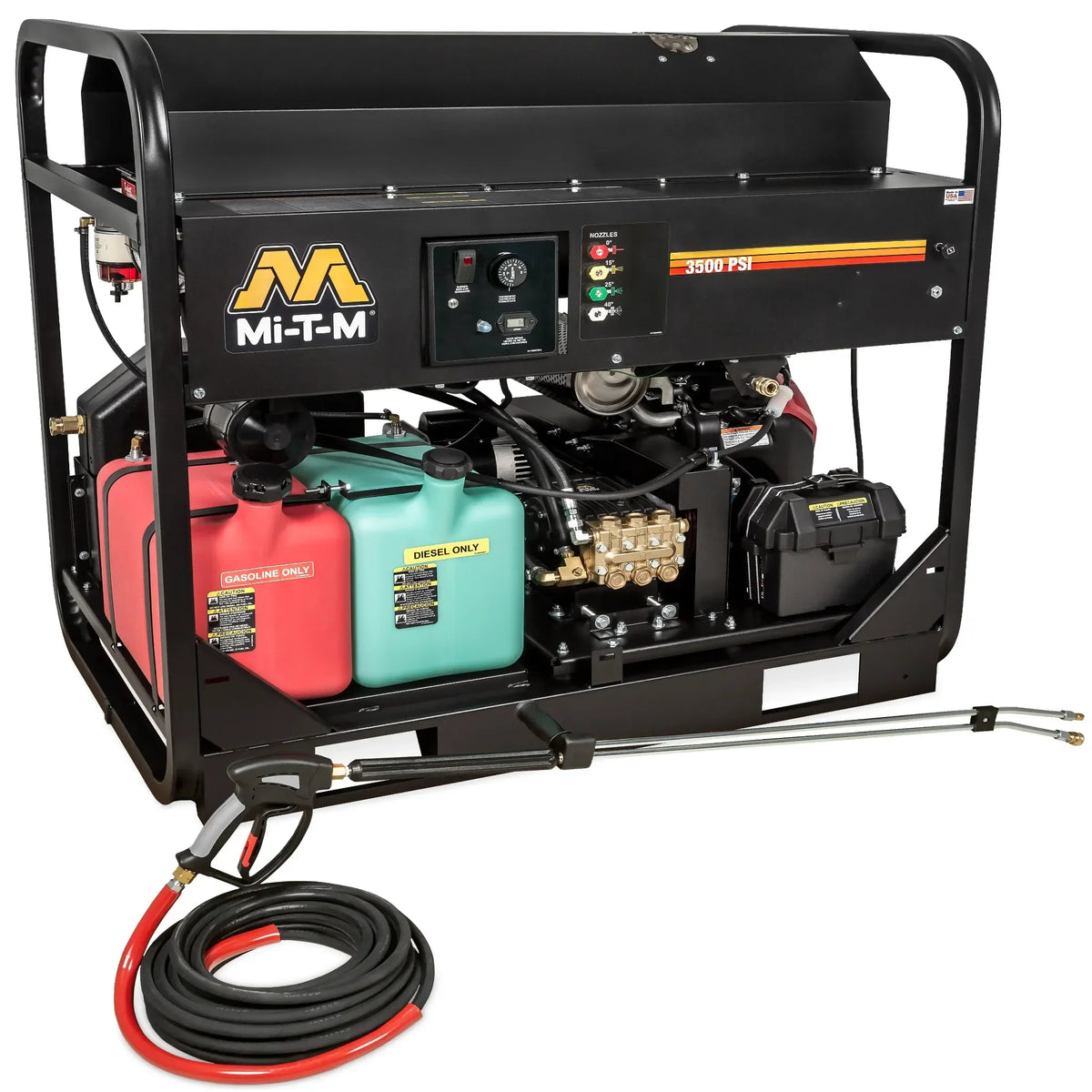

The Mi-T-M HS-3506-1MGH delivers 3,500 PSI at 5.6 GPM from a 688cc Honda GX630 OHV engine and a General pump. Its 471,800 BTU/hr burner raises water 150°F above ambient, to a 200°F maximum outlet temperature.
Highlights
- 3,500 PSI at 5.6 GPM for high-volume washing of equipment, fleets and work sites.
- 688cc Honda GX630 OHV engine with electric start and a sealed battery included.
- 471,800 BTU/hr burner with a 1/2 in Schedule 80 stainless-wrapped coil.
- Dual cogged belt drive between engine and pump.
- Onboard 2900W generator powers accessories at remote sites.
Details
Aimed at trailer-mounted wash operations that need high flow and hot water from a Honda engine for fleets, heavy equipment and site cleanup. Mi-T-M lists a 3-year coil warranty, a 3-year Honda engine warranty and a 7-year General pump warranty.
Need Help?
If you have questions about this product before you order, our team is happy to help.
Email: support@avermontdirect.com
Phone: +1 (844) 455-3695
Hours: Monday–Friday, 9AM–5PM
Live Chat: Available 24/7
| Model | HS-3506-1MGH |
| Pressure | 3,500 PSI |
| Flow Rate | 5.6 GPM |
| Engine | 688cc Honda GX630 OHV |
| Pump | General |
| Drive | Dual cogged belt drive |
| Heating Output | 471,800 BTU/hr |
| Max Outlet Temperature | 200°F (150°F rise above ambient) |
| Generator | 2900W |
| Starting | Electric start, sealed battery included |
| Engine Fuel Tank | 10.0 gal |
| Burner Fuel Tank | 10.0 gal |
| Burner Fuel Consumption | 3.37 gph |
| Weight | 760 lbs |
| Shipping Weight | 864 lbs |
| Dimensions (L x W x H) | 50 x 34 x 46 in |
- Included: quick-connect nozzles (0°, 15°, 25° and 40°), a 50 ft x 3/8 in steel wire-braided hose and an adjustable pressure insulated dual lance with trigger gun.
- Factory options HX-0130 three-way ball valve, HX-0131 high pressure detergent injector (K7), HX-0133 steam combination 250°F (K7), HX-0140 steam combination 250°F, HX-0143 trapping unloader, HX-0144 dual gun, HX-0145 adjustable thermostat, HX-0147 four-point lifting and HX-0148 adjustable detergent valve must be ordered with the unit and cannot be added later.
- Trailer mounting is standard at this weight.
