Description

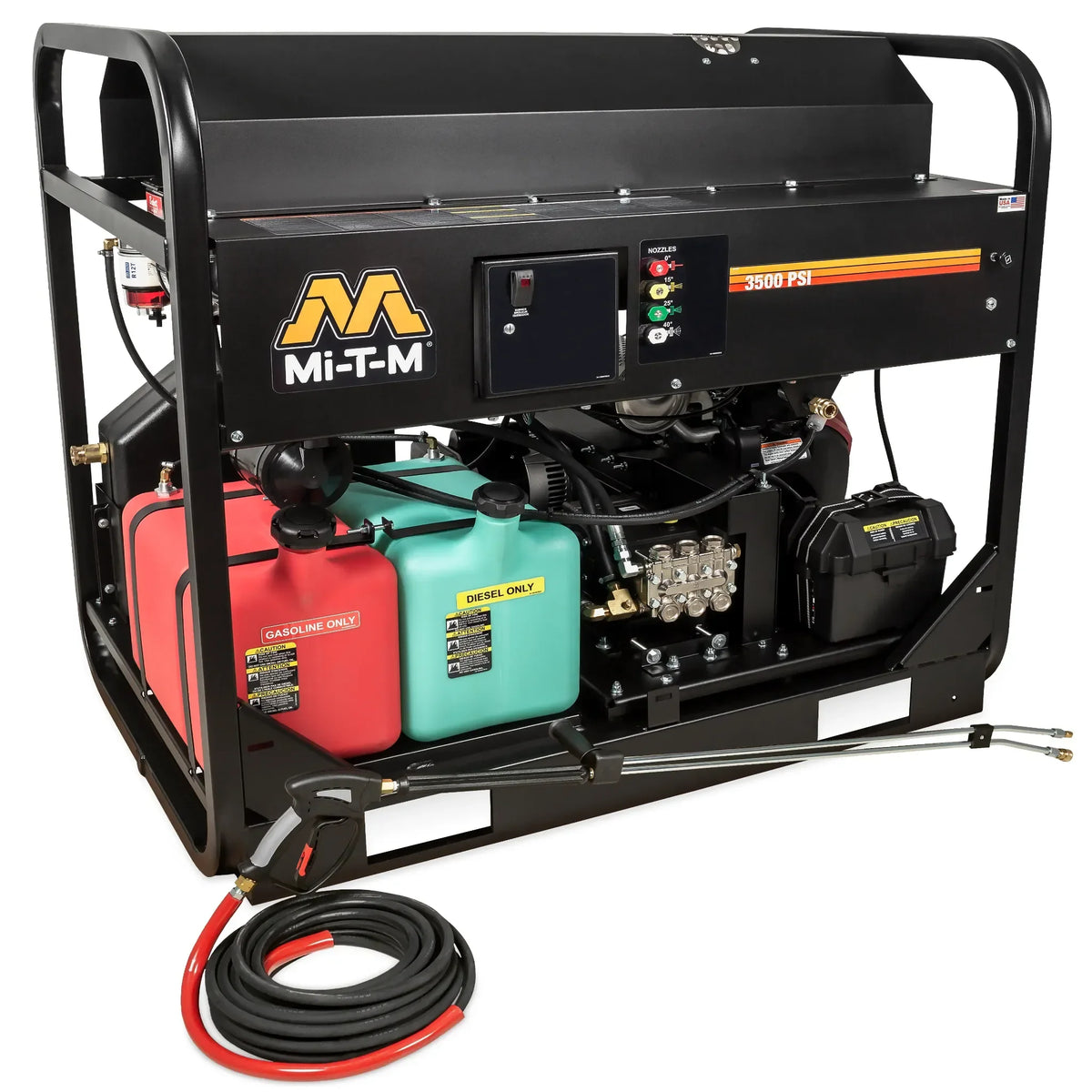

The Mi-T-M HS-3505-1MGK delivers 3,500 PSI at 4.7 GPM from a 674cc Kohler CH640 OHV engine and a General pump. The 471,800 BTU/hr burner raises water to a 200°F maximum outlet temperature, 150°F above ambient.
Highlights
- 3,500 PSI at 4.7 GPM balances pressure and flow for fleet washing, industrial degreasing and equipment cleaning.
- 674cc Kohler CH640 OHV engine with electric start and a sealed battery included.
- 471,800 BTU/hr burner raises water 150°F above ambient, up to a 200°F maximum outlet temperature.
- General pump with external bypass, preset unloader, forged brass manifold and 80-mesh stainless-steel inlet strainer.
- Onboard 2900W generator for remote site power.
- Dual cogged belt drive and a 1/2 in Schedule 80 stainless-wrapped coil.
Details
A trailer-mounted hot water pressure washer for fleet maintenance, equipment washing and industrial degreasing crews. Mi-T-M lists a 3-year coil warranty, a 3-year Rehlko (Kohler) engine warranty and a 7-year General pump warranty.
Need Help?
If you have questions about this product before you order, our team is happy to help.
Email: support@avermontdirect.com
Phone: +1 (844) 455-3695
Hours: Monday–Friday, 9AM–5PM
Live Chat: Available 24/7
| Model | HS-3505-1MGK |
| Pressure | 3,500 PSI |
| Flow Rate | 4.7 GPM |
| Engine | 674cc Kohler CH640 OHV |
| Pump | General |
| Drive | Dual cogged belt drive |
| Heating Output | 471,800 BTU/hr |
| Max Outlet Temperature | 200°F (150°F rise above ambient) |
| Generator | 2900W |
| Starting | Electric start, sealed battery included |
| Engine Fuel Tank | 10.0 gal |
| Burner Fuel Tank | 10.0 gal |
| Burner Fuel Consumption | 3.37 gph |
| Weight | 750 lbs |
| Shipping Weight | 854 lbs |
| Dimensions (L x W x H) | 50 x 34 x 46 in |
- Included: quick-connect nozzles (0°, 15°, 25° and 40°), a 50 ft x 3/8 in steel wire-braided hose and an adjustable pressure insulated dual lance with trigger gun.
- Factory options HX-0130 three-way ball valve, HX-0131 high pressure detergent injector (K7), HX-0133 steam combination 250°F (K7), HX-0139 steam combination 250°F, HX-0145 adjustable thermostat, HX-0147 four-point lifting, HX-0148 adjustable detergent valve and HX-0200 trapping unloader must be ordered with the unit and cannot be added later.
- Trailer mounting is standard at this weight.
