What's in this package
Everything shown here ships as part of this package. Select a piece to see its description, specs and manuals.
Description

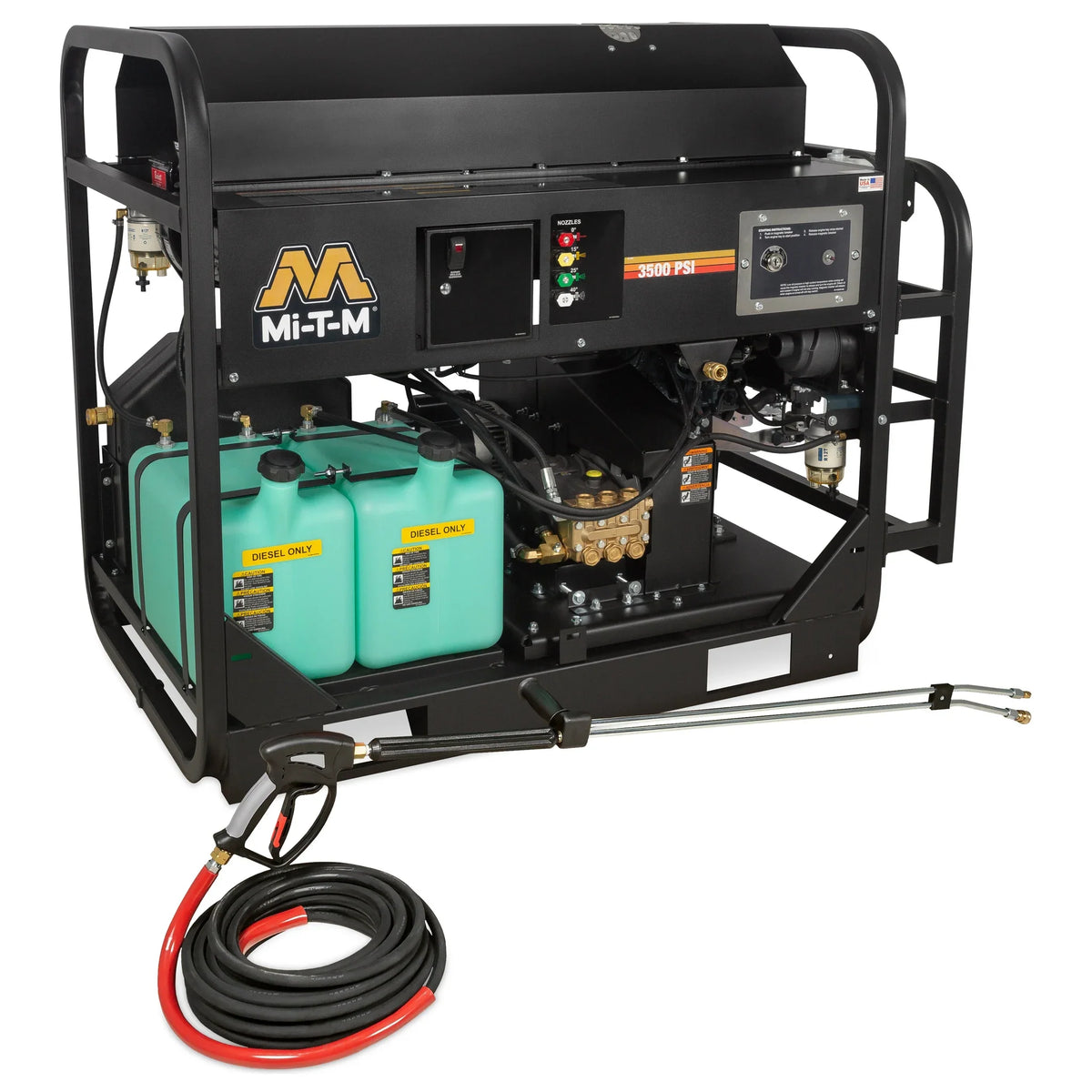

The Mi-T-M HS-3505-0MDK is a diesel hot water pressure washer that delivers 3,500 PSI at 4.7 GPM from a 16.8 HP Kubota Z602 OHV engine and a General pump. Mount it on a trailer or in a truck bed to take hot water cleaning from one job site to the next.
Highlights
- 3,500 PSI at 4.7 GPM cuts through grease, oil, heavy mud and grime.
- 471,800 BTU/hr burner fired by No. 1 or No. 2 diesel or kerosene raises water 150°F above ambient, up to 200°F.
- 16.8 HP Kubota Z602 OHV engine with electric start and a sealed battery included.
- External bypass, factory-preset unloader, forged brass manifold and 80-mesh high-volume stainless-steel inlet strainer protect the pump.
- Onboard 2900-watt generator and heavy-duty dual cogged belt drive.
- Heavy-duty powder-coated steel frame with a 1/2 in Schedule 80 coil and stainless-steel wrap.
Details
Built for mobile wash crews and fleet operators who want one fuel for engine and burner, cleaning trucks, heavy equipment and oil-field machinery on site. Mi-T-M lists a 3-year coil warranty, a 3-year Kubota engine warranty and a 7-year General pump warranty.
Need Help?
If you have questions about this product before you order, our team is happy to help.
Email: support@avermontdirect.com
Phone: +1 (844) 455-3695
Hours: Monday–Friday, 9AM–5PM
Live Chat: Available 24/7
| Model | HS-3505-0MDK |
| Pressure | 3,500 PSI |
| Flow Rate | 4.7 GPM |
| Engine | 16.8 HP Kubota Z602 OHV |
| Pump | General |
| Drive | Dual cogged belt drive |
| Heating Output | 471,800 BTU/hr |
| Max Outlet Temperature | 200°F (150°F rise above ambient) |
| Generator | 2900W |
| Starting | Electric start, sealed battery included |
| Engine Fuel Tank | 10.0 gal |
| Burner Fuel Tank | 10.0 gal |
| Burner Fuel Consumption | 3.37 gph |
| Burner Fuel | No. 1 or No. 2 diesel or kerosene |
| Net Weight | 836 lbs |
| Shipping Weight | 940 lbs |
| Dimensions (L x W x H) | 56.5 x 34 x 46 in |
- Included: quick-connect nozzles (0°, 15°, 25° and 40°), a 50 ft x 3/8 in steel wire-braided hose and an adjustable pressure insulated dual lance with trigger gun.
- Burner runs on No. 1 or No. 2 diesel or kerosene; bio-fuel is not approved.
- Factory options HX-0130 three-way ball valve, HX-0131 high pressure detergent injector (K7), HX-0133 steam combination 250°F (K7), HX-0139 steam combination 250°F, HX-0145 adjustable thermostat, HX-0147 four-point lifting, HX-0148 adjustable detergent valve, HX-0200 trapping unloader and HX-0285 30-gallon diesel fuel tank must be ordered with the unit and cannot be added later.
- Designed for trailer or truck-bed mounting.
