Description

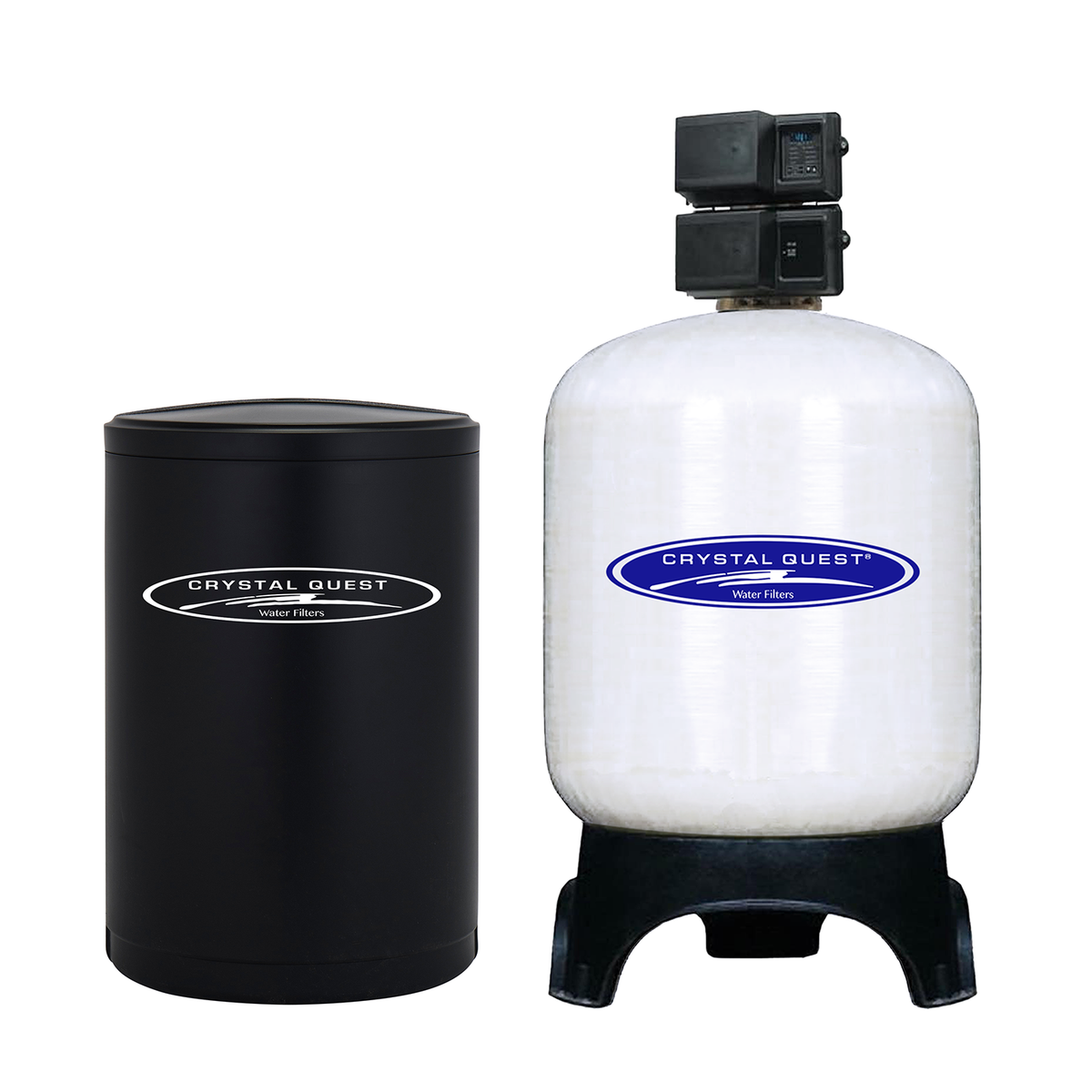

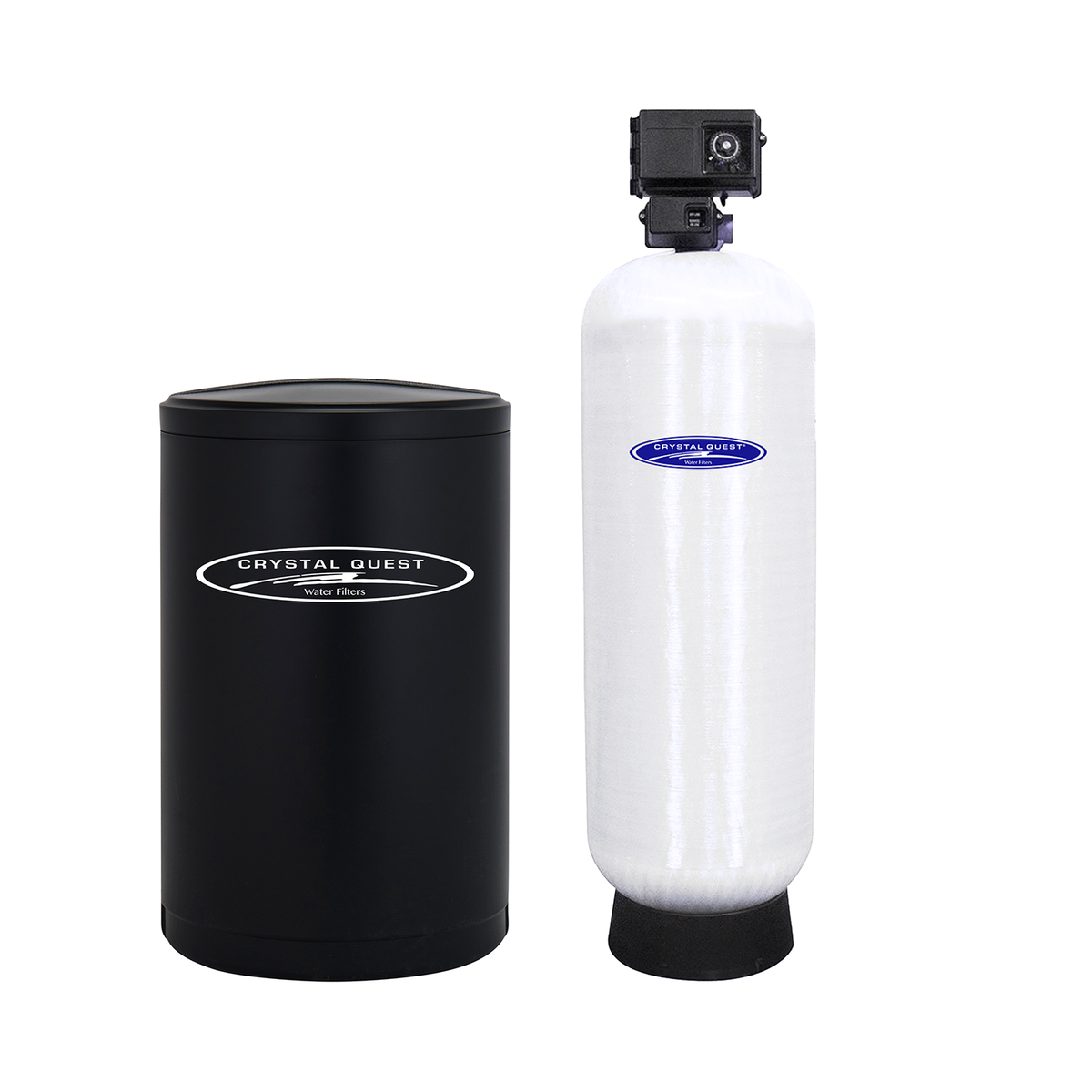

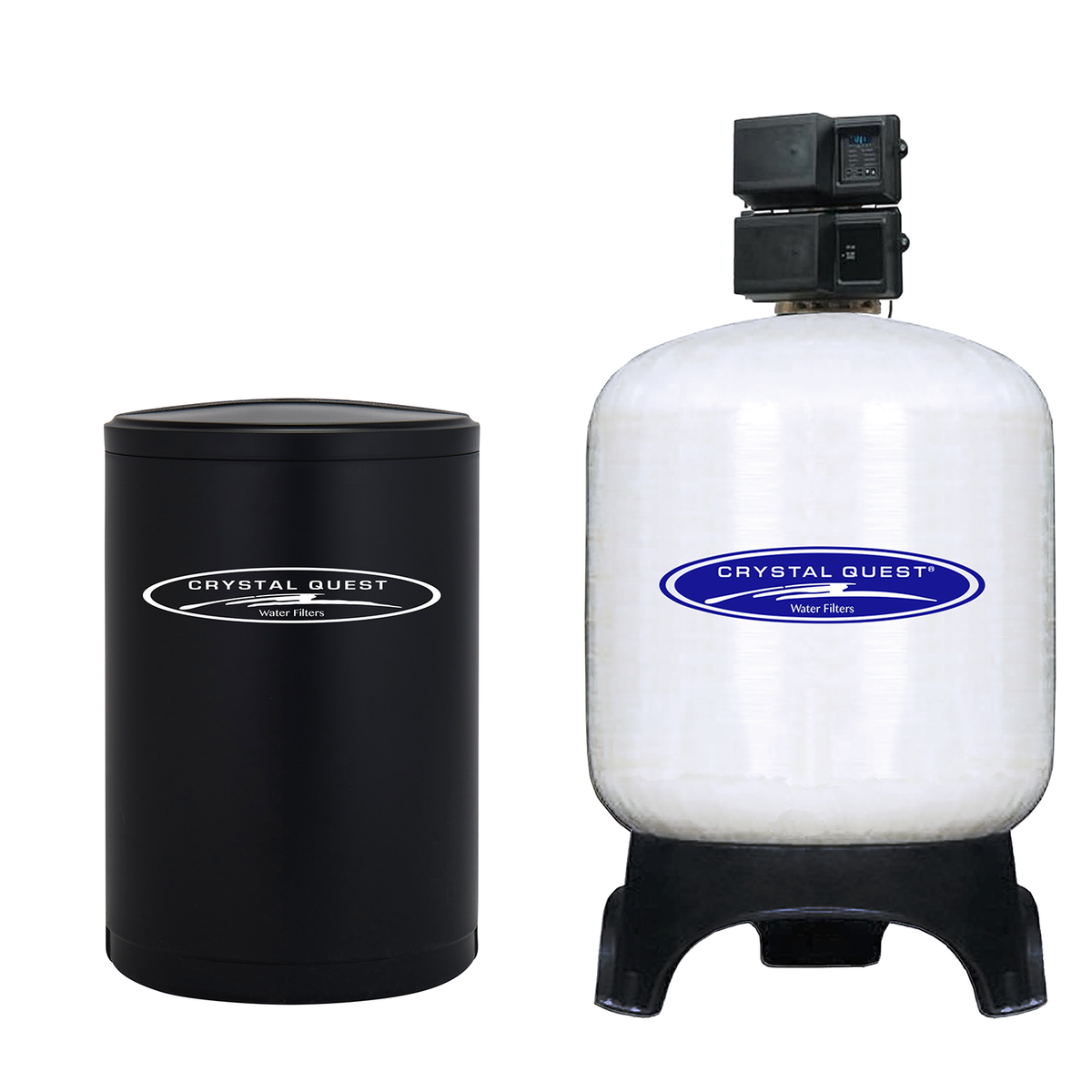

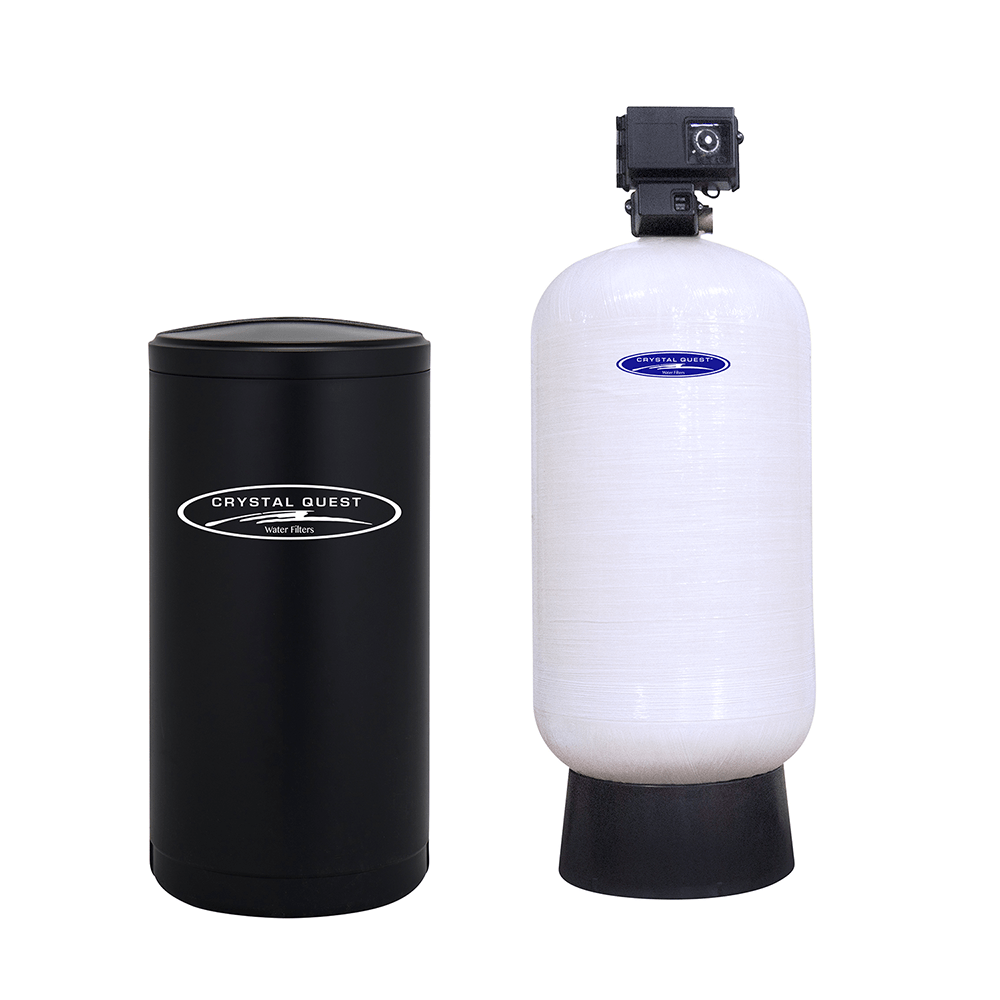

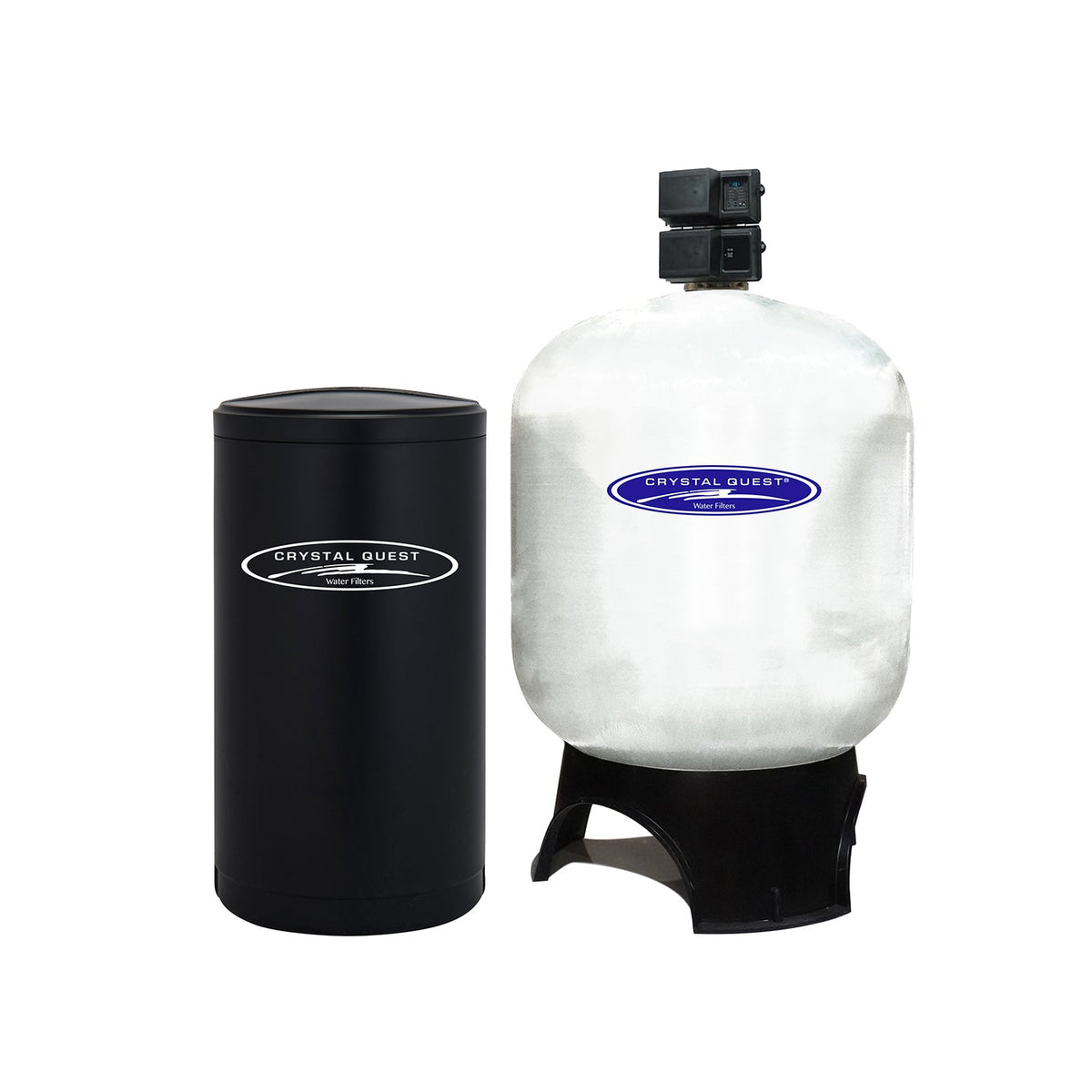

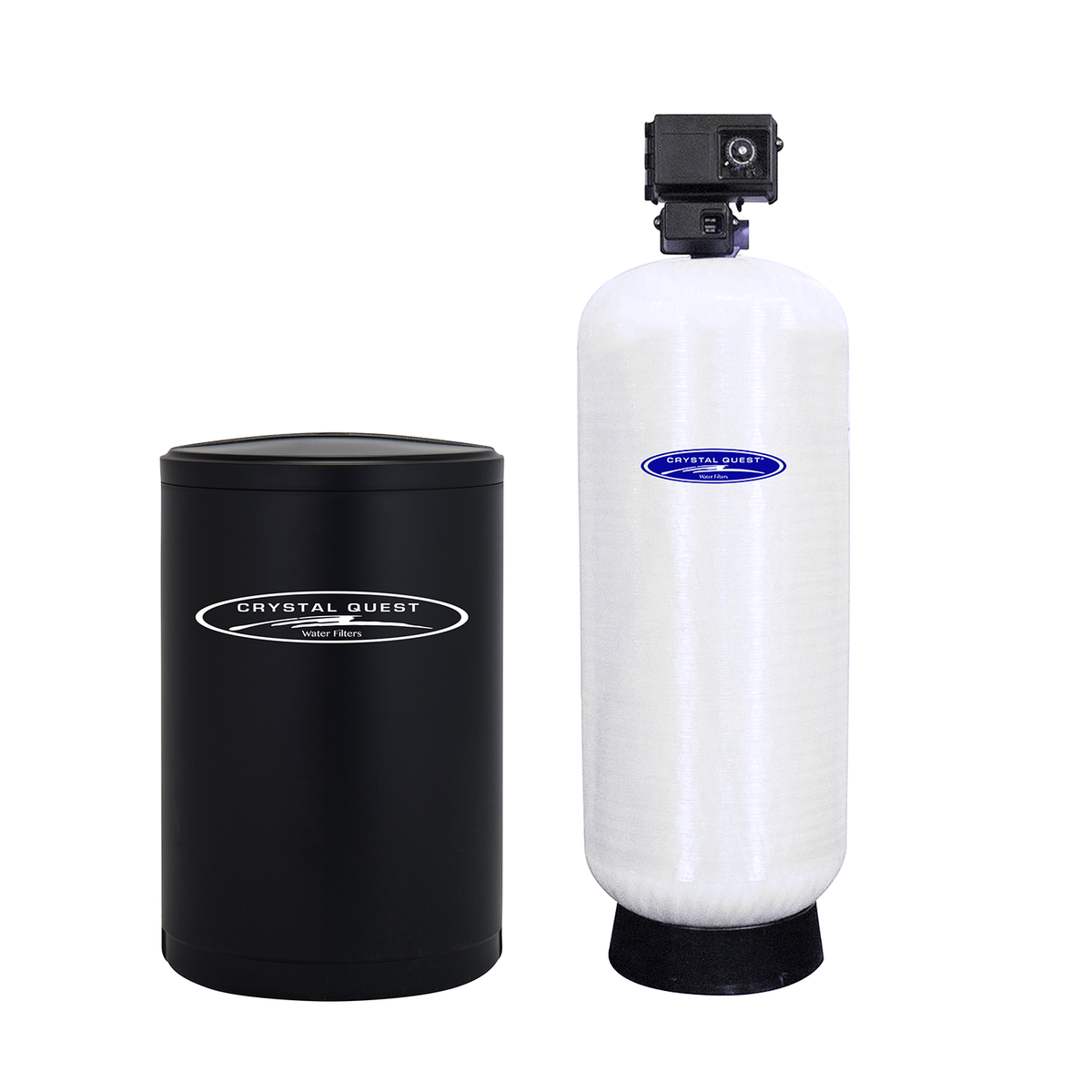

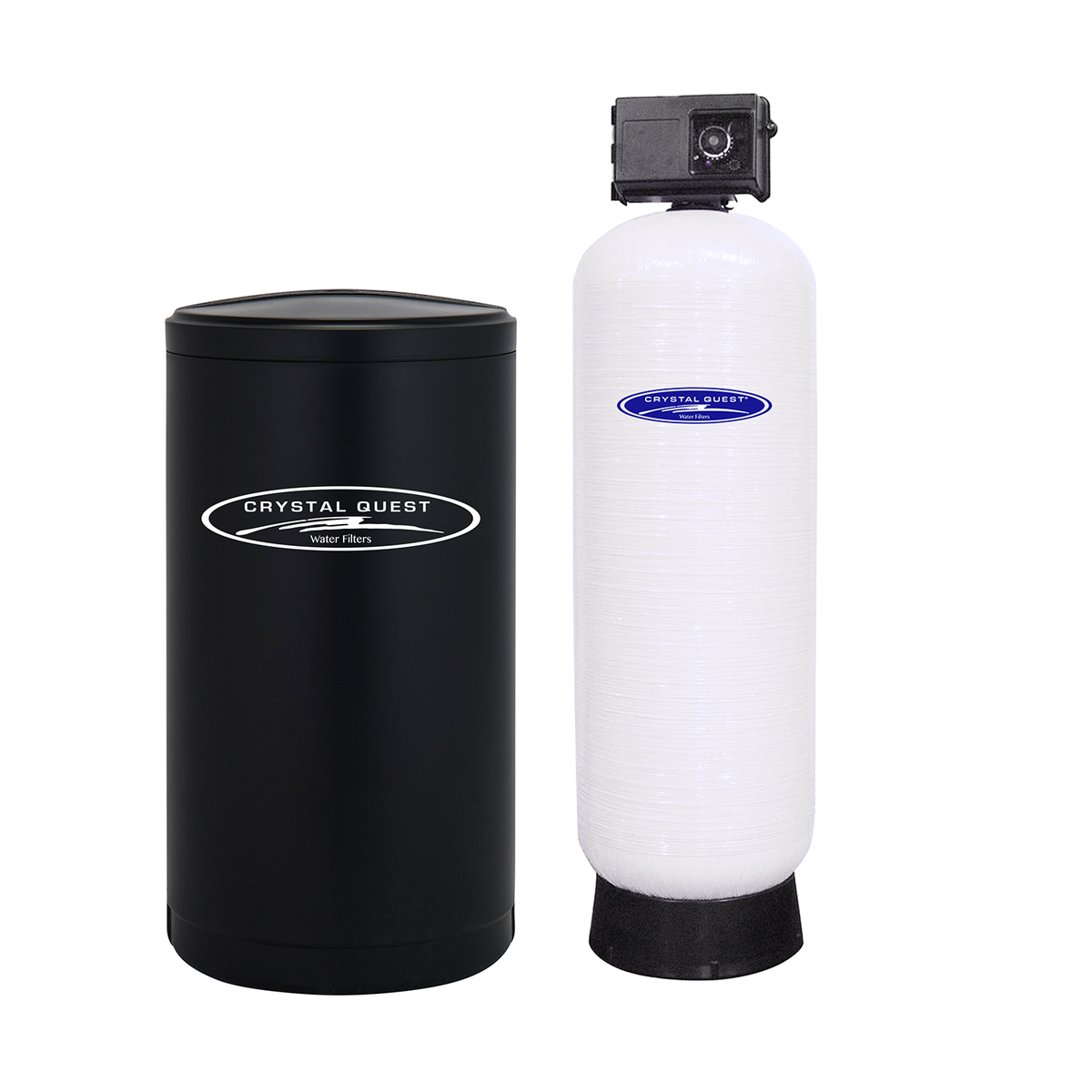

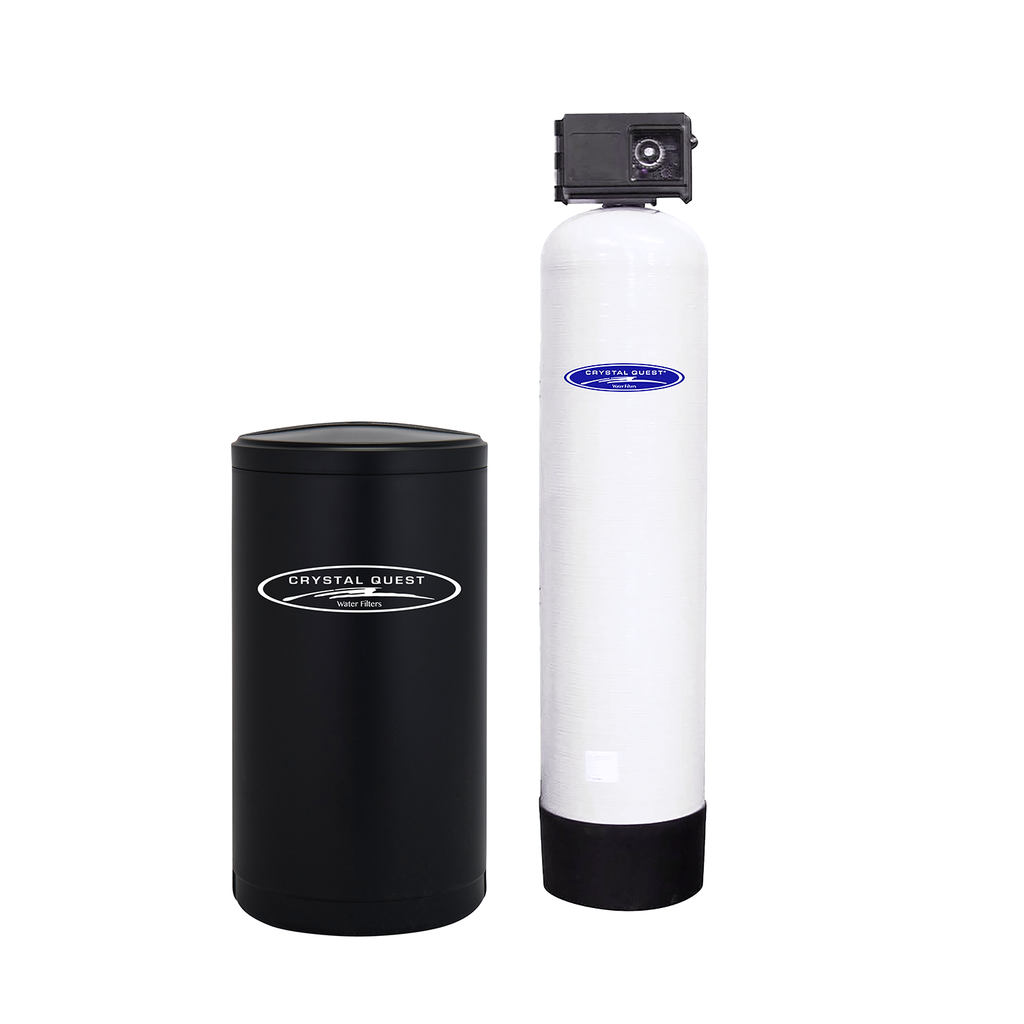

The Crystal Quest Lead Removal Water Filtration System is a commercial tank system that pairs a multi-media lead reduction bed with a softener resin stage. The media blend combines coconut-shell and catalytic GAC, Eagle Redox Alloys 9500 and 6500, and anion exchange resin.
Highlights
- Redox alloy media aids oxidation of lead so it is easier to remove
- GAC and catalytic GAC layers also reduce chlorine and chloramine, pesticides and herbicides
- Strong acid cation softener resin regenerates with potassium chloride or sodium chloride
- All-brass, motor-driven control valve with fully adjustable regeneration cycles
- Flow controller limits backwash flow to reduce water and salt use
- Nine flow rate sizes from 7 to 200 GPM for commercial and industrial supplies
Details
Avermont Direct is an authorized Crystal Quest dealer. This system is built for commercial and industrial water supplies where lead is a concern. Confirm your flow requirement, pipe size, drain access for backwash and the floor space for both the media and brine tanks before ordering. Our team can help you choose a size and any add-ons.
Need Help?
If you have questions about this product before you order, our team is happy to help.
Email: support@avermontdirect.com
Phone: +1 (844) 455-3695
Hours: Monday–Friday, 9AM–5PM
Live Chat: Available 24/7
| Treats | Lead (Pb) and other heavy metals |
| Flow Rate Options | 7, 10, 20-22, 30, 40, 80, 100, 140 or 200 GPM |
| Filtration Media | Coconut-shell GAC, catalytic GAC, Eagle Redox Alloy 9500 and 6500, anion exchange resin |
| Softening Media | Eagle Softener Resin (strong acid cation exchange) |
| Lead Media Volume | 3 to 60 cu. ft., depending on model |
| Quartz | 30 to 600 lbs., depending on model |
| Operating Pressure | 35–60 PSI |
| Pipe Size | 1" to 3", depending on model |
| Automatic Control Valves | 2510, 2850, 2900, 3150 or 3900, depending on model |
| Brine Tank Capacity | 36 to 528 gallons, depending on model |
| Regeneration Salt | Potassium chloride or sodium chloride |
| Salt Dosage | 8, 12 or 15 lbs. per cu. ft. |
| Tanks | Heavy-duty composite fiberglass media tank and heavy-duty brine tank |
- Timer control valves with a self-adjusting backwash controller and high flow distributor
- Potassium chloride uses about 10% more salt than sodium chloride; its backwash can be discharged onto a lawn or garden, while sodium chloride backwash must go to a sewer
- Media blend is also listed for pharmaceutical by-products and petroleum by-products
- Manual backwash and manual upflow control heads are listed as compatible for 15–75 GPM tank sizes; the manual upflow head needs no electricity
- Add-ons available on request: metered control valve, backwash or regeneration bypass, no hard water bypass, 3200NT or NXT controller upgrade, duplex, twin alternating or triplex configurations, and skid mounting
