Description

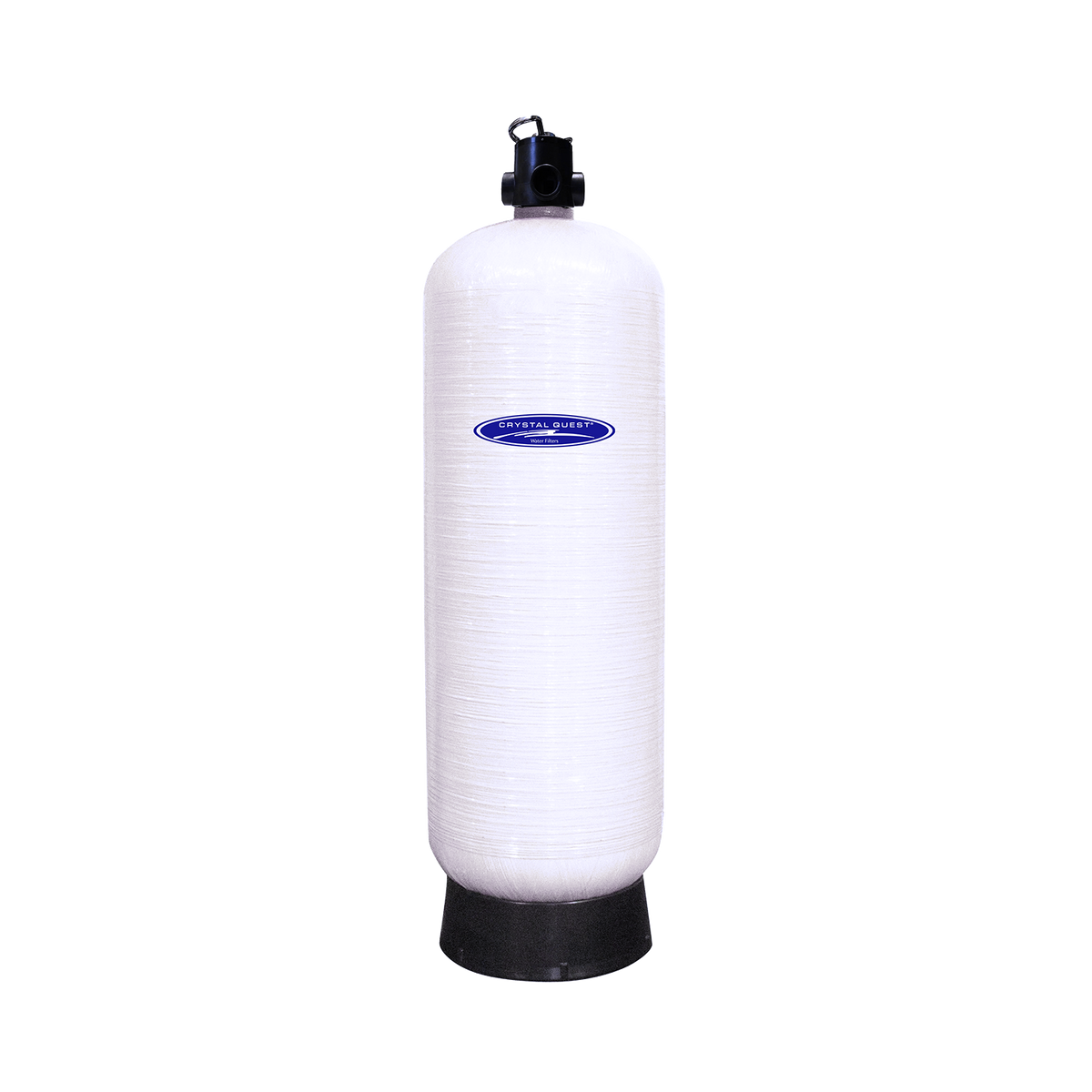

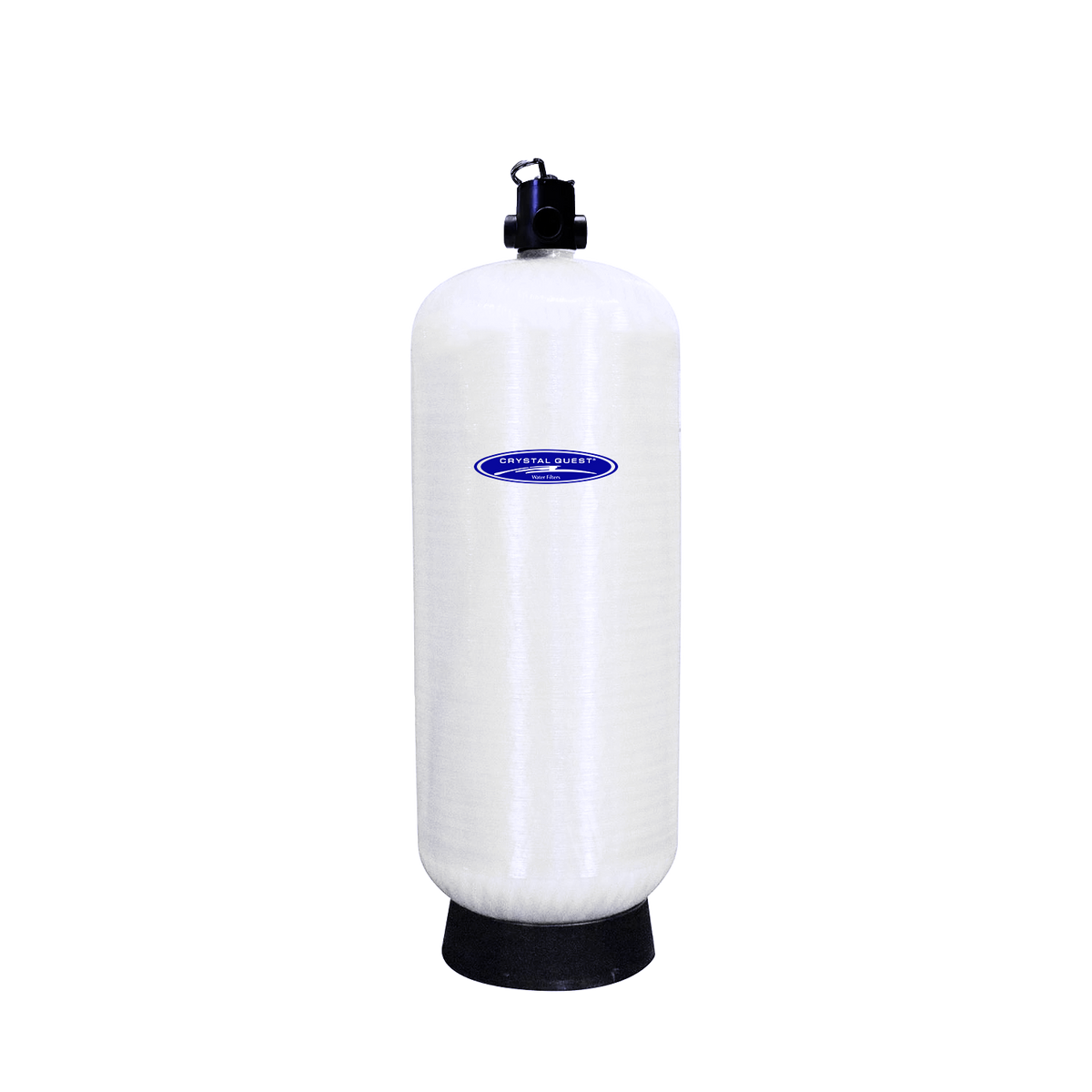

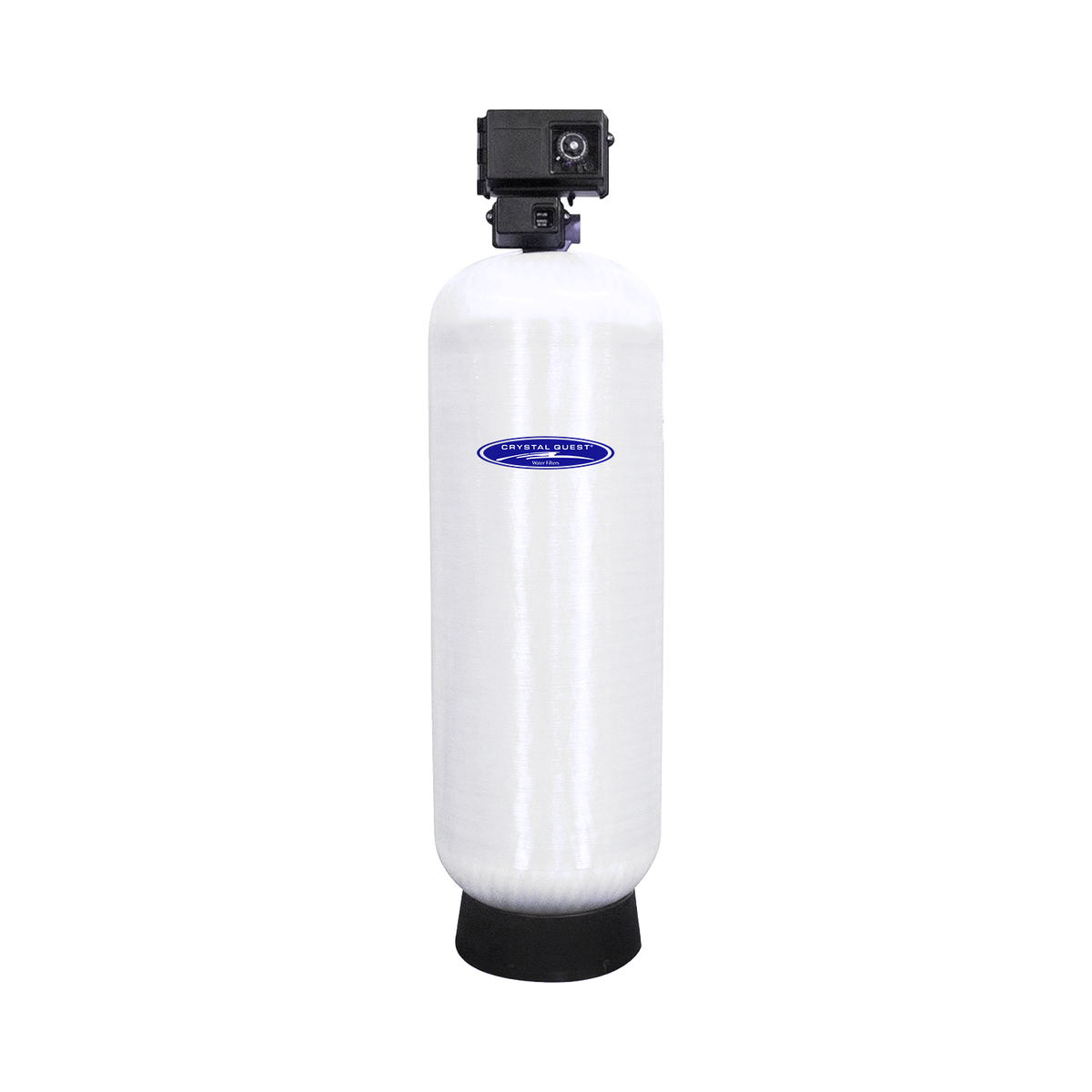

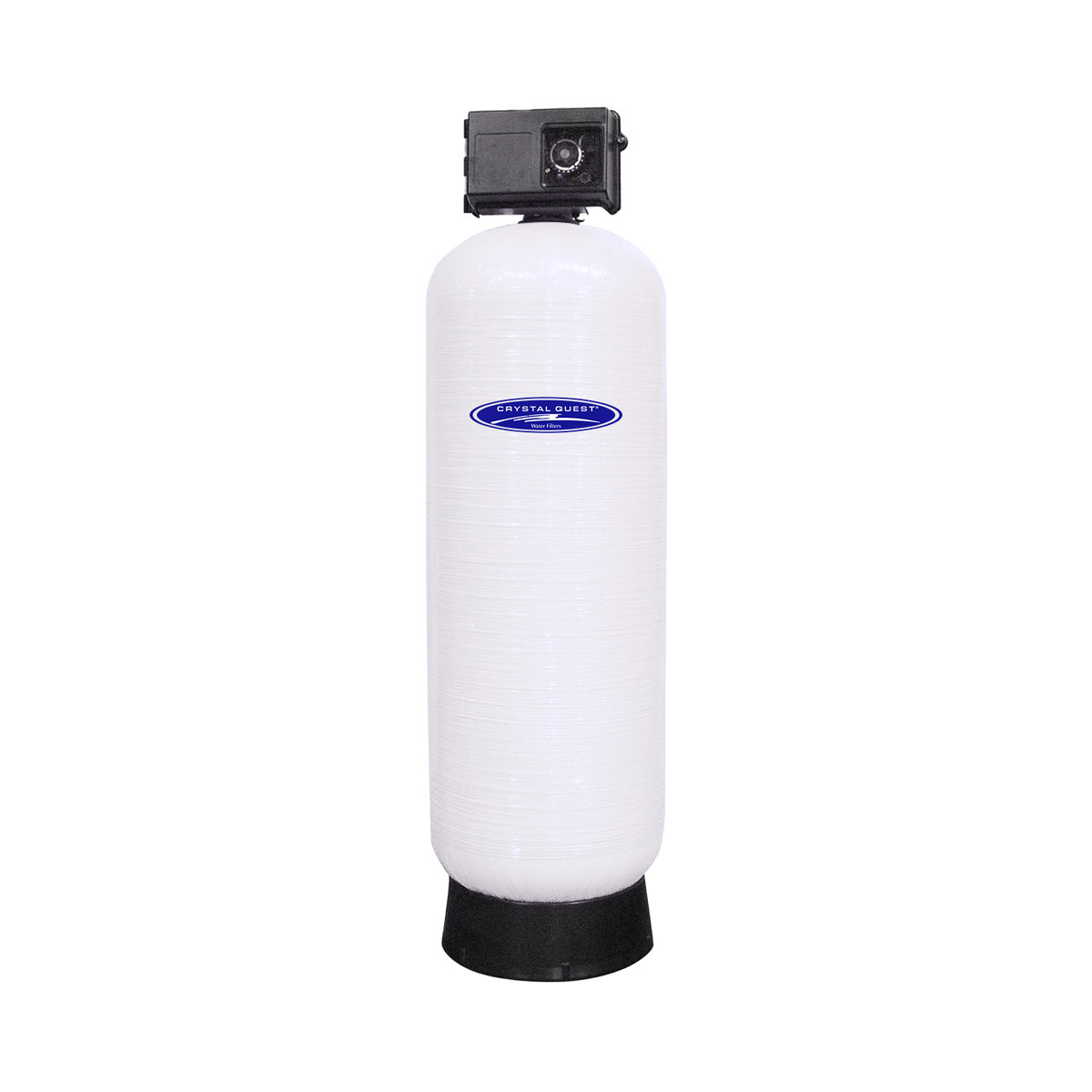

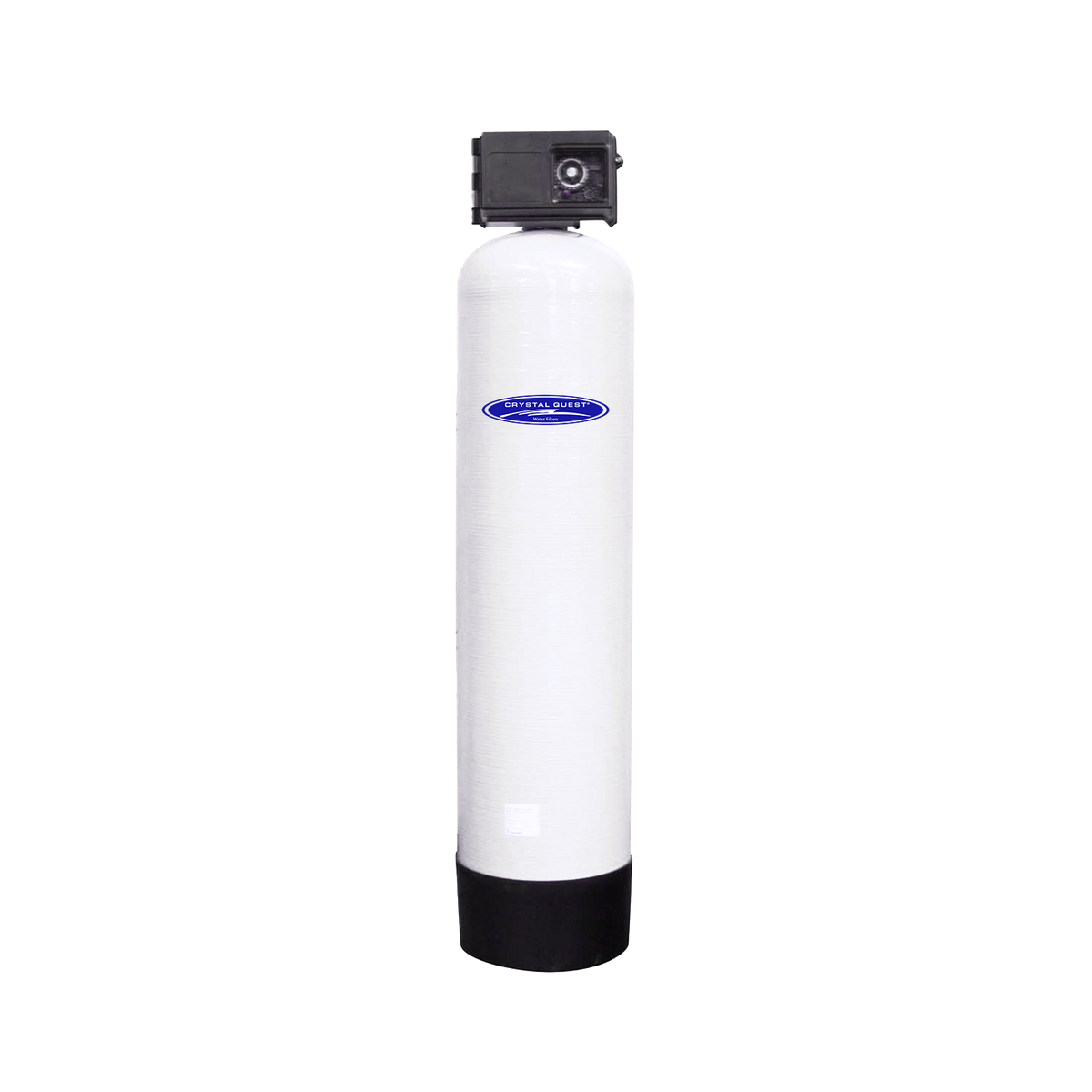

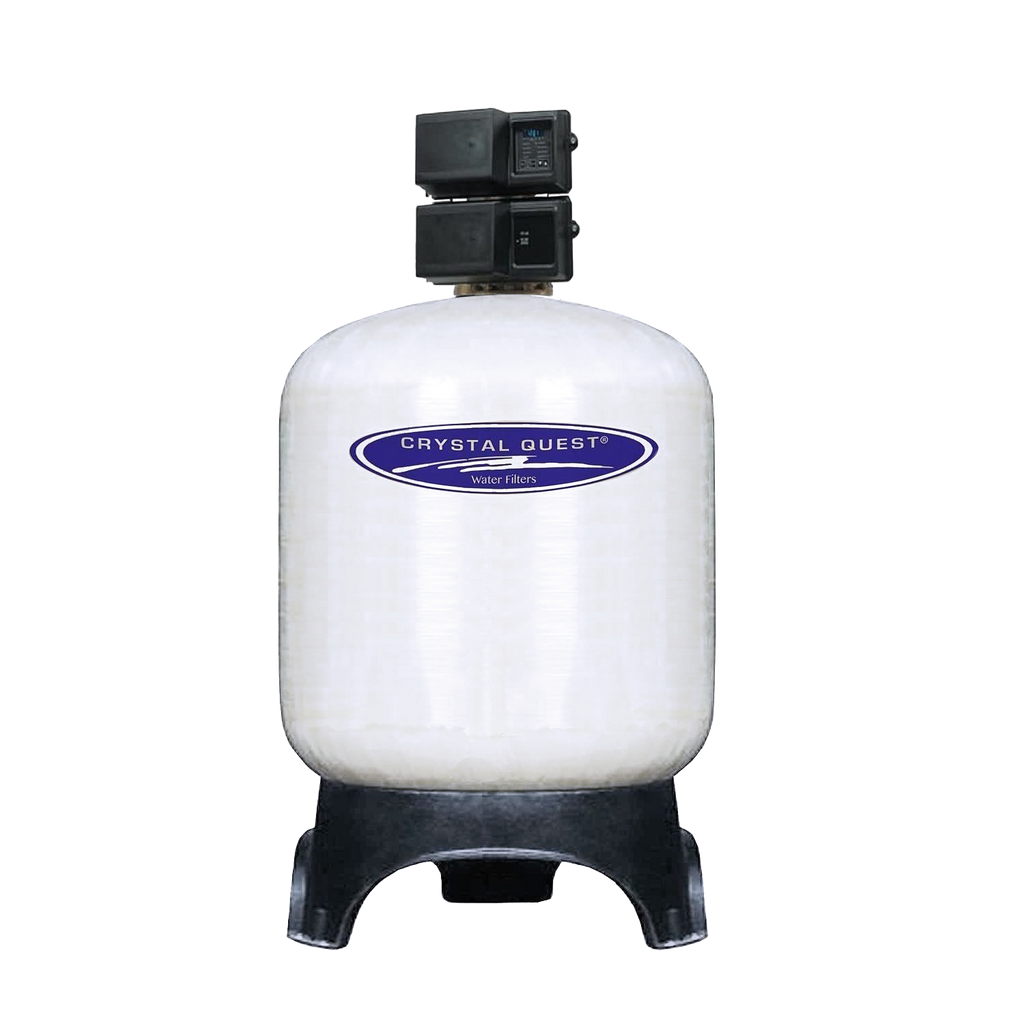

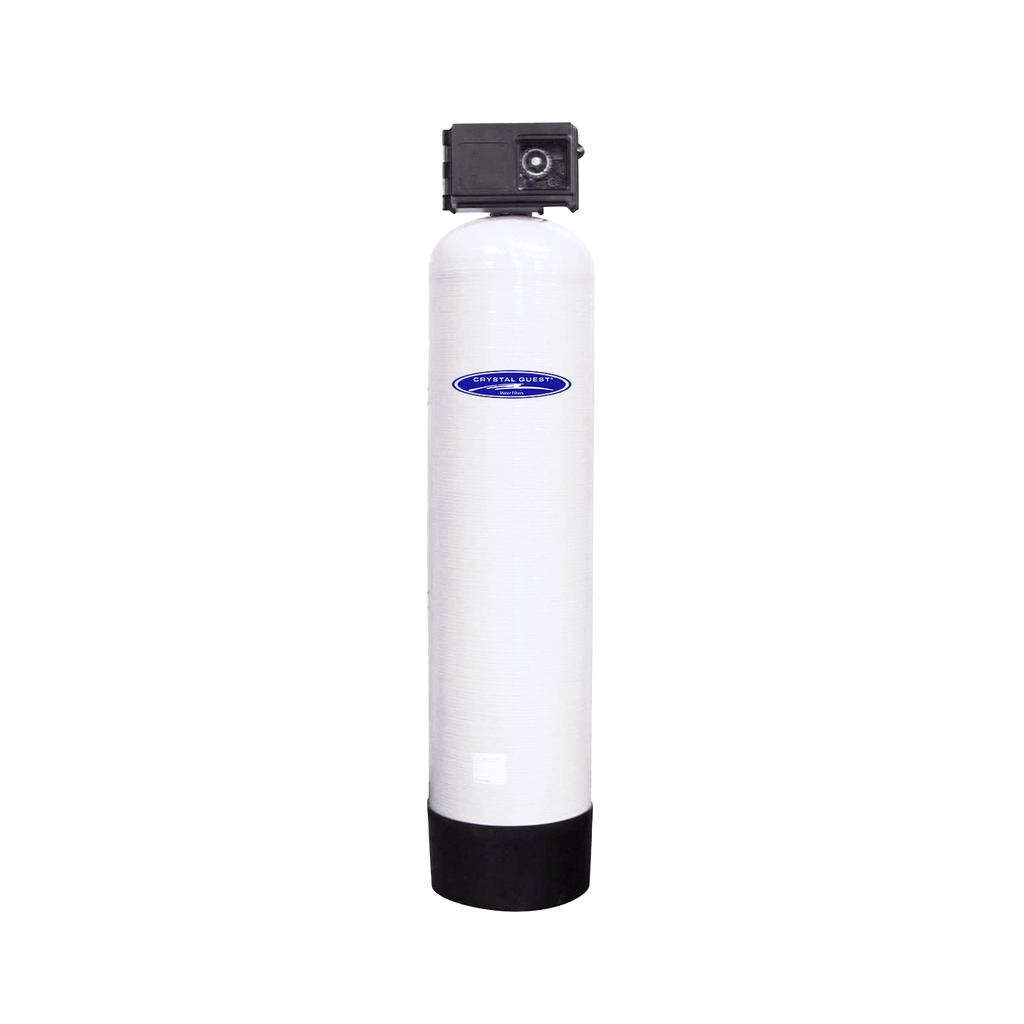

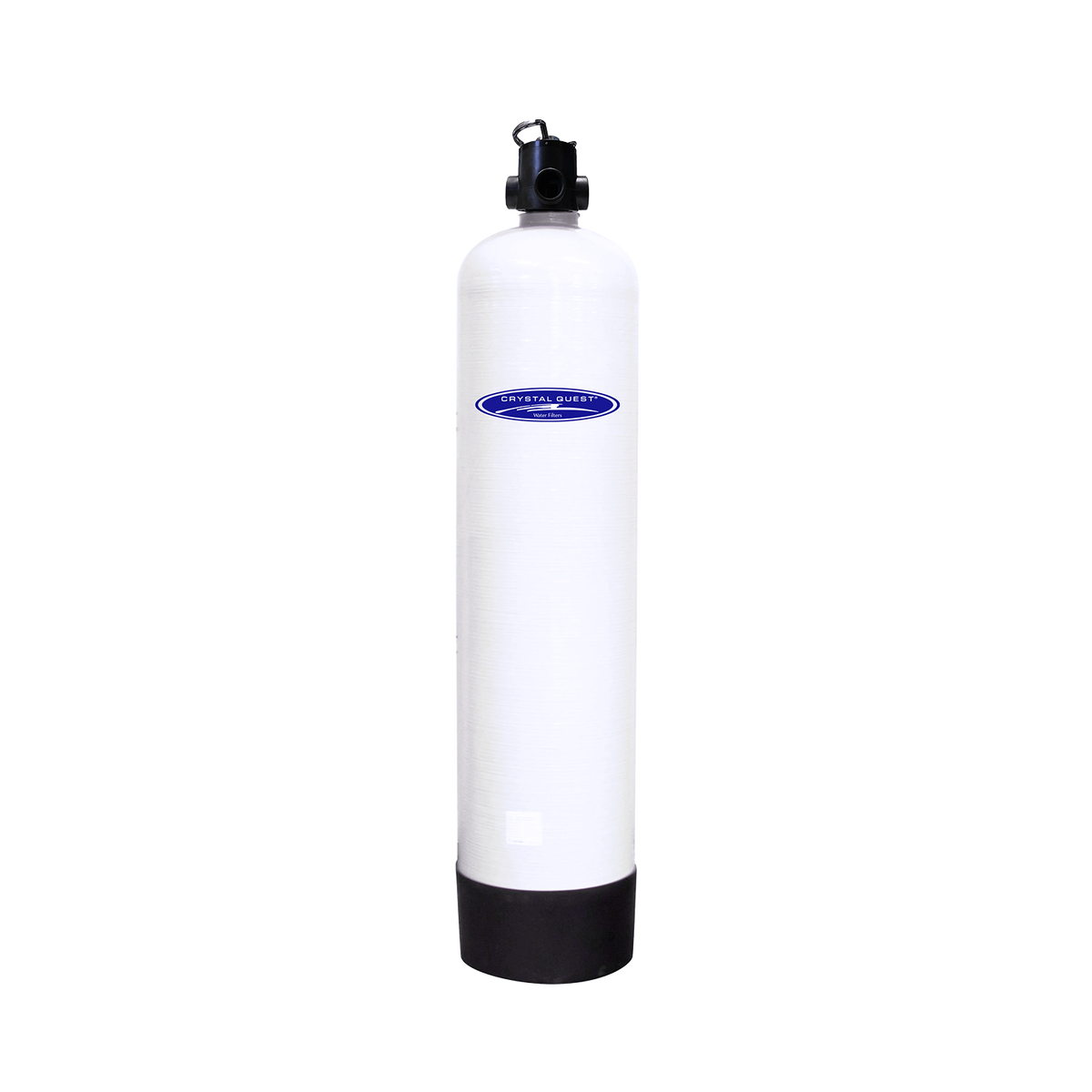

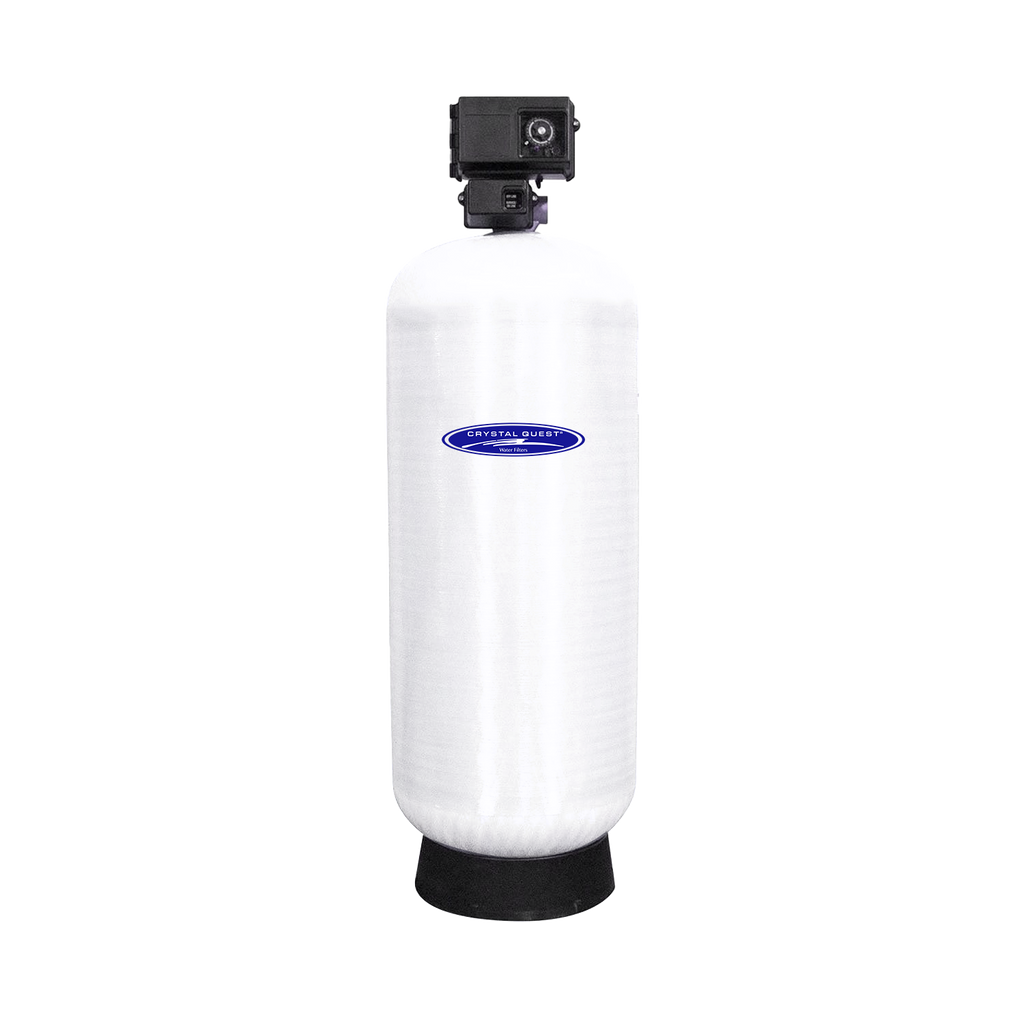

The Crystal Quest Iron, Manganese & Hydrogen Sulfide Removal Water Filtration System is a commercial tank system that filters these three contaminants with MetalX multimedia and quartz. Models run from 15 to 390 GPM service flow at 35–60 PSI.
Highlights
- MetalX multimedia bed targets iron, manganese and hydrogen sulfide in one tank
- Nine service flow sizes from 15 to 390 GPM to match the demand of the building
- Automatic control heads with fully adjustable backwash cycles keep the media bed clean
- Manual upflow head option on 15–75 GPM models runs without electricity
- Heavy-duty composite fiberglass tanks with a high flow distributor
- Flow controller limits backwash flow to reduce water consumption
Details
Avermont Direct is an authorized Crystal Quest dealer. This system is sized for commercial and industrial water supplies with iron, manganese or hydrogen sulfide. Choose the service flow rate that matches your peak demand, and confirm pipe size and available floor and ceiling space before ordering. Our team can help with sizing and add-on options.
Need Help?
If you have questions about this product before you order, our team is happy to help.
Email: support@avermontdirect.com
Phone: +1 (844) 455-3695
Hours: Monday–Friday, 9AM–5PM
Live Chat: Available 24/7
| Treats | Iron, manganese and hydrogen sulfide |
| Service Flow Rate | 15, 20, 35, 60, 75, 185, 200, 245 or 390 GPM |
| Peak Flow Rate | 22 to 450 GPM, depending on model |
| Backwash Flow Rate | 5 to 75 GPM, depending on model |
| Pipe Size | 1" to 3", depending on model |
| Control Head Options | Automatic, manual upflow, or manual downflow with backwash (15–75 GPM); automatic only on 185 GPM and up |
| Automatic Control Valves | 2510, 2850, 2900, 3150 or 3900, depending on model |
| Media | MetalX metal removal multimedia and quartz |
| Metal Removal Media | 3 to 60 cu. ft., depending on model |
| Quartz | 30 to 600 lbs., depending on model |
| Operating Pressure | 35–60 PSI |
| Mineral Tank Size | 14" x 65" (15 GPM) to 63" x 83" (390 GPM) |
| Space Required (D x H) | 16" x 75" (15 GPM) to 67" x 203" (390 GPM) |
| Tanks | Heavy-duty composite fiberglass |

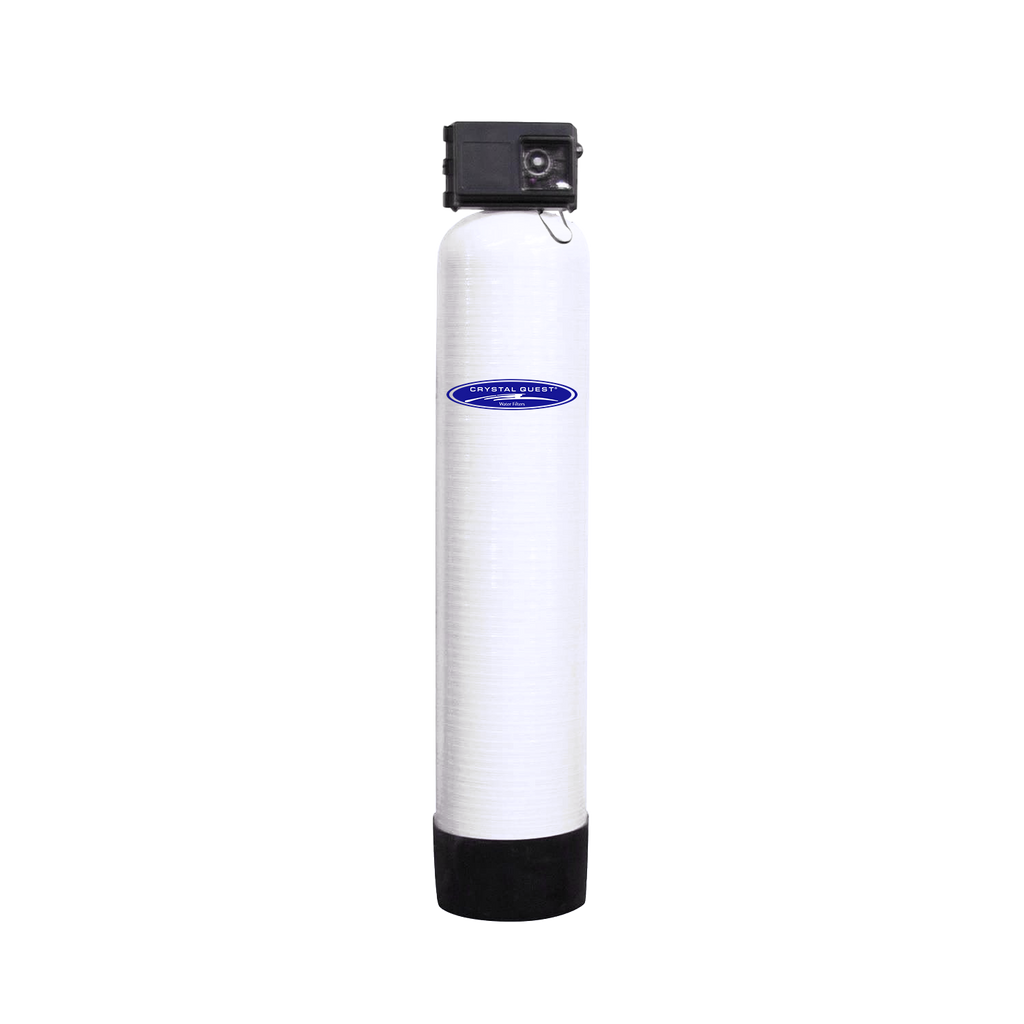

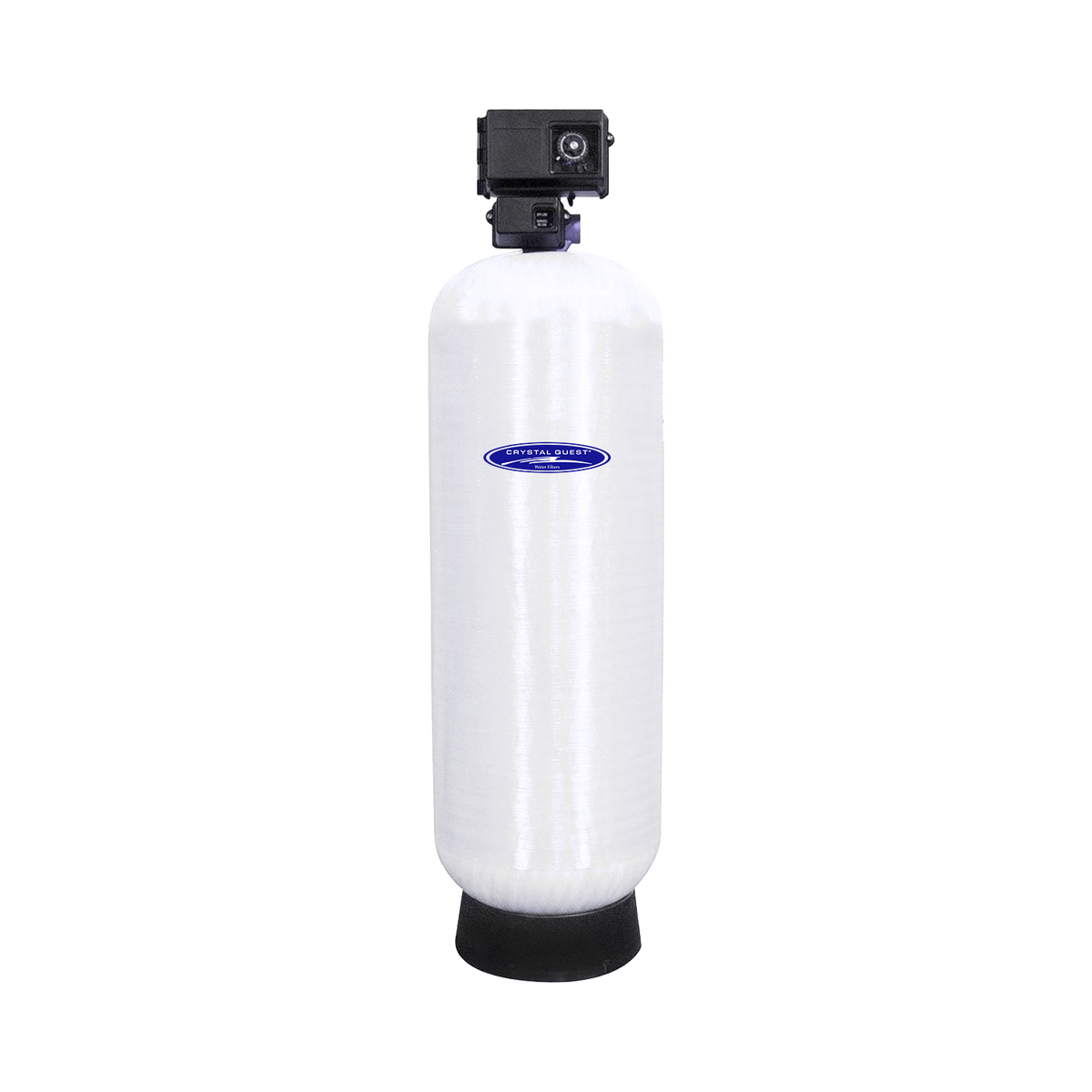

- Automatic heads use all-brass, motor-driven control valves with a self-adjusting backwash controller
- 2510 head (15 GPM): 19 GPM high service flow, 17 GPM backwash capacity
- 2850 head (20–35 GPM): 1 1/2" valve, 60 GPM high service flow, 47 GPM backwash capacity, 5-cycle control
- 2900 head (60–75 GPM): 2" valve, 106 GPM high service flow

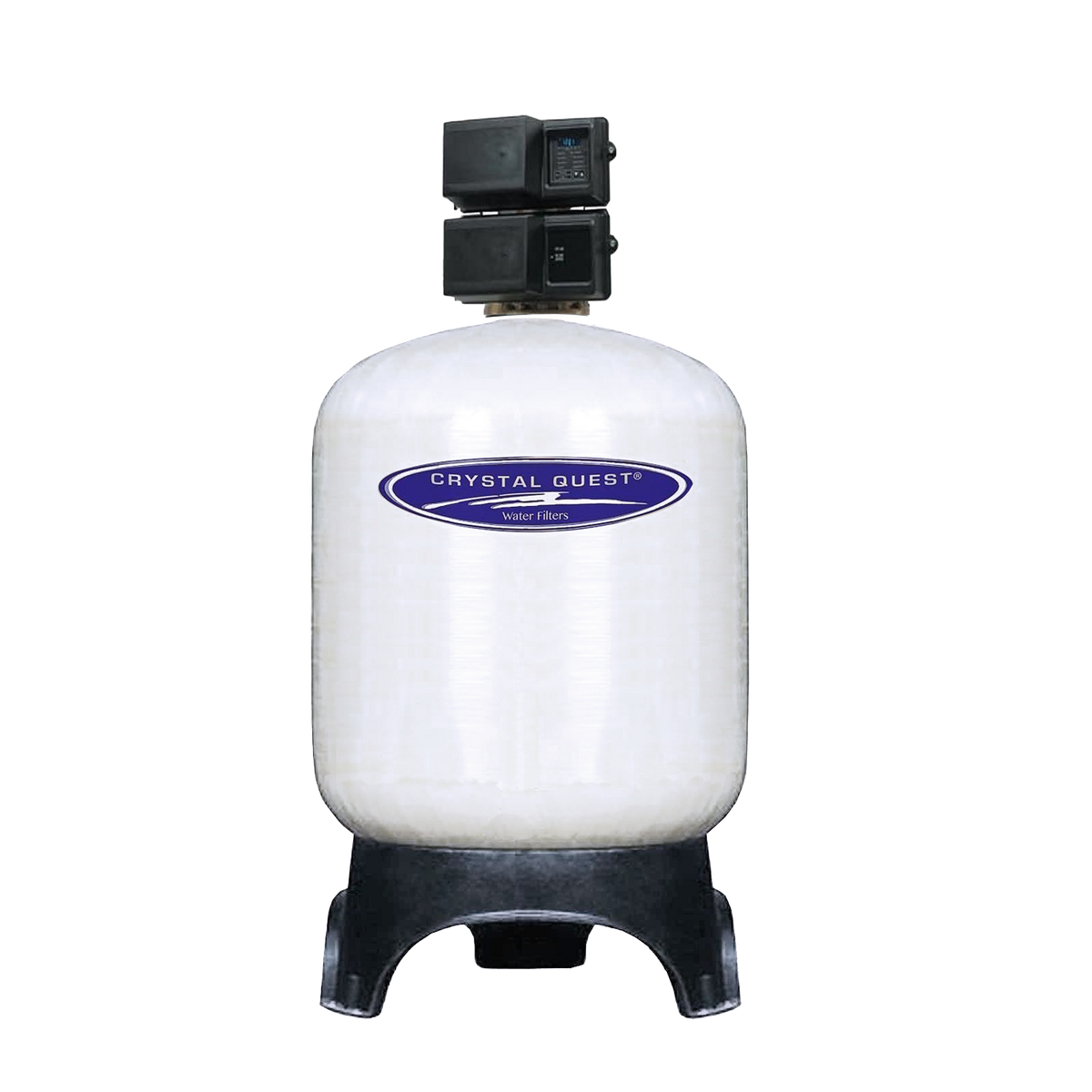

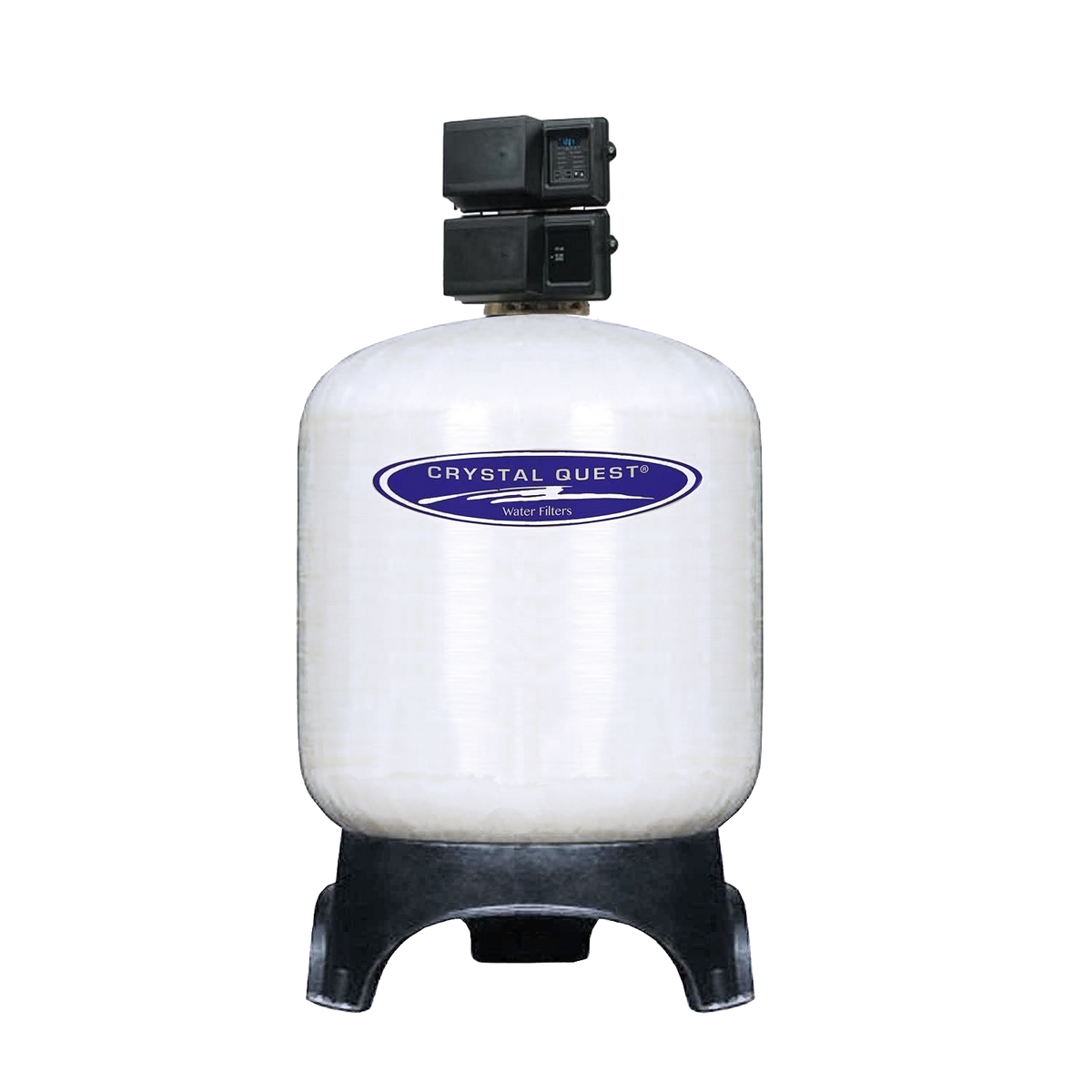

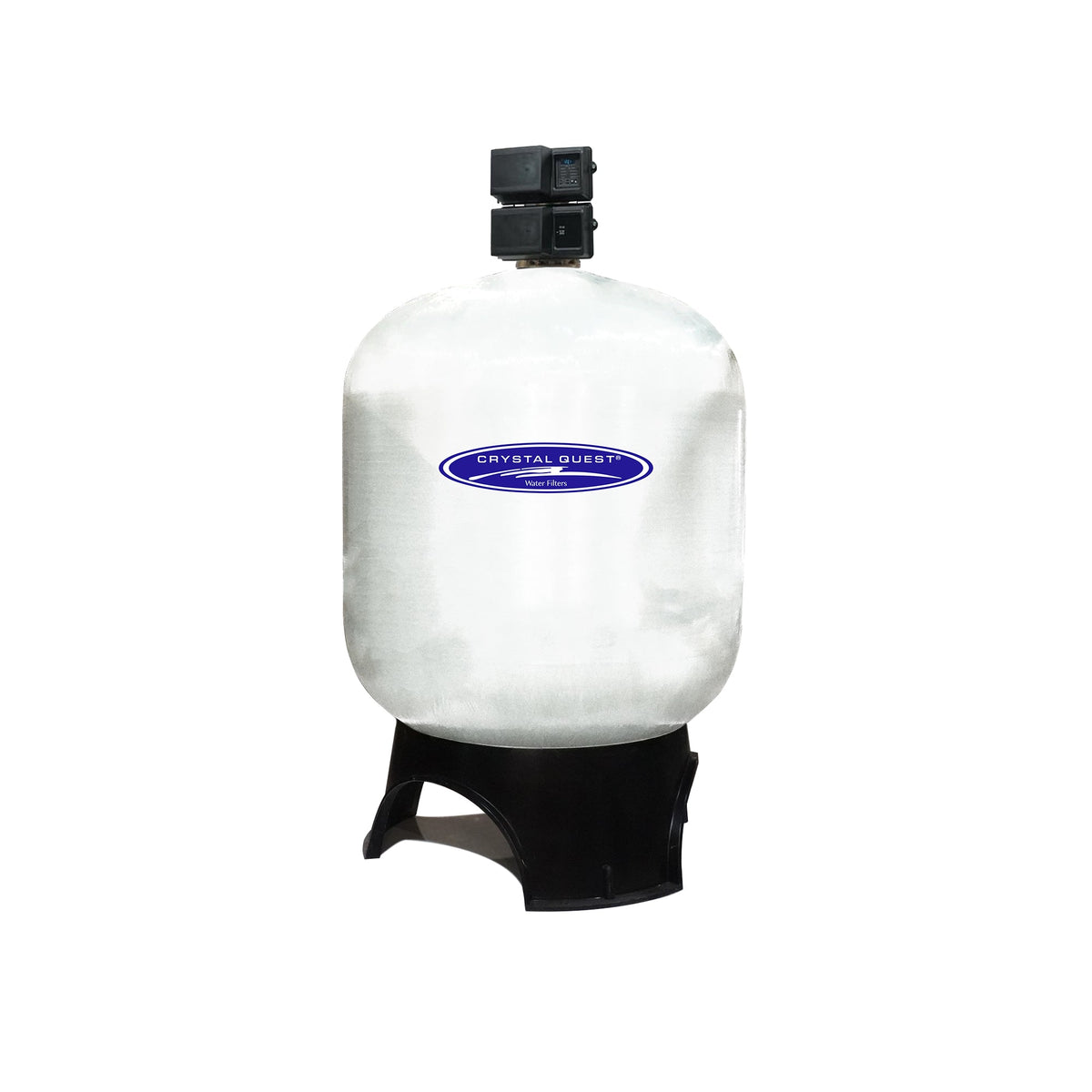

- 3900 head (200–390 GPM): 3" BSP female connections with 6" tank adapters, NXT display controller, downflow or upflow regeneration

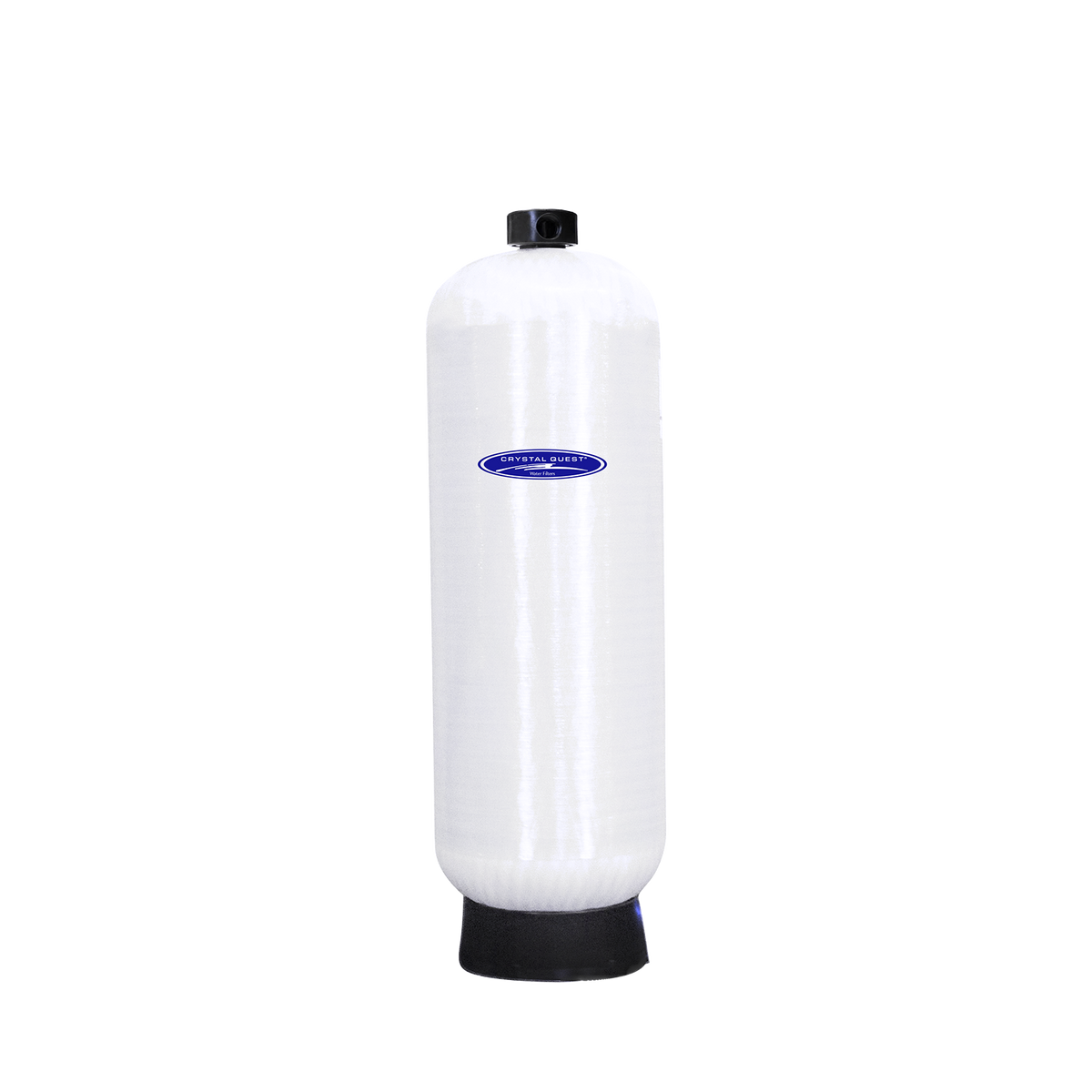

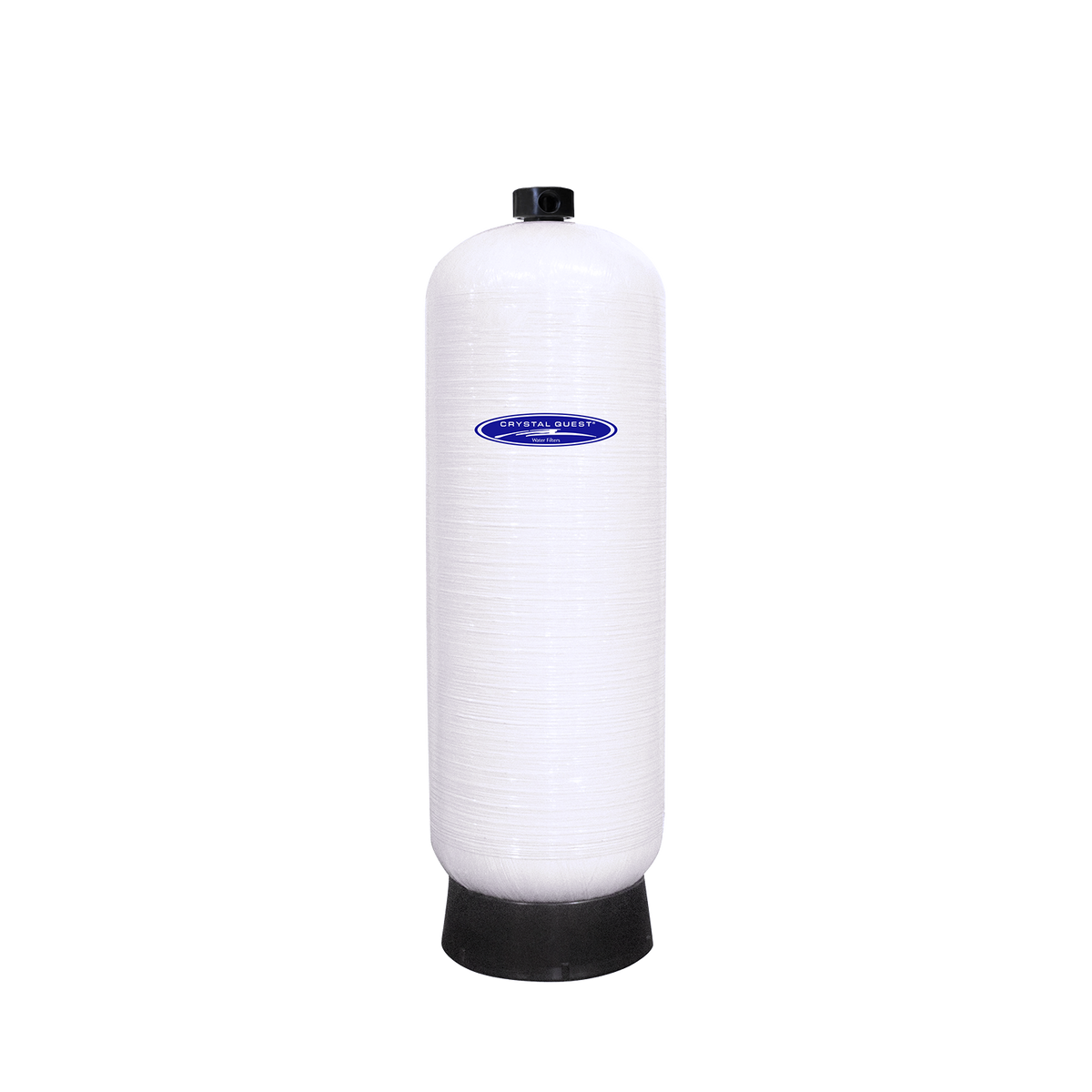

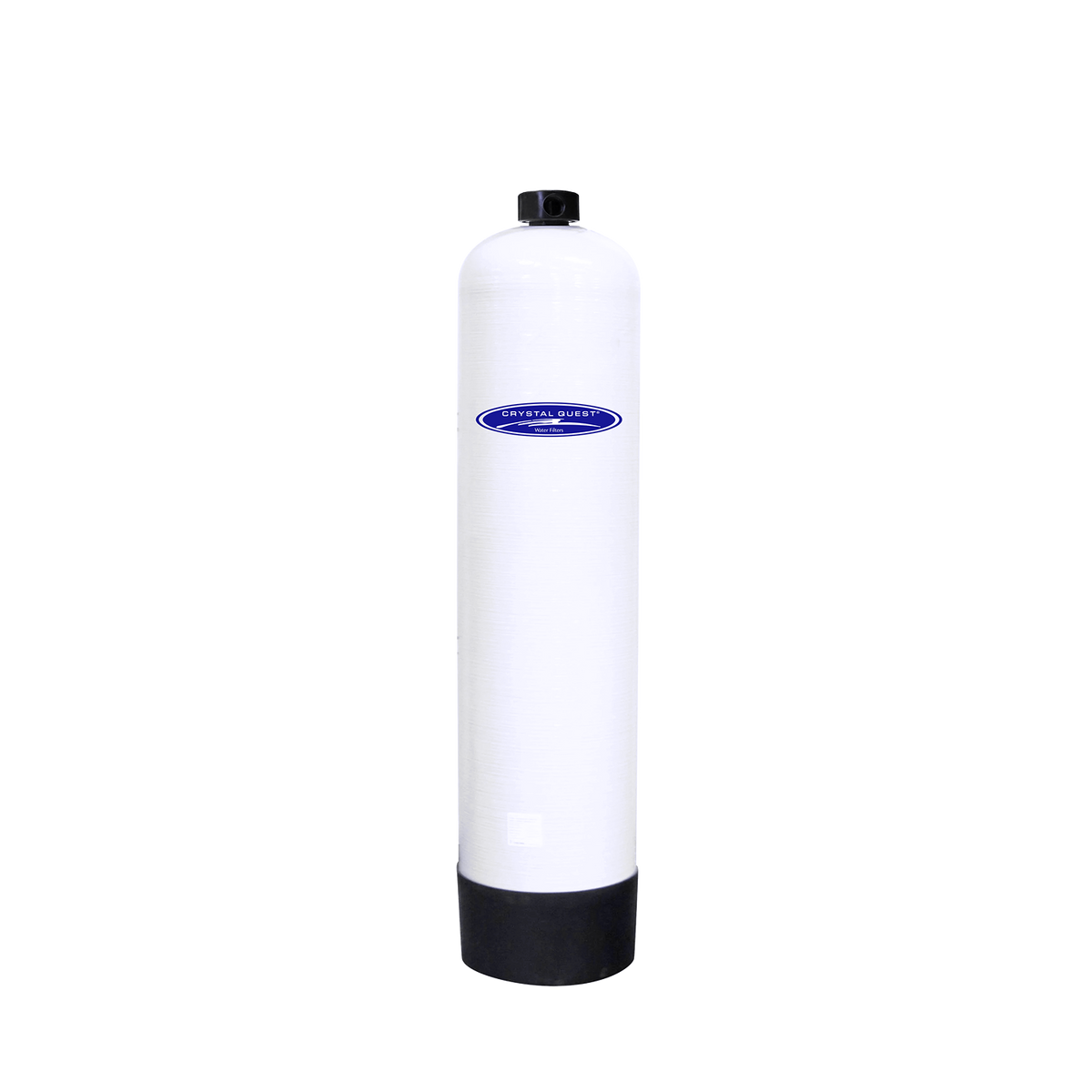

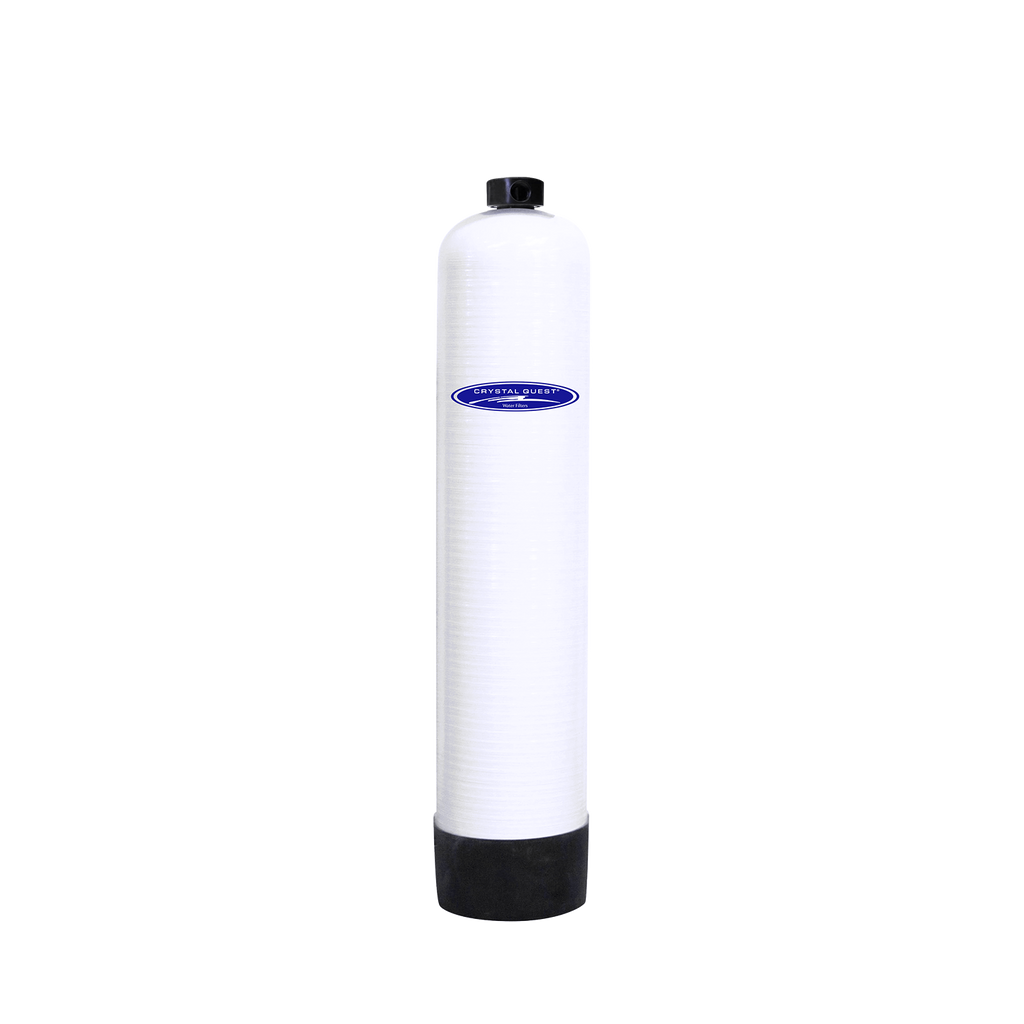

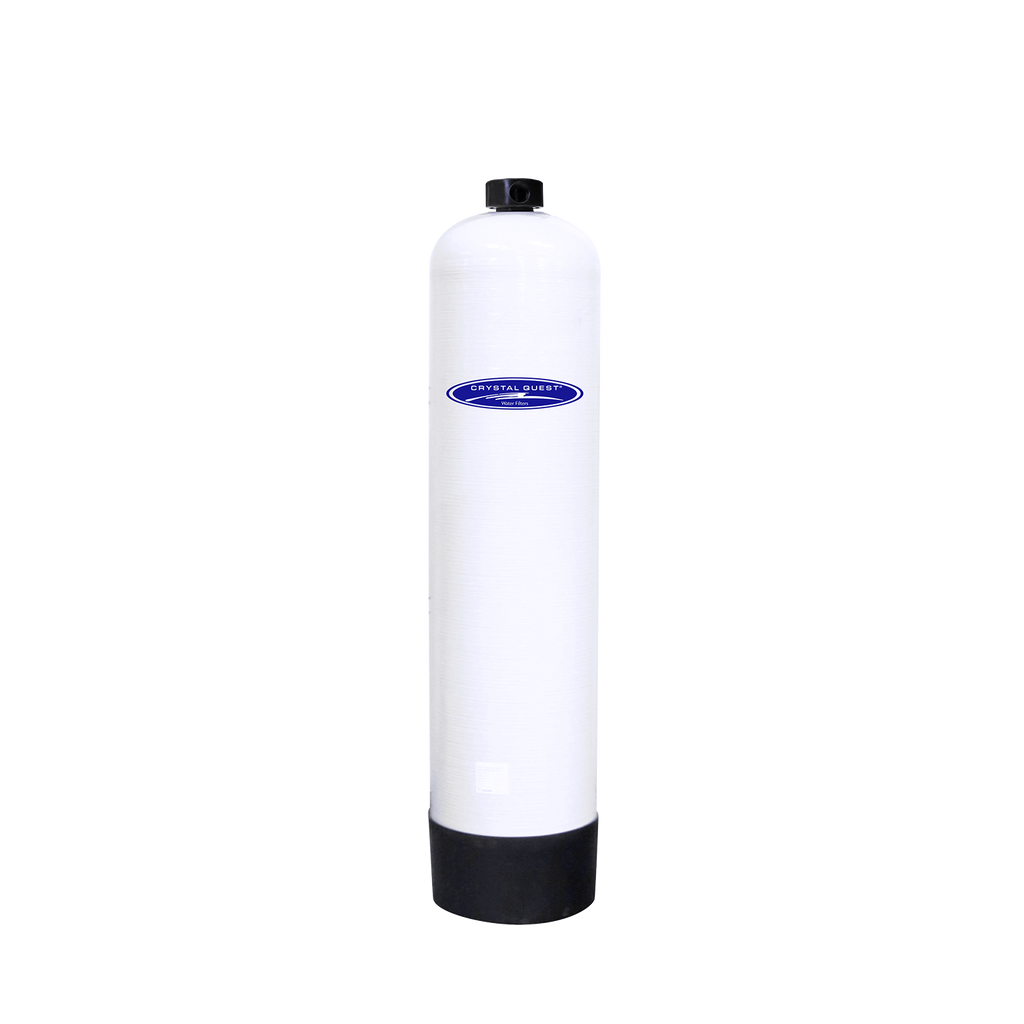

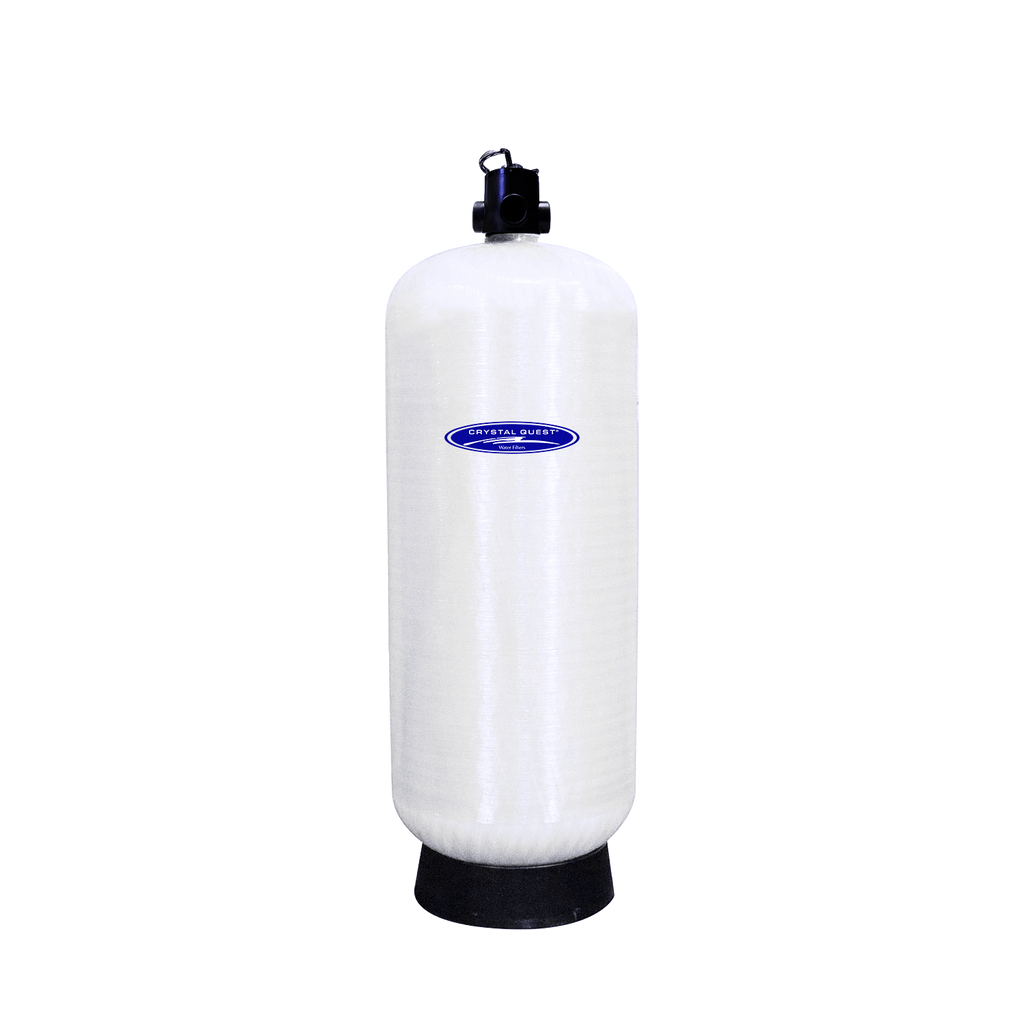

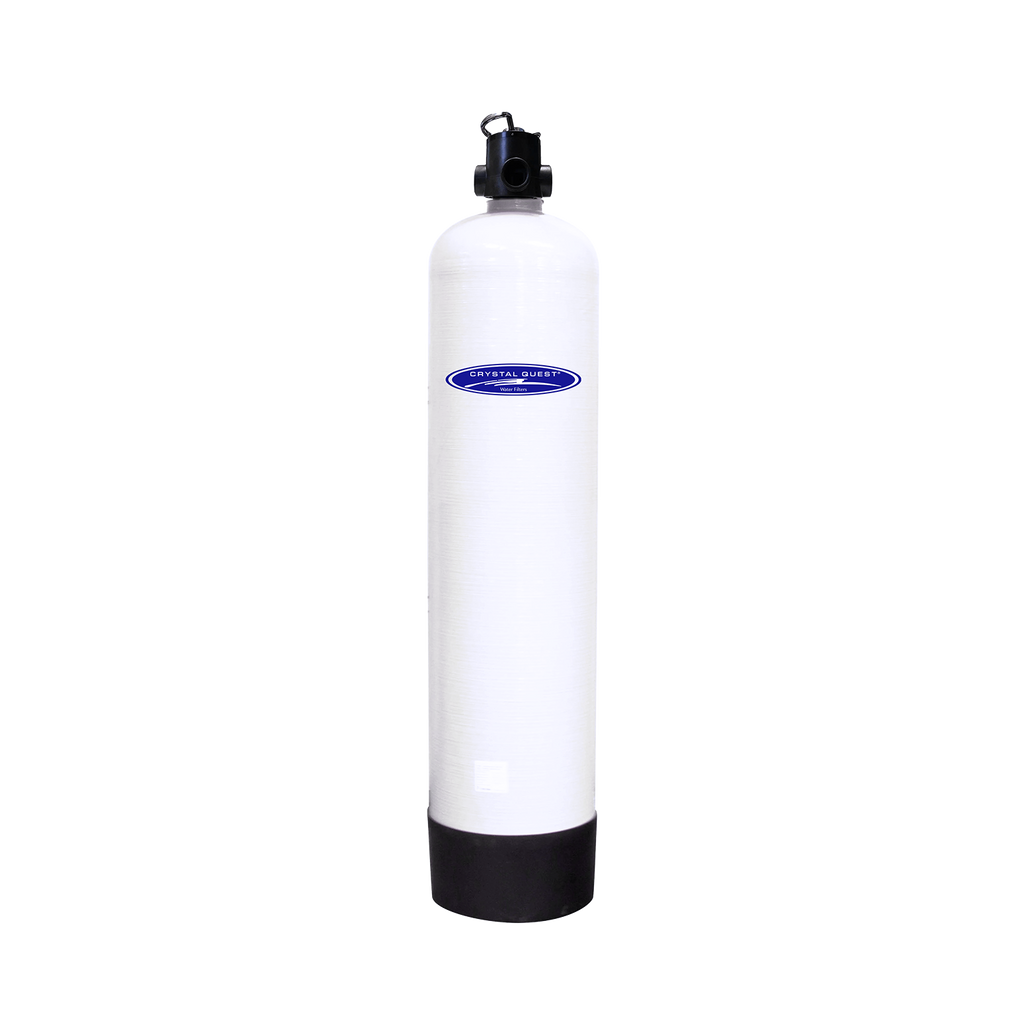

- Manual upflow head: no electricity and no backwash; runs upflow or downflow by reversing the plumbing
- 185 GPM model is offered with a 2" or 3" connection
- Add-ons available on request: metered control valve, backwash bypass, 3200NT or NXT controller upgrade, duplex, twin alternating or triplex configurations, and skid mounting
