Description

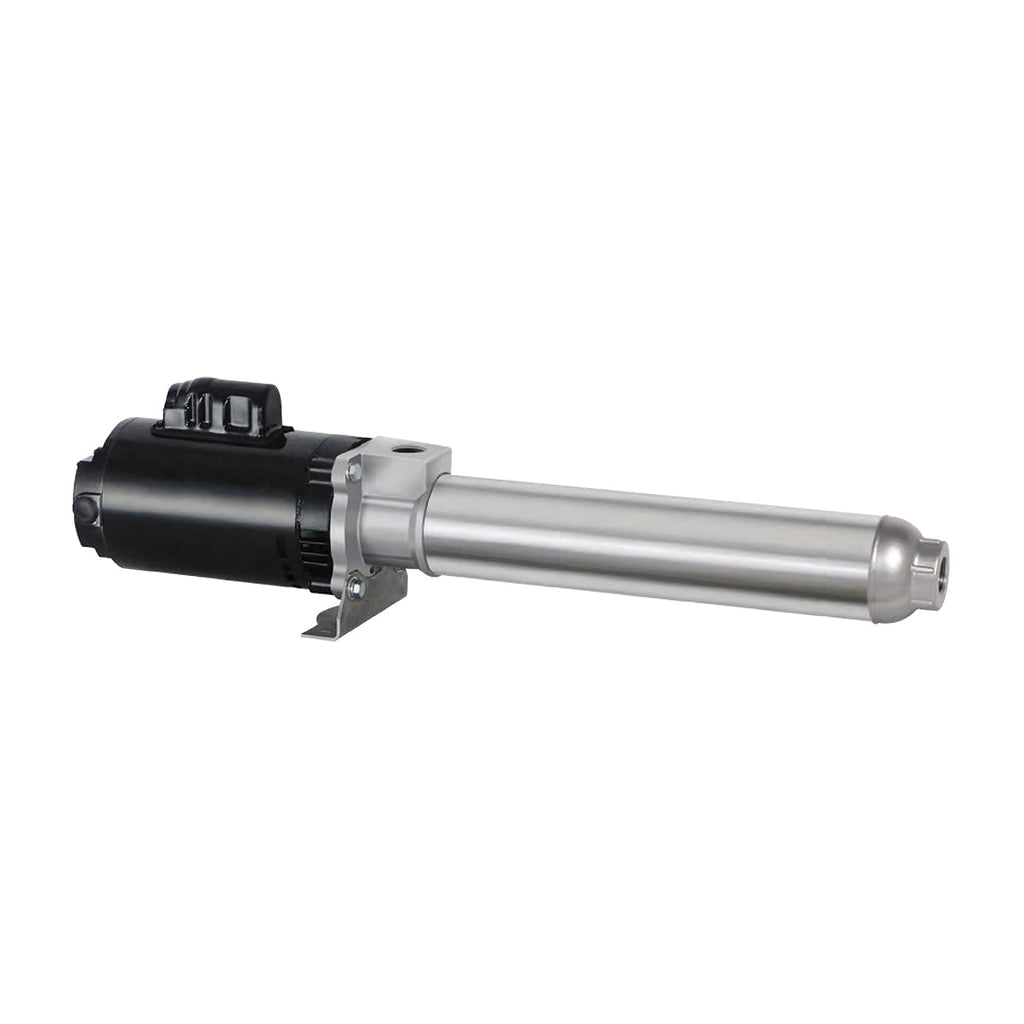

The Crystal Quest H-Flow H80-4S is a four-stage horizontal high-pressure pump rated at 80 GPM nominal flow, driven by a 5 HP, 3500 RPM single-phase motor. It weighs 141 lb and is built for industrial, commercial and agricultural water systems.
Highlights
- 80 GPM nominal flow from 4 stages for high-volume applications
- 5 HP JM frame C-Face motor, 1 PH / 60 Hz
- 304 stainless steel pump housing tubing with a cast iron inlet/motor bracket
- Noryl impellers and diffusers with 316 stainless steel wear rings
- Bronze shaft bearing with a 316 stainless steel bearing sleeve
Details
Avermont Direct is an authorized Crystal Quest dealer. Confirm the motor voltage matches your power supply before installation. Adjust flow and pressure with the discharge valve, never by throttling the suction side, and lubricate bearings per the manufacturer's recommendations.
Need Help?
If you have questions about this product before you order, our team is happy to help.
Email: support@avermontdirect.com
Phone: +1 (844) 455-3695
Hours: Monday–Friday, 9AM–5PM
Live Chat: Available 24/7
| Model | H-Flow H80-4S |
| Nominal Flow Rate | 80 GPM |
| Stages | 4 |
| Motor | 5 HP, 3500 RPM |
| Motor Frame | JM frame (C-Face) |
| Phase / Hertz | 1 PH / 60 Hz |
| Inlet | 1-1/2" FNPT |
| Dimensions (A x B) | 19.70" x 12.97" |
| Weight | 141 lb |
| Inlet / Motor Bracket | Cast iron |
| Discharge Housing | Steel |
| Pump Housing | 304 stainless steel tubing |
| Impellers and Diffusers | Noryl |
| Wear Rings | 316 stainless steel |
| Shaft and Coupling | 316 stainless steel / 415 stainless steel |
| Shaft Bearing / Sleeve | Bronze / 316 stainless steel |
| Mechanical Seal / Spacer | Carbon/ceramic / 416 stainless steel |
| O-Rings | Buna-N |
- Mount on a flat, stable surface secured with anchor bolts, and support piping so it does not stress the pump connections
- Check valve and isolation valve are recommended on the discharge side (not included)
- Wire to local electrical codes, ground the motor and verify rotation matches the arrow on the casing
- Prime the casing before starting and use the vent valve to remove trapped air
