Description

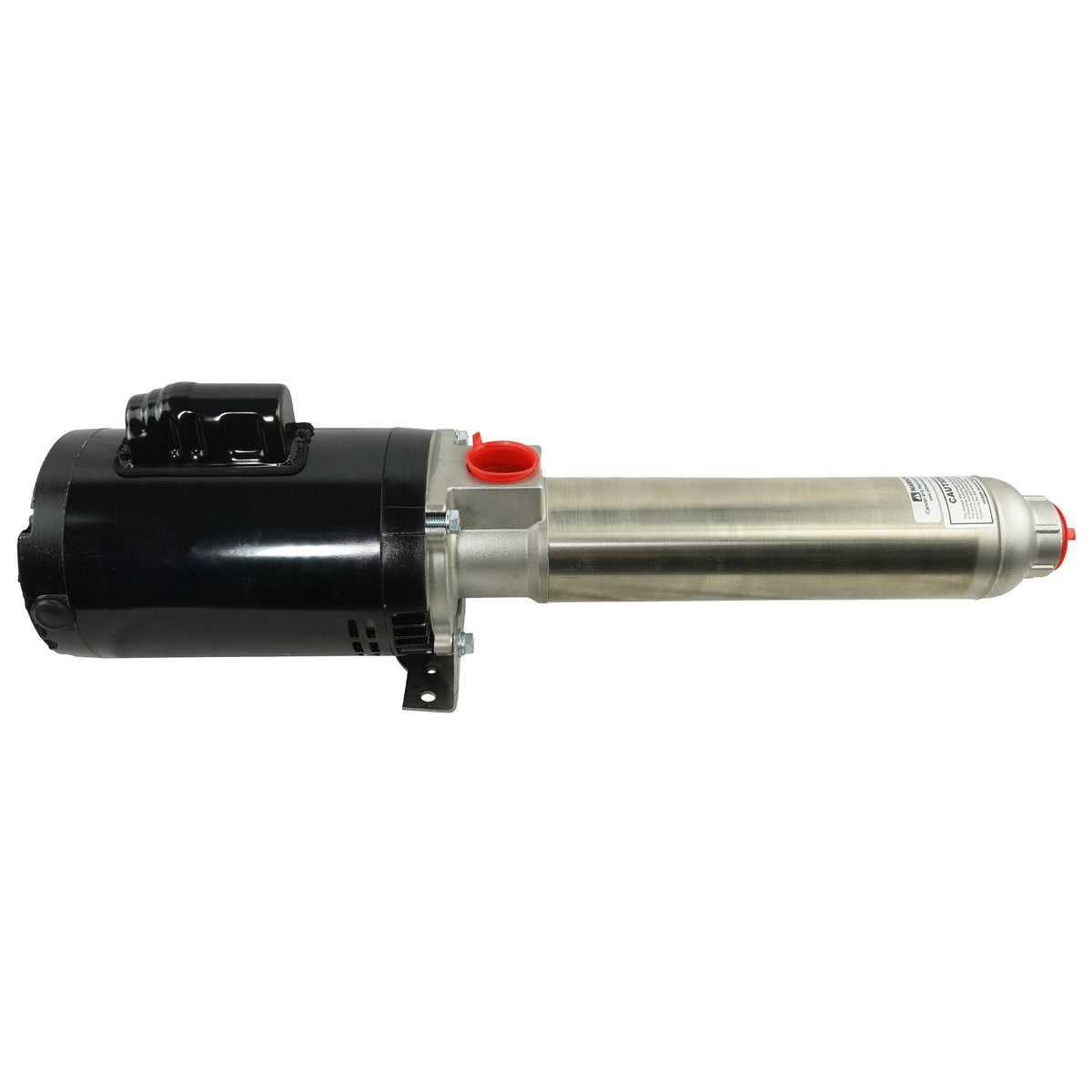

The Crystal Quest H-Flow H5-5S is a five-stage horizontal booster pump rated at 5 GPM nominal flow, driven by a .5 HP, 3500 RPM single-phase motor. It is sized for residential, commercial and light industrial systems that need steady flow and higher water pressure.
Highlights
- 5 stages at 5 GPM nominal flow for pressure boosting
- Cast iron inlet/motor bracket and discharge housing with a 304 stainless steel pump housing tube
- 316 stainless steel wear rings, shaft and coupling
- Carbon/ceramic mechanical seal and Buna-N O-rings
- 1" FNPT inlet and compact 11.03" x 10.13" footprint
Details
Avermont Direct is an authorized Crystal Quest dealer. The H5-5S is a lower-flow H-Flow pump for pressure boosting where consistent flow is needed. Keep the suction connection airtight to prevent cavitation, and inspect the mechanical seal and wear rings regularly, cleaning or replacing them as needed.
Need Help?
If you have questions about this product before you order, our team is happy to help.
Email: support@avermontdirect.com
Phone: +1 (844) 455-3695
Hours: Monday–Friday, 9AM–5PM
Live Chat: Available 24/7
| Model | H-Flow H5-5S |
| Nominal Flow Rate | 5 GPM |
| Stages | 5 |
| Motor | .5 HP, 3500 RPM |
| Motor Frame | 56J (C-Face) |
| Phase / Hertz | 1 PH / 60 Hz |
| Inlet | 1" FNPT |
| Dimensions (A x B) | 11.03" x 10.13" |
| Inlet / Motor Bracket | Cast iron |
| Discharge Housing | Cast iron |
| Pump Housing | 304 stainless steel tube |
| Impellers and Diffusers | Thermoplastic |
| Wear Rings | 316 stainless steel |
| Shaft and Coupling | 316 stainless steel |
| Mechanical Seal | Carbon/ceramic |
| O-Rings | Buna-N |
- Install on a stable, level surface in a clean, dry, well-ventilated location
- Check valve and isolation valves are recommended on both suction and discharge lines (not included)
- Power should be connected by a certified electrician to local code, with the motor grounded
- Prime the casing through the priming port and purge air from the suction line before running
