What's in this package
Everything shown here ships as part of this package. Select a piece to see its description, specs and manuals.
Description

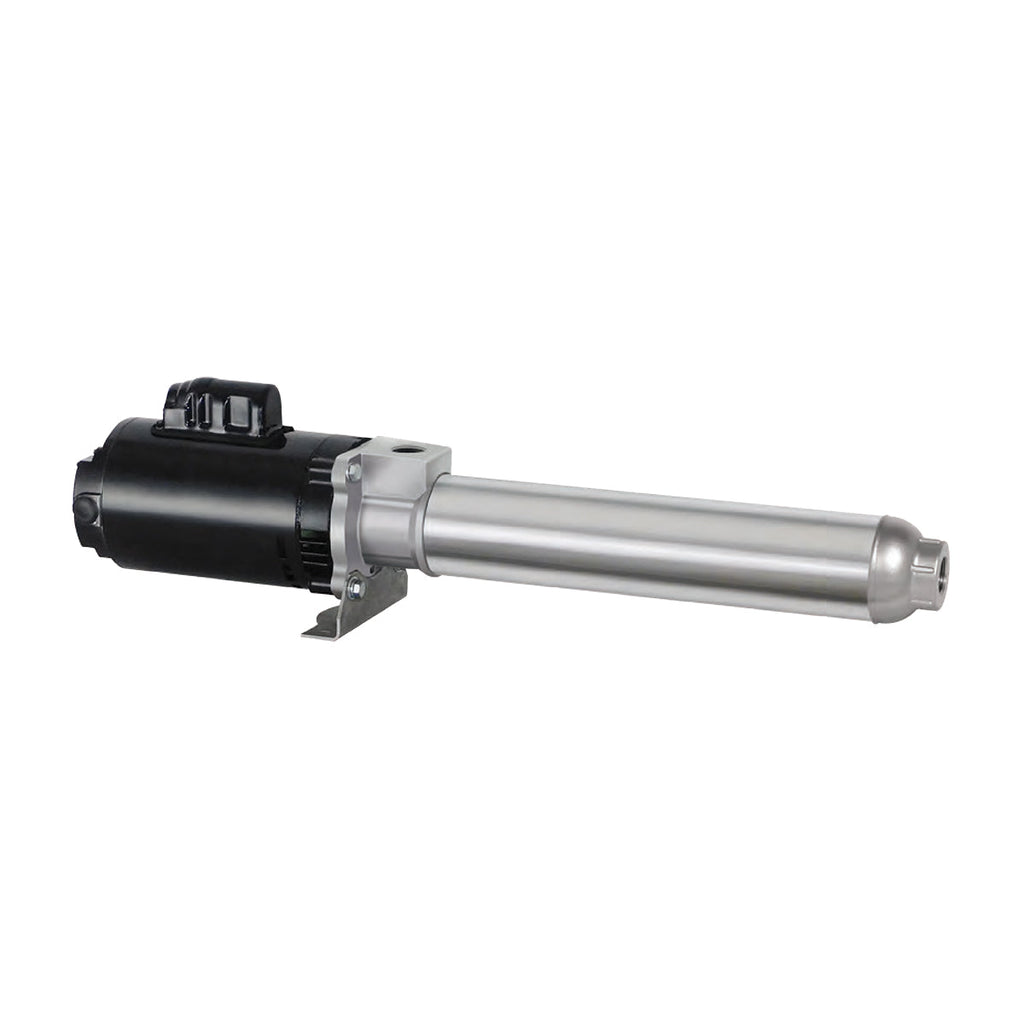

The Crystal Quest H-Flow H35-5S is a five-stage horizontal booster pump rated at 35 GPM nominal flow, driven by a 1.5 HP, 3500 RPM single-phase motor. Its housings, motor bracket, shaft, coupling and wear rings are 316 stainless steel.
Highlights
- 5 stages at 35 GPM nominal flow for commercial and industrial boosting
- 316 stainless steel pump housing, discharge housing and inlet/motor bracket
- Carbon/ceramic mechanical seal and Viton O-rings
- Single-phase 60 Hz motor on a 56J C-Face frame
- 1-1/2" FNPT inlet for standard pipe fittings
Details
Avermont Direct is an authorized Crystal Quest dealer. The H35-5S is a stainless steel booster pump for industrial, commercial and agricultural water systems. Keep the suction connection airtight to prevent cavitation, and inspect the mechanical seal and wear rings regularly, cleaning or replacing them as needed.
Need Help?
If you have questions about this product before you order, our team is happy to help.
Email: support@avermontdirect.com
Phone: +1 (844) 455-3695
Hours: Monday–Friday, 9AM–5PM
Live Chat: Available 24/7
| Model | H-Flow H35-5S |
| Nominal Flow Rate | 35 GPM |
| Stages | 5 |
| Motor | 1.5 HP, 3500 RPM |
| Motor Frame | 56J (C-Face) |
| Phase / Hertz | 1 PH / 60 Hz |
| Inlet | 1-1/2" FNPT |
| Dimensions (A x B) | 13.51" x 11.63" |
| Inlet / Motor Bracket | 316 stainless steel |
| Pump and Discharge Housing | 316 stainless steel |
| Impellers and Diffusers | Thermoplastic |
| Wear Rings | 316 stainless steel |
| Shaft and Coupling | 316 stainless steel |
| Mechanical Seal | Carbon/ceramic |
| O-Rings | Viton |
- Install on a stable, level surface in a clean, dry, well-ventilated location
- Check valve and isolation valves are recommended on both suction and discharge lines (not included)
- Power should be connected by a certified electrician to local code, with the motor grounded
- Prime the casing through the priming port and purge air from the suction line before running
