Description

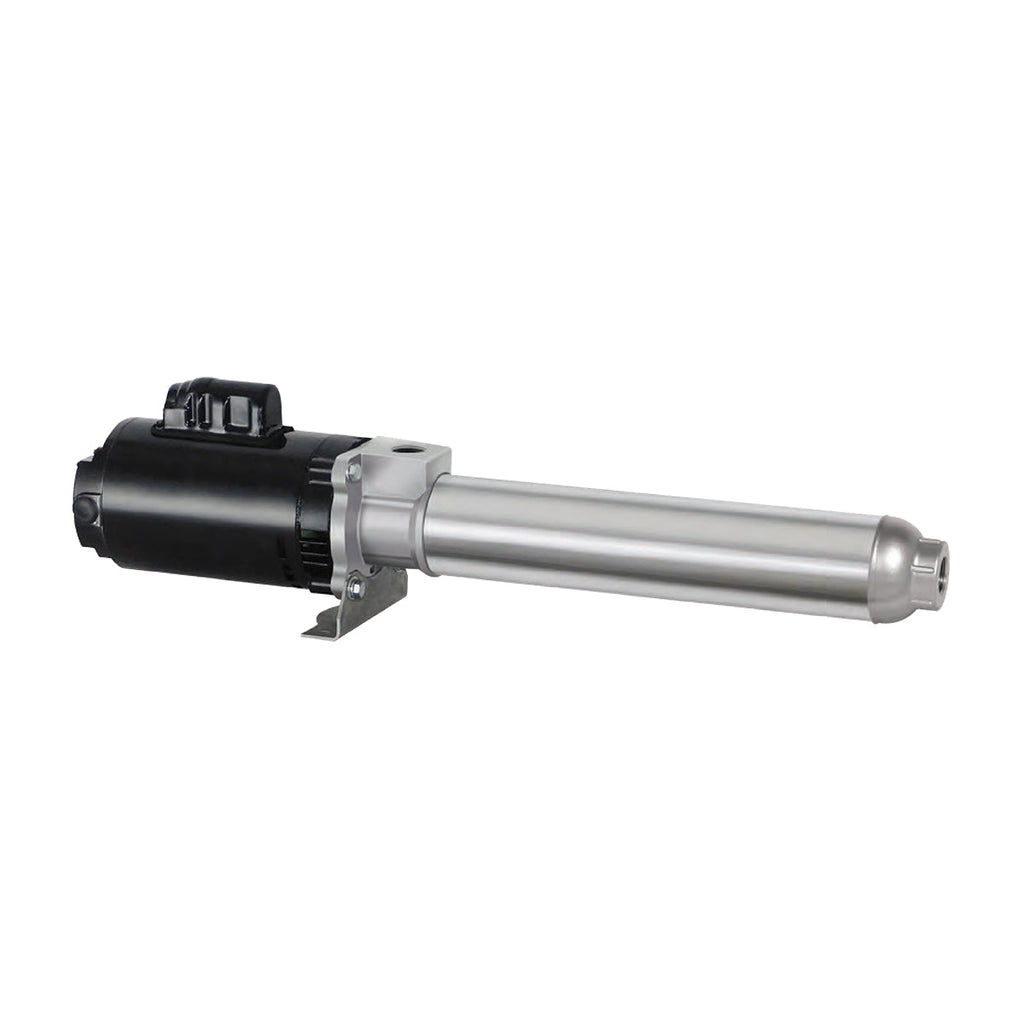

The Crystal Quest H-Flow H35-12S is a twelve-stage horizontal booster pump rated at 35 GPM nominal flow, driven by a 3 HP, 3500 RPM single-phase motor. It pairs a cast iron inlet bracket and discharge housing with a 304 stainless steel pump housing.
Highlights
- 12 stages at 35 GPM nominal flow for commercial and industrial boosting
- 304 stainless steel pump housing with cast iron inlet/motor bracket and discharge housing
- 316 stainless steel wear rings, shaft and coupling
- Carbon/ceramic mechanical seal and Buna-N O-rings
- Single-phase 60 Hz motor on a 56J C-Face frame
Details
Avermont Direct is an authorized Crystal Quest dealer. The H35-12S is part of the EZ Series booster pump line for industrial, commercial and agricultural water systems. Keep the suction connection airtight to prevent cavitation, and inspect the mechanical seal and wear rings regularly, cleaning or replacing them as needed.
Need Help?
If you have questions about this product before you order, our team is happy to help.
Email: support@avermontdirect.com
Phone: +1 (844) 455-3695
Hours: Monday–Friday, 9AM–5PM
Live Chat: Available 24/7
| Model | H-Flow H35-12S, EZ Series |
| Nominal Flow Rate | 35 GPM |
| Stages | 12 |
| Motor | 3 HP, 3500 RPM |
| Motor Frame | 56J (C-Face) |
| Phase / Hertz | 1 PH / 60 Hz |
| Inlet | 1-1/2" FNPT |
| Dimensions (A x B) | 24.82" x 13.63" |
| Inlet / Motor Bracket | Cast iron |
| Discharge Housing | Cast iron |
| Pump Housing | 304 stainless steel |
| Impellers and Diffusers | Thermoplastic |
| Wear Rings | 316 stainless steel |
| Shaft and Coupling | 316 stainless steel |
| Mechanical Seal | Carbon/ceramic |
| O-Rings | Buna-N |
- Install on a stable, level surface in a clean, dry, well-ventilated location
- Check valve and isolation valves are recommended on both suction and discharge lines (not included)
- Power should be connected by a certified electrician to local code, with the motor grounded
- Prime the casing through the priming port and purge air from the suction line before running
