What's in this package
Everything shown here ships as part of this package. Select a piece to see its description, specs and manuals.
Description

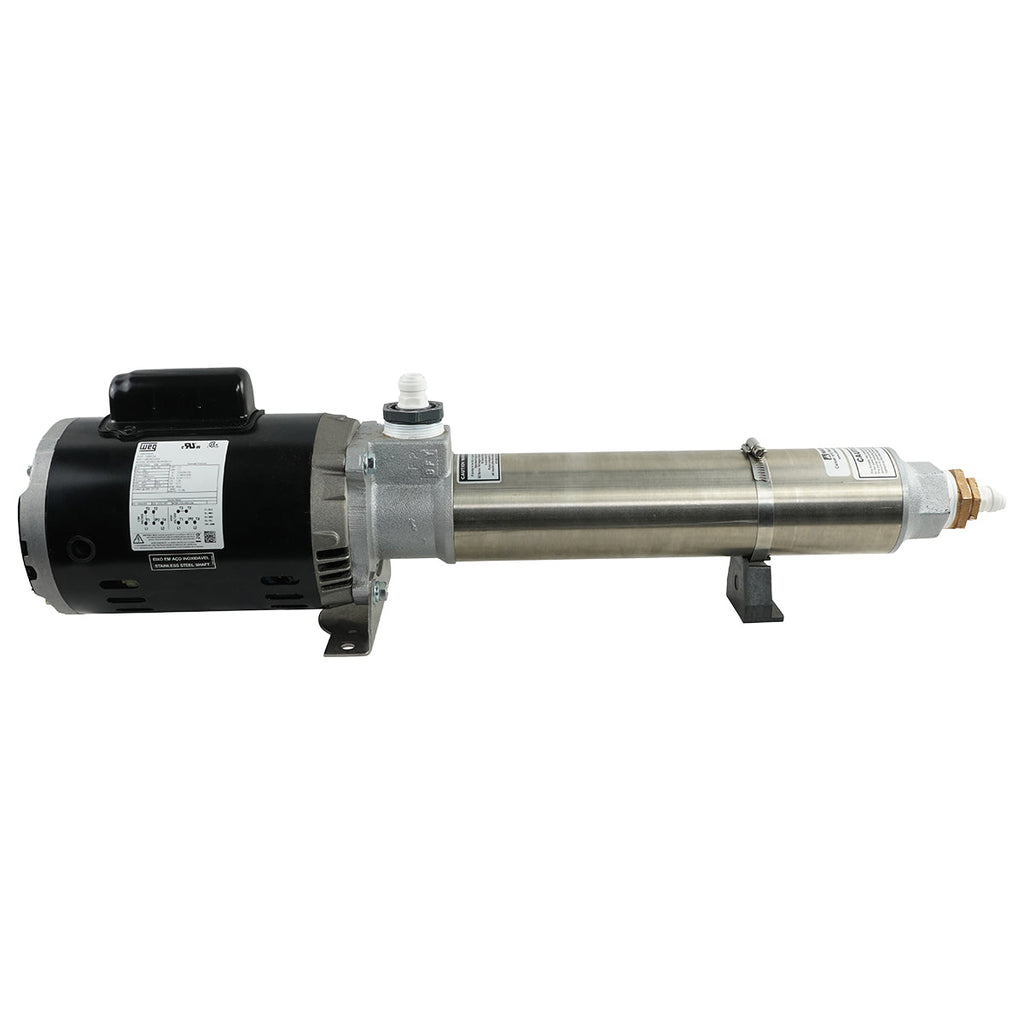

The H-Flow G35-9S is a 9-stage pump with a nominal flow rate of 35 GPM and a maximum discharge pressure of 100 PSI. It runs on a 1.5 HP, single-phase, 60 Hz motor and is used for reverse osmosis feed and high-pressure water boosting.
Highlights
- 35 GPM nominal flow for RO feed and water boosting
- Up to 100 PSI discharge pressure from 9 stages
- Single-phase 1.5 HP motor at 3500 RPM
- 304 stainless steel pump housing with cast iron inlet and discharge
- Thermoplastic impellers and diffusers with 316 stainless steel wear rings and shaft
Details
Avermont Direct is an authorized Crystal Quest dealer. The G35-9S is suited to industrial, commercial and agricultural water systems that need boosting at around 35 GPM on single-phase power. Contact our team if you need help sizing a pump for your system.
Need Help?
If you have questions about this product before you order, our team is happy to help.
Email: support@avermontdirect.com
Phone: +1 (844) 455-3695
Hours: Monday–Friday, 9AM–5PM
Live Chat: Available 24/7
| Model | H-Flow G35-9S |
| Nominal Flow Rate | 35 GPM |
| Max Discharge Pressure | 100 PSI |
| Stages | 9 |
| Motor | 1.5 HP, 3500 RPM |
| Electrical | 1 PH / 60 Hz |
| Motor Frame | 56J (C-Face) |
| Inlet | 1 1/2" FNPT |
| Dimensions (A x B) | 19.16" x 11.63" |
| Pump Housing | 304 stainless steel tube |
| Inlet / Motor Bracket | Cast iron |
| Discharge Housing | Cast iron |
| Impellers / Diffusers | Thermoplastic |
| Wear Rings | 316 stainless steel |
| Shaft and Coupling | 316 stainless steel |
| Mechanical Seal | Carbon/ceramic |
| O-Rings | Buna-N |
| Weight | Approx. 31,751 g |
- Install on a stable, level surface in a clean, dry, ventilated location
- Suction connection must be airtight; install a check valve and isolation valves on the suction and discharge lines
- Electrical connection by a certified electrician to local code, with the motor grounded
- Prime by filling the casing through the priming port and purging air from the suction line before start-up
