Description

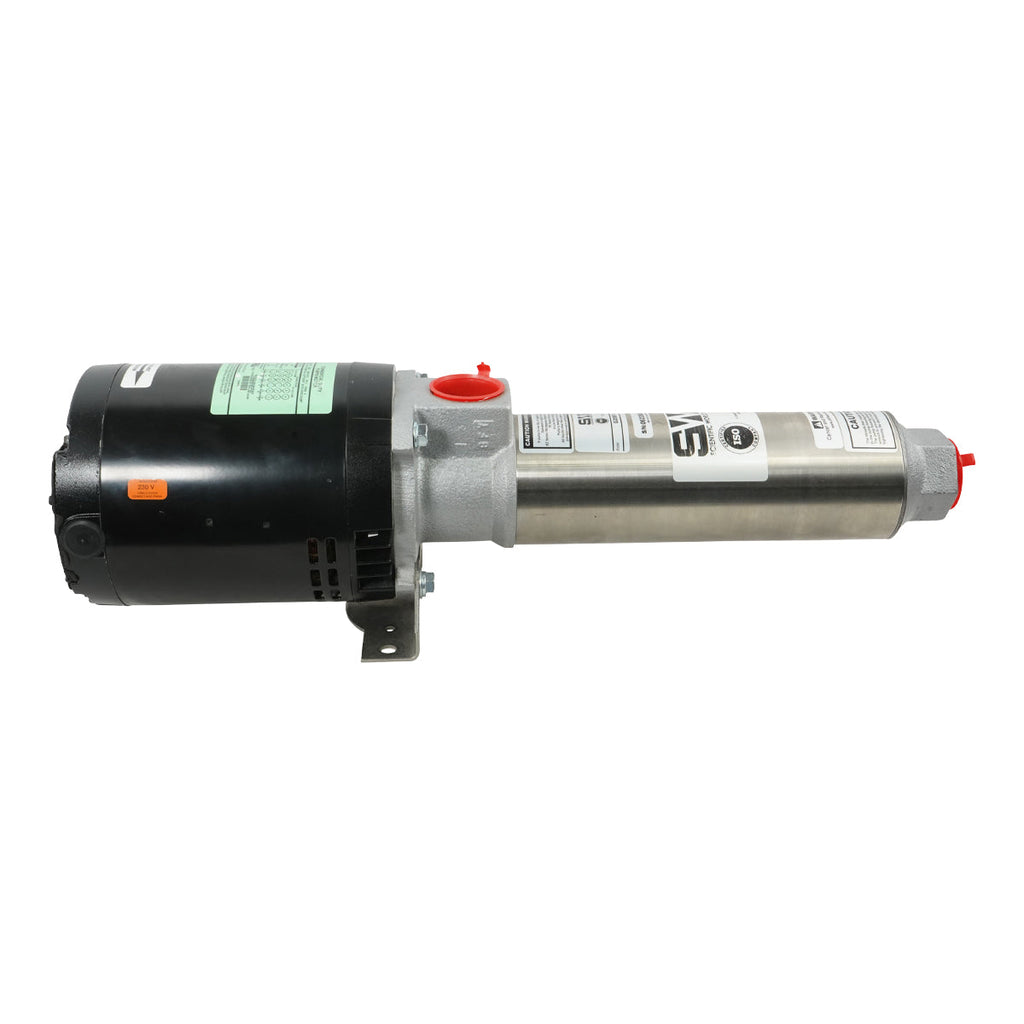

The H-Flow G20-7S is a 7-stage pump rated at 20 GPM with a maximum discharge pressure of 100 PSI. It runs on a 0.75 HP, 3-phase, 60 Hz motor and is used for reverse osmosis feed, water boosting and process water.
Highlights
- 20 GPM nominal flow for medium-duty boosting and RO feed
- Up to 100 PSI discharge pressure from 7 stages
- 304 stainless steel pump housing with cast iron inlet and discharge
- Thermoplastic impellers and diffusers with 316 stainless steel wear rings and shaft
- Standard 56J C-Face motor frame
Details
Avermont Direct is an authorized Crystal Quest dealer. The G20-7S is suited to industrial, commercial and agricultural water systems that need steady boosting at around 20 GPM. Confirm that your site has 3-phase, 60 Hz power before ordering, and contact our team if you need help sizing a pump.
Need Help?
If you have questions about this product before you order, our team is happy to help.
Email: support@avermontdirect.com
Phone: +1 (844) 455-3695
Hours: Monday–Friday, 9AM–5PM
Live Chat: Available 24/7
| Model | H-Flow G20-7S |
| Nominal Flow Rate | 20 GPM |
| Max Discharge Pressure | 100 PSI |
| Stages | 7 |
| Motor | 0.75 HP, 3500 RPM |
| Electrical | 3 PH / 60 Hz |
| Motor Frame | 56J (C-Face) |
| Inlet | 1 1/2" FNPT |
| Dimensions (A x B) | 15.14" x 10.53" |
| Pump Housing | 304 stainless steel tube |
| Inlet / Motor Bracket | Cast iron |
| Discharge Housing | Cast iron |
| Impellers / Diffusers | Thermoplastic |
| Wear Rings | 316 stainless steel |
| Shaft and Coupling | 316 stainless steel |
| Mechanical Seal | Carbon/ceramic |
| O-Rings | Buna-N |
| Weight | Approx. 20,412 g |
- Install on a stable, level surface in a clean, dry, ventilated location
- Suction connection must be airtight; install a check valve and isolation valves on the suction and discharge lines
- Electrical connection by a certified electrician to local code, with the motor grounded
- Prime by filling the casing through the priming port and purging air from the suction line before start-up
