What's in this package
Everything shown here ships as part of this package. Select a piece to see its description, specs and manuals.
Description

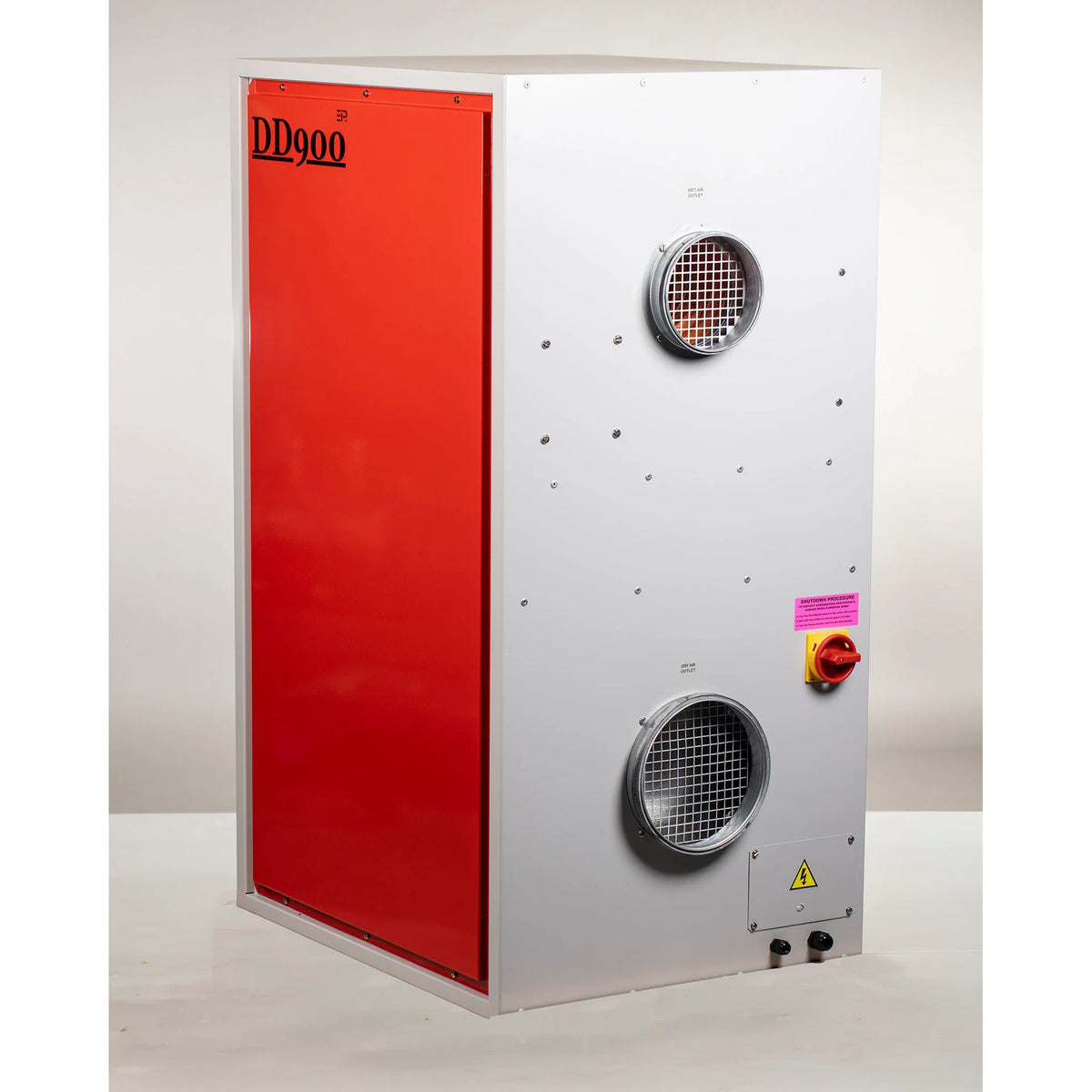

The Ebac DD900 (10520GR-US) is the 220V, 3-phase version of a 364 PPD industrial desiccant dehumidifier from Ebac's DD series. Its silica gel rotor keeps drying from -4°F to 104°F, so it suits cold, damp spaces as well as low-humidity process areas.
Highlights
- 364 PPD with 530 CFM process air: handles a large moisture load from a single unit.
- Washable PPS rotor with 82% active silica gel: the rotor can be cleaned as part of routine service.
- Auto/manual control: run continuously during a dry-out or let a remote humidistat connection cycle the unit.

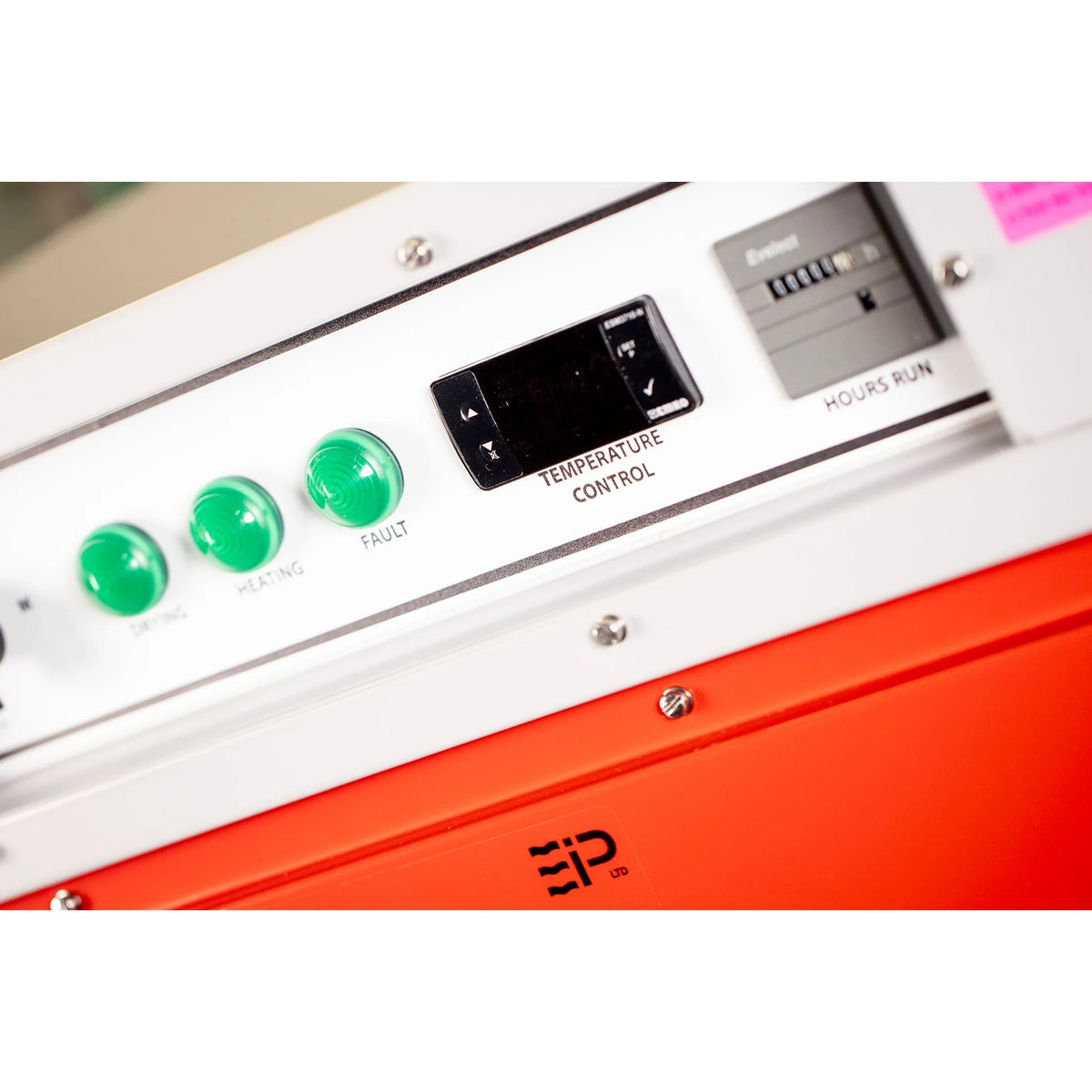

- Integrated ammeter and hour meter: check current draw and log run time for service planning.

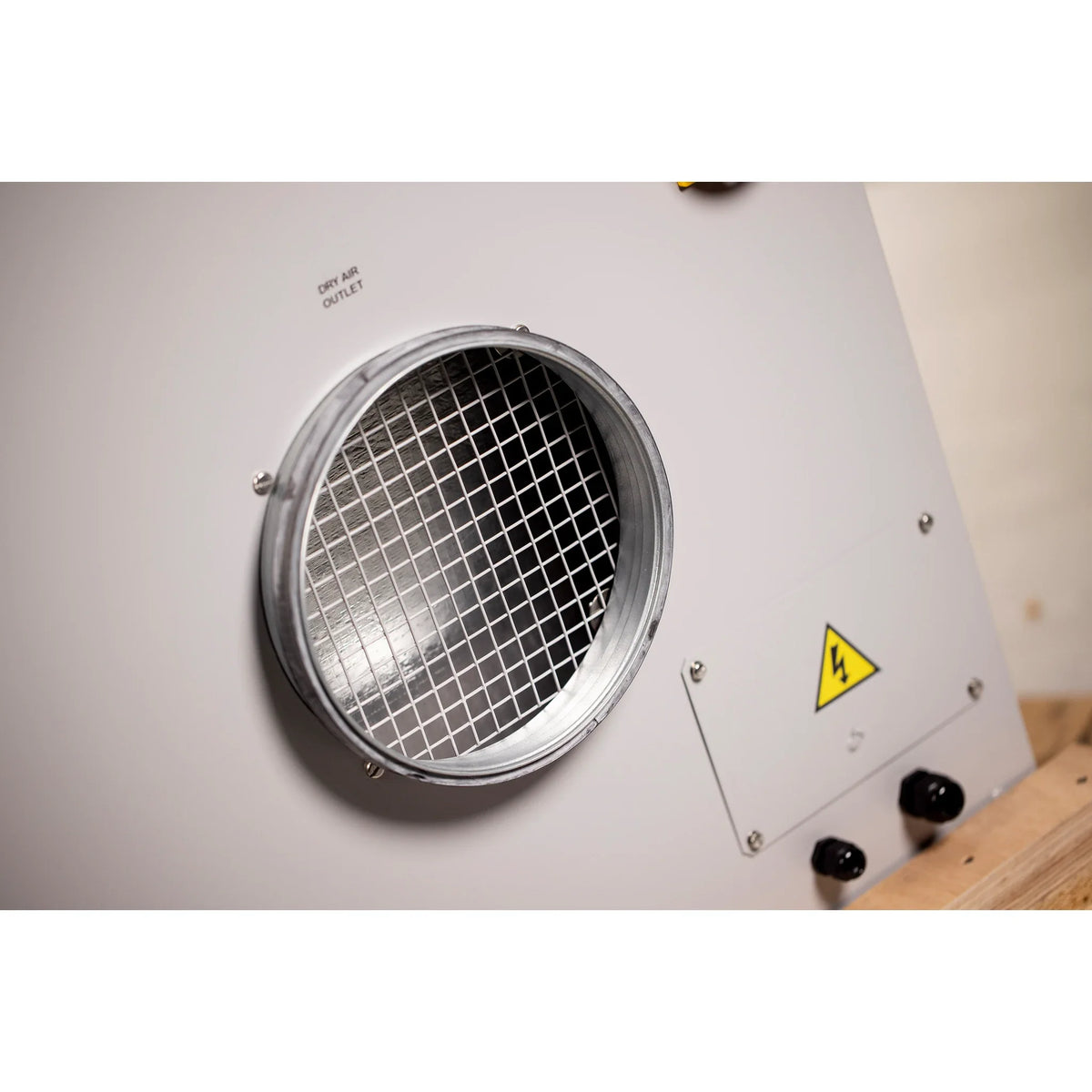

- 8" process and 6" regen duct connections: duct dry air into the space and route the 147 CFM wet regeneration air away from it.
- Optional stainless steel construction: available for sites that need a stainless housing.
Details
The DD900 sits between the DD700 and DD1200 in Ebac's DD desiccant series. Typical uses include cold storage running at or near freezing, pharmaceutical and electronics production areas that need low relative humidity, and marine sites, where the optional stainless steel construction is available. Choose this 220V model for sites with 208 to 240V 3-phase service.
Need Help?
If you have questions about this product before you order, our team is happy to help.
Email: support@avermontdirect.com
Phone: +1 (844) 455-3695
Hours: Monday–Friday, 9AM–5PM
Live Chat: Available 24/7
| Model | DD900 |
| Part Number | 10520GR-US |
| Typical Extraction | 364 PPD |
| Process Airflow | 530 CFM, 8" duct |
| Regen Airflow | 147 CFM, 6" duct |
| Electrical | 220V, 3-phase, 60 Hz |
| Current | 26 A |
| Power | 9.8 kW |
| Operating Range | -4°F to 104°F |
| Noise Level | 67 dBA |
| Dimensions | 28" W × 23" D × 48" H |
| Weight | 198 lbs |
- Included: DD900 desiccant dehumidifier and owner's manual.
- Power: requires a 220V 3-phase 60 Hz supply and draws 26 A; have a qualified electrician confirm the circuit.
- Voltage option: the same DD900 is also offered as 10521GR-US for 460V 3-phase at 13 A, with the same extraction and airflow.
- Size: 48" tall and 198 lbs; check doorway and ceiling clearance before delivery.
