Description

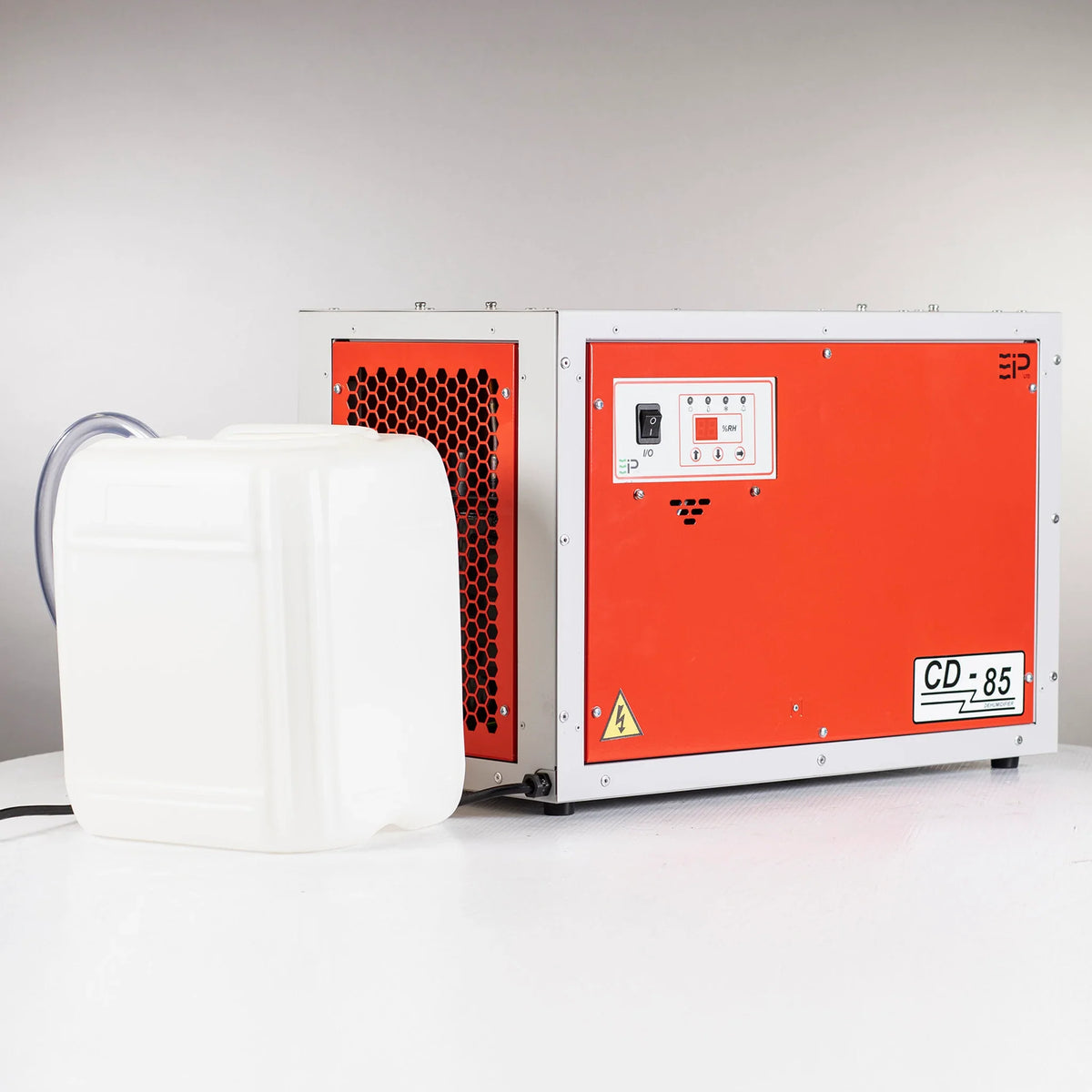

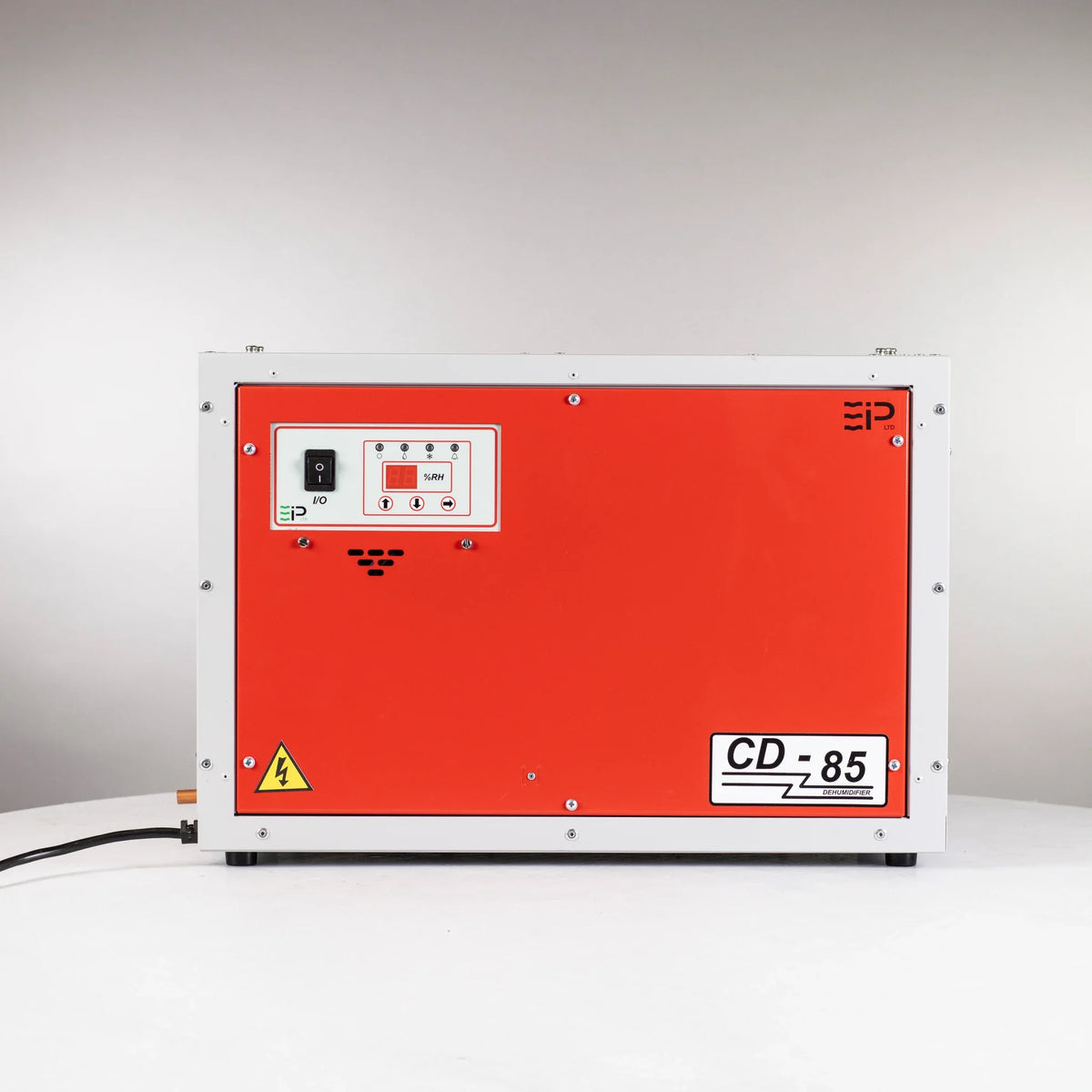

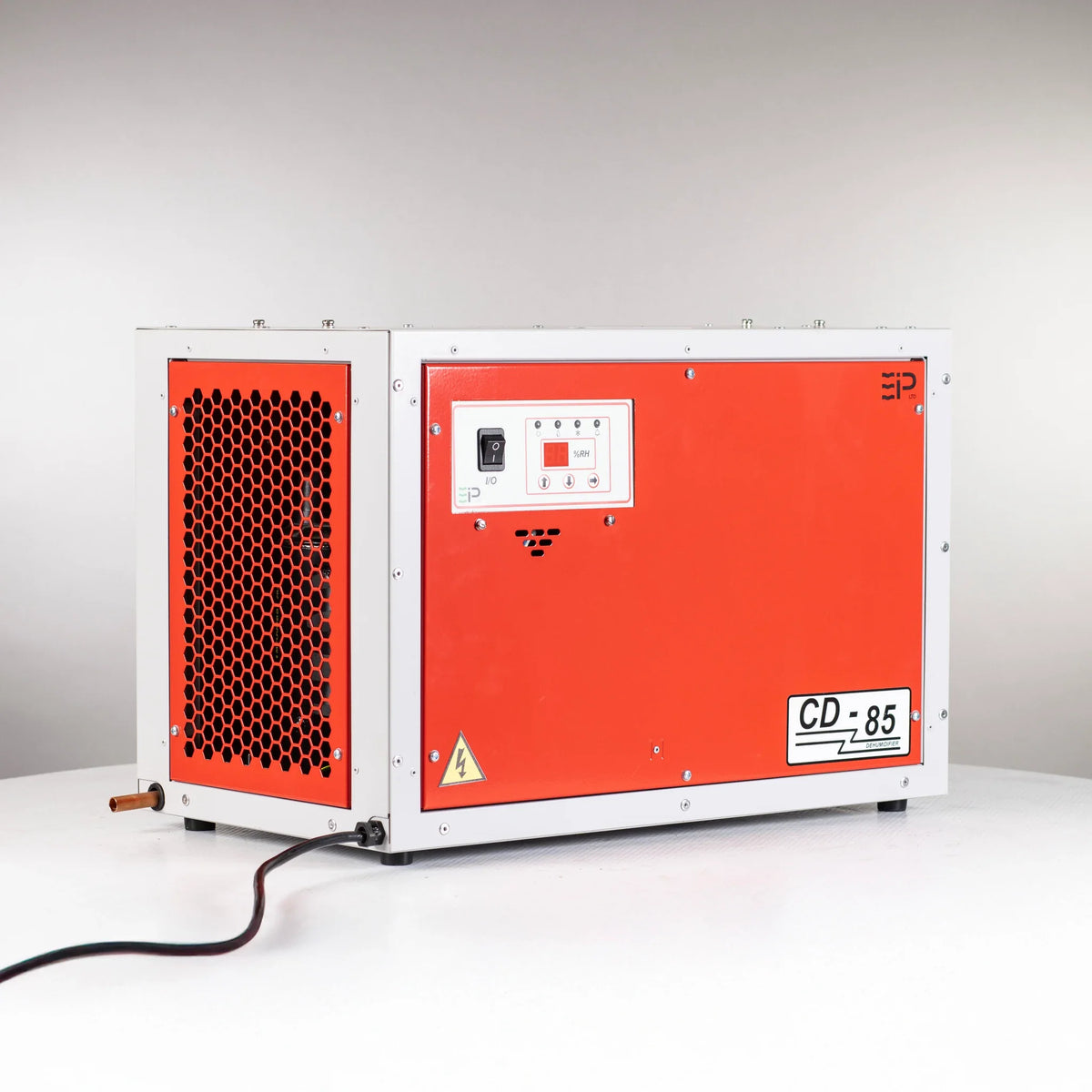

The Ebac CD85 extracts a typical 56 pints per day over an effective volume of 8,370 cu ft on 110V, with configurable inlet and outlet positions and a built-in condensate pump for ducted installs.
Highlights
- Configurable inlet and outlet positions: let the installer match the unit to the existing duct runs.
- Condensate pump with internal float switch: moves collected water away, so the unit can go where a floor drain is not close by.
- High capacity backward curved fan: moves air through the unit and into connected ductwork.
- Temperature sensitive defrost control: manages coil defrost when the space runs cool, down to 33°F.

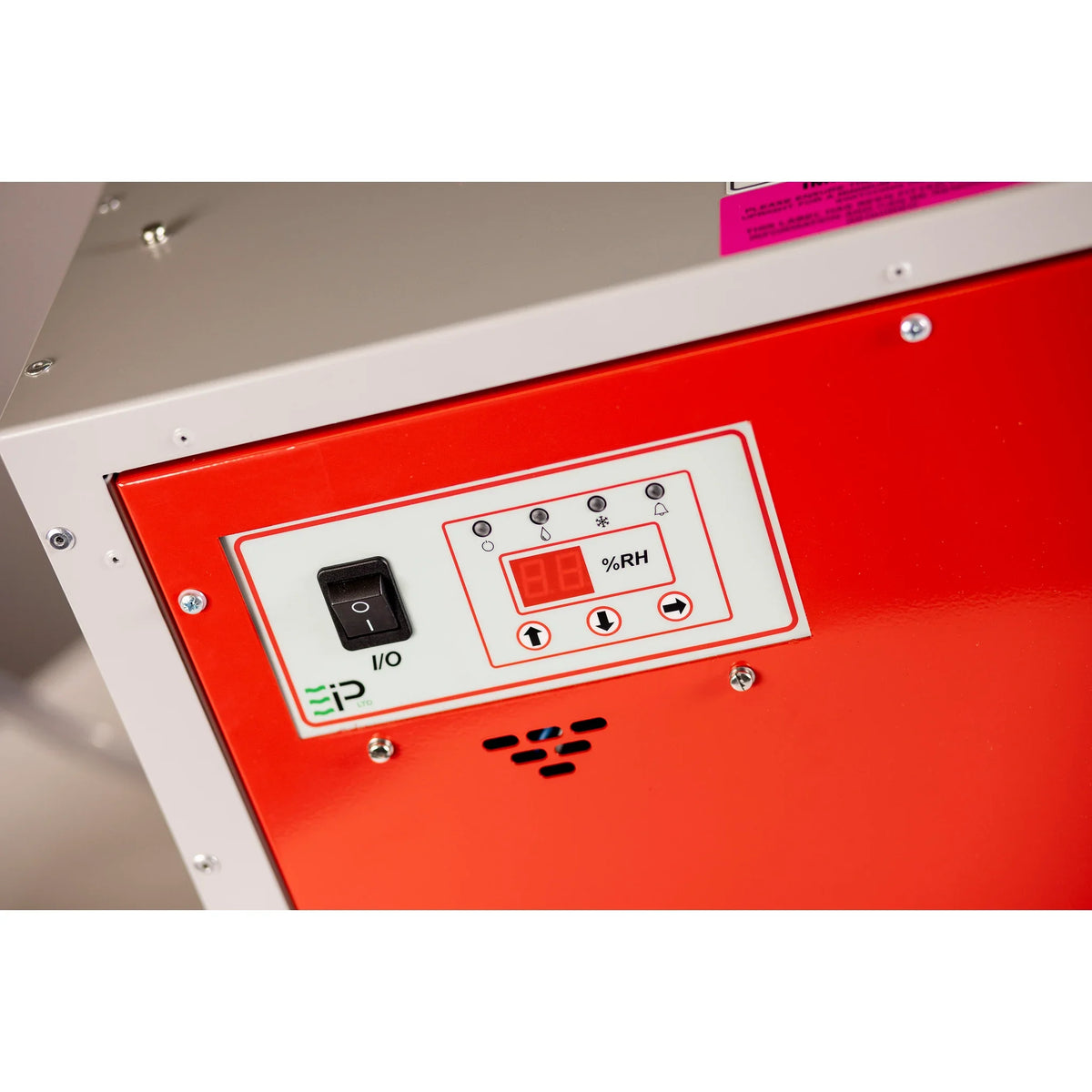

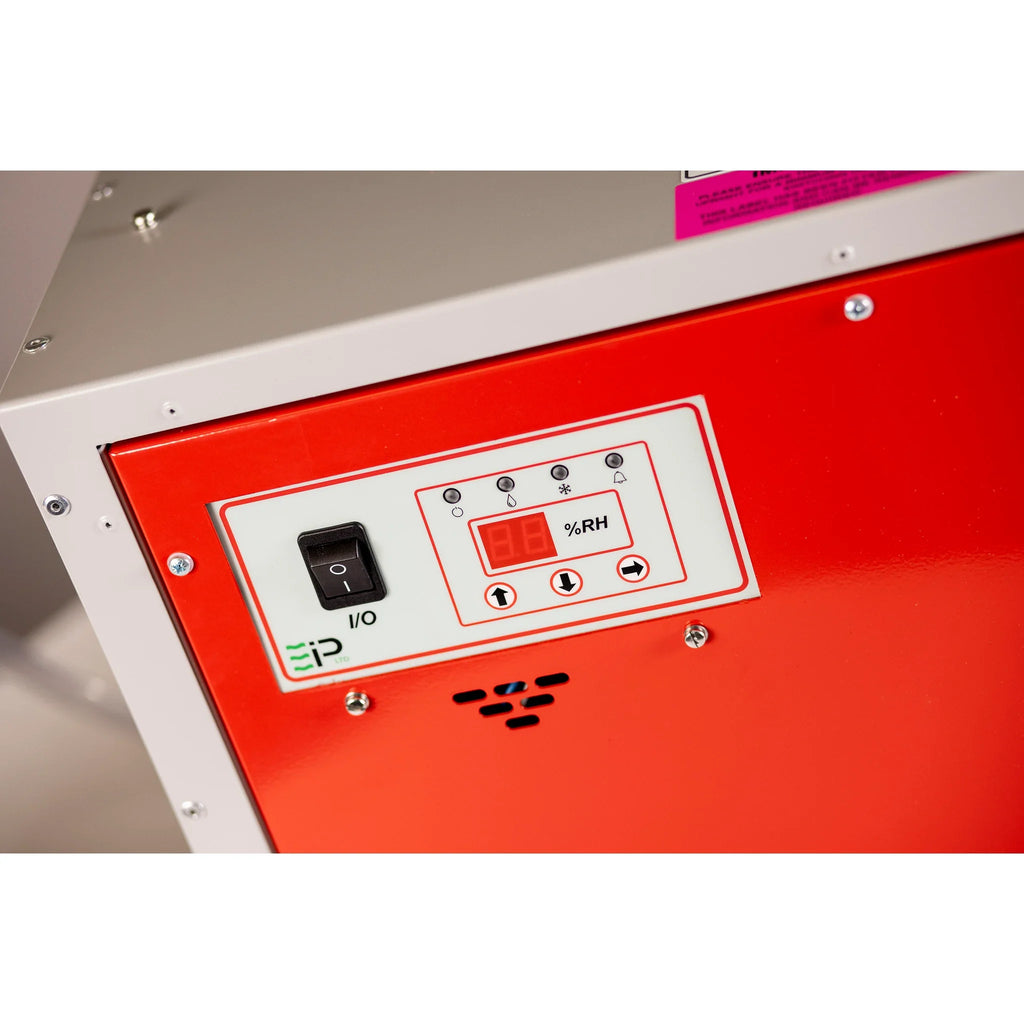

- Status indicators: show what the unit is doing at a glance during a walk-through.
- Anti vibration rubber feet: reduce vibration into the floor on a unit rated at 57 dBA.
Details
Basements and crawl spaces are on Ebac's list for the CD85, and its 15.75" height helps where headroom is tight. Offices, laboratories, storage areas, restaurants, bars, museums, locker rooms, and computer or telecommunication rooms are listed as well, and the epoxy powder coating protects the cabinet in damp rooms.
Need Help?
If you have questions about this product before you order, our team is happy to help.
Email: support@avermontdirect.com
Phone: +1 (844) 455-3695
Hours: Monday–Friday, 9AM–5PM
Live Chat: Available 24/7
| Model | CD85 |
| Part Number | 11293GL-US |
| Typical Extraction | 56 PPD |
| Effective Volume | 8,370 cu ft |
| Voltage | 110V |
| Phase | 1 |
| Frequency | 60 Hz |
| Current | 7 A |
| Power | 880 W |
| Noise Level | 57 dBA |
| Compressor | Rotary |
| Refrigerant | R407c |
| Operating Temperature | 33°F to 95°F |
| Dimensions | 23.6" W × 13.5" D × 15.75" H |
| Weight | 75 lbs |
- Power: fitted mains plug, single-phase 110V, 60 Hz
- Drainage: built-in condensate pump with quick disconnect hose coupling for the discharge line
- A filter sits in the airflow path; leave access to it when planning the mounting spot
- Included: CD85 dehumidifier, owner's manual, 3/8" I.D. PVC tube 3 m long, jubilee clip, 2× handles
