Description

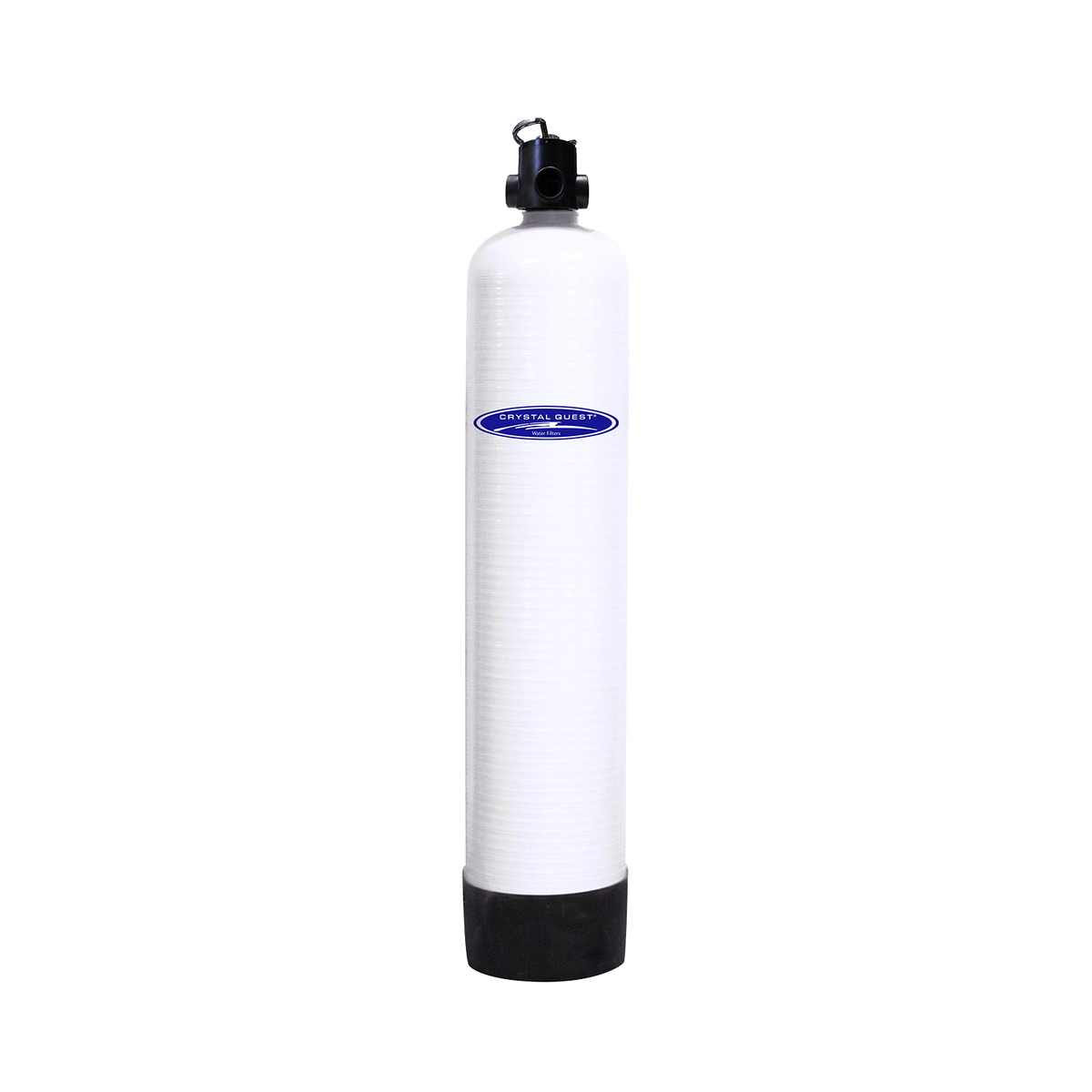

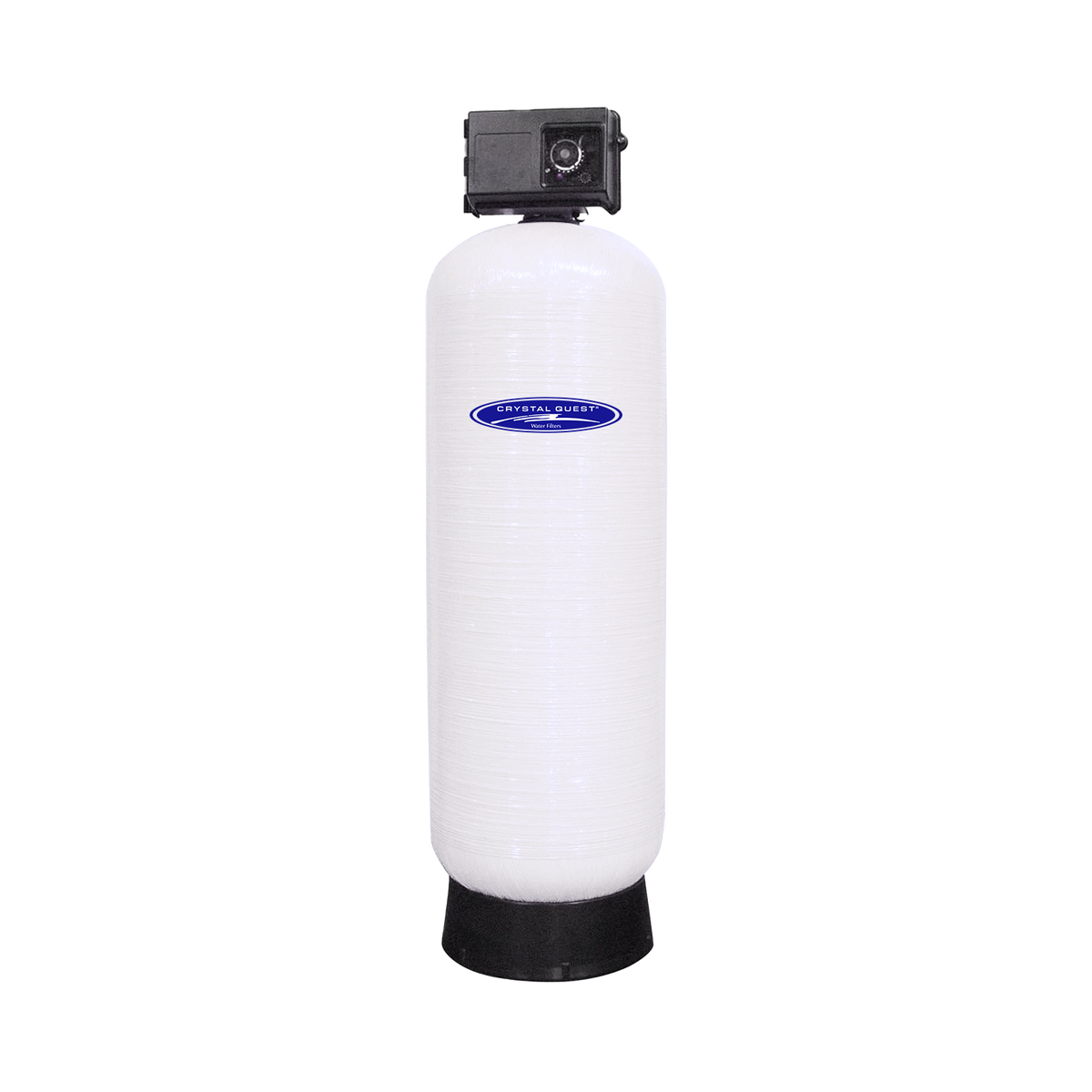

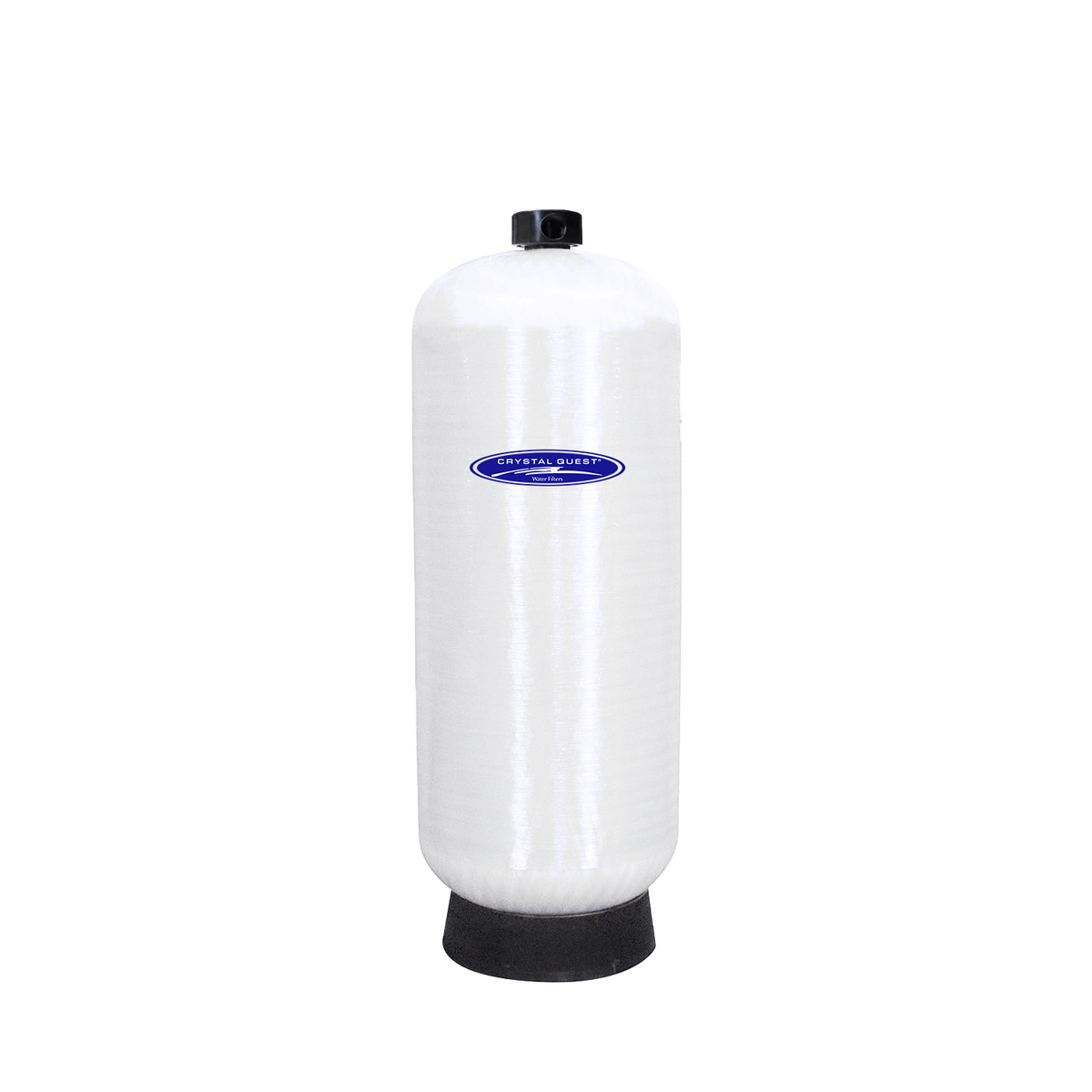

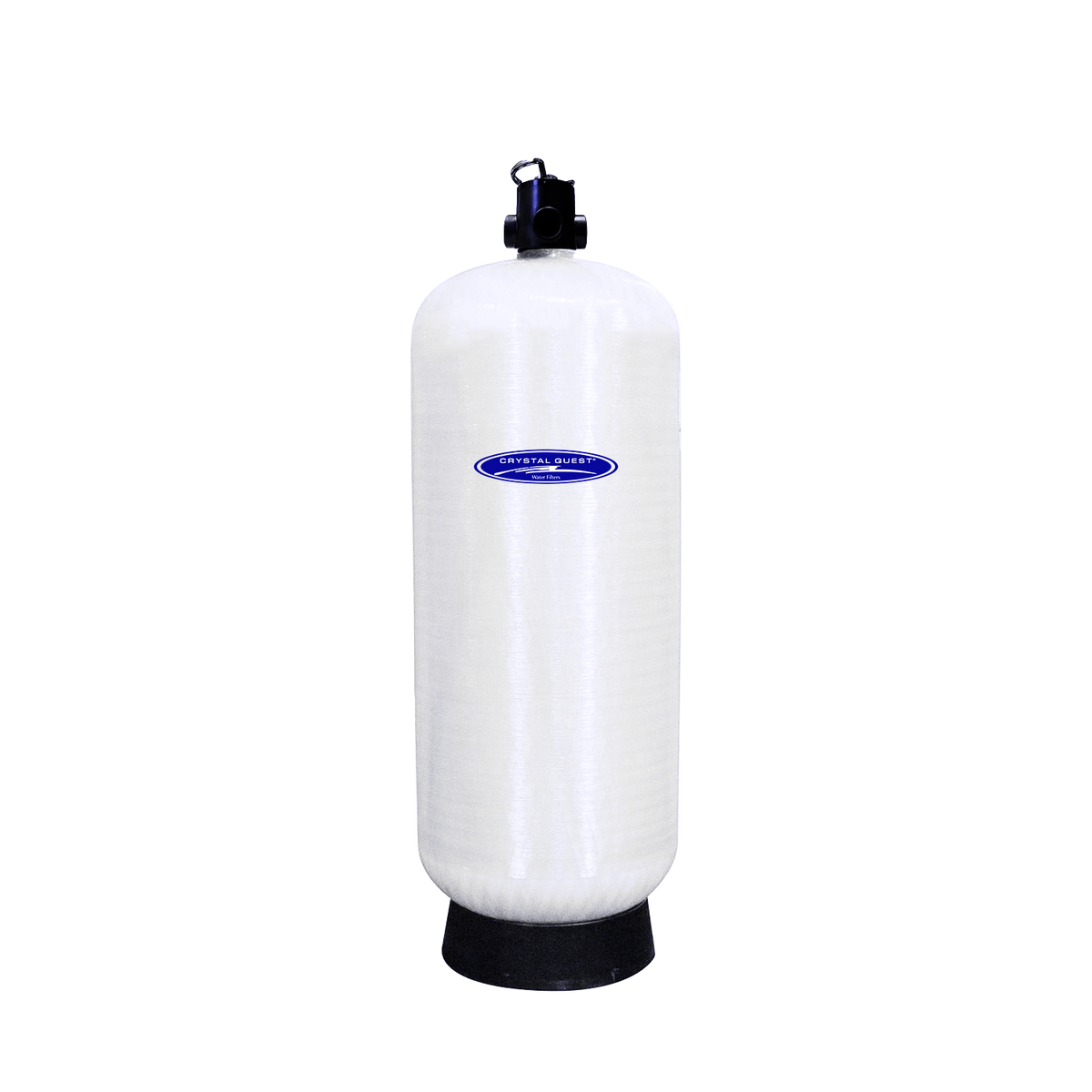

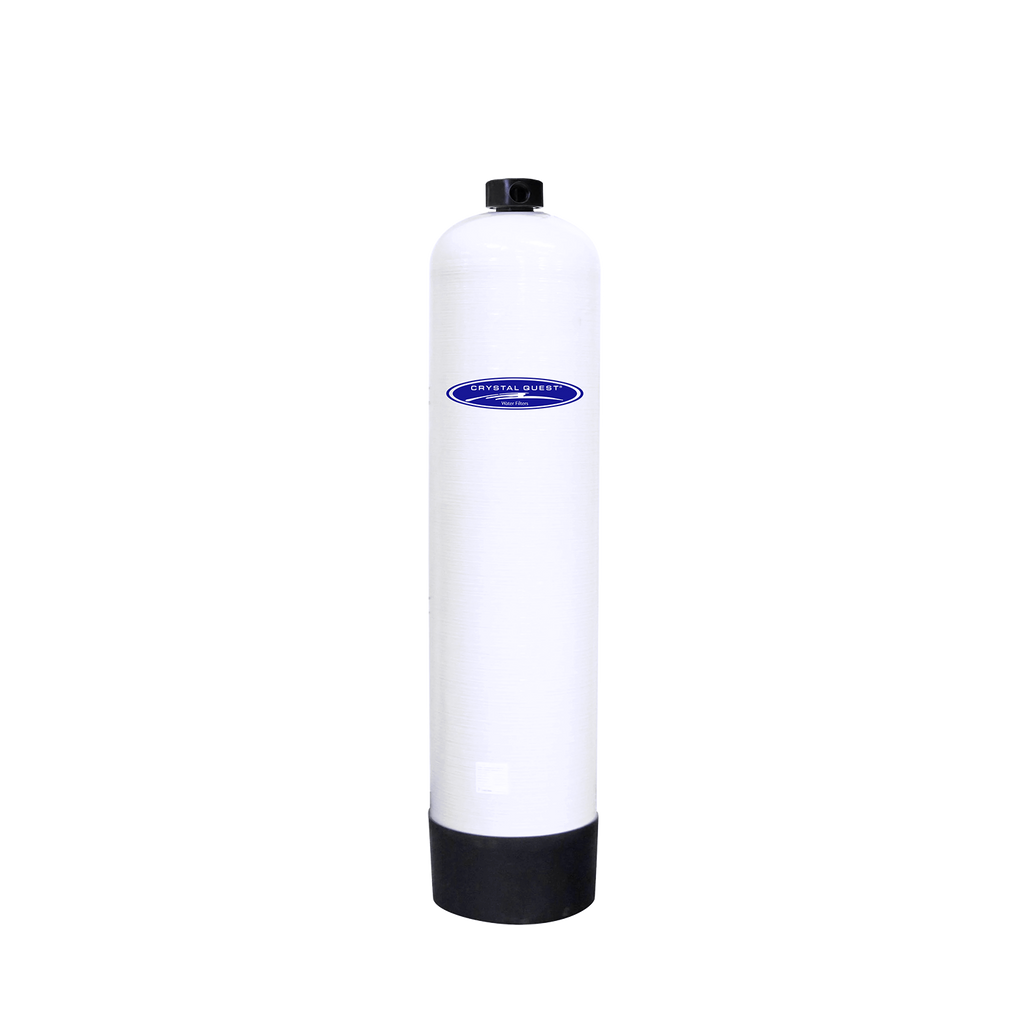

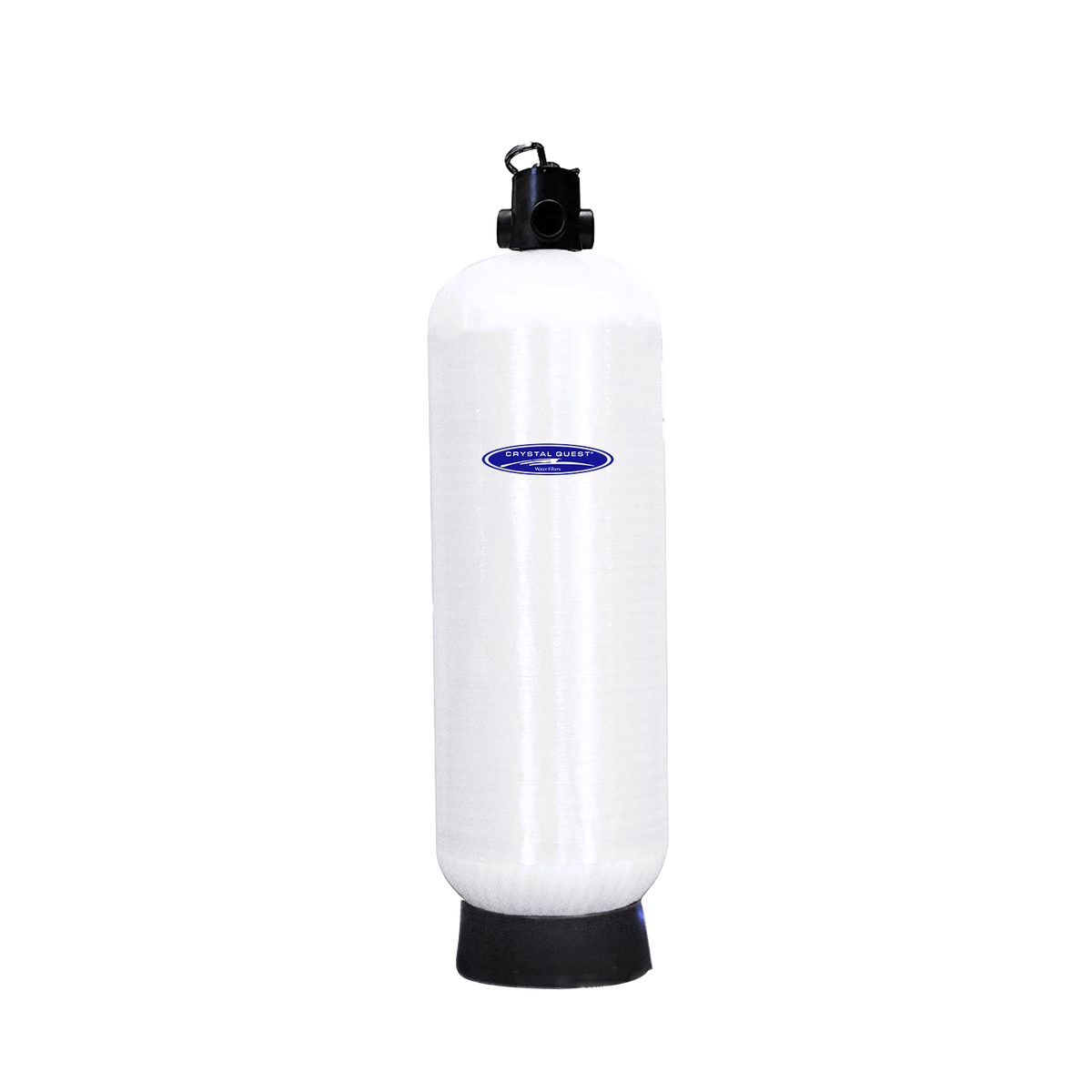

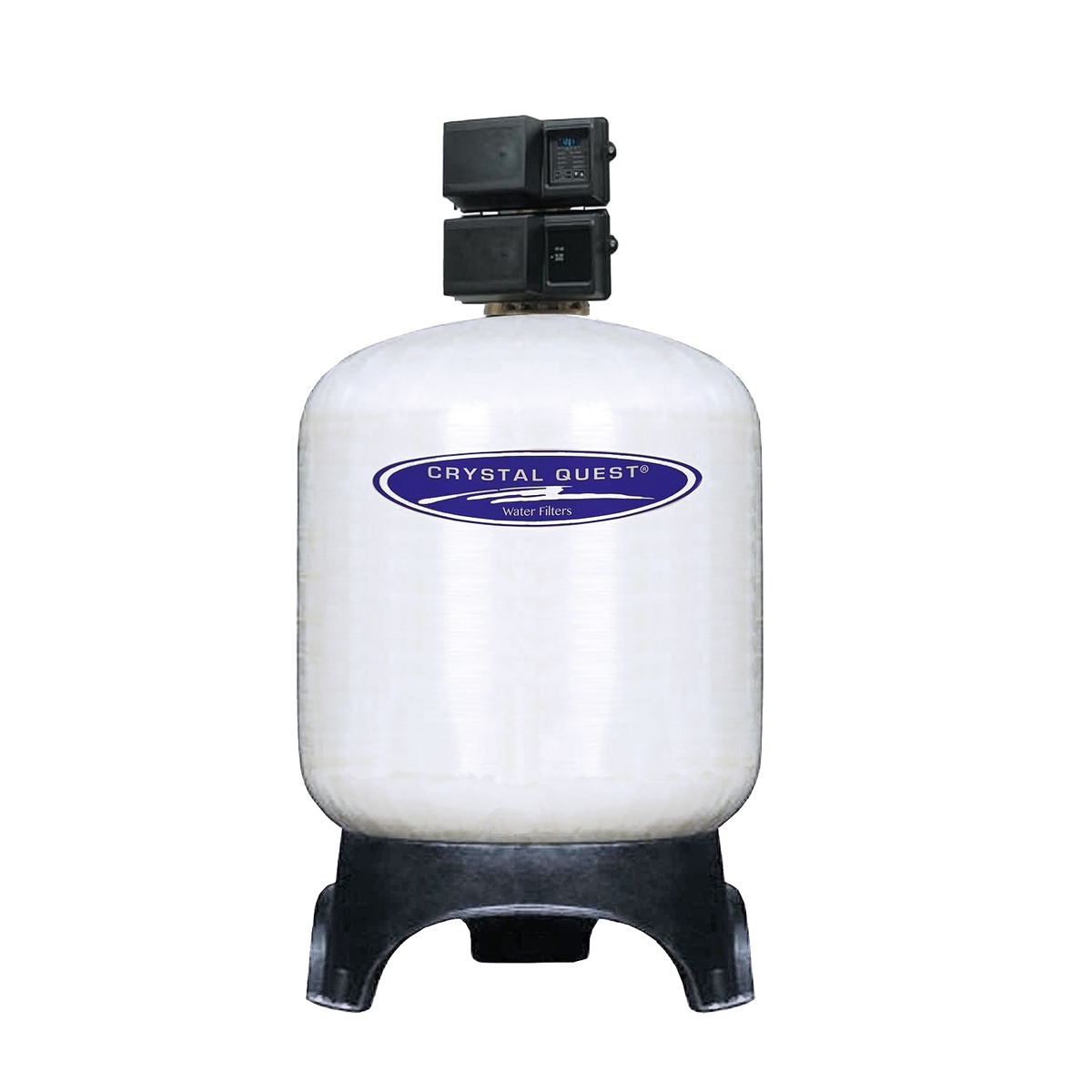

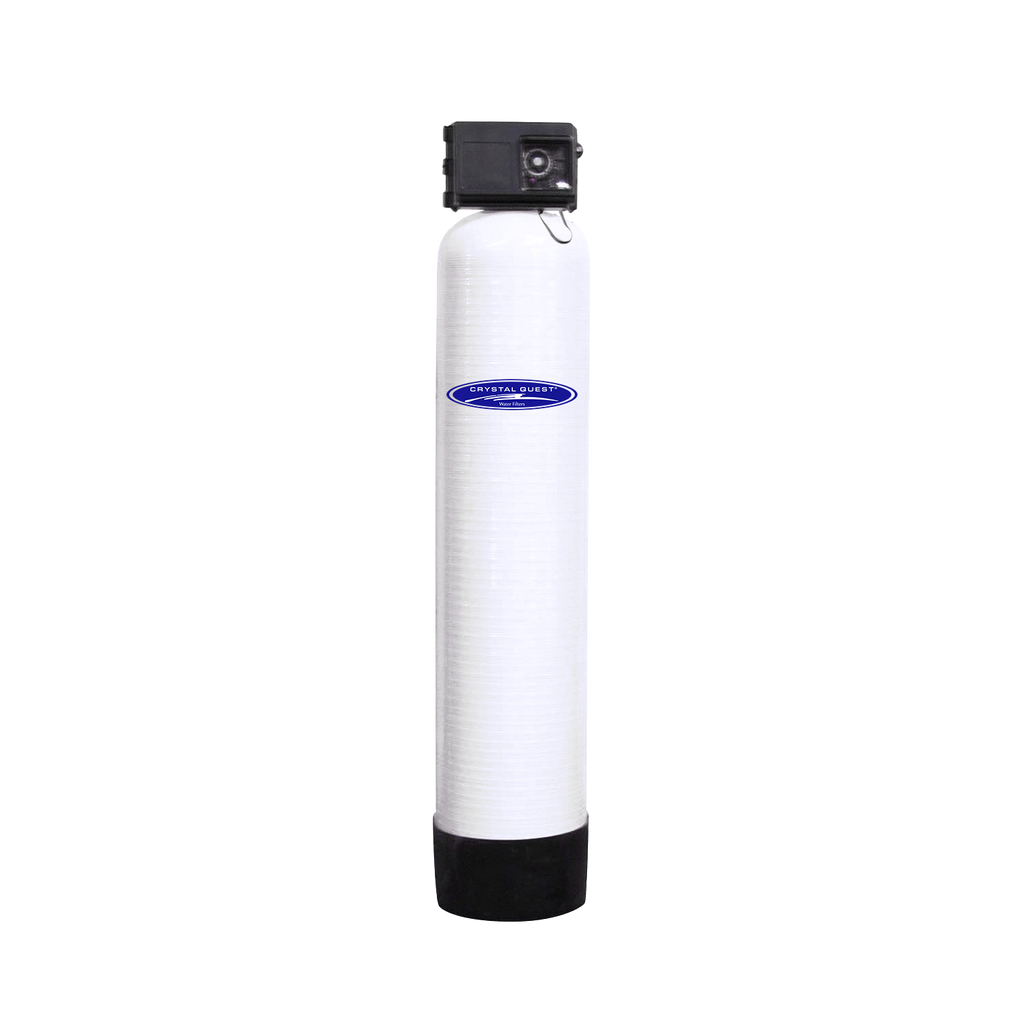

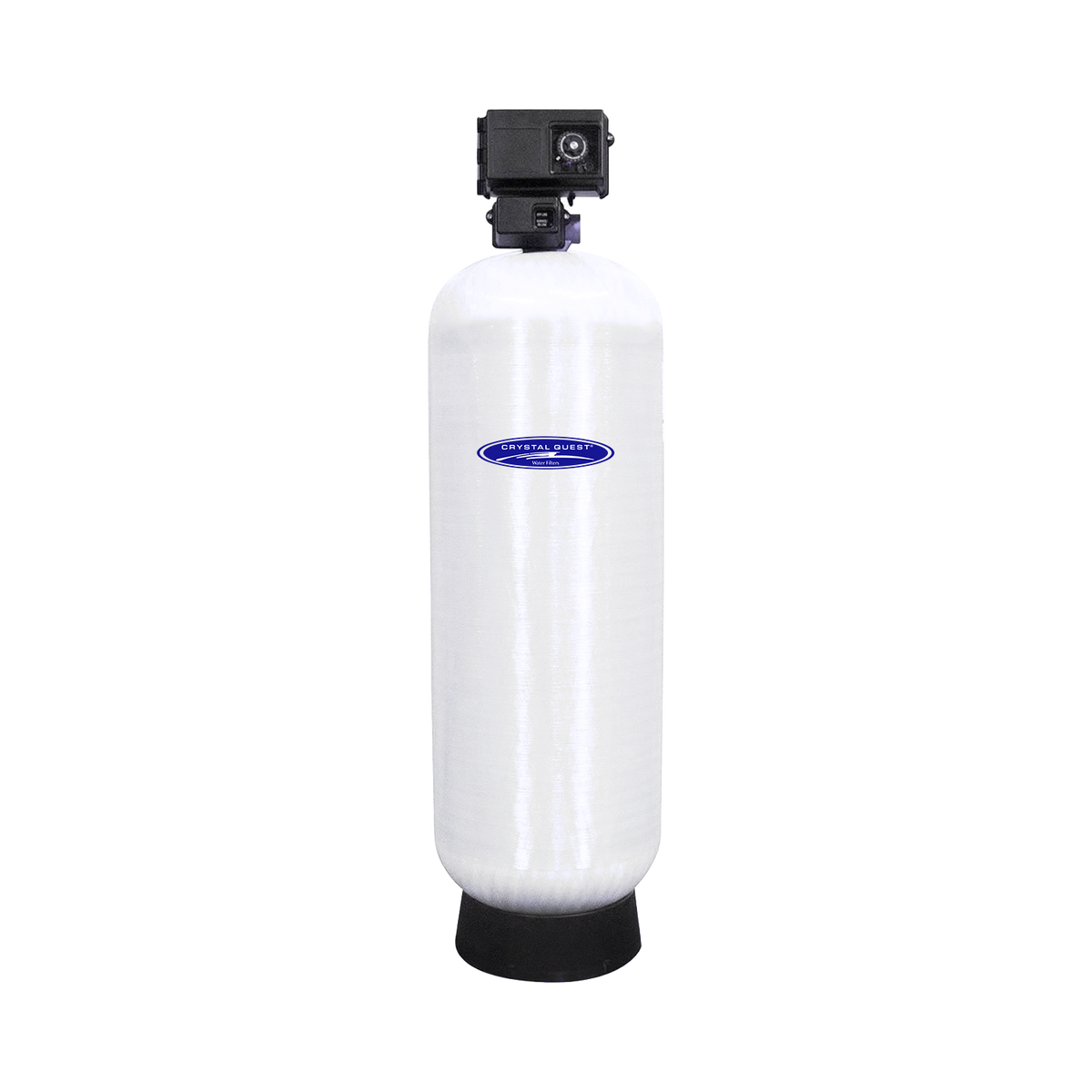

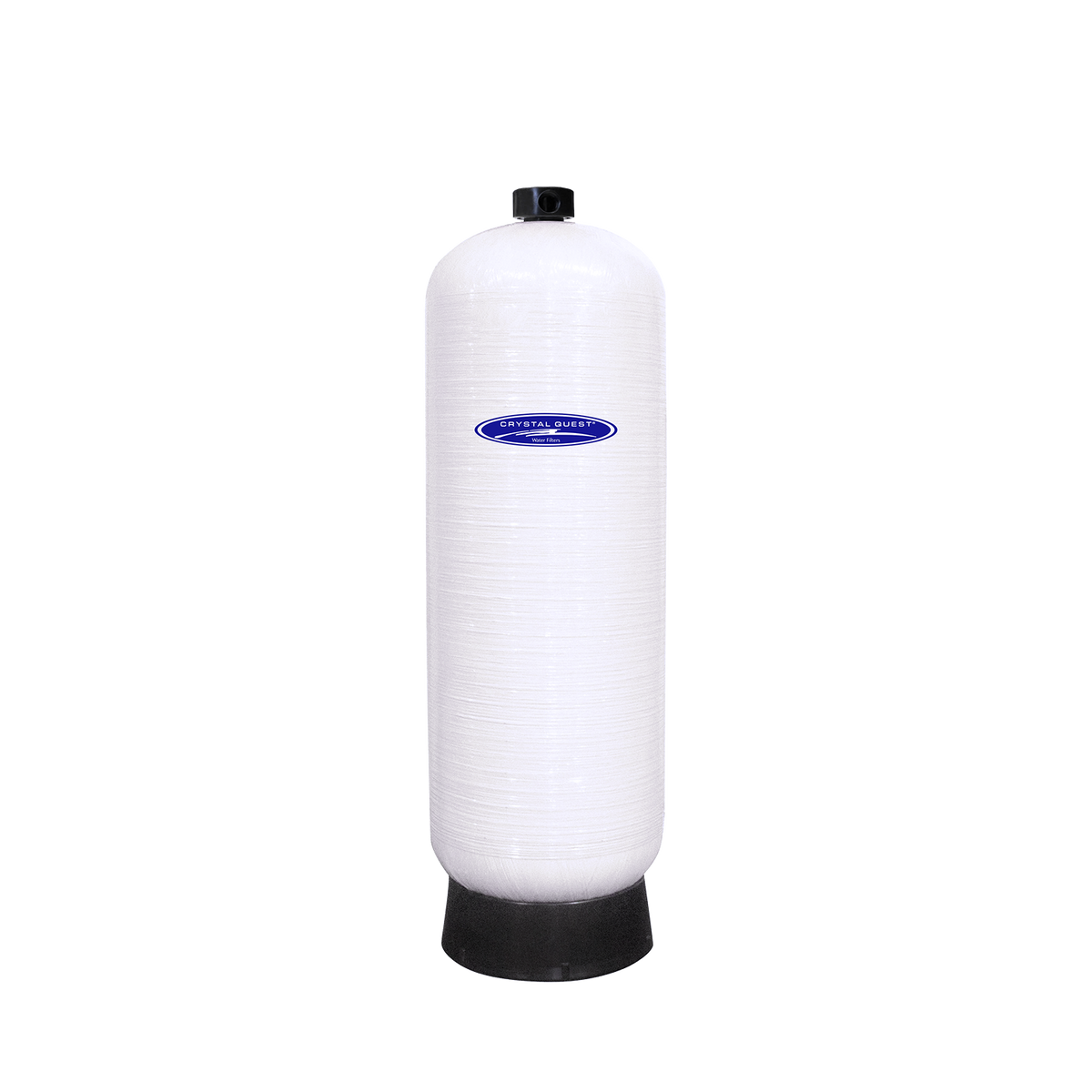

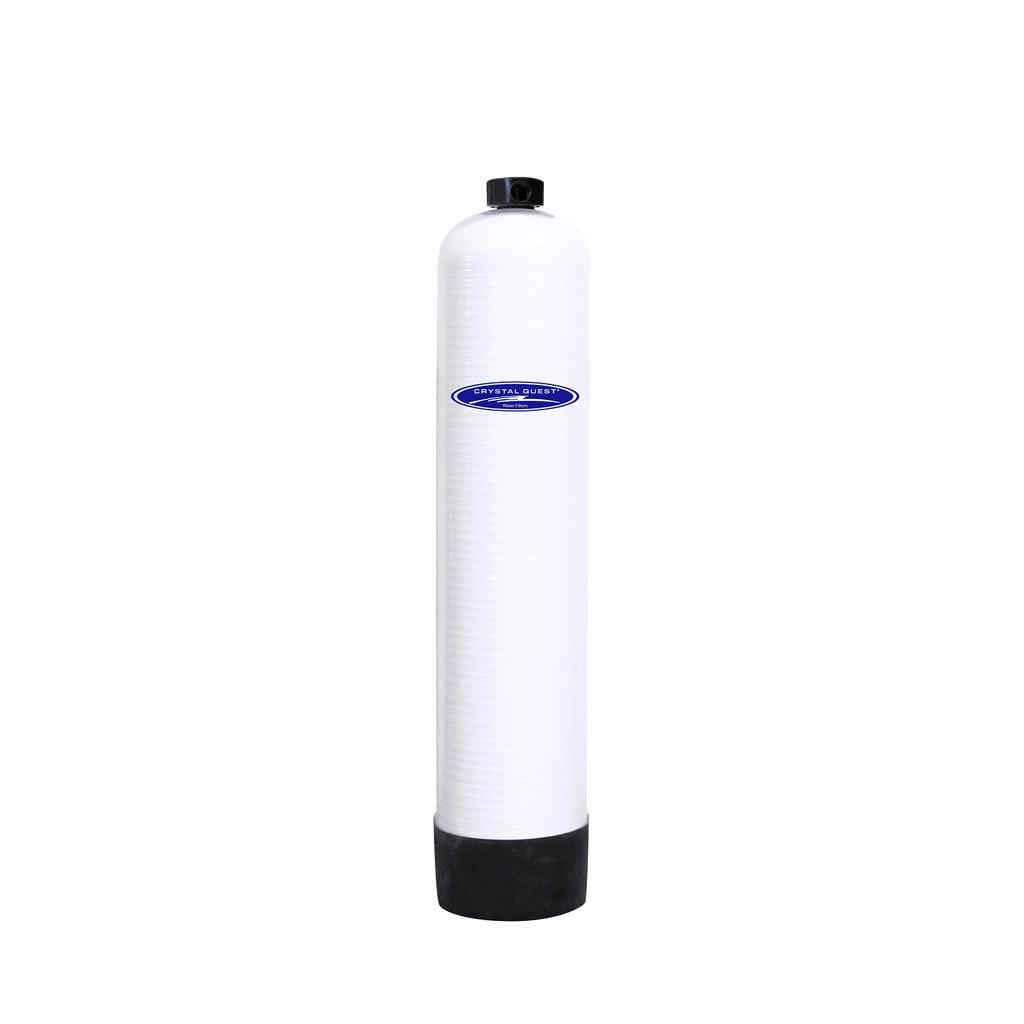

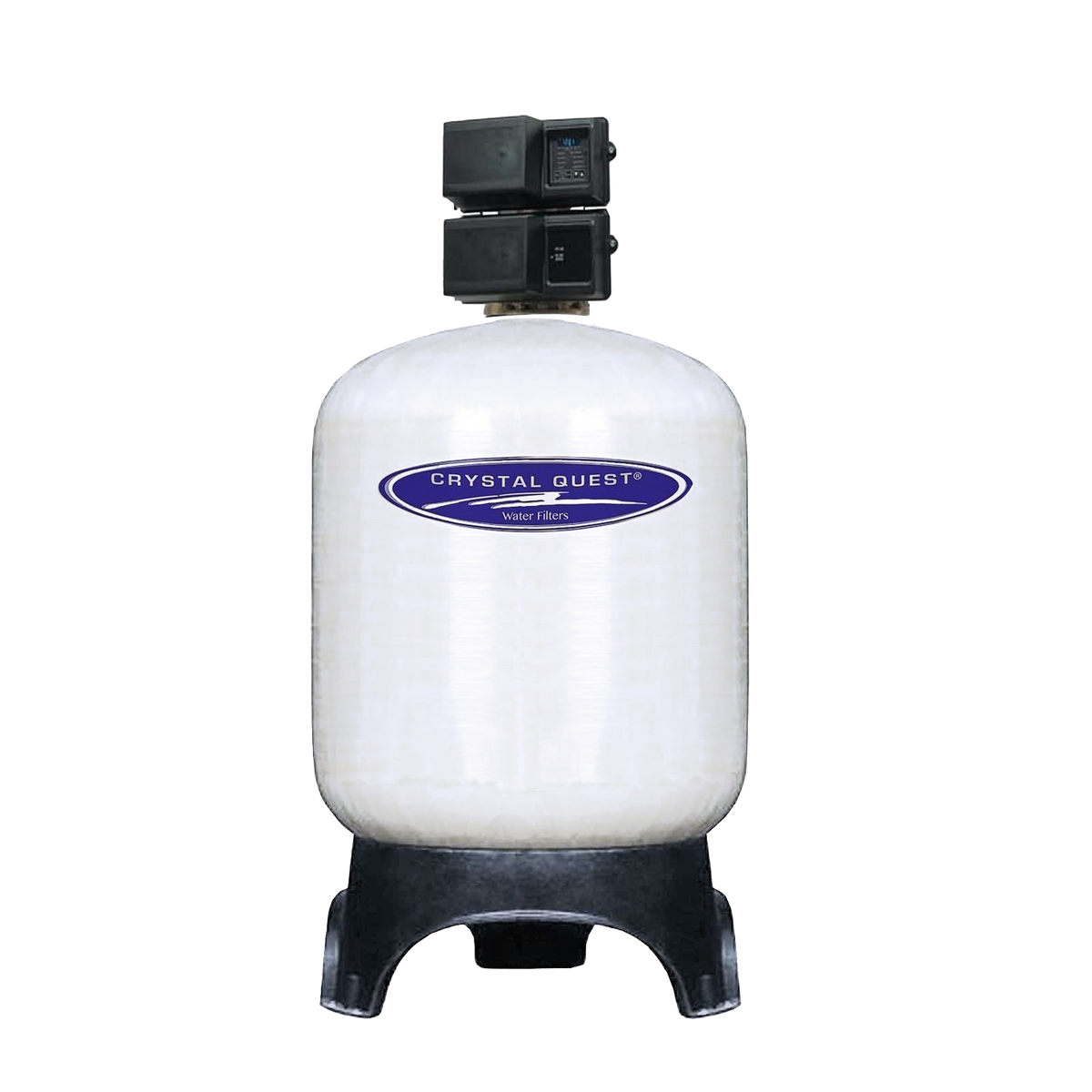

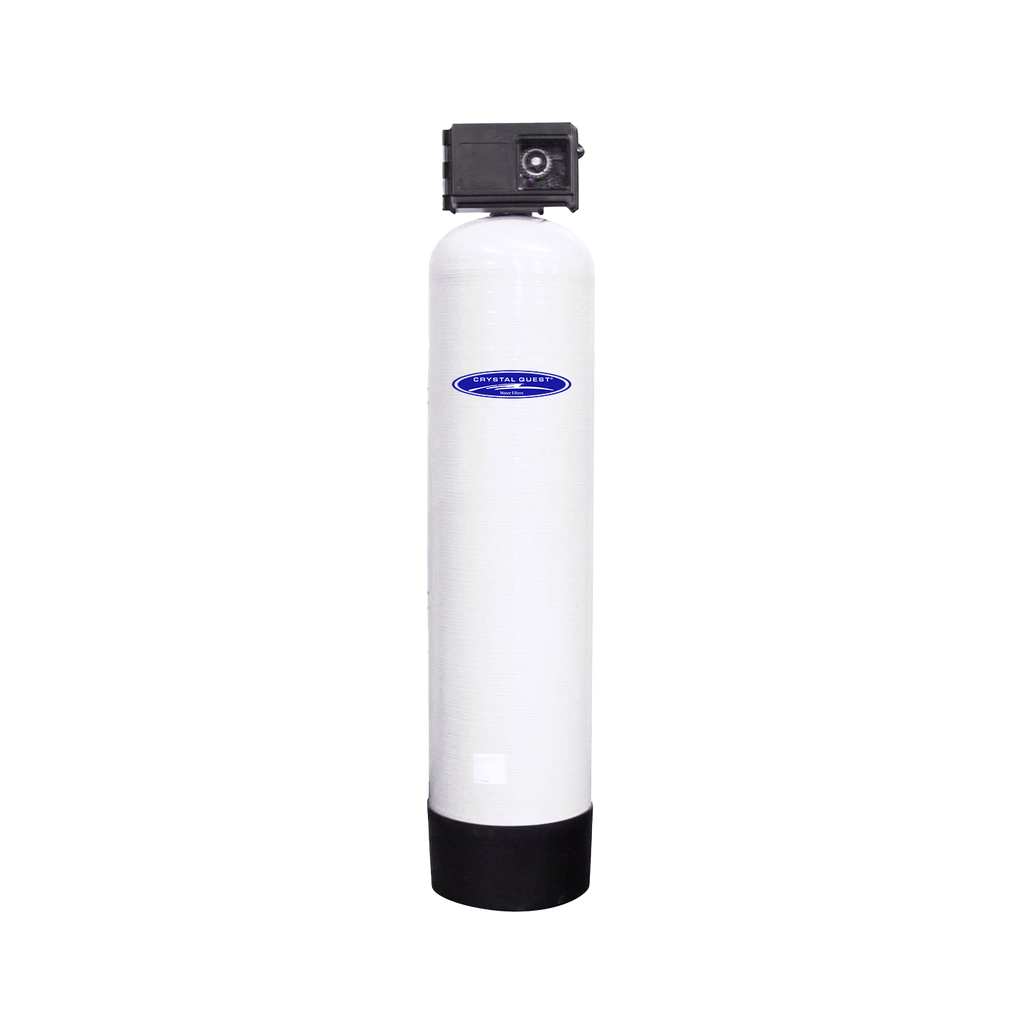

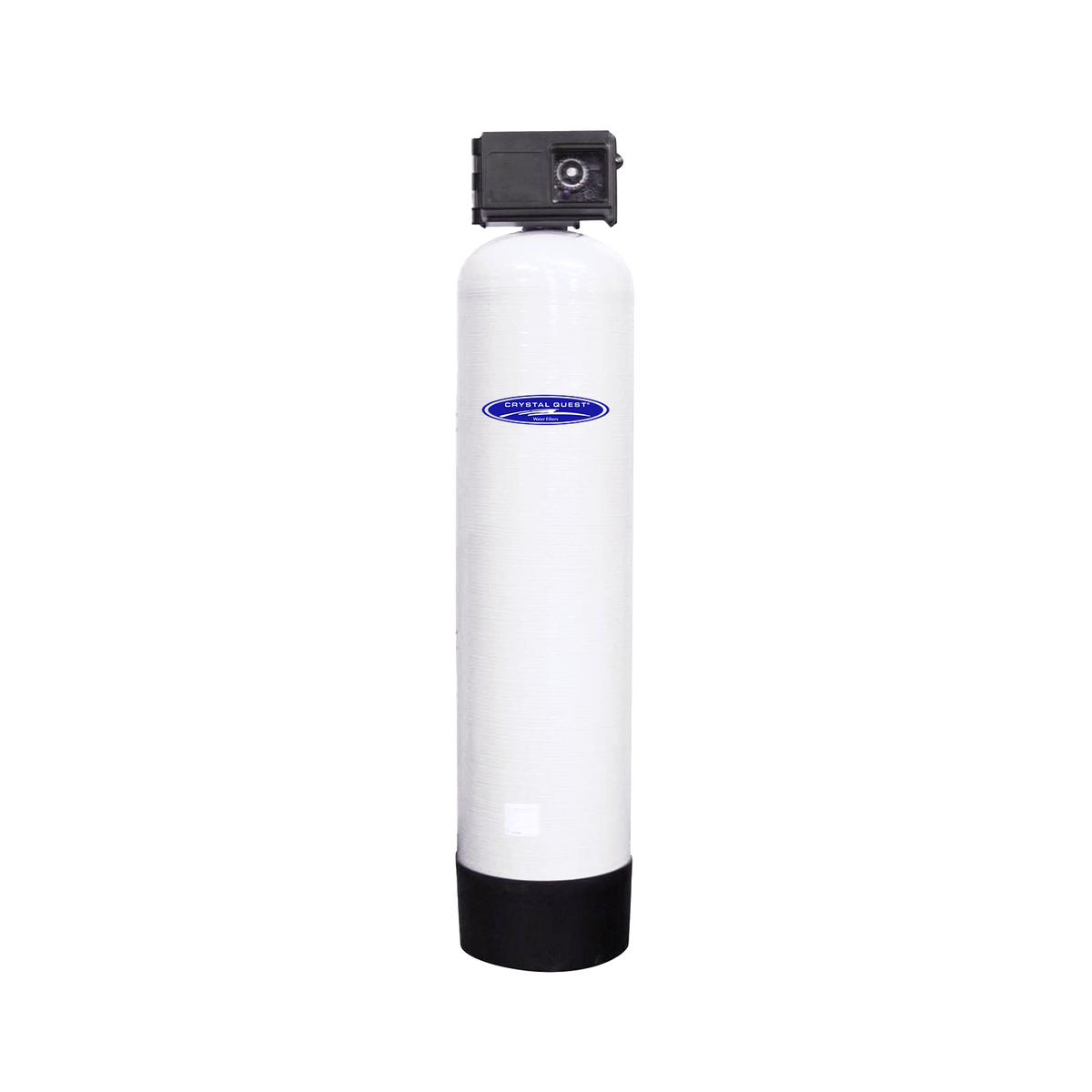

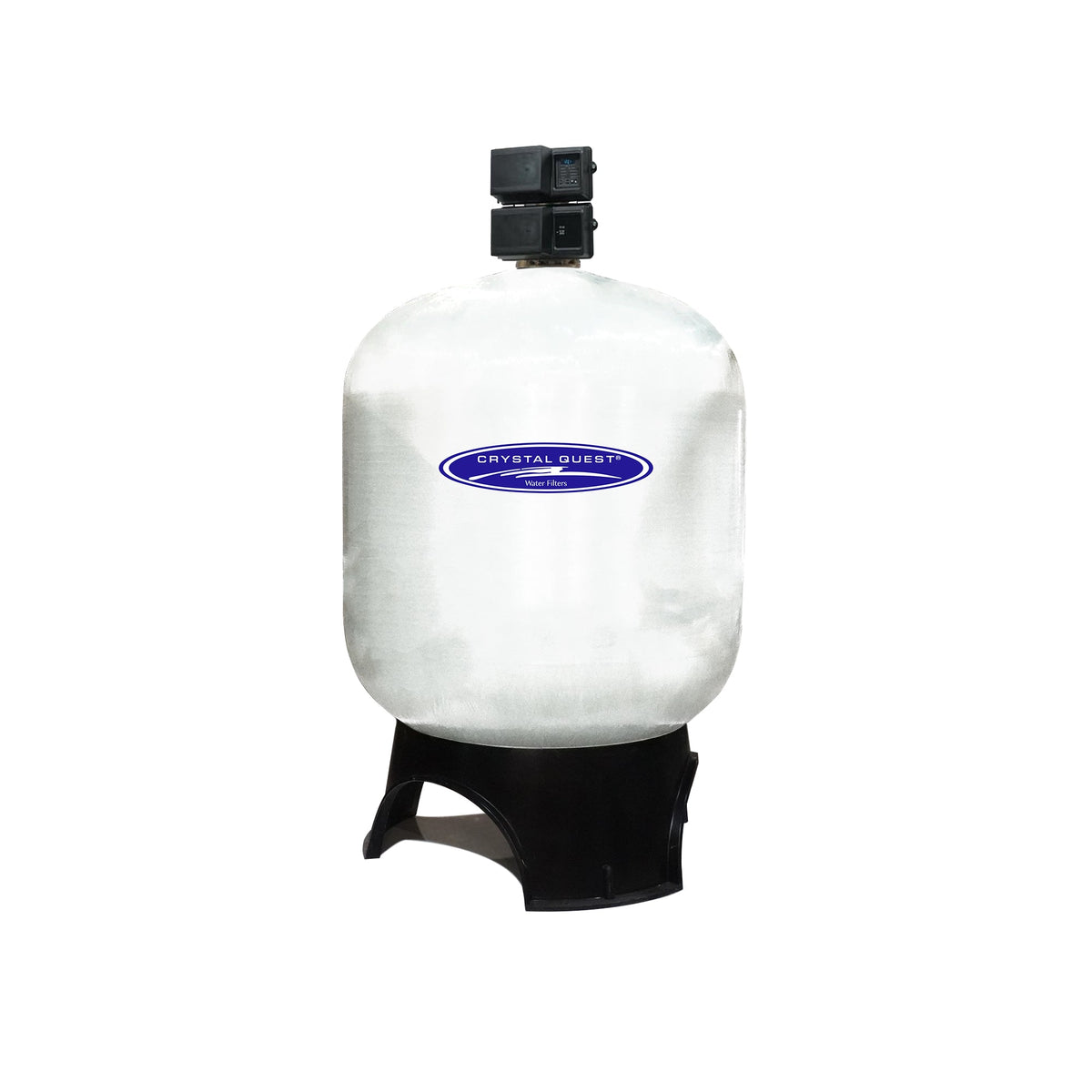

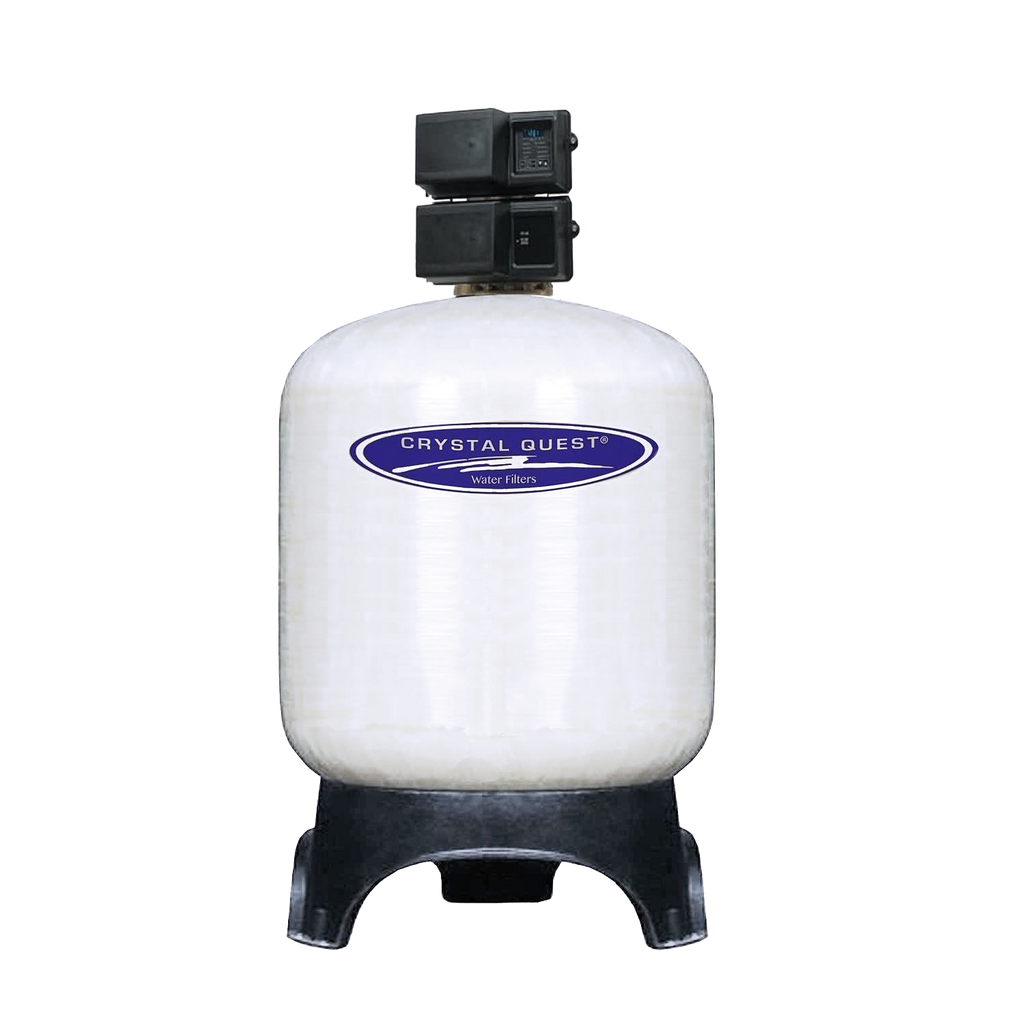

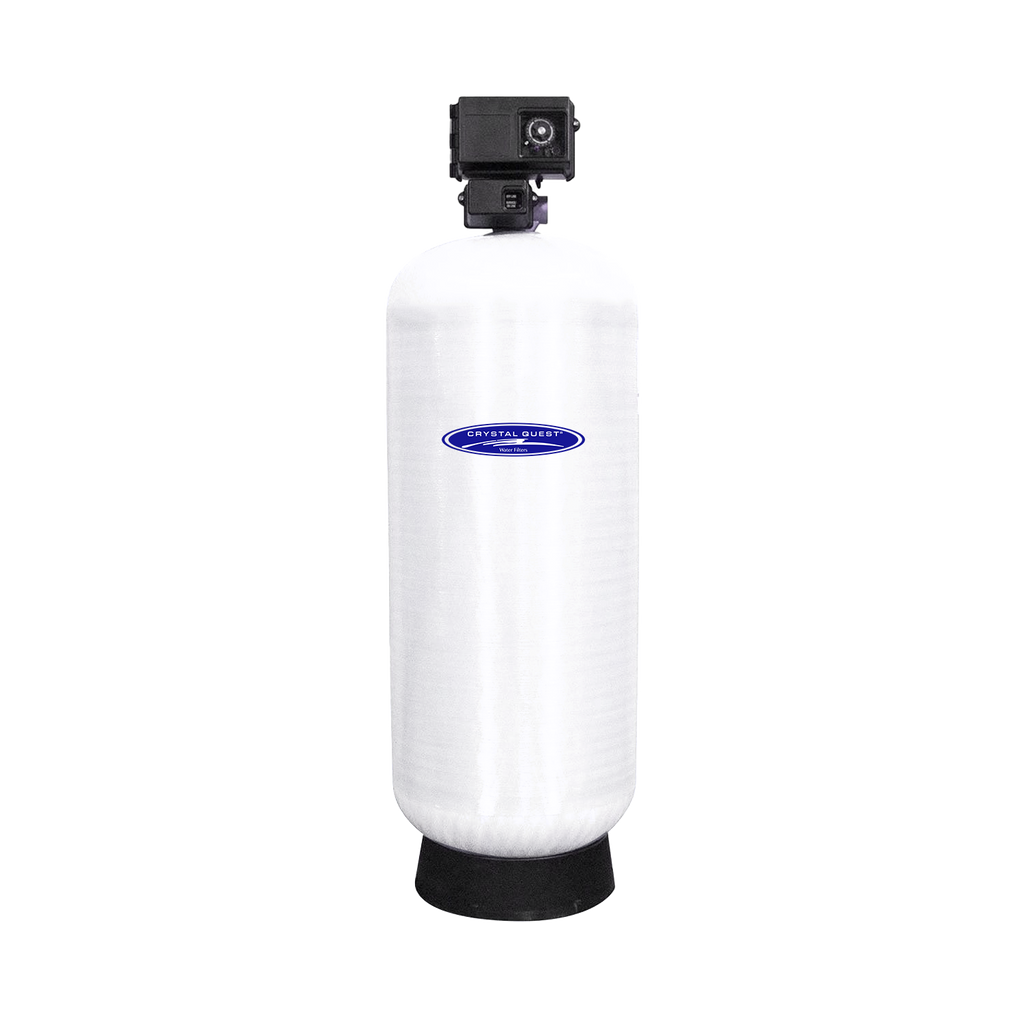

The Crystal Quest Demineralizing (DI) Water Filtration System produces deionized process water at service flows from 11 to 390 GPM. It removes minerals from water for laboratory, medical, rinsing, process, and spot-free work, and is not intended to produce drinking water.
Highlights
- Ion exchange demineralizing media removes dissolved minerals for process water
- Eleven sizes from 11 GPM to 390 GPM service flow, with peak flows up to 450 GPM

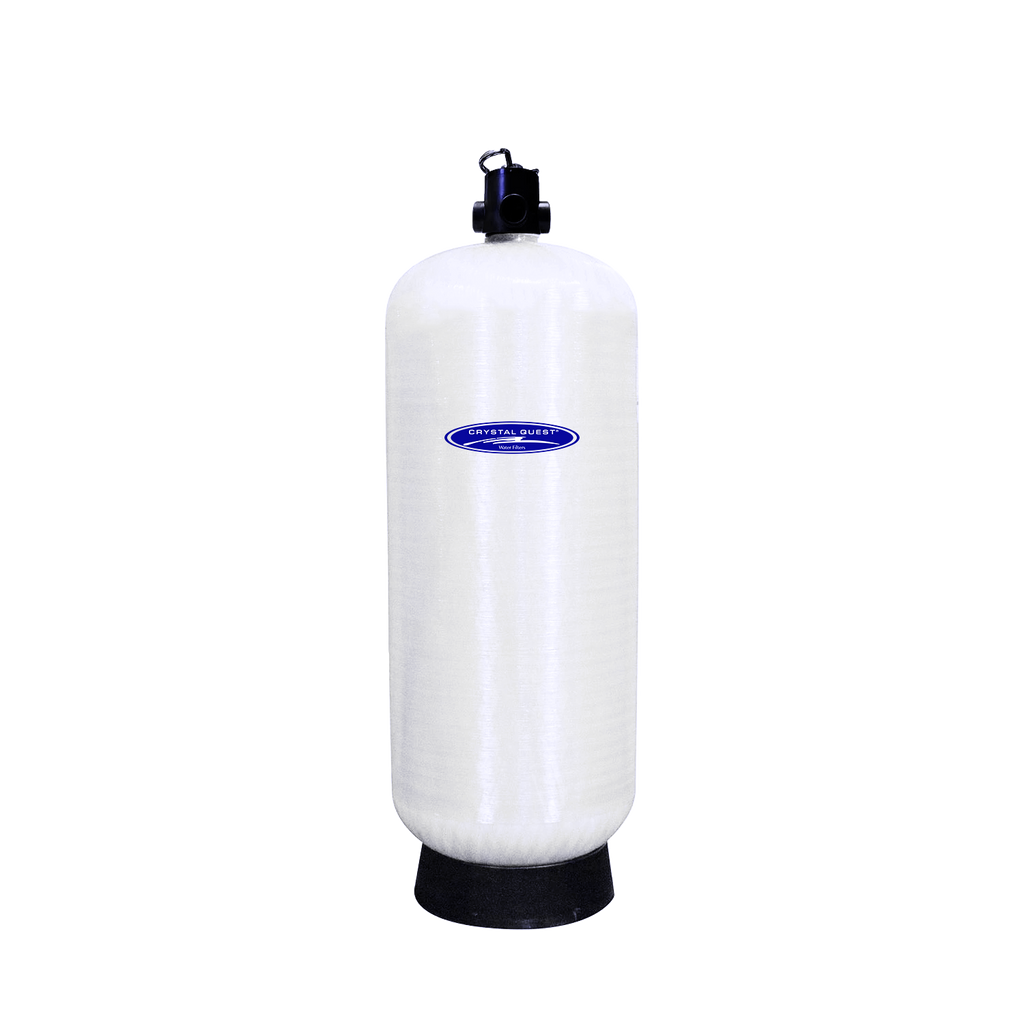

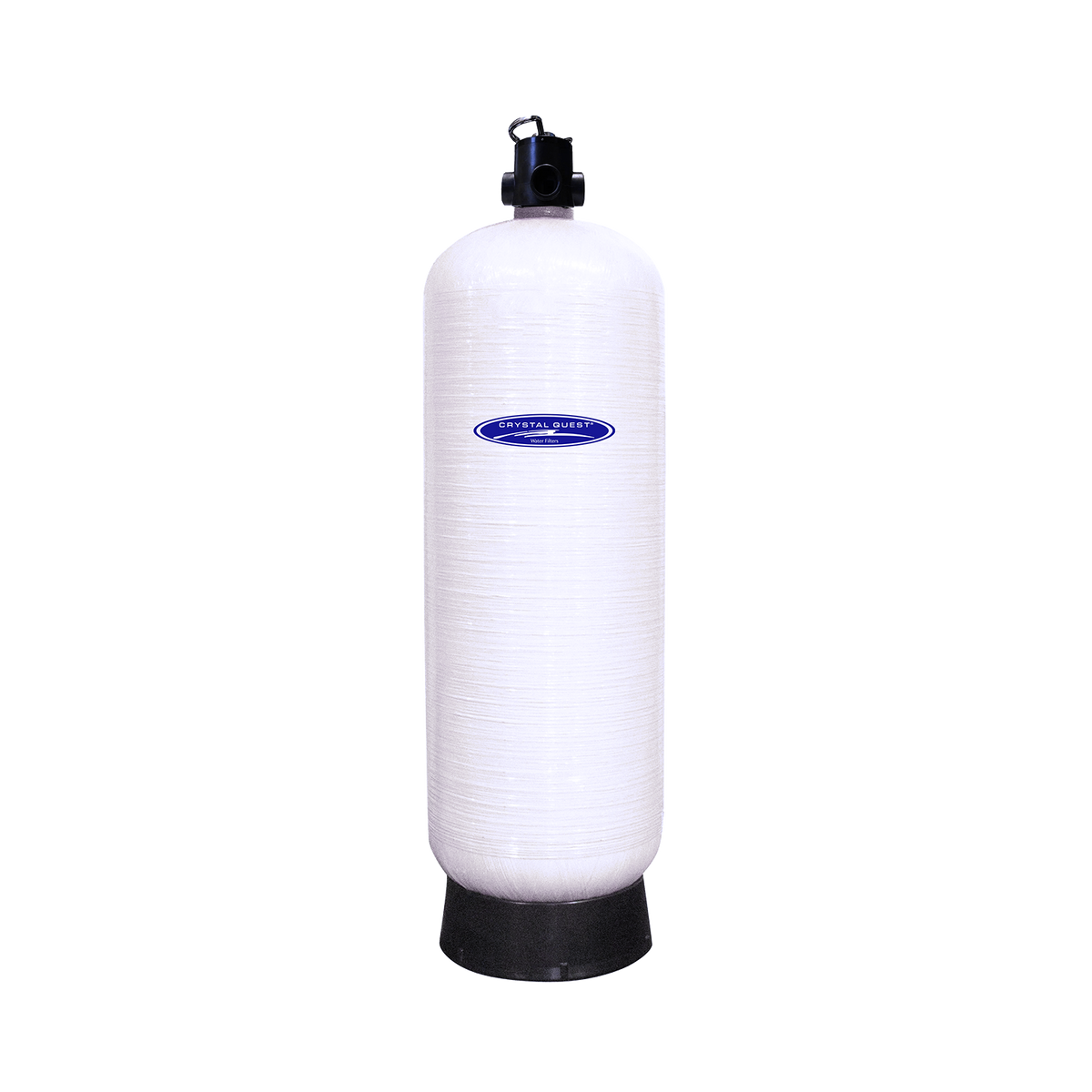

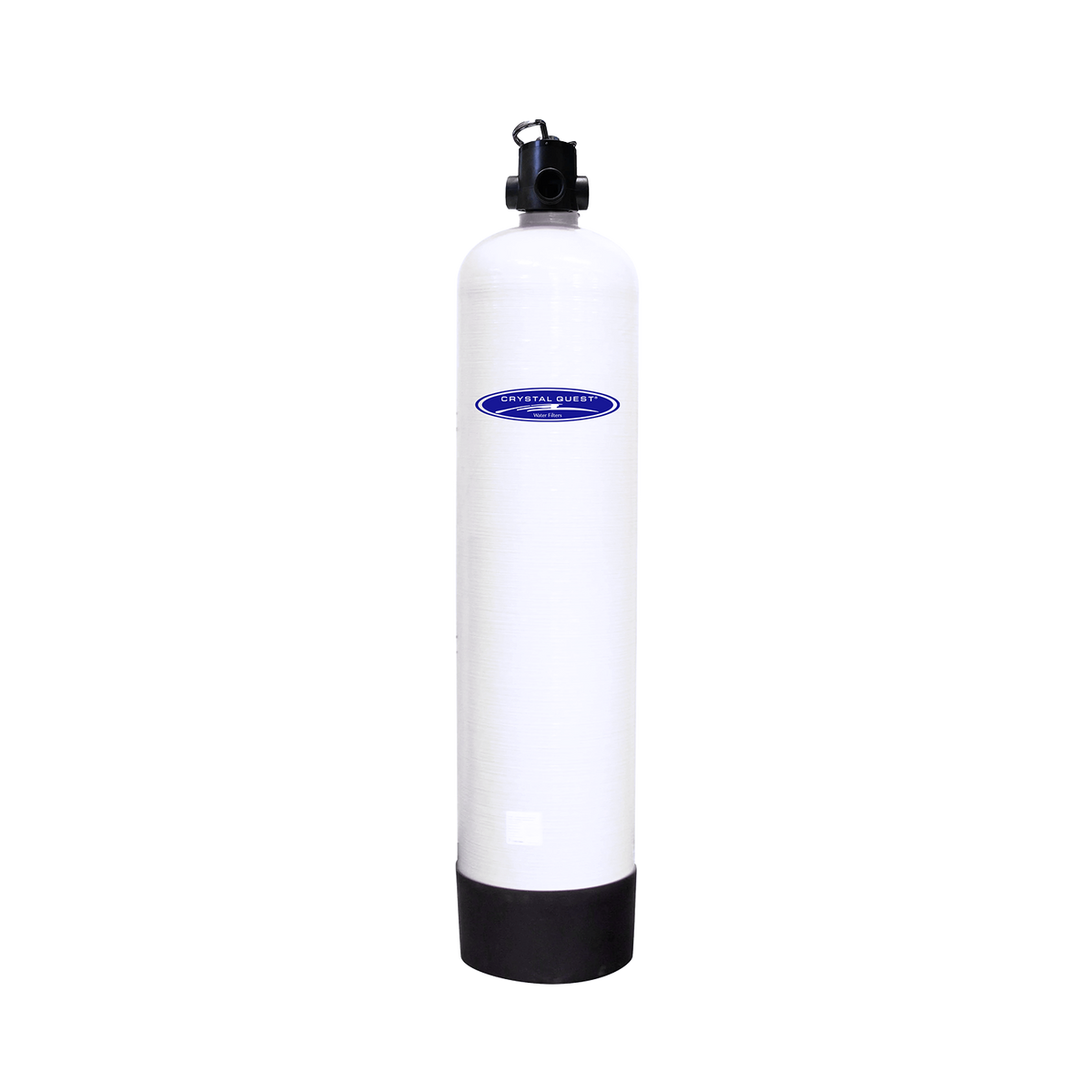

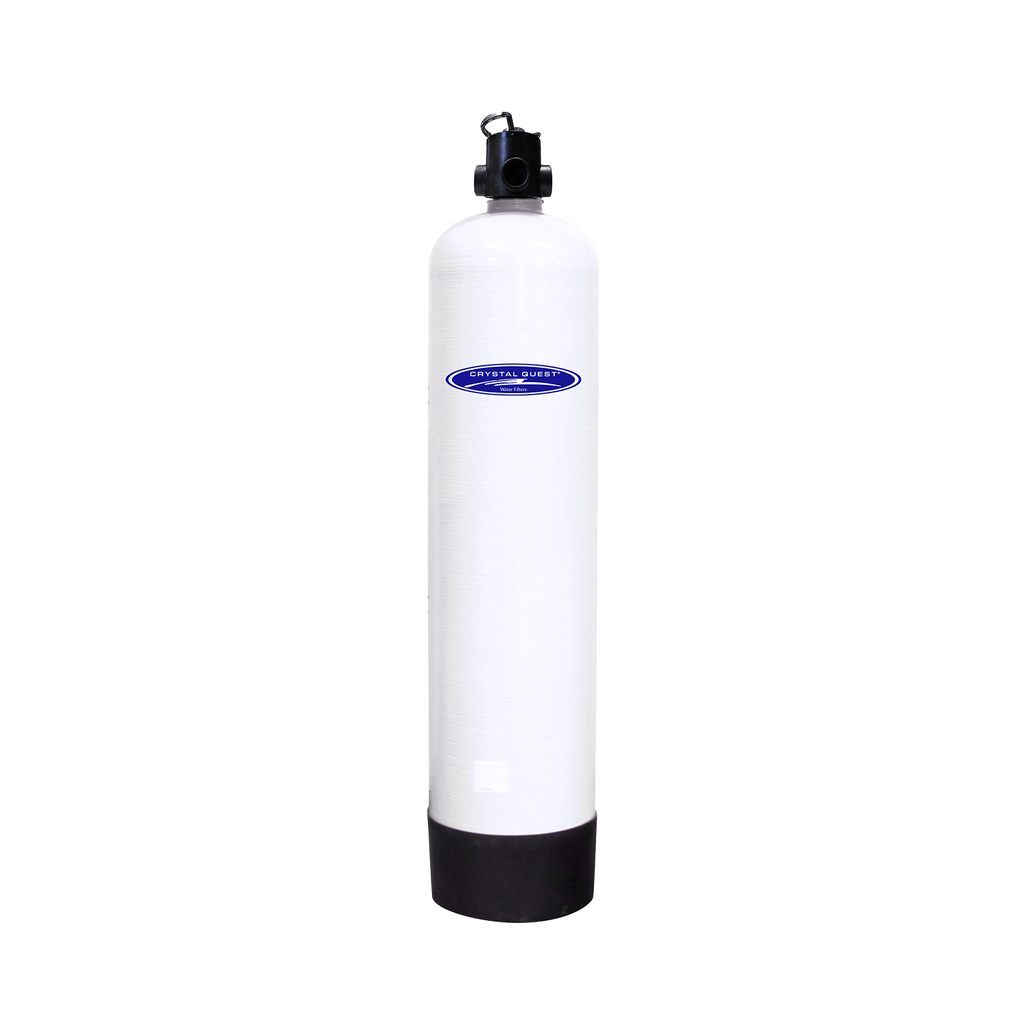

- Automatic timer control heads, or manual upflow and manual downflow with backwash heads on 11-75 GPM sizes
- Manual upflow head needs no electricity and no backwash
- Heavy-duty composite fiberglass tanks with a high flow distributor and all-brass control valves
Details
Avermont Direct is an authorized Crystal Quest dealer. Choose the model by the service flow your process needs, then pick an automatic timer head or one of the manual heads offered on the 11-75 GPM sizes. Plan pre-treatment for bacteria, particles, and organics separately, since DI media treats dissolved minerals only. Contact us to size resin replacement for your water and usage.
Need Help?
If you have questions about this product before you order, our team is happy to help.
Email: support@avermontdirect.com
Phone: +1 (844) 455-3695
Hours: Monday–Friday, 9AM–5PM
Live Chat: Available 24/7
| Service Flow | 11, 13, 15, 20, 35, 60, 75, 185, 200, 245, 390 GPM |
| Peak Flow | 13, 15, 22, 41, 60, 95, 140, 250, 270, 280, 450 GPM |
| Backwash Flow | 5-75 GPM (15 GPM and larger models) |
| Demineralizing Media | 1.5 to 60 cu. ft. by model |
| Pipe Size | 1" (11-15 GPM), 1.5" (20-35 GPM), 2" (60-75 GPM), 2" or 3" (185 GPM), 3" (200-390 GPM) |
| Automatic Control Valve | 5600 (11-13 GPM), 2510 (15 GPM), 2850 (20-35 GPM), 2900 (60-75 GPM), 3150 / 3900 (185 GPM), 3900 (200-390 GPM) |
| Operating Pressure | 35-60 psi |
| Mineral Tank Size | 10" x 54" (11 GPM) up to 63" x 83" (390 GPM) |
| Space Required (D x H) | 12" x 64" (11 GPM) up to 67" x 203" (390 GPM) |
| Quartz | 15 to 600 lbs by model |
| Control Head Options | Automatic; Manual (Upflow); Manual (Downflow w/ Backwash); 185 GPM with 2" or 3" connection |
- Makes deionized process water, not drinking water; for low-TDS drinking water, a reverse osmosis system is the better fit
- Removes minerals only: it does not remove bacteria or particles and does little for most organic chemicals
- Deionized water is easily contaminated, can corrode materials it contacts, and its pH drops when exposed to air
- Metered control valve, backwash bypass, 3200NT or NXT controller, duplex, twin alternating, or triplex configurations, and skid mounting available on request
