Description

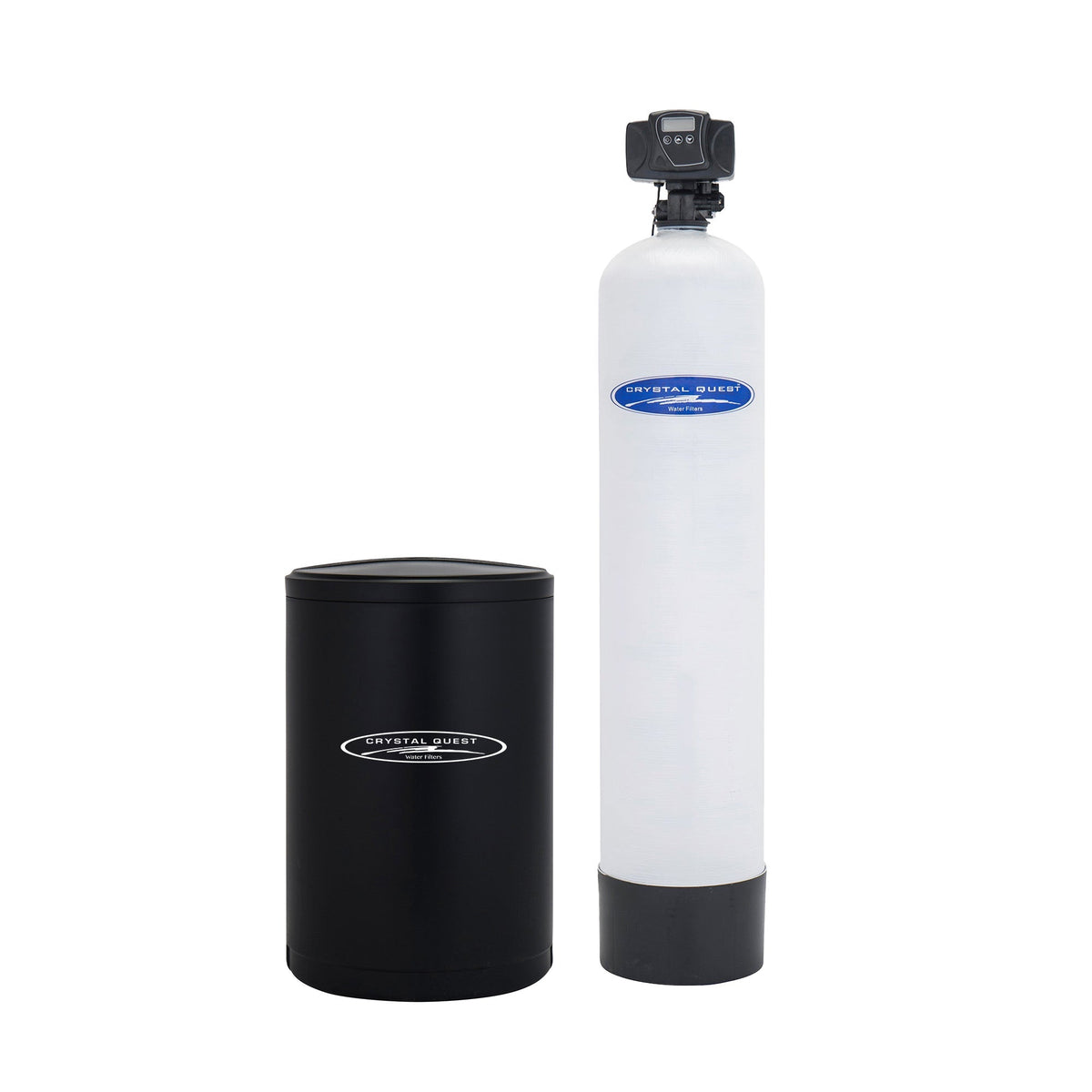

The Crystal Quest Commercial Water Softener System holds 1.5 cubic feet of ion exchange media in a 10" x 54" mineral tank for a rated capacity of 45,000 grains. It delivers 9-11 GPM of service flow through a 1" connection and is controlled by a 5600 automatic control head.
Highlights
- Ion exchange replaces calcium and magnesium hardness ions with sodium or potassium ions
- Three stages: 20" sediment cartridge, ion exchange mineral tank with brine tank, and 20" solid carbon cartridge
- All-brass 5600 control head with large LCD display and time clock or metered operation
- Reducing limescale helps protect pipes, boilers, and tanks from buildup
- Optional leak detector valve, vacuum breaker, metered valve, UV sterilizer, or ozone oxidation
Details
Avermont Direct is an authorized Crystal Quest dealer. This is the smallest unit in the Crystal Quest commercial softener range, suited to sites with 9-11 GPM of demand at 35-60 psi. Hard water limescale is stated to raise water heating costs by about 15-20%, so softening ahead of water heaters and equipment can reduce that load. Contact us before ordering if you want to add a metered valve, leak detector, or other option.
Need Help?
If you have questions about this product before you order, our team is happy to help.
Email: support@avermontdirect.com
Phone: +1 (844) 455-3695
Hours: Monday–Friday, 9AM–5PM
Live Chat: Available 24/7
| Grain Capacity | 45,000 |
| Media Volume | 1.5 cu. ft. |
| Service Flow | 9-11 GPM |
| Backwash Flow | 4 GPM |
| Pipe Size | 1" |
| Control Valve | 5600 (rated 15 GPM, 0.25-15 GPM accuracy range) |
| Operating Pressure | 35-60 psi |
| Mineral Tank Size | 10" x 54" |
| Brine Tank Capacity | 130 L / 36 gal. |
| Brine Tank Dimensions | 18" x 33" |
| Space Required (L x W x H) | 30 x 20 x 64 in. |
| Quartz | 15 lbs |
| Certifications | NSF Standard 42 and Standard 61 listed |
- Regeneration uses sodium chloride (salt) or potassium chloride
- Metered valve option can backwash on a set day interval (for example every 7 days) or a set gallon interval (for example 3,000 gallons)
- Stainless steel tanks may develop pinholes or rust in high humidity, where salt is present, or where condensation is not wiped down; a fiberglass tank is recommended for those conditions
- Replacement media: Eagle Water Softener Resin (CQE-RM-05002) and Eagle Multimedia (CQE-RM-05001)
