Description

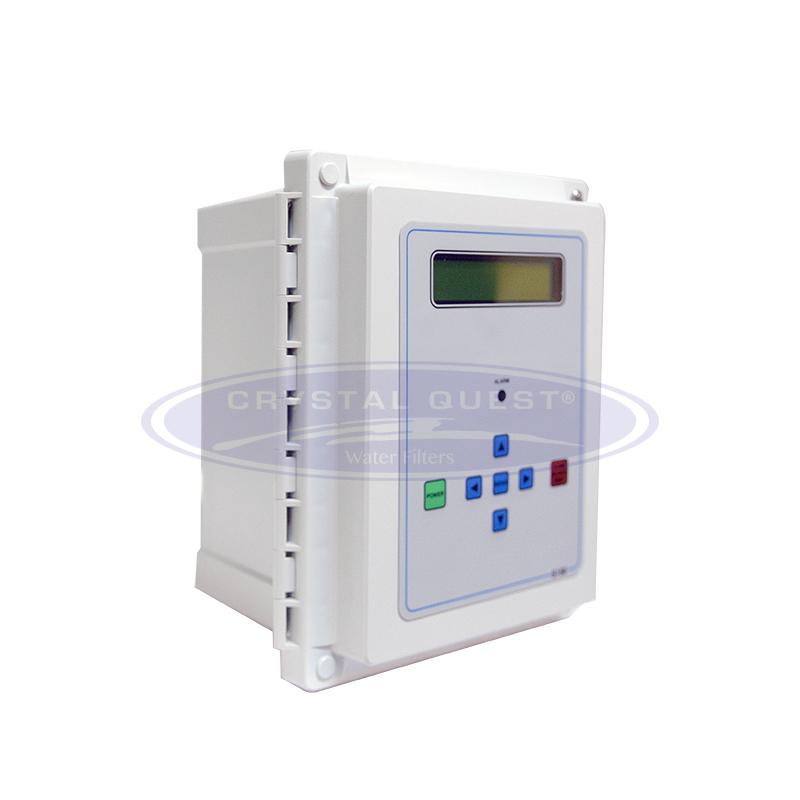

The Crystal Quest S-150 is a microprocessor controller for commercial and industrial reverse osmosis systems, with 5 relay outputs, 4 dry contact inputs and 2 TDS/conductivity inputs. Its 2-line by 20-character LED display shows operating status, water quality, operating hours and water temperature.
Highlights
- Pump relay runs a 1 HP single-phase pump motor directly, without external motor controls
- Relays operate the high-pressure pump, inlet valve, flush valve, permeate divert valve and remote alarm
- Dry contact inputs start and stop the RO unit based on inlet pressure, tank level and pretreatment status
- Temperature-compensated permeate TDS/conductivity monitoring
- Type 4X rated enclosure, 8" x 6" x 4"
- Choose the Standard controller or the Ethernet Upgrade
Details
Avermont Direct is an authorized Crystal Quest dealer. The S-150 is built for OEM flexibility, so it can be set up across a range of RO system specifications. Pumps above 1 HP single phase, or 3-phase systems, need motor starters, which can be housed in a larger custom enclosure.
Need Help?
If you have questions about this product before you order, our team is happy to help.
Email: support@avermontdirect.com
Phone: +1 (844) 455-3695
Hours: Monday–Friday, 9AM–5PM
Live Chat: Available 24/7
| Display | 2 line x 20 character LED |
| Relay Outputs | 5 |
| Dry Contact Inputs | 4 |
| TDS/Conductivity Inputs | 2 |
| Inlet Solenoid Valve Relay | 120/240 VAC, 5 amp maximum |
| RO Pump Relay | 120/240 VAC, 1 HP single phase maximum |
| Flush Solenoid Valve Relay | 120/240 VAC, 5 amp maximum |
| Power | 120/240 VAC -15+10%, 50/60 Hz, 25 Watts |
| Enclosure | 8" x 6" x 4", Type 4X (National Electrical Manufacturers Association rating) |
- Monitors the high-pressure pump motor, inlet solenoid valve, automatic flush solenoid valve, low feed pressure switch, high pump pressure switch, 1 or 2 tank level switches, permeate TDS/conductivity, water temperature, pretreatment lockout and operating hours
- Optional features: feed TDS/conductivity, I/O expander, permeate divert or remote alarm relay, auxiliary relay with tank-low input
- Can be custom configured in a larger enclosure that holds the controller and motor starters for larger 3-phase systems
- Crystal Quest's manual and data sheet for this controller are labeled C-150
