What's in this package
Everything shown here ships as part of this package. Select a piece to see its description, specs and manuals.
Description

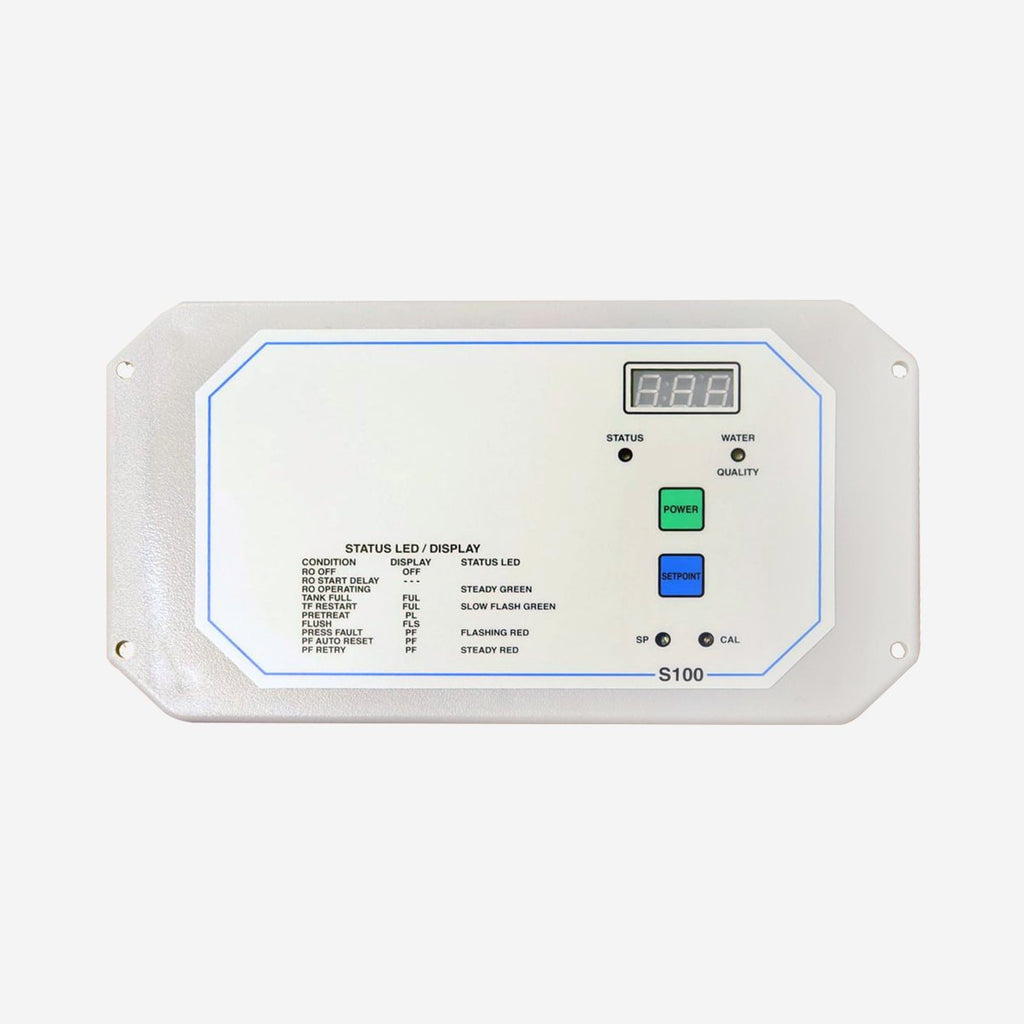

The Crystal Quest C-100 Controller monitors and controls light commercial reverse osmosis units, switching the RO pump, inlet solenoid valve and membrane flush solenoid valve. A built-in TDS monitor reads 0-1000 PPM and gives a system warning when your water quality setpoint is exceeded.
Highlights
- Relay control of the RO pump (up to 1 HP), inlet solenoid and flush solenoid
- TDS monitor with sensor, 0-1000 PPM, with field-adjustable setpoint and calibration
- Three-digit LED display and status LED show water quality and operating status
- Dry contact inputs for tank level, low and high pressure switches and pretreatment lockout
- Time delays on all inputs and outputs
- Runs on 120 VAC or 240 VAC, 50/60 Hz
Details
Avermont Direct is an authorized Crystal Quest dealer. The C-100 suits light commercial RO systems that need automated pump, inlet and flush control with continuous TDS monitoring. Check that your RO pump is single phase and 1 HP or less before ordering.
Need Help?
If you have questions about this product before you order, our team is happy to help.
Email: support@avermontdirect.com
Phone: +1 (844) 455-3695
Hours: Monday–Friday, 9AM–5PM
Live Chat: Available 24/7
| Model | C-100 |
| Part Number | CQE-CV-S0100 |
| Application | Light commercial reverse osmosis units |
| Power | 120 VAC or 240 VAC (-15/+10%), 50/60 Hz |
| TDS Monitor Range | 0-1000 PPM |
| Display | Three-digit LED, plus status LED |
| Inlet Solenoid Relay | 120/240 VAC, 5 amp maximum |
| RO Pump Relay | 120/240 VAC, 1 HP maximum, single phase |
| Flush Solenoid Relay | 120/240 VAC, 5 amp maximum |
| Switch Inputs | Low-pressure switch, RO storage tank full, pretreatment lockout (jumper-selectable NO or NC) |
| Operating Environment | -22°F to 140°F, 0-95% RH, non-condensing |
| Enclosure | 8.25" x 5.0" x 3.0", ABS plastic, panel mountable |
- Jumper-selectable flush type
- Quick disconnect high voltage terminals
- Plug-in terminals for switch inputs
- On/off operation
- Lockout input pauses the system during pretreatment backwash or regeneration
